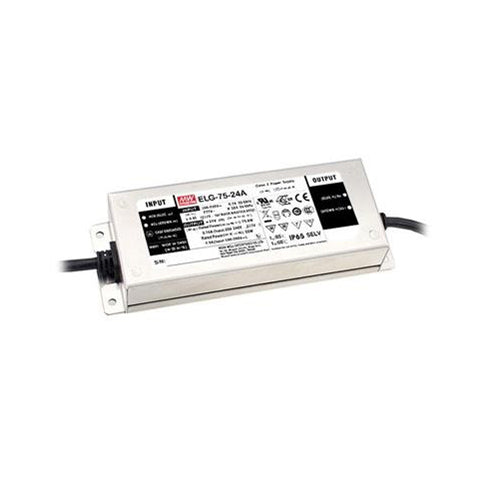

Mean Well ELG-75-24A-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 3.15A

metal caseIP65/IP675 years warranty

SKU ELG-75-24A-3Y

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The ELG-75-24A-3Y is a 75W Mean Well AC-DC LED driver (output: 24V, operating temperature: -40~+90°C).

Key Features

✓ Output voltage: 24V
✓ Rated output current: 3.15A
✓ Ingress protection: IP65
✓ Operating temperature: -40~+90°C
✓ Safety certifications: BSMI, CB, CE, EAC, UL
✓ 5 year warranty

Frequently Asked Questions

How does the ELG-75-24A-3Y differ from the ELG-75-24A?

The ELG-75-24A-3Y is the 3-wire input variant of the ELG-75-24A. It shares the same 75W output at 24V with a built-in potentiometer for voltage adjustment, but adds a dedicated earth ground wire input, an extended operating temperature of -40°C to +90°C, and a slightly heavier enclosure at 0.85 kg vs. 0.8 kg.

Is the ELG-75-24A-3Y appropriate for outdoor LED lighting in a covered or semi-exposed location?

The ELG-75-24A-3Y is rated IP65, which means it is sealed against dust ingress and can withstand low-pressure water jets. It is suitable for covered outdoor areas like canopies or sign boxes with ventilation gaps, but not for direct immersion or sustained heavy rain without additional enclosure protection.

Can the ELG-75-24A-3Y power 24V LED strip in a commercial or industrial facility?

Yes. The 3-wire input configuration suits commercial panel wiring that includes a ground conductor, and the 75W output at 24V covers LED strip runs for workstation under-lighting, industrial task lighting, or machine-status indicator strips at standard commercial voltages from 100–305VAC.

How many meters of 24V LED strip can the ELG-75-24A-3Y drive?

The ELG-75-24A-3Y outputs 75W at 24V. For a 10 W/m strip, that is up to 7.5 meters; for a 14.4 W/m strip, approximately 5.2 meters. Verify your strip's rated power per meter and apply a 20% derating margin for continuous duty.

Is the ELG-75-24A-3Y suitable for a hospitality lighting project where output needs fine-tuning at installation?

Yes. The built-in potentiometer lets the installer trim output voltage within the 24V range to match strip brightness requirements precisely during commissioning. This avoids over-driving strips in warm or compact luminaire housings common in hotel and restaurant installations.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well ELG-75-48 Power Supply 75W 48V 1.6A	76.8W	48V	1.6A	IP67	View
Mean Well ELG-75-12-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 5A	75W	12V	5A	IP67	View
Mean Well ELG-75-48 Power Supply 75W 48V 3-wire Input 1.6A	76.8W	48V	1.6A	IP67	View
Mean Well ELG-75-12DA Power Supply 60W 12V 3-wire Input - DALI 5A	60W	12V	5A	IP67	View
Mean Well S-ELG-75-24 Power Supply 75W 24V with AU/NZ plug 3.15A	75.6W	24V	3.15A	IP67	View
Mean Well ELG-75-48DA Power Supply 75W 48V - DALI 1.6A	76.8W	48V	1.6A	IP67	View
Mean Well ELG-75-48B Power Supply 75W 48V - Dimmable 1.6A	76.8W	48V	1.6A	IP67	View
Mean Well ELG-75-48AB Power Supply 75W 48V - Adjustable and Dimmable 1.6A	76.8W	48V	1.6A	IP65	View
Mean Well ELG-75-48A Power Supply 75W 48V - Adjustable 1.6A	76.8W	48V	1.6A	IP65	View
Mean Well ELG-75-42DA Power Supply 75W 42V - DALI 1.8A	75.6W	42V	1.8A	IP67	View
Mean Well ELG-75-42B Power Supply 75W 42V - Dimmable 1.8A	75.6W	42V	1.8A	IP67	View
Mean Well ELG-75-42AB Power Supply 75W 42V - Adjustable and Dimmable 1.8A	75.6W	42V	1.8A	IP65	View
Mean Well ELG-75-42A Power Supply 75W 42V - Adjustable 1.8A	75.6W	42V	1.8A	IP65	View
Mean Well ELG-75-42 Power Supply 75W 42V 1.8A	75.6W	42V	1.8A	IP67	View
Mean Well ELG-75-36DA Power Supply 75W 36V - DALI 2.1A	75.6W	36V	2.1A	IP67	View
Mean Well ELG-75-36D2-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 2.1A	75W	36V	2.1A	IP67	View
Mean Well ELG-75-36B Power Supply 75W 36V - Dimmable 2.1A	75.6W	36V	2.1A	IP67	View
Mean Well ELG-75-36AB Power Supply 75W 36V - Adjustable and Dimmable 2.1A	75.6W	36V	2.1A	IP65	View
Mean Well ELG-75-36A Power Supply 75W 36V - Adjustable 2.1A	75.6W	36V	2.1A	IP65	View
