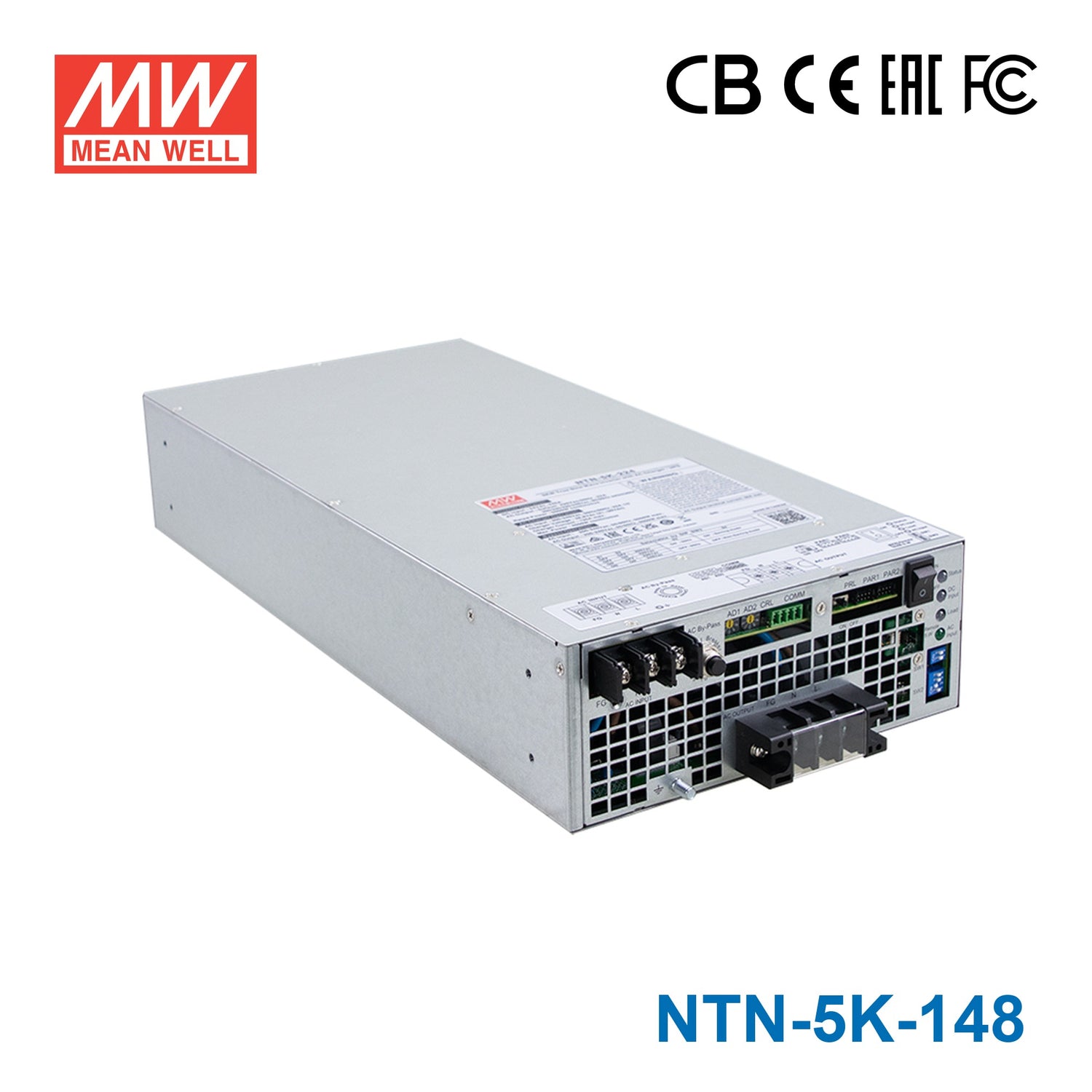

Mean Well NTN-5K-148 5KW True Sine Wave Inverter with AC Charger/UPS, 48V In 110V Out 36.4A

AC by-passconformal coatingparallel connection up to 30KW

SKU NTN-5K-148

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

NTN-5K-148 is the model of this series: typical efficiency 91%.

NTN-5K is a 5KW highly reliable off-grid true sine wave DC-AC power inverter with built-in AC charger and UPS function(AC by-pass). Its key features include: digital design with MCU control, streamlined control circuitry that quickly responds to environmental changes and improves reliability, high quality fan with low acoustic noise, 10KW peak power, adjustable AC output voltage and frequency, -30~+70℃ wide. Operating temperature range, complete protection features, and etc. Combined with batteries, the NTN-5K is suitable for use in residential, commercial, marine, automobile, mine, construction site, and remote areas with no access to utility power, and the output can be used to power fans, TV, radio, phone charger, PC/laptop, lighting, induction stove, air conditioner, electromechanical tool, communication equipment, power distribution cabinet, outdoor camping equipment, marine AC power, factory equipment, and etc.

Features

Combining AC/DC charger, DC/AC Inverter, AC by-pass & support external MPPT solar charger
AC utility charge up to 4520W
UPS function (AC by-pass) without interruption, transfer time <10ms
True sine wave output (THD<3%)
High surge power up to 10KW
Parallel synchronized operation up to 30KW (5+1 unit)
Temperature controlled cooling fan
AC output voltage and frequency selectable by DIP S.W
Protections : Input : Reverse polarity / DC low alarm / DC low shutdown / Over voltage Output : Short circuit / Overload / Over temp.
Battery over discharge protection (low voltage disconnect)
-30℃~+70℃ wide operating temperature
Suitable for lead-acid or li-ion batteries
Support MODBus-RTU(RS-485) or CANBus protocol communication
Graphical user interface controller for status monitoring and control CMU2E/CMU2E-R
Conformal coating
5 years warranty

Specifications

NTN-5K-148Specifications from the official datasheet (2025-06-17 edition)

AC OUTPUT

RATED POWER(Continuous): 4000W
OVER RATED POWER(3 Min.): 4600W
PEAK POWER(10 Sec.): 6000W
SURGE POWER(30 Cycles): 8000W
AC VOLTAGE: Default setting set at 110VAC 100 / 110 / 115 / 120Vac selectable by DIP S.W
FREQUENCY: Default setting set at 60±0.1Hz 50/60Hz selectable by DIP S.W
WAVEFORM^{Note. 1}: True sine wave (THD<3%)
AC REGULATION: ±3.0% at rated input voltage

DC INPUT

DC VOLTAGE: 48Vdc
VOLTAGE RANGE (Typ.): 38 ~ 66Vdc
DC CURRENT (Typ.): 100A
NO LOAD DISSIPATION (Typ.) NON-SAVING MODE: 1.4A
NO LOAD DISSIPATION (Typ.) SAVING MODE^{Note. 5}: Default disable, auto detect AC output load≦10W will be changed to saving mode <25W
POWER OFF CURRENT DRAW: ≦2mA
EFFICIENCY (Typ.)^{Note. 1}: 91%
BATTERY TYPES: Lead Acid or li-ion

PROTECTION

DC INPUT LOW ALARM: 44±1Vdc
DC INPUT LOW SHUTDOWN: 38±1Vdc
DC INPUT LOW RESTART: 50±1Vdc
DC INPUT HIGH ALARM: 62±1Vdc
DC INPUT HIGH SHUTDOWN: 66±1Vdc
DC INPUT HIGH RESTART: 60±1Vdc
REVERSE POLARITY: No damage, re-power on to recover after fault condition is removed
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down
OUTPUT SHORT: Shut down o/p voltage, re-power on to recover
OVER LOAD (Typ.): 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover
CIRCUIT BREAKER: 50A

FUNCTION

REMOTE CONTROL: Set remote ON/OFF control by front panel dry contact connector(by RELAY), Open : AC output OFF ; Short : AC output ON
COMMUNICATION: MODBus-RTU (RS-485) / CANBus

AC UPS MODE

AC INPUT RANGE: 100/110/115/120Vac±16%, recover±13%
FREQUENCY RANGE: 45 ~ 65Hz
TRASFER TIME(Typ.): 10ms inverter AC by pass

AC CHARGER

BOOST CHARGE VOLTAGE: Default 57.6Vdc
FLOAT CHARGE VOLTAGE: Default 55.2Vdc
CHARGE VOLTAGE RANGE: 40 ~ 60Vdc
CONSTANT CURRENT: 60A
MAX. CHARGE POWER: 3600W
TEMPERATURE COMPENSATION: By external NTC
POWER FACTOR (Typ.): PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 20A/110VAC
INRUSH CURRENT (Typ.): 25A/110VAC
LEAKAGE CURRENT(Peak): 4.7mA/264VAC

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃(Refer to “Derating curve”)
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -30 ~ +70℃ / -22 ~ +158℉, 10 ~ 95% RH non-condensing
VIBRATION: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: CB IEC62368-1, UL62368-1, CSA C22.2 No. 62368-1 , TUV BS EN/ EN62368-1 , EAC TP TC 004 approved
WITHSTAND VOLTAGE^{Note. 6}: DC I/P - AC:3.0KVAC AC - FG:1.5KVAC
ISOLATION RESISTANCE^{Note. 6}: DC I/P - AC O/P, DC I/P - FG, AC O/P - FG: 100M ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.4: Parameter Standard Test Level

Radiated FCC Class A
Conducted FCC Class A

OTHERS

MTBF: 200.9K hrs min. Telcordia TR/SR-332 (Bellcore) ; 17.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 460*211*83.5mm (L*W*H)
PACKING: 10.5Kg; 1pcs/ 10.5Kg/ 1.25CUFT

Test conditions and notes6

1.Efficiency, AC regulation and THD are tested by 75% load, linear load at 25Vdc/50Vdc/400Vdc input voltage.
2.All parameters not specified above are measured at 25Vdc/50Vdc/400Vdc input and 25℃ of ambient temperature and set to factory setting.
3.The tolerance of each voltage value by models is: 224→±0.5V; 248→±1V; 2380→±5V.
4.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
5.Saving mode only activates when the unit is used independently and the RPL switch is in the ON position.
6.During withstand voltage and isolation resistance testing, the screw "A" shall be temporarily removed, and shall be installed back after the testing.

Technical drawings

NTN-5K-148 SPECIFICATION — SPECIFICATION

NTN-5K-148 DERATING CURVE — DERATING CURVE

NTN-5K-148 CHARGING CURVE — CHARGING CURVE

NTN-5K-148 BLOCK DIAGRAM — BLOCK DIAGRAM

NTN-5K-148 Function Manual — Function Manual

NTN-5K-148 4.3Ø 4W and 1Ø 3W AC output Voltage connection… — 4.3Ø 4W and 1Ø 3W AC output Voltage connection…

NTN-5K-148 ◎3Ø 4-wire / Y — ◎3Ø 4-wire / Y

NTN-5K-148 ◎1Ø 3-wire(Split phase system only supports 124 and 148) — ◎1Ø 3-wire(Split phase system only supports 124 and 148)

NTN-5K-148 5.Temperature compensation(3 stage only) — 5.Temperature compensation(3 stage only)

NTN-5K-148 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

NTN-5K-148 Accessory List — Accessory List

NTN-5K-148 ※ Terminal protector mating along with NTN-5K (Standard… — ※ Terminal protector mating along with NTN-5K (Standard…

NTN-5K-148 Illustration (page 11) — Illustration (page 11)
