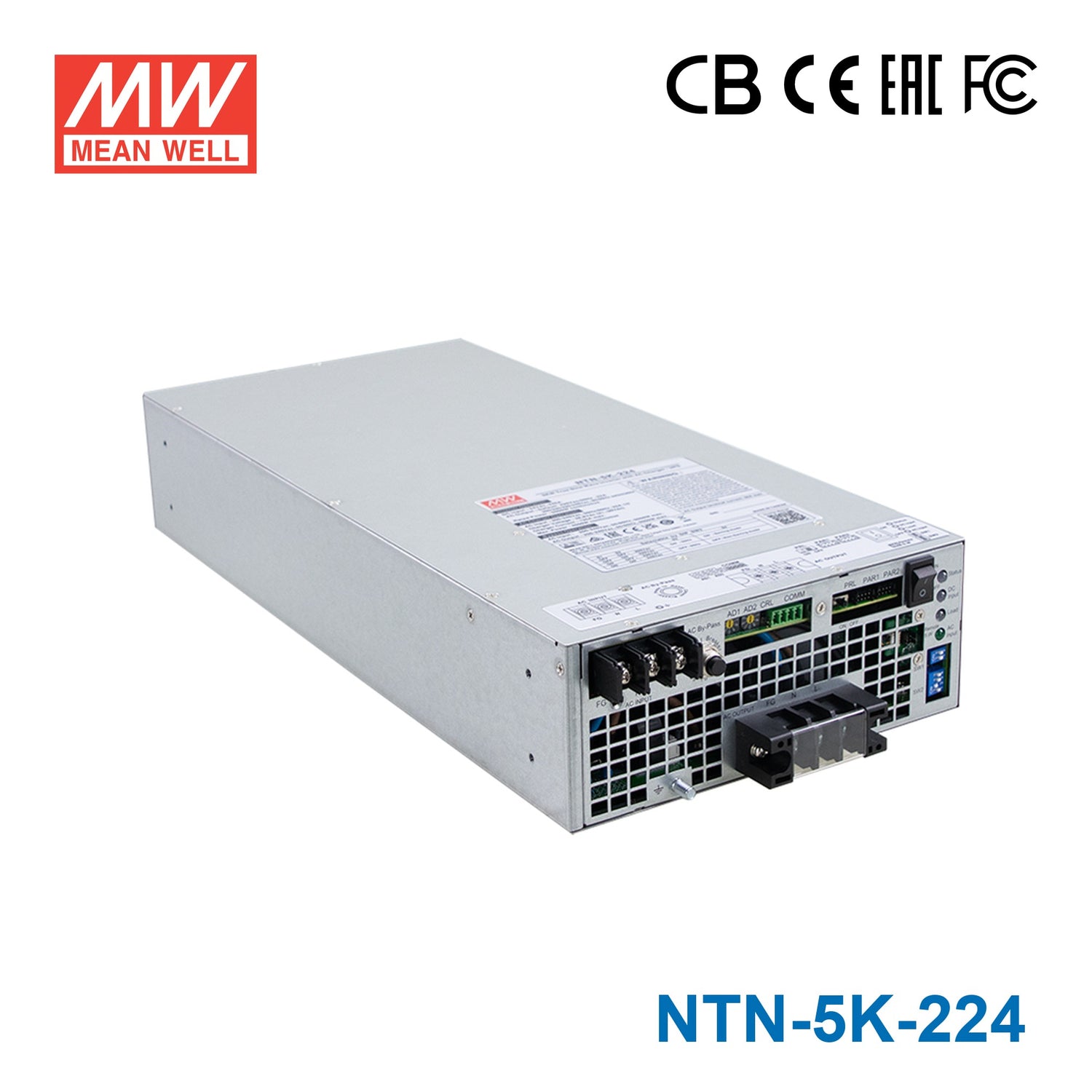

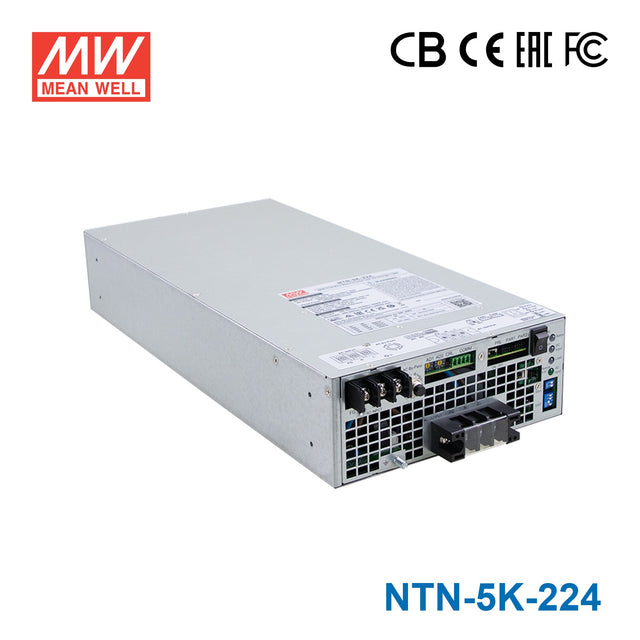

Mean Well NTN-5K-224 5KW True Sine Wave Inverter with AC Charger/UP...
Please Login for Pricing
Description
Description
Key Features
- ✓Multi-functional All-in-One device (AC-DC Charger + DC-AC Inverter for Load + AC Bypass for Load)
- ✓Built-in AC-DC high power charger up to 4520W
- ✓DC-AC pure sine wave output (THD<3%)
- ✓Instantaneous peak power of up to 10KW for AC output
- ✓Up to 6 units of AC output can be paralleled, expanding wattage up to 30KW (5+1 units)
- ✓Utilizes 3 NTN-5K unidirectional AC outputs, configurable for 3Ø4W usage
- ✓-30～+70℃ ultra-wide temperature range, suitable for global deployment or installation in enclosed environments
- ✓Built-in remote ON/OFF control
- ✓Protections:DC input: Reverse Polarity, Low Voltage Warning and Shutdown, Over Voltage, Battery Over DischargeAC output: Short Circuit, Overload, Over Temperature
- ✓DC input: Reverse Polarity, Low Voltage Warning and Shutdown, Over Voltage, Battery Over Discharge
- ✓AC output: Short Circuit, Overload, Over Temperature
- ✓Built-in Modbus or CAN bus communication monitoring
- ✓Optional intelligent controllers available for purchase:CMU2E (Stand-Alone Vertical Mounting / Rail Mounting) or CMU2E-R (Rack System Installation)
- ✓CMU2E (Stand-Alone Vertical Mounting / Rail Mounting) or CMU2E-R (Rack System Installation)
- ✓Dimensions (length x width x height): 460 x 211 x 83.5mm
- ✓PCB coating for basic moisture / dust / dirt protection
- ✓Certifications: CB / TUV / RCM / EAC / CE / UKCA / FCC
- ✓Compatible with lead acid or lithium batteries
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
Input Voltage19V~33V
-
Standards MetCB,CE,EAC,EN,FC
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~70°C
-
Length46 cm
-
Width21.1 cm
-
Height8.35 cm
-
Weight10.5 kg
