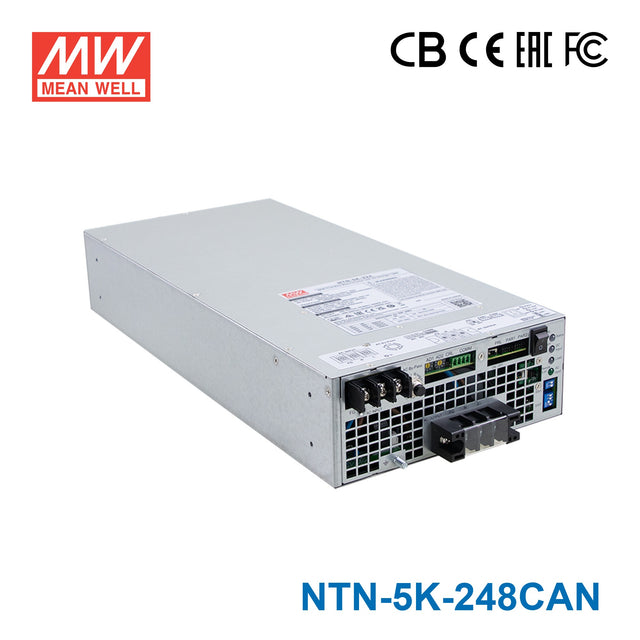

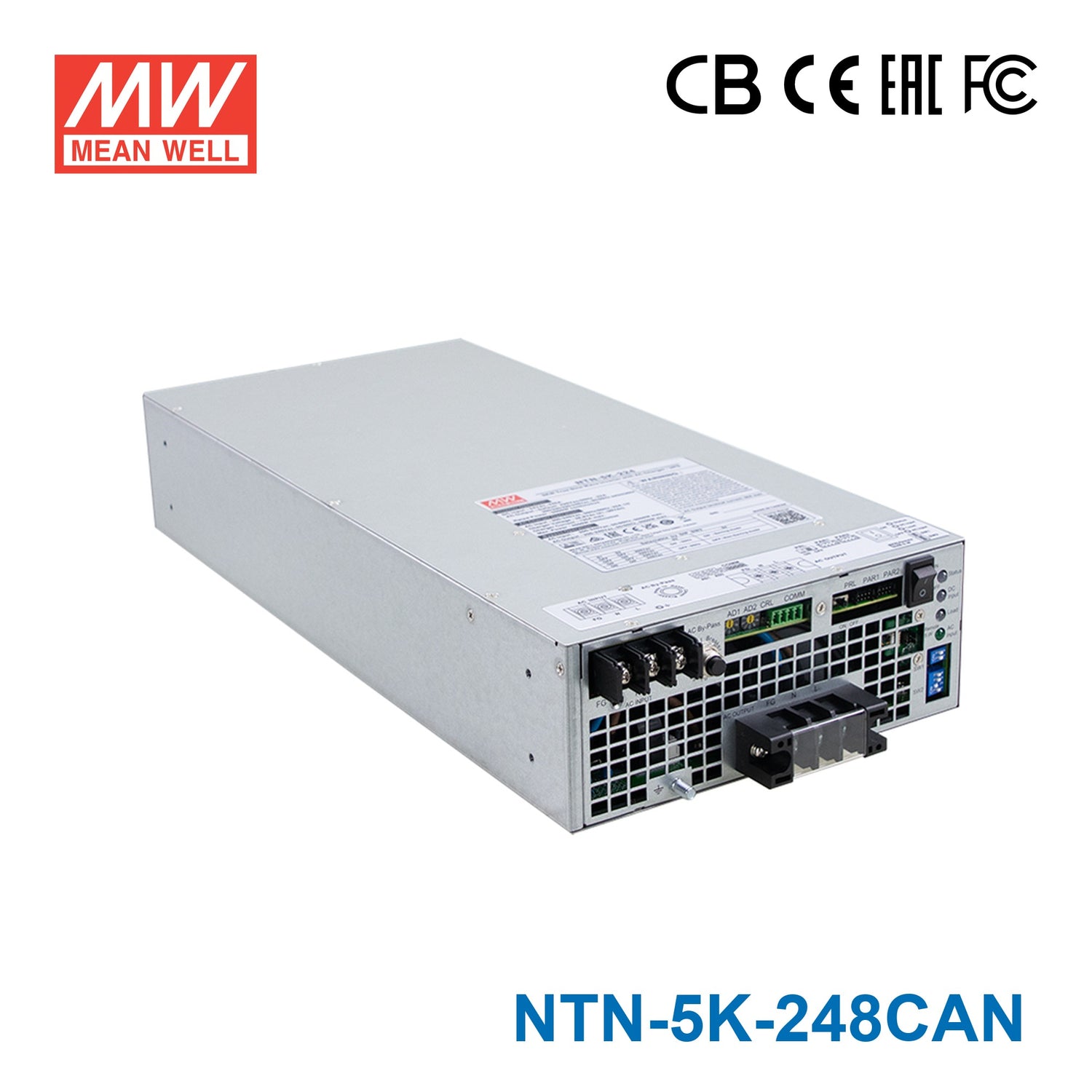

Mean Well NTN-5K-248CAN 5KW True Sine Wave Inverter with AC Charger/UPS, 48V In 230V Out 21.7A

AC by-passconformal coatingparallel connection up to 30KW

SKU NTN-5K-248CAN

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

NTN-5K-248CAN is the model of this series: typical efficiency 93%.

NTN-5K is a 5KW highly reliable off-grid true sine wave DC-AC power inverter with built-in AC charger and UPS function(AC by-pass). Its key features include: digital design with MCU control, streamlined control circuitry that quickly responds to environmental changes and improves reliability, high quality fan with low acoustic noise, 10KW peak power, adjustable AC output voltage and frequency, -30~+70℃ wide. Operating temperature range, complete protection features, and etc. Combined with batteries, the NTN-5K is suitable for use in residential, commercial, marine, automobile, mine, construction site, and remote areas with no access to utility power, and the output can be used to power fans, TV, radio, phone charger, PC/laptop, lighting, induction stove, air conditioner, electromechanical tool, communication equipment, power distribution cabinet, outdoor camping equipment, marine AC power, factory equipment, and etc.

Features

Combining AC/DC charger, DC/AC Inverter, AC by-pass & support external MPPT solar charger
AC utility charge up to 4520W
UPS function (AC by-pass) without interruption, transfer time <10ms
True sine wave output (THD<3%)
High surge power up to 10KW
Parallel synchronized operation up to 30KW (5+1 unit)
Temperature controlled cooling fan
AC output voltage and frequency selectable by DIP S.W
Protections : Input : Reverse polarity / DC low alarm / DC low shutdown / Over voltage Output : Short circuit / Overload / Over temp.
Battery over discharge protection (low voltage disconnect)
-30℃~+70℃ wide operating temperature
Suitable for lead-acid or li-ion batteries
Support MODBus-RTU(RS-485) or CANBus protocol communication
Graphical user interface controller for status monitoring and control CMU2E/CMU2E-R
Conformal coating
5 years warranty

Specifications

NTN-5K-248CANSpecifications from the official datasheet (2025-06-17 edition)

AC OUTPUT

RATED POWER(Continuous): 5000W
OVER RATED POWER(3 Min.): 5750W
PEAK POWER(10 Sec.): 7500W
SURGE POWER(30 Cycles): 10000W
AC VOLTAGE: Default setting set at 230VAC 200 / 220 / 230 / 240Vac selectable by DIP S.W
FREQUENCY: Default setting set at 50±0.1Hz 50/60Hz selectable by DIP S.W
WAVEFORM^{Note. 1}: True sine wave (THD<3%)
AC REGULATION: ±3.0% at rated input voltage

DC INPUT

DC VOLTAGE: 48Vdc
VOLTAGE RANGE (Typ.): 38 ~ 66Vdc
DC CURRENT (Typ.): 120A
NO LOAD DISSIPATION (Typ.) NON-SAVING MODE: 1.4A
NO LOAD DISSIPATION (Typ.) SAVING MODE^{Note. 5}: Default disable, auto detect AC output load≦10W will be changed to saving mode <25W
POWER OFF CURRENT DRAW: ≦2mA
EFFICIENCY (Typ.)^{Note. 1}: 93%
BATTERY TYPES: Lead Acid or li-ion

PROTECTION

DC INPUT LOW ALARM: 44±1Vdc
DC INPUT LOW SHUTDOWN: 38±1Vdc
DC INPUT LOW RESTART: 50±1Vdc
DC INPUT HIGH ALARM: 62±1Vdc
DC INPUT HIGH SHUTDOWN: 66±1Vdc
DC INPUT HIGH RESTART: 60±1Vdc
REVERSE POLARITY: No damage, re-power on to recover after fault condition is removed
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down
OUTPUT SHORT: Shut down o/p voltage, re-power on to recover
OVER LOAD (Typ.): 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover
CIRCUIT BREAKER: 35A

FUNCTION

REMOTE CONTROL: Set remote ON/OFF control by front panel dry contact connector(by RELAY), Open : AC output OFF ; Short : AC output ON
COMMUNICATION: MODBus-RTU (RS-485) / CANBus

AC UPS MODE

AC INPUT RANGE: 200/220/230/240Vac±16%, recover±13%
FREQUENCY RANGE: 45 ~ 65Hz
TRASFER TIME(Typ.): 10ms inverter AC by pass

AC CHARGER

BOOST CHARGE VOLTAGE: Default 57.6Vdc
FLOAT CHARGE VOLTAGE: Default 55.2Vdc
CHARGE VOLTAGE RANGE: 40 ~ 60Vdc
CONSTANT CURRENT: 70A
MAX. CHARGE POWER: 4200W
TEMPERATURE COMPENSATION: By external NTC
POWER FACTOR (Typ.): PF>0.98/230VAC at full load
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 25A/230VAC
INRUSH CURRENT (Typ.): 50A/230VAC
LEAKAGE CURRENT(Peak): 4.7mA/264VAC

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃(Refer to “Derating curve”)
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -30 ~ +70℃ / -22 ~ +158℉, 10 ~ 95% RH non-condensing
VIBRATION: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: CB IEC62368-1, UL62368-1, CSA C22.2 No. 62368-1 , TUV BS EN/ EN62368-1 , AS/NZS 62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE^{Note. 6}: DC I/P - AC:3.0KVAC AC - FG:1.5KVAC
ISOLATION RESISTANCE^{Note. 6}: DC I/P - AC O/P, DC I/P - FG, AC O/P - FG: 100M ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.4: Parameter Standard Test Level

Radiated BS EN/ EN55032(CISPR32), FCC Class A
Conducted BS EN/ EN55032(CISPR32), FCC Class A
Harmonic Current BS EN/ EN61000-3-12 Class A
Voltage Flicker BS EN/ EN61000-3-11
EMC IMMUNITY^Note.4: BS EN/EN55035, EN61000-6-2

Parameter Standard Test Level

ESD BS EN/ EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/ EN61000-4-3 Level 3
EFT / Burst BS EN/ EN61000-4-4 Level 3
Surge BS EN/ EN61000-4-5 Level 4, 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/ EN61000-4-6 Level 3
Magnetic Field BS EN/ EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/ EN61000-4-34 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Radiated	BS EN/ EN55032(CISPR32), FCC	Class A
Conducted	BS EN/ EN55032(CISPR32), FCC	Class A
Harmonic Current	BS EN/ EN61000-3-12	Class A
Voltage Flicker	BS EN/ EN61000-3-11

Parameter	Standard	Test Level
ESD	BS EN/ EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/ EN61000-4-3	Level 3
EFT / Burst	BS EN/ EN61000-4-4	Level 3
Surge	BS EN/ EN61000-4-5	Level 4, 2KV/Line-Line 4KV/Line-Earth
Conducted	BS EN/ EN61000-4-6	Level 3
Magnetic Field	BS EN/ EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/ EN61000-4-34	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 200.9K hrs min. Telcordia TR/SR-332 (Bellcore) ; 17.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 460*211*83.5mm (L*W*H)
PACKING: 10.5Kg; 1pcs/ 10.5Kg/ 1.25CUFT

Test conditions and notes6

1.Efficiency, AC regulation and THD are tested by 75% load, linear load at 25Vdc/50Vdc/400Vdc input voltage.
2.All parameters not specified above are measured at 25Vdc/50Vdc/400Vdc input and 25℃ of ambient temperature and set to factory setting.
3.The tolerance of each voltage value by models is: 224→±0.5V; 248→±1V; 2380→±5V.
4.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
5.Saving mode only activates when the unit is used independently and the RPL switch is in the ON position.
6.During withstand voltage and isolation resistance testing, the screw "A" shall be temporarily removed, and shall be installed back after the testing.

Technical drawings

NTN-5K-248CAN SPECIFICATION — SPECIFICATION

NTN-5K-248CAN DERATING CURVE — DERATING CURVE

NTN-5K-248CAN CHARGING CURVE — CHARGING CURVE

NTN-5K-248CAN BLOCK DIAGRAM — BLOCK DIAGRAM

NTN-5K-248CAN Function Manual — Function Manual

NTN-5K-248CAN 4.3Ø 4W and 1Ø 3W AC output Voltage connection… — 4.3Ø 4W and 1Ø 3W AC output Voltage connection…

NTN-5K-248CAN ◎3Ø 4-wire / Y — ◎3Ø 4-wire / Y

NTN-5K-248CAN ◎1Ø 3-wire(Split phase system only supports 124 and 148) — ◎1Ø 3-wire(Split phase system only supports 124 and 148)

NTN-5K-248CAN 5.Temperature compensation(3 stage only) — 5.Temperature compensation(3 stage only)

NTN-5K-248CAN MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

NTN-5K-248CAN Accessory List — Accessory List

NTN-5K-248CAN ※ Terminal protector mating along with NTN-5K (Standard… — ※ Terminal protector mating along with NTN-5K (Standard…

NTN-5K-248CAN Illustration (page 11) — Illustration (page 11)

Typical applications

Downloads

Datasheet1

NTN-5K-248CAN datasheetNTN_5K_spec.pdf · 2025-06-17 edition PDF Download

FAQ

What is the Mean Well NTN-5K-248CAN designed to do?

The NTN-5K-248CAN is a multi-function unit that combines an AC-DC charger, a DC-AC true sine wave inverter for the load, and an AC bypass function for the load. It is intended for high-power 48V battery-based systems that need reliable 230V AC output in one integrated platform.

What are the main output and power capabilities of this inverter?

This model is rated for 5000W continuous power, 5750W for 3 minutes, 7500W peak for 10 seconds and 10000W surge for 30 cycles. It provides pure sine wave output with THD below 3%, which is important for demanding electrical loads.

Can the NTN-5K-248CAN be used in larger or expandable power systems?

Yes. Up to 6 units can be connected in parallel on the AC output using the built-in active current sharing function; total output current must not exceed the rated current per unit x number of units x 95%. Three NTN-5K units can also be set by DIP switch for 3Ø 4-wire output.

Is this model compatible with different battery types?

Yes, the NTN-5K-248CAN is compatible with both lead acid (flooded, Gel and AGM) and li-ion batteries. That makes it suitable for a wider range of industrial, backup power, and energy storage applications using a 48V battery system.

Is the NTN-5K-248CAN suitable for harsh or enclosed environments?

This model has a working temperature range of -30 to +70 degrees C, with load derating at higher temperatures per the derating curve. Working humidity is 20% to 90% RH non-condensing and it is vibration-rated to 10-500Hz, 3G, which suits enclosed or industrial installations.

What monitoring and control options are available on this inverter?

The NTN-5K-248CAN includes built-in Modbus-RTU via RS-485 and CAN bus communication for system monitoring and integration. It also supports built-in remote ON/OFF control, and optional intelligent controllers such as the CMU2E and CMU2E-R are available separately.

What protection features are included in the NTN-5K-248CAN?

This model protects the DC input against reverse polarity, low voltage (alarm at 44V, shutdown at 38V) and high voltage (alarm at 62V, shutdown at 66V). On the AC output side, it includes short circuit, overload, and over temperature protection, plus a 35A circuit breaker, to help safeguard the unit during abnormal conditions.

What certifications and warranty come with this model?

The NTN-5K-248CAN is approved to CB IEC62368-1, UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1 and EAC TP TC 004, with EMC emissions to EN55032 and FCC Class A. The spec sheet does not state a warranty term, so please confirm warranty coverage with us before ordering.
