What is the output of the Envo SC-360-48 power supply?

The Envo SC-360-48 is a 360W constant-voltage power supply with a 48V DC output. Its rated current is 7.5A, making it suitable for 48V LED lighting systems and similar constant-voltage applications.

Is the Envo SC-360-48 dimmable?

Yes. This model supports AC phase-cut dimming and is designed to work with both leading-edge and trailing-edge TRIAC dimmers. The product description also notes strong compatibility and flicker-free dimming performance.

Can the Envo SC-360-48 be used outdoors?

Yes, this model is built with an IP66-rated aluminum housing for outdoor installation. It is also designed for free air convection cooling and operates in ambient temperatures from -40°C to 60°C.

What applications is the Envo SC-360-48 designed for?

The SC-360-48 is intended for LED lighting and moving sign applications that require a 48V constant-voltage power supply. Its TRIAC dimming support makes it a fit for projects where phase-cut dimming compatibility is required.

What AC input range does the Envo SC-360-48 support?

This power supply accepts a 200-240V AC input range. That makes it suitable for projects using that mains voltage range while delivering a regulated 48V output.

What are the main protection and reliability features of the Envo SC-360-48?

The SC-360-48 includes protection for short circuit, overloading, and over temperature conditions. It also has built-in active PFC, up to 89% efficiency, and comes with a 5-year warranty.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

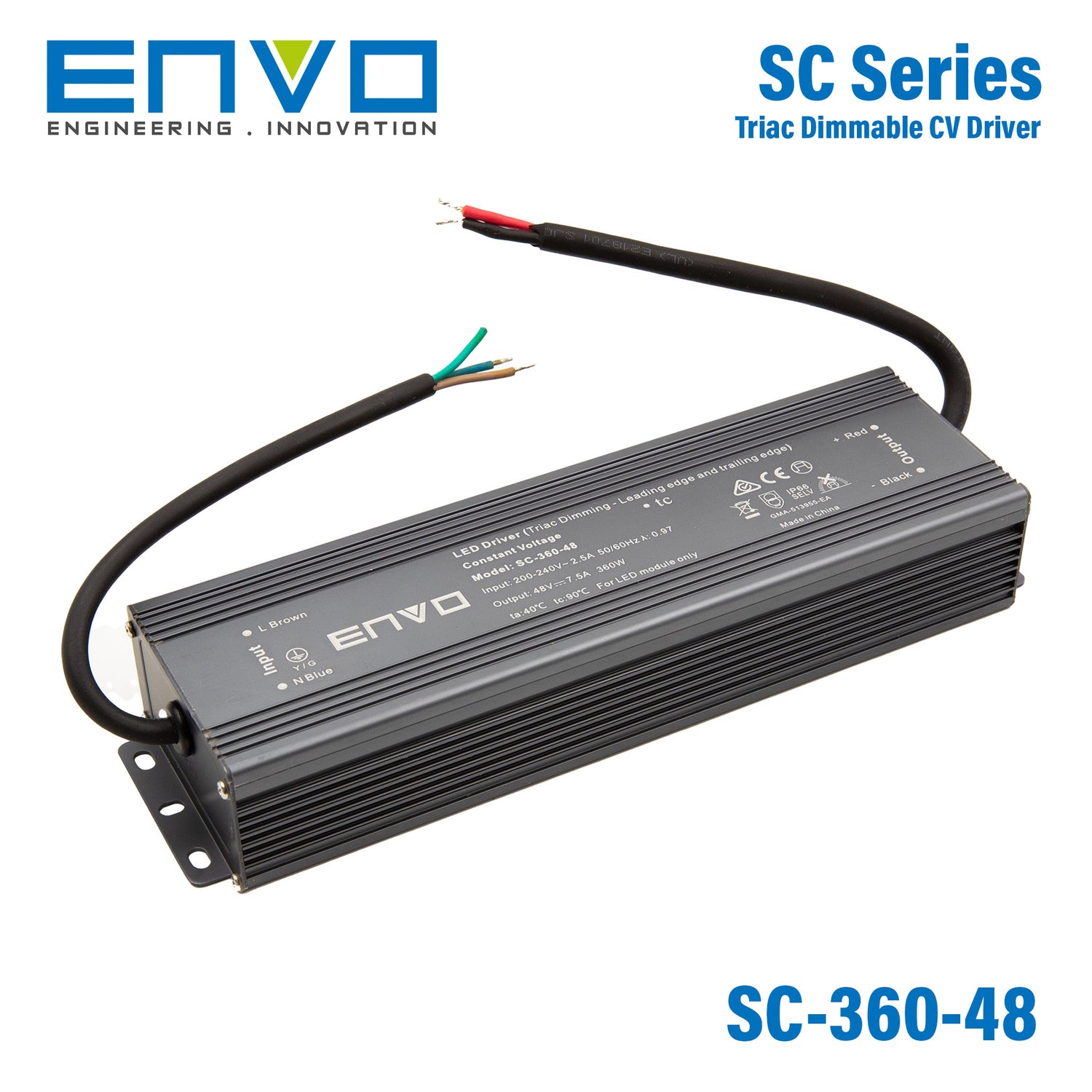

Envo

AC Triac Dimmable driver 200-240Vac 360W 48V No Load Requirement 7.5A

triac dimmable

SKU SC-360-48

Log in to see price Trade pricing & online ordering for account holders

Select model — 3 in this family

SC-360-48

SC-150-48 150W 48V Low stock

SC-360-48 200W 48V In stock

SC-300-48 300W 48V Low stock

Product variants

Notify me when it's back in stock

The SC-360-48 is a 360W ENVO AC-DC constant voltage LED driver (input: 200~240VAC, output: 48V, operating temperature: -40~+60°C).

Key Features

✓ Input voltage: 200~240VAC
✓ Output voltage: 48V
✓ Rated output current: 7.5A
✓ TRIAC (phase-cut) dimmable
✓ Ingress protection: IP66
✓ Operating temperature: -40~+60°C
✓ Safety certifications: CE, RCM, SAA, TÜV
✓ 5 year warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Envo SC-360-24 Power Supply 360W 24V - Triac dimmable 15A	360W	24V	15A	IP66	View
