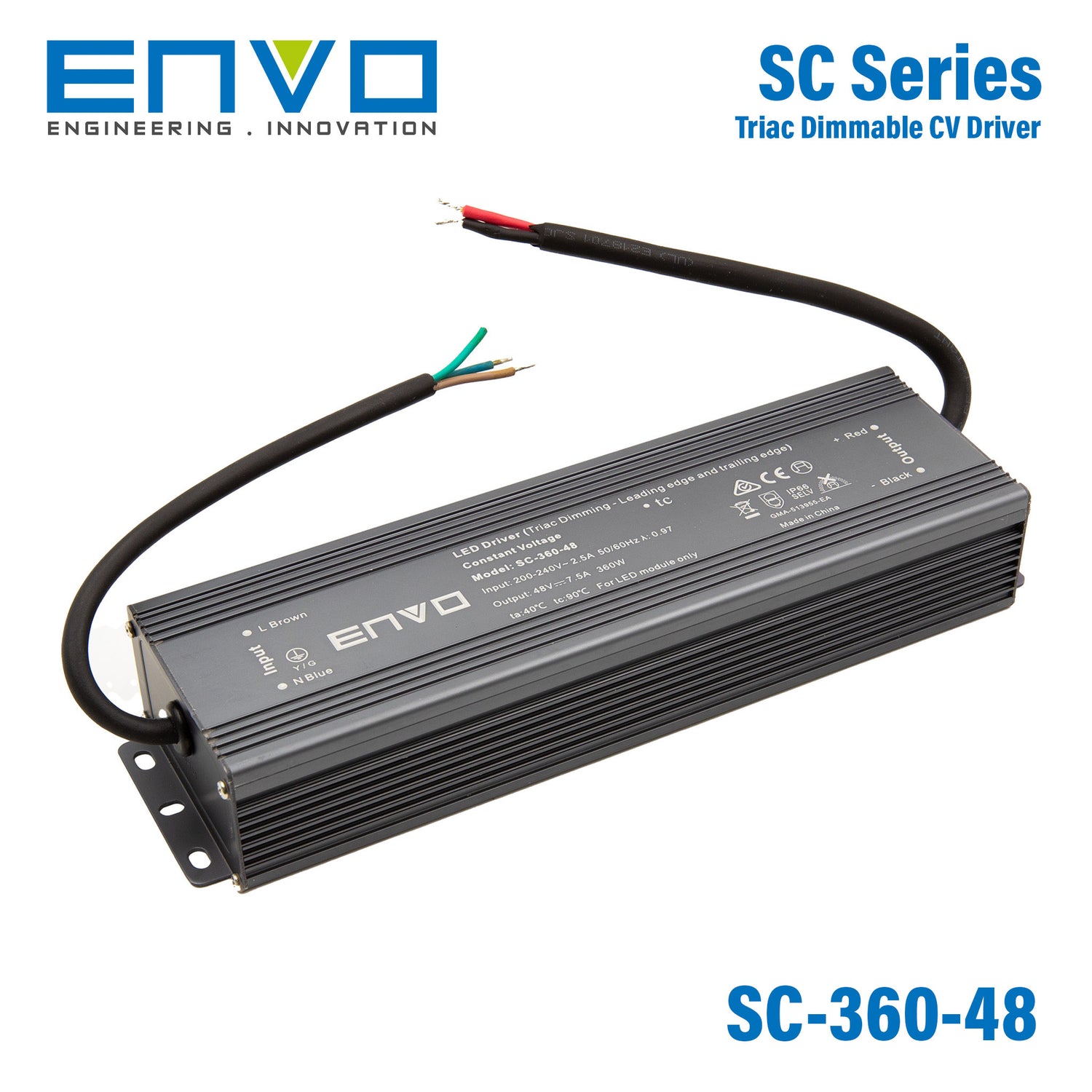

AC Triac Dimmable driver 200-240Vac 360W 48V No Load Requirement 7.5A

triac dimmable

SKU SC-360-48

Log in to see price Trade pricing & online ordering for account holders

Select model — 3 in this family

SC-360-48

SC-150-48 150W 48V Low stock

SC-360-48 200W 48V In stock

SC-300-48 300W 48V Low stock

Product variants

In stock

Overview

SC-360-48 is the 48V output model of this series: rated current 7.5A, rated power 360W, typical efficiency 91%@230VAC.

Features

Output: Constant Voltage
Range: 200-240VAC
PFC design: Built-in active PFC function
Efficiency: Up to 91%
Protections: Short circuit/ over load/ over temperature
Heat dissipation: Cooling by free air convection
Waterproof performance: IP66
Dimming function: Phase dimming: work with leading edge, MLV and trailing edge, ELV, TRIAC dimmers.
Dimming range: 0-100%
Warranty: 5 years warranty

Specifications

SC-360-48Specifications from the official datasheetDownload datasheet PDF

Certificate

Certificate: SAA / CE / RoHS

Output

DC Voltage: 48V
Voltage Tolerance: ±0.5V
Voltage Regulation: ±0.5%
Rated Current: 7.5A
Rated Power: 360W
Load Regulation: ≤1%

Input

Voltage Range: 200-240VAC
Frequency Range: 50Hz
Power Factor (TYP) @ Full Load: PF≥0.95@230V
THD(Typ.)@ Full Load: ≤15% @230VAC, Full Load
Efficiency(Typ.)@ Full Load: 91% @230VAC, Full Load
AC Current (Max.): 2.03A
Inrush Current(Typ.): 108A, 50%, 58us @230VAC
Leakage Current: <0.5mA

Protection

Short Circuit: Hiccup mode, re-power on to recover after fault condition removed
Over Load: ≤120% Hiccup mode, recovers automatically after fault condition is removed
Over Temperature: Shell surface temp. 100°C±10°C shut down o/p voltage, automatically recover after the temperature drops.

Environment

Working TEMP.: -40~+60°C (see below derating curve)
Working Humidity: 20 - 95% RH non-condensing
Storage TEM.,Humidity: -40 - +80°C, 10 - 95% RH non-condensing
TEMP.coefficient: ±0.03%/°C (0 - 50°C)
Vibration: 10~500Hz, 5G 12min/1 cycle, period for 72min. each along X,Y,Z axes

Safety&EMC

Safety standards: EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage: I/P-O/P: 3.75KVAC(EU), I/P-FG: 1.5KVAC(EU), I/P-FG: 0.5KVAC(EU)
Isolation resistance: I/P-O/P: 100MΩ / 500VDC / 25°C / 70%RH
EMC Emission: Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017

Others

Net Weight: 1.65kg
Dimension: 276*78*47mm (L*W*H)
Packing: 390*310*185mm, 10

Test conditions and notes2

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Tolerance: includes set up tolerance and load regulation.

Technical drawings

SC-360-48 Efficiency Curve (Efficiency vs Output load) — Efficiency Curve (Efficiency vs Output load)

SC-360-48 Derating Curve (Output load vs TEMP.) — Derating Curve (Output load vs TEMP.)

SC-360-48 Power Factor Curve — Power Factor Curve

SC-360-48 Mechanical Specification — Mechanical Specification

SC-360-48 TRIAC/Phase cut dimming — TRIAC/Phase cut dimming

SC-360-48 TRIAC/Phase cut dimming (2) — TRIAC/Phase cut dimming (2)

Typical applications

Suitable for the application of LED lighting

Downloads

Datasheet1

SC-360-48 datasheetEnvo_SC_360W.pdf PDF Download

FAQ

What is the output of the Envo SC-360-48 power supply?

The Envo SC-360-48 is a 360W constant-voltage power supply with a 48V DC output. Its rated current is 7.5A, making it suitable for 48V LED lighting systems and similar constant-voltage applications.

Is the Envo SC-360-48 dimmable?

Yes. This model supports phase-cut dimming and is designed to work with leading-edge, trailing-edge, MLV, ELV, and TRIAC dimmers. The product description also notes strong compatibility and flicker-free dimming performance.

Can the Envo SC-360-48 be used outdoors?

Yes, this model is built with an IP66-rated aluminum housing for outdoor installation. It is also designed for free air convection cooling and operates in ambient temperatures from -40°C to 60°C.

What applications is the Envo SC-360-48 designed for?

The SC-360-48 is intended for LED lighting and moving sign applications that require a 48V constant-voltage power supply. Its TRIAC dimming support makes it a fit for projects where phase-cut dimming compatibility is required.

What AC input range does the Envo SC-360-48 support?

This power supply accepts a 200-240V AC input range. That makes it suitable for projects using that mains voltage range while delivering a regulated 48V output.

What are the main protection and reliability features of the Envo SC-360-48?

The SC-360-48 includes protection for short circuit, overloading, and over temperature conditions. It also has built-in active PFC, up to 91% efficiency, and comes with a 5-year warranty.
