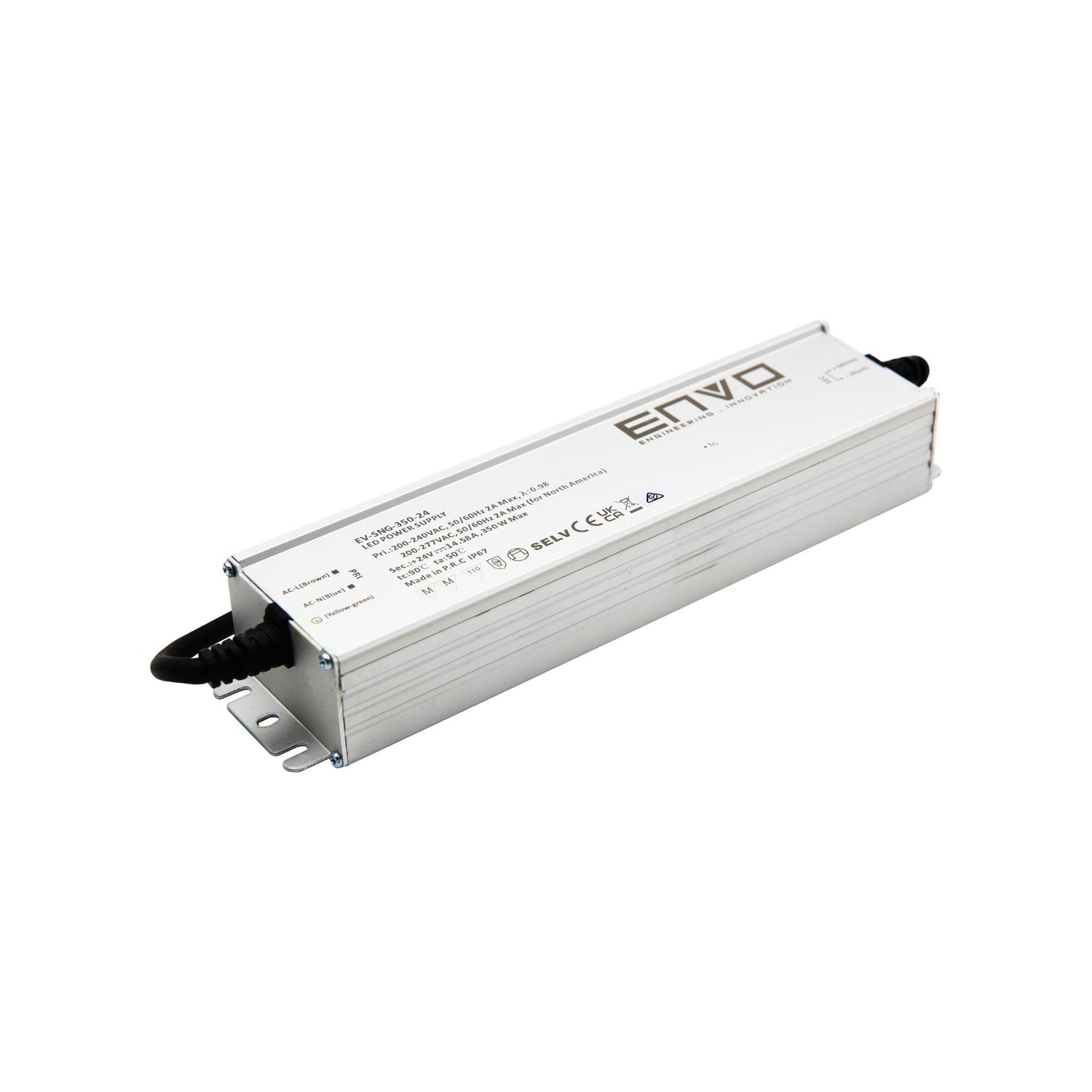

Envo EV-SNG-350-24 LED Driver 350W 24V Waterproof IP67 14.58A
Log in to see priceThe EV-SNG-350-24 is a 350W ENVO AC-DC constant voltage LED driver (input: 180~305VAC, output: 24V, operating temperature: -40~+70°C).
Key Features
- ✓ Input voltage: 180~305VAC
- ✓ Output voltage: 24V
- ✓ Rated output current: 14.58A
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+70°C
- ✓ Safety certifications: CE, RCM, SELV
- ✓ 5 year warranty
-
BrandEnvo
-
SeriesENVO SNG Series
-
Power Rating350 Watt
-
Output Voltage24 Volt
-
Rated Current14.58 Ampere
-
Input Voltage180V~305V
-
Standards MetCE,RCM,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length26.1 cm
-
Width6.25 cm
-
Height4.14 cm
-
Weight1.4 kg
::specification::
Frequently Asked Questions
What type of LED applications is the Envo EV-SNG-350-24 designed for?
The EV-SNG-350-24 is a 24V constant voltage LED driver intended for higher-power indoor and outdoor lighting systems. Based on its 350W output, IP67 enclosure, and durability features, it is well suited to applications such as street lighting, floodlights, architectural illumination, and commercial LED projects.
Is the Envo EV-SNG-350-24 suitable for outdoor or wet environments?
Yes. This model has an IP67-rated metal housing with full internal potting, which is designed to resist dust and water ingress. That makes it a strong choice for demanding environments where weather resistance and long-term durability matter.
What are the main electrical specifications of the EV-SNG-350-24?
This model provides 24V DC constant voltage output with a maximum rated current of 14.58A and total output power of 350W. It supports a wide 180-305VAC input range and is specified with efficiency up to 94.6%, power factor of at least 0.98, and THD below 10%.
Is the Envo EV-SNG-350-24 dimmable?
No. The EV-SNG-350-24 is specified as a non-dimmable LED driver. It is intended for applications that require stable 24V constant voltage output rather than integrated dimming control.
How does this model compare with lower-power 24V LED drivers?
The EV-SNG-350-24 is designed for larger 24V lighting loads, offering 350W total power and up to 14.58A output current. Compared with lower-power 24V drivers, it is better suited to more demanding commercial or architectural systems where higher wattage capacity and robust environmental protection are required.
What protection and reliability features does the EV-SNG-350-24 include?
This model includes active PFC, surge protection rated at DM 4kV and CM 6kV, and protections for short circuit, overload, overvoltage, and overtemperature. It also uses fanless natural air convection cooling and is backed by a 5-year warranty for long-service applications.
What temperature range can the Envo EV-SNG-350-24 operate in?
The EV-SNG-350-24 is rated for operation from -40°C to +70°C. That wide range makes it suitable for harsh climates and demanding industrial or outdoor lighting environments.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other EV-SNG Models
1 other model| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Envo EV-SNG-350-12 LED Driver 300W 12V Waterproof IP67 25A | 300W | 12V | 25A | IP67 | View |
