Envo

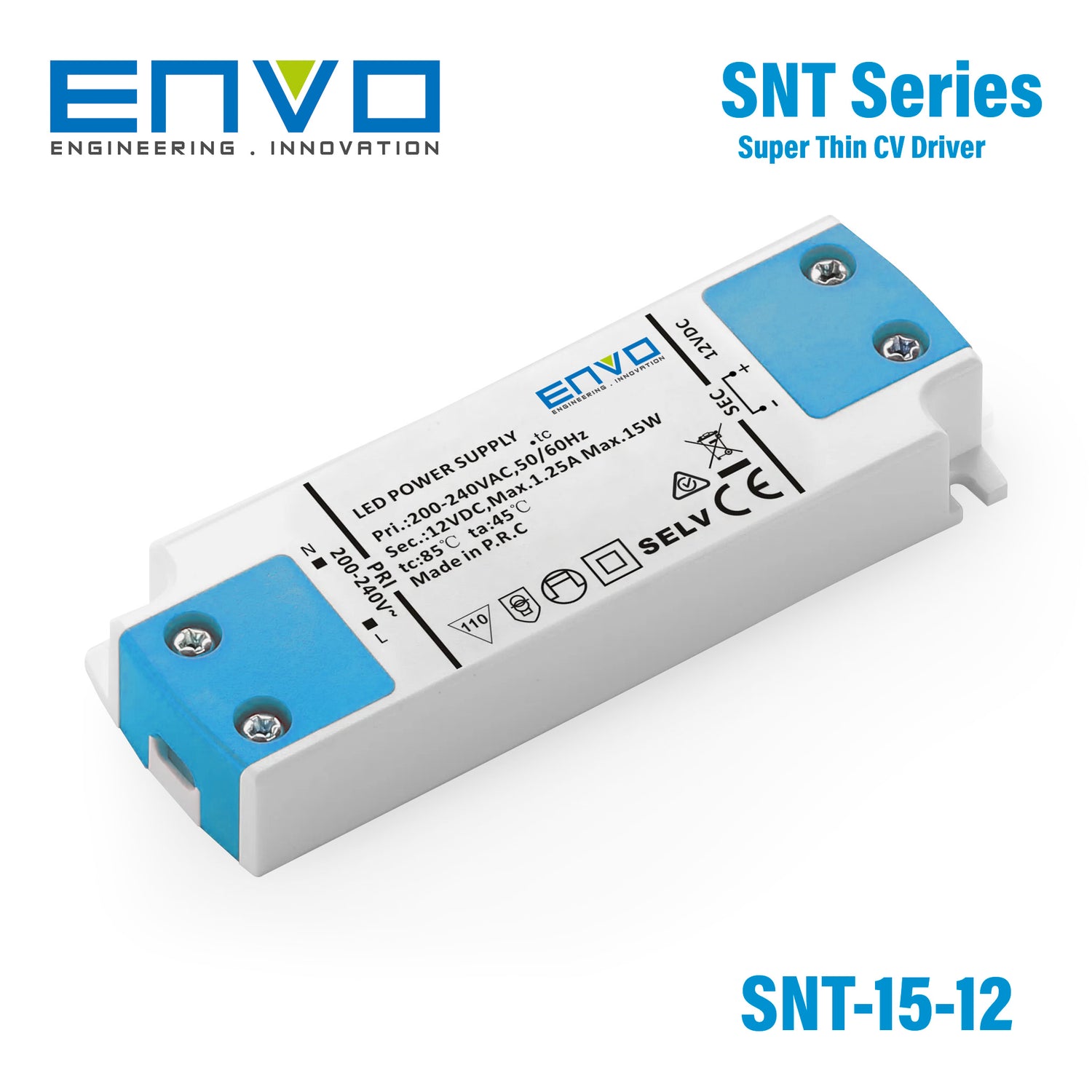

Envo EV-SNT-15-12 Super Thin LED Driver 15W 12V 1.25A

screw terminalultra thin
SKU EV-SNT-15-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 2 in this family

EV-SNT-15-12
In stock
|

Overview

EV-SNT-15-12 is the 12V output model of this series: rated current 0-1.25A, rated power 15W.

EV-SNT-15-12, EV-SNT-15-24 is an indoor ultra thin constant voltage LED driver. Its input voltage range is 180-264Vac, witha maximum conversion efficiency of 85%, working at -20 ° C~+45 ° C ambient temperature range, with high power factor and low total harmonic distortion, can pass the EN61000-3-2 harmonic standard, low standbypower consumption and all-round protection functions, which not only greatly improves the reliability of the product, but also ensures the product life cycle. This series is designed for LED lighting, and applied to indoor bathroom mirror lamp and other lighting fixtures.

Features

  • High Cost Performance,SELV.
  • Compliance to worldwide saftey regulations for lighting.
  • Open circuit / Short circuit / overload / over temperature protection.
  • Compliance to ERP directive.
  • Screw terminals for easy installation

Specifications

EV-SNT-15-12Specifications from the official datasheetDownload datasheet PDF

Output

DC Voltage
12V
Voltage Tolerance
±5%
Rated current
0-1.25A
Rated power
15W

Input

Voltage Range
AC 180V - 264V
Frequency Range
50-60HZ
Power Factor
0.75 - 0.80
Full Load Efficiency (Typ.)
83%
AC Current (Max.)
0.4A/230V
Leakage current
0.7mA 230Vac/50HZ

Protection

Short Circuit
Short circuit power ≤0.6W
Over load
1.5 times of rated output voltage

Environment

Working TEMP.
-20 - 45°C
Working Humidity
10%RH - 90%RH
Storage TEM.,Humidity
-40°C to 85°C, 5%RH - 95%RH
TEMP.coefficient
±0.03%/°C (0 ~ 60°C)

Safety&EMC

Safety standards
EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage
Input-Output 3750V/5mA/1min
Isolation resistance
>5M Ohm/500VDC/25°C/70%RH
EMC EMISSION
Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017
EMC immunity
Compliance to EN-61547:2009, EN-61000-4-2,3,4,5,6,11

Others

Weight
0.0585KG
Size
103*35.5*16mm (L*W*H)
Packing
200PCS

Notes

Warranty
5 years

Certifications & ratings

Marked features
SELV

Technical drawings

EV-SNT-15-12 Mechanical Specification
Mechanical Specification
EV-SNT-15-12 Mechanical Specification (2)
Mechanical Specification (2)
EV-SNT-15-12 Derating Curve
Derating Curve

Downloads

FAQ

What is the output of the Envo EV-SNT-15-12 LED driver?

The Envo EV-SNT-15-12 is a 15W constant voltage LED driver with a 12V output. It is rated for 1.25A current, making it suitable for 12V LED lighting products that match those electrical requirements.

Is the Envo EV-SNT-15-12 a dimmable LED driver?

No, this model does not include a dimming control function. It is intended for applications where a fixed 12V output is needed without built-in dimming capability.

What types of applications is the EV-SNT-15-12 best suited for?

This model is designed for constant voltage LED lighting applications that require 12V output and up to 15W of power. It can be a practical choice for compact commercial or trade lighting setups where a slim driver format and straightforward performance are important.

What protection features does the Envo EV-SNT-15-12 include?

The EV-SNT-15-12 includes open circuit, short circuit, and overload protection. These built-in protections help support reliable operation in lighting applications and add an extra layer of safety for the driver itself.

What temperature range can this LED driver operate in?

This model is rated for operation from -20°C to 45°C. That makes it suitable for a range of indoor or protected-environment lighting applications, provided the ambient temperature stays within that range.

Does the EV-SNT-15-12 meet safety or efficiency standards?

This driver complies with worldwide safety regulations for lighting and the ERP directive. It is also identified as SELV, which is relevant for low-voltage lighting applications.

What warranty is offered with the Envo EV-SNT-15-12?

The Envo EV-SNT-15-12 includes a 5-year warranty period. That can make it a stronger option for buyers looking for longer-term coverage on a compact 12V LED driver.
