Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

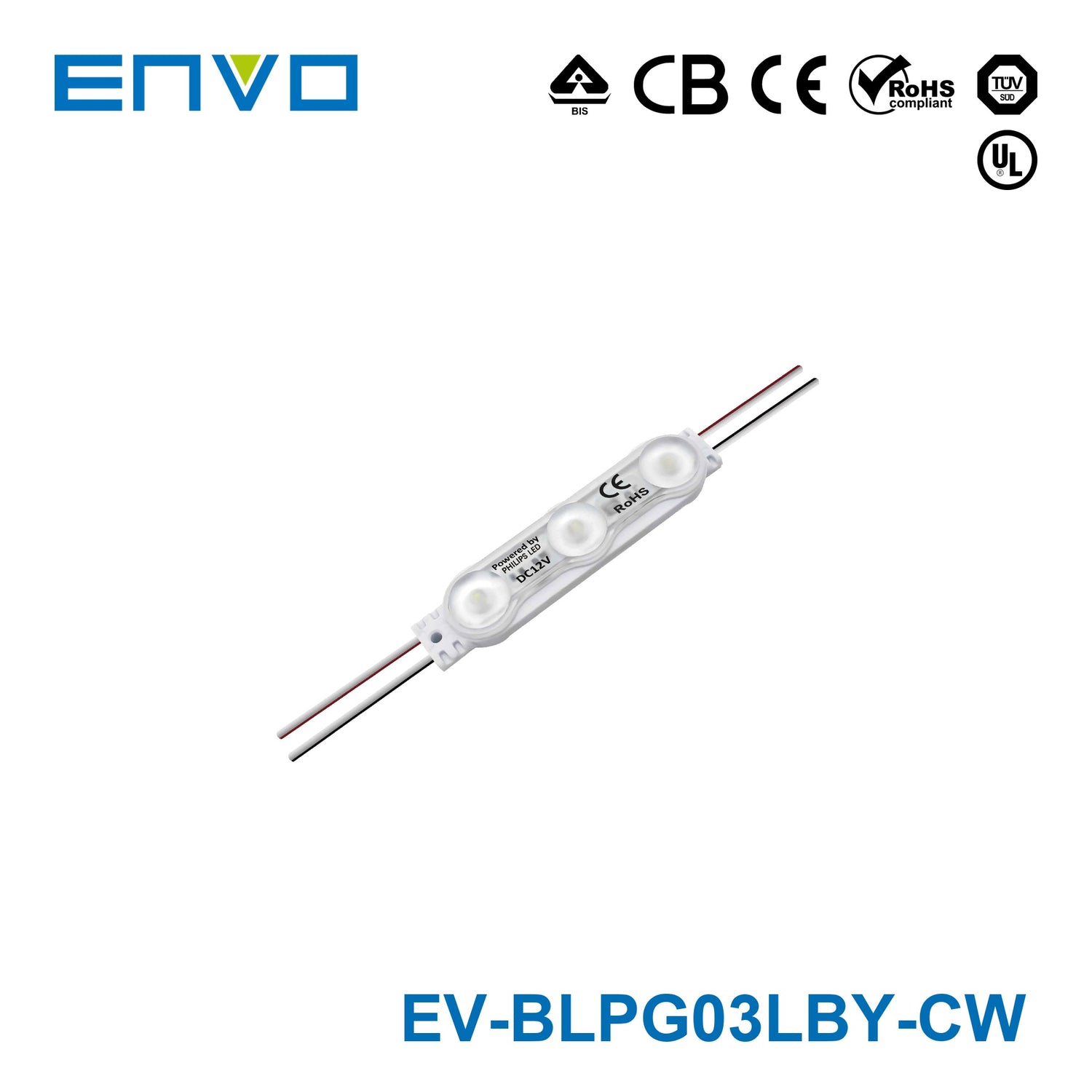

ENVO ProGlo LED Module Backlit - Triple LED

12V 1.08W IP66 - Philips LED

SKU EV-BLPG03LBY-CW

Log in to see price Trade pricing & online ordering for account holders

Select model — 4 in this family

EV-BLPG03LBY-CW

EV-BLPG01LBY-CW Single LED Backorder

EV-BLPG02LBY-CW Double LED Backorder

EV-BLPG03LBY-CW Triple LED Backorder

EV-BLPG04LBY-CW Quad LED Backorder

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

Plan your sign — free Auto-place this module & size the driver. Open →

Notify me when it's back in stock

The ENVO ProGlo Backlit Triple LED module is a commercial-grade 12V backlighting module engineered for illuminated channel letters and backlit sign cabinets where consistent, high-quality output and long service life are essential. Powered by Philips LED chips, it delivers a wide 170° beam that illuminates the sign face evenly and reliably across three LEDs, minimising hotspots above each module and maintaining colour consistency across long runs. Running on a standard 12V DC constant voltage supply and fully dimmable, it carries IP66 water and dust resistance making it well suited to both indoor and exposed outdoor sign installations, certified to CB, CE, RoHS, TÜV, and UL standards.

Key Features

✓ Input voltage: 12V DC
✓ Power: 1.1W per module
✓ Beam angle: 170°
✓ Module dimensions: 78 × 18.5 × 9.6 mm
✓ Module pitch: 173 mm
✓ Max modules per series: 20
✓ Rated current: 0.09A
✓ CRI: 80
✓ Dimmable
✓ Ingress protection: IP66
✓ Operating temperature: −25°C to +60°C
✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
✓ Safety certifications: CB, CE, RoHS, TÜV, UL
✓ 5 year warranty

Frequently Asked Questions

What is the ENVO ProGlo LED Module Backlit - Triple LED designed for?

This LED module is designed for backlit signage in commercial and public environments. The product description highlights use in high-traffic locations such as airports, metros, banks, buildings, and shopping malls. It is intended for signs with depths from 6 to 15 cm.

What light output and beam spread does this LED module family offer?

All variants in this family are rated at 165 lumens and use a wide 170 degree beam angle. That broad distribution helps deliver more even illumination across backlit sign faces. The modules also use a constant current design with 12V input as described in the product data.

What color temperature options are available in this product family?

This parent product is available in three color temperature options across its child variants: 3000K, 4000K, and 6500K. Those options allow buyers to choose a warmer, neutral, or cooler appearance while keeping the same core module platform. The listed brightness, beam angle, power rating, CRI, lifetime, and warranty remain the same across the variants shown.

Is the ENVO ProGlo Triple LED module dimmable?

Yes, the parent model is listed as dimmable, and each child variant also shows dimmable control. This means the dimming capability applies across the family rather than only to a single SKU. Buyers should still confirm compatibility with the rest of their selected control system separately.

What are the main performance specifications of this LED module?

The module is rated at 1.08W, CRI 80, and a 50,000 hour lifetime. It also carries a 5 year warranty according to the supplied product data. The physical dimensions are 78.0 mm long, 18.5 mm wide, and 9.6 mm high, with a listed weight of 18.2 g.

Is this LED module suited to demanding commercial environments?

Yes, this family is positioned for professional signage applications in busy commercial and public settings. The description cites 100% production testing and lists certifications including CE, RoHS, UL, TUV, BIS, CB, and LM-80. Those details support its use where reliability and consistency matter.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Brightness	CCT	Dimming
ENVO ProGlo LED Module Backlit - Quad LED	1.2W	—	—	Dimmable	View
ENVO ProGlo LED Module Backlit - Duo LED	0.72W	—	—	Dimmable	View
ENVO ProGlo LED Module Backlit - Single LED	0.36W	—	—	Dimmable	View
