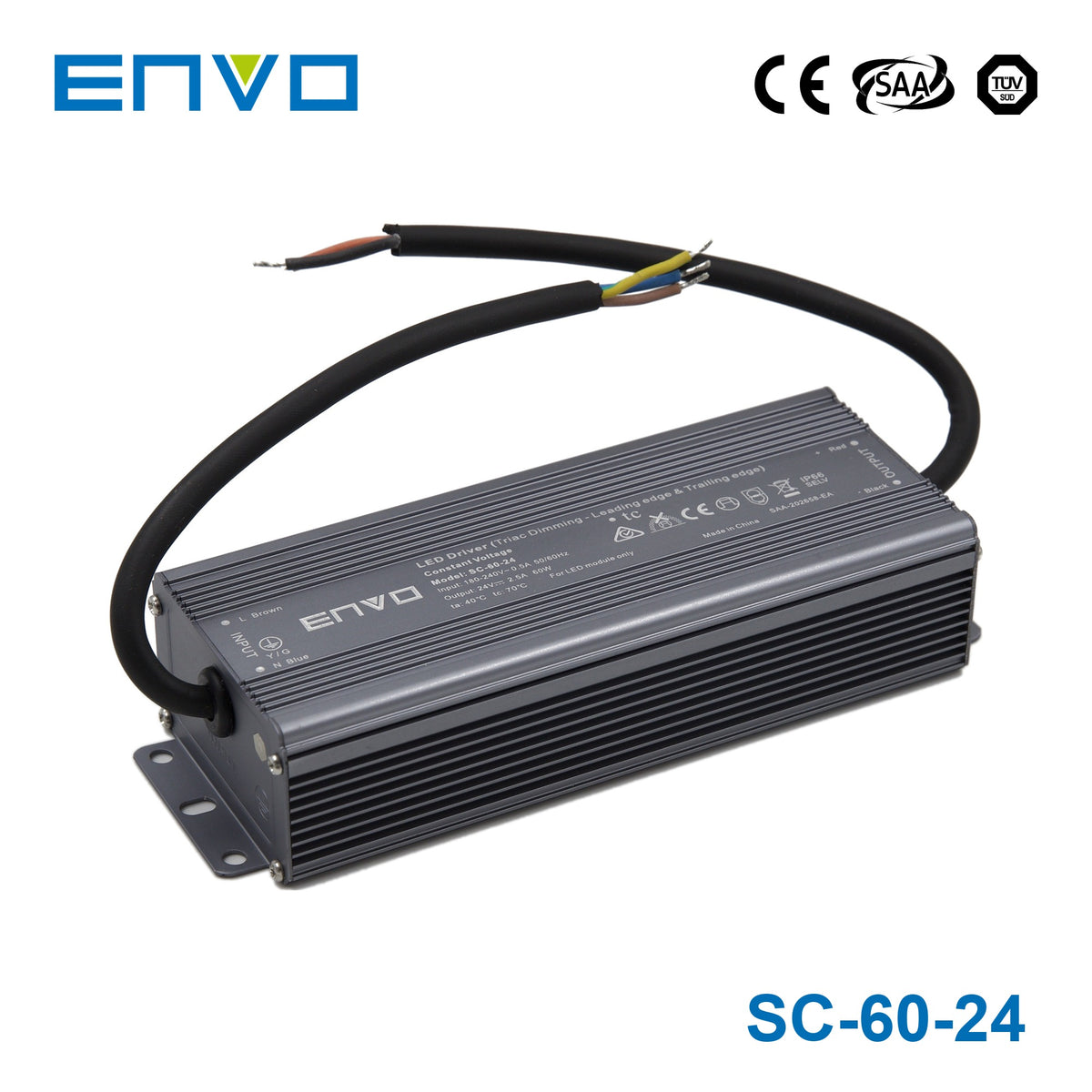

Envo SC-60-24 Power Supply 60W 24V - Triac dimmable 2.5A
Log in to see priceOverview
SC-60-24 is the 24V output model of this series: rated current 2.5A, rated power 60W, typical efficiency 83%@230VAC.
Features
- Output: Constant Voltage
- Range: 200-240VAC
- PFC design: Built-in active PFC function
- Efficiency: Up to 83%
- Protections: Short circuit/ over load/ over temperature
- Heat dissipation: Cooling by free air convection
- Waterproof performance: IP20
- Dimming function: Phase dimming: work with leading edge, MLV and trailing edge, ELV, TRIAC dimmers.
- Dimming range: 0 -100%
- Warranty: 5 years warranty
Specifications
Certificate
- Certificate
- TUV / SAA / CCC / CE / CB / RoHS / Reach
Output
- DC Voltage
- 24V
- Voltage Tolerance
- ±0.5V
- Voltage Regulation
- ≤1%
- Rated Current
- 2.5A
- Rated Power
- 60W
- Load Regulation
- ≤0.5%
Input
- Voltage Range
- 200-240VAC
- Frequency Range
- 47 - 63Hz
- THD(Typ.)@ Full Load
- ≤20% @ 200VAC, 230VAC, 240VAC
- Efficiency(Typ.)@ Full Load
- 83%@230VAC
- AC Current (Max.)
- 0.5A
- Inrush Current(Typ.)
- 80.8A, 186us @ 230VAC
- Leakage Current
- <0.5mA
Protection
- Short Circuit
- Hiccup mode, re-power on to recover after fault condition removed
- Over Load
- ≤120% shut down o/p voltage, recovers automatically after fault condition is removed
- Over Temperature
- Shell surface temp. 100°C±10°C shut down o/p voltage, automatically recover after the temperature drops.
Environment
- Working TEMP.
- -40~+60°C (see below derating curve)
- Working Humidity
- 20 - 90% RH non-condensing
- Storage TEM.,Humidity
- -40 - +80°C, 10 - 95% RH non-condensing
- TEMP.coefficient
- ±0.03%/°C (0 - 50°C)
- Vibration
- 10~500Hz, 2G 10min/1 cycle, period for 60min. each along X,Y,Z axes
Safety&EMC
- Safety standards
- EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
- Withstand voltage
- I/P-O/P:3.75KVAC
- Isolation resistance
- I/P-O/P: 100MΩ / 500VDC / 25°C / 70%RH
- EMC Emission
- Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017
Others
- Net Weight
- 0.35kg
- Dimension
- 178*61*24mm (L*W*H)
- Packing
- 290*215*140mm 20pcs/CTN
Test conditions and notes2
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
- 2. Tolerance: includes set up tolerance and load regulation.
Technical drawings
Typical applications
- Suitable for the application of LED lighting
Downloads
Datasheet1
FAQ
What type of LED power supply is the Envo SC-60-24?
The Envo SC-60-24 is a constant voltage LED power supply rated at 24V output. It delivers up to 60W with a rated current of 2.5A. This model is designed for applications that require a 24V constant voltage driver.
Is the Envo SC-60-24 dimmable?
Yes, this model is TRIAC dimmable using AC phase-cut control. It is specified to work with leading edge, MLV, trailing edge, ELV, and TRIAC dimmers. The product description also highlights strong compatibility and flicker-free dimming.
What applications is the SC-60-24 suitable for?
This power supply is described as suitable for LED lighting applications. Its 24V constant voltage output makes it relevant for systems built around that voltage requirement. Buyers should confirm the connected load matches the unit's 24V, 60W, and 2.5A ratings.
What operating temperature range does the Envo SC-60-24 support?
The stated operating temperature range for this model is from -40°C to 60°C. That range makes it suitable for environments that experience both low and elevated ambient temperatures. Environmental suitability should still be assessed alongside the full enclosure and system conditions.
What protection features does the SC-60-24 include?
The product description lists protections for short circuit, over load, and over temperature. It also features a full protection aluminum housing and cooling by free air convection. These features are intended to support reliable operation in lighting applications.
How does the SC-60-24 compare with non-dimmable 24V power supplies?
A key difference is that the SC-60-24 supports TRIAC dimming with leading edge, MLV, trailing edge, ELV, and TRIAC dimmers. It is also described as offering flicker-free dimming and strong dimmer compatibility. If a project needs 24V constant voltage output plus AC phase-cut dimming, this model is positioned for that use case.
What warranty is provided for the Envo SC-60-24?
The listed warranty period for the Envo SC-60-24 is 5 years. That gives buyers a clear long-term support expectation for this model. Warranty terms and coverage details would still depend on the seller or manufacturer policy.
