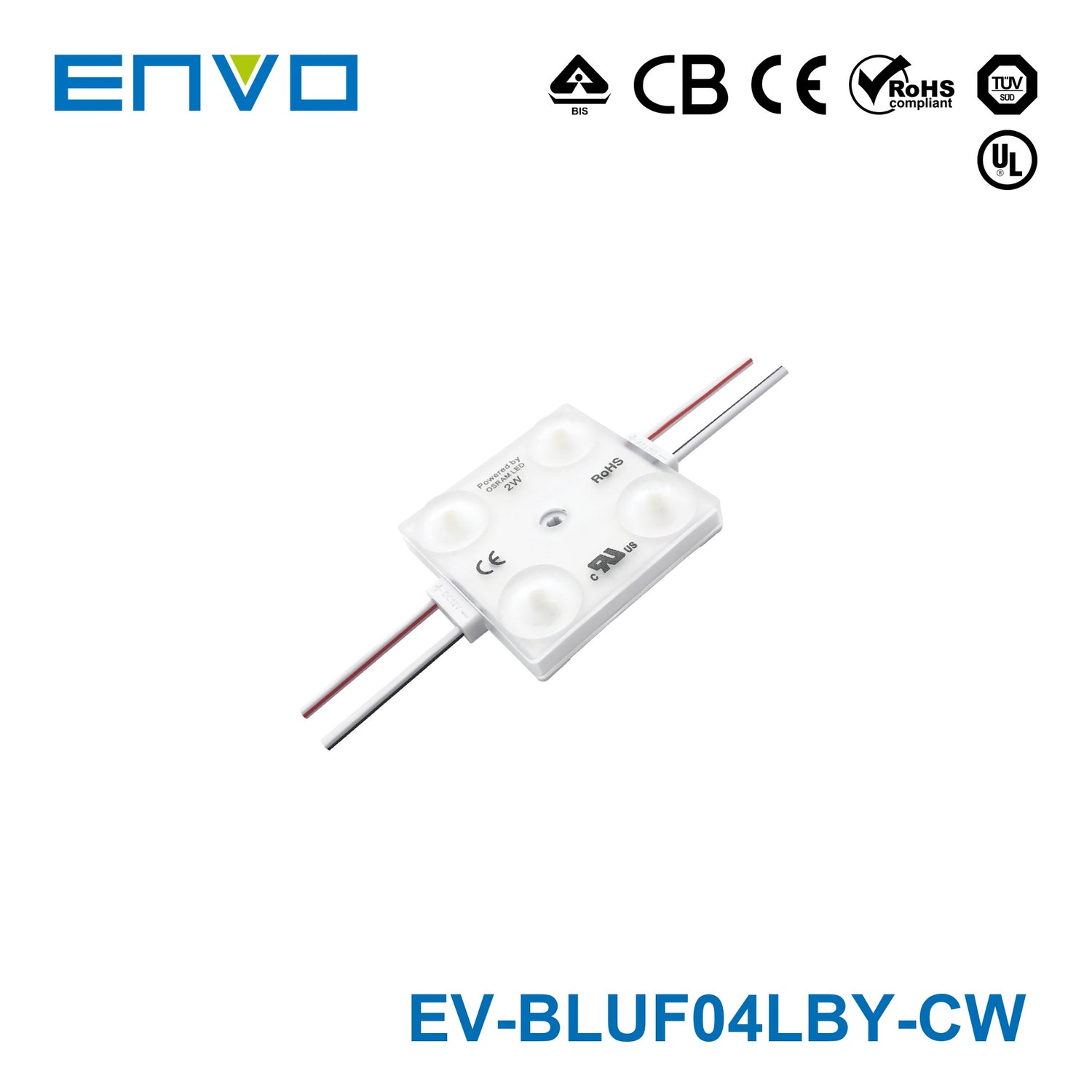

ENVO UltraFlare LED Module Backlit - Quad LED

12V 2W IP67 - Osram LED

SKU EV-BLUF04LBY-CW

Log in to see price Trade pricing & online ordering for account holders

Select model — 4 in this family

EV-BLUF04LBY-CW

EV-BLUF01LBY-CW Single LED In stock

EV-BLUF02LBY-CW Double LED In stock

EV-BLUF03LBY-CW Triple LED In stock

EV-BLUF04LBY-CW Quad LED In stock

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

Plan your sign — free Auto-place this module & size the driver. Open →

Notify me when it's back in stock

The ENVO UltraFlare Backlit Quad LED module is a high-brightness 12V backlighting module engineered for large channel letters and deep backlit sign cabinets where maximum lumen output per module is required. Its four Osram LEDs produce a wide 170° beam that delivers intense, uniform illumination across wide sign faces, enabling greater spacing between modules and fewer strings without sacrificing evenness or creating hotspots above each unit. Running on a standard 12V DC constant voltage supply and fully dimmable, it carries IP67 ingress protection for demanding indoor and outdoor sign installations, certified to CB, CE, RoHS, TÜV, and UL standards.

Key Features

✓ Input voltage: 12V DC
✓ Power: 2W per module
✓ Beam angle: 170°
✓ Module dimensions: 47.3 × 40.3 × 10.4 mm
✓ Module pitch: 177.3 mm
✓ Max modules per series: 50
✓ Rated current: 0.17A
✓ CRI: 80
✓ Dimmable
✓ Ingress protection: IP67
✓ Operating temperature: −25°C to +60°C
✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
✓ Safety certifications: CB, CE, RoHS, TÜV, UL
✓ 7 year warranty

Frequently Asked Questions

What is the ENVO UltraFlare LED Module Backlit - Quad LED designed for?

This LED module is designed for illuminated letters and light boxes in commercial and public-facing signage. The product description specifically highlights high-traffic environments such as airports, metros, banks, buildings, and shopping malls. It is intended for backlit signage applications where strong, even illumination is important.

What depths is this LED module suitable for?

The UltraFlare Quad LED module is recommended for illuminated letters and light boxes with depths from 6 cm to 15 cm. That range makes it suitable for many standard backlit signage builds where broad light spread is needed. Its 170 degree optic lens helps support wide coverage within that application range.

How do the variants in this product family differ?

The main difference across the child variants is color temperature. This family is offered in 3000K warm white, 4000K neutral white, and 6500K cool white options. Shared specifications across the family include 2W power rating, 180 lumens output, 170 degree beam angle, CRI 80, 50,000 hour lifetime, and a 7 year warranty.

What performance specifications are consistent across the full product family?

Across the family, each module is rated at 2W and delivers 180 lumens. All variants use a 170 degree beam angle, have a CRI of 80, support dimming, and are rated for a 50,000 hour lifetime. The family also carries a 7 year warranty.

Is the ENVO UltraFlare Quad LED module dimmable?

Yes, the parent model is listed as dimmable, and the child variants also show dimmable control. That means dimming capability applies across the product family rather than to only one specific version. Buyers should still confirm system-level compatibility with the rest of their signage components.

What certifications does this product family carry?

According to the product description, the UltraFlare LED Modules are CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified. These certifications indicate the product has been positioned for quality, safety, and environmental compliance considerations. For many B2B buyers, this is relevant when evaluating products for commercial signage projects.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Brightness	CCT	Dimming
ENVO UltraFlare LED Module Backlit - Double LED	1W	—	—	Dimmable	View
ENVO UltraFlare LED Module Backlit - Triple LED	1.5W	—	—	Dimmable	View
ENVO UltraFlare LED Module Backlit - Single LED	0.5W	—	—	Dimmable	View
