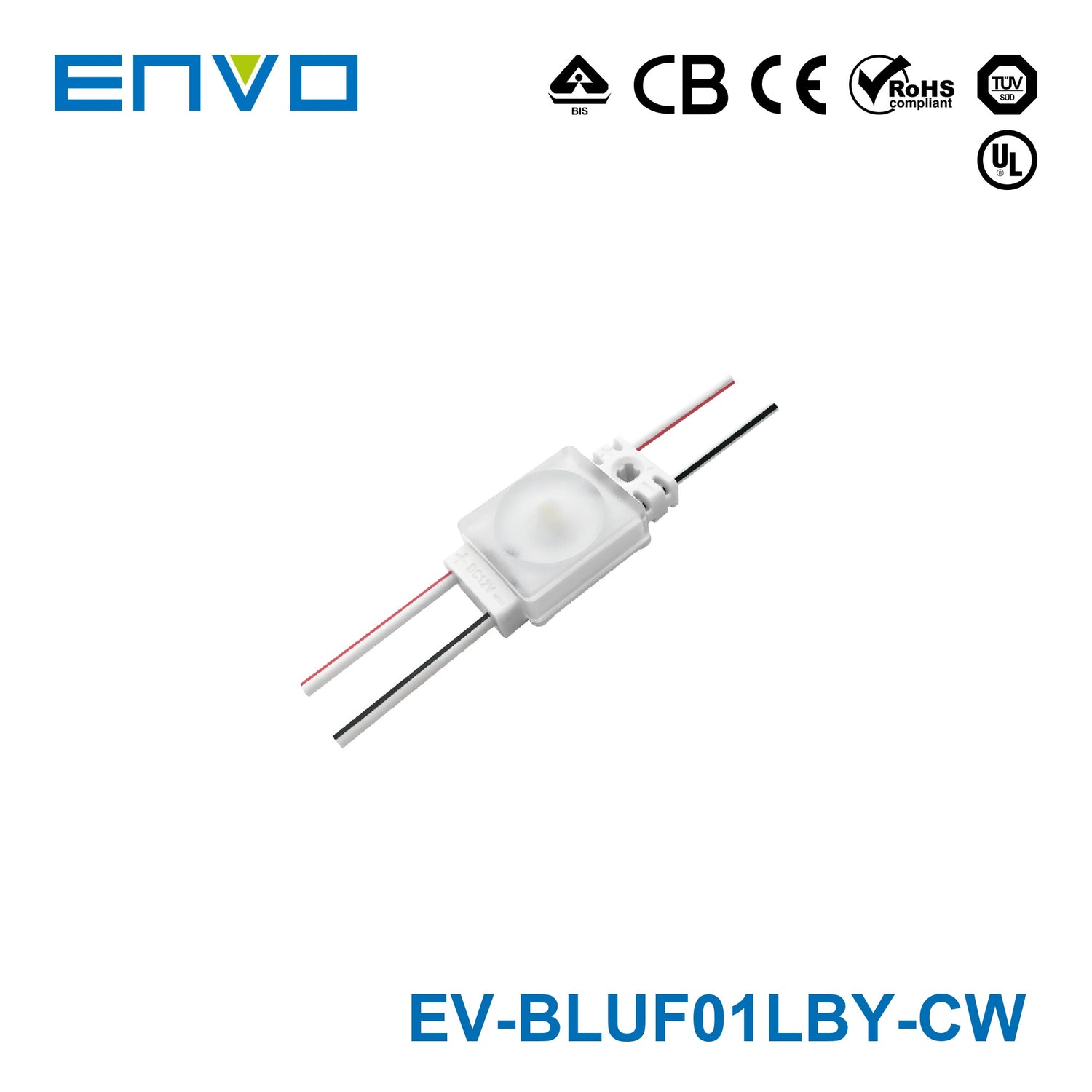

ENVO UltraFlare LED Module Backlit - Single LED

12V 0.5W IP67 - Osram LED

SKU EV-BLUF01LBY-CW

Log in to see price Trade pricing & online ordering for account holders

Select model — 4 in this family

EV-BLUF01LBY-CW

EV-BLUF01LBY-CW Single LED In stock

EV-BLUF02LBY-CW Double LED In stock

EV-BLUF03LBY-CW Triple LED In stock

EV-BLUF04LBY-CW Quad LED In stock

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

Plan your sign — free Auto-place this module & size the driver. Open →

Notify me when it's back in stock

The ENVO UltraFlare Backlit Single LED module is a high-brightness 12V backlighting module engineered for large channel letters and deep backlit sign cabinets where maximum lumen output per module is required. Its Osram LED produces a wide 170° beam that delivers intense, uniform illumination across wide sign faces, enabling greater spacing between modules and fewer strings without sacrificing evenness or creating hotspots above each unit. Running on a standard 12V DC constant voltage supply and fully dimmable, it carries IP67 ingress protection for demanding indoor and outdoor sign installations, certified to CB, CE, RoHS, TÜV, and UL standards.

Key Features

✓ Input voltage: 12V DC
✓ Power: 0.5W per module
✓ Beam angle: 170°
✓ Module dimensions: 27.8 × 15.4 × 10.4 mm
✓ Module pitch: 157.8 mm
✓ Max modules per series: 50
✓ Rated current: 0.04A
✓ CRI: 80
✓ Dimmable
✓ Ingress protection: IP67
✓ Operating temperature: −25°C to +60°C
✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
✓ Safety certifications: CB, CE, RoHS, TÜV, UL
✓ 7 year warranty

Frequently Asked Questions

What is the ENVO UltraFlare LED Module Backlit - Single LED designed for?

This LED module is designed for illuminated letters and light boxes in commercial and public-facing signage. It is intended for demanding environments such as airports, metro stations, banks, buildings, and shopping malls where clear, consistent illumination is important.

What sign depth is this LED module suitable for?

The UltraFlare LED Module is suitable for illuminated letters and light boxes with depths from 6 cm to 15 cm. That range makes it a practical option for many backlit signage applications that need even light distribution across the face of the sign.

What are the differences between the available variants in this product family?

The main difference across the family is color temperature. The available options are 3000K warm white, 4000K neutral white, and 6500K cool white, while key performance specs such as 0.5 W power, 60 lm brightness, 170 degree beam angle, CRI 80, dimmability, 50,000 hour life, and 7 year warranty remain the same.

How bright and efficient is this LED module?

Each module delivers 60 lumens while using 0.5 W of power. Combined with the OSRAM 2835 LED and constant current system, this makes it suitable for signage projects that need strong output with controlled power use.

How does the 170 degree beam angle affect signage performance?

The integrated transparent 170 degree optic lens provides a wide light spread for broad, uniform coverage. This helps reduce shadows and hot spots, which is especially useful in backlit letters and light boxes where visual consistency matters.

Is this LED module suitable for long-term commercial use?

Yes. It has a rated lifetime of 50,000 hours and is backed by a 7 year warranty, which supports long service intervals in commercial signage applications. The product is also described as 100% tested during production and carries certifications including CE, RoHS, UL, TUV, BIS, CB, and LM-80.

Is the ENVO UltraFlare LED Module dimmable?

Yes, this product family is listed as dimmable. That gives specifiers added flexibility when selecting lighting for signage projects that may require adjustable brightness for different viewing conditions or design goals.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Brightness	CCT	Dimming
ENVO UltraFlare LED Module Backlit - Double LED	1W	—	—	Dimmable	View
ENVO UltraFlare LED Module Backlit - Triple LED	1.5W	—	—	Dimmable	View
ENVO UltraFlare LED Module Backlit - Quad LED	2W	—	—	Dimmable	View
