Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

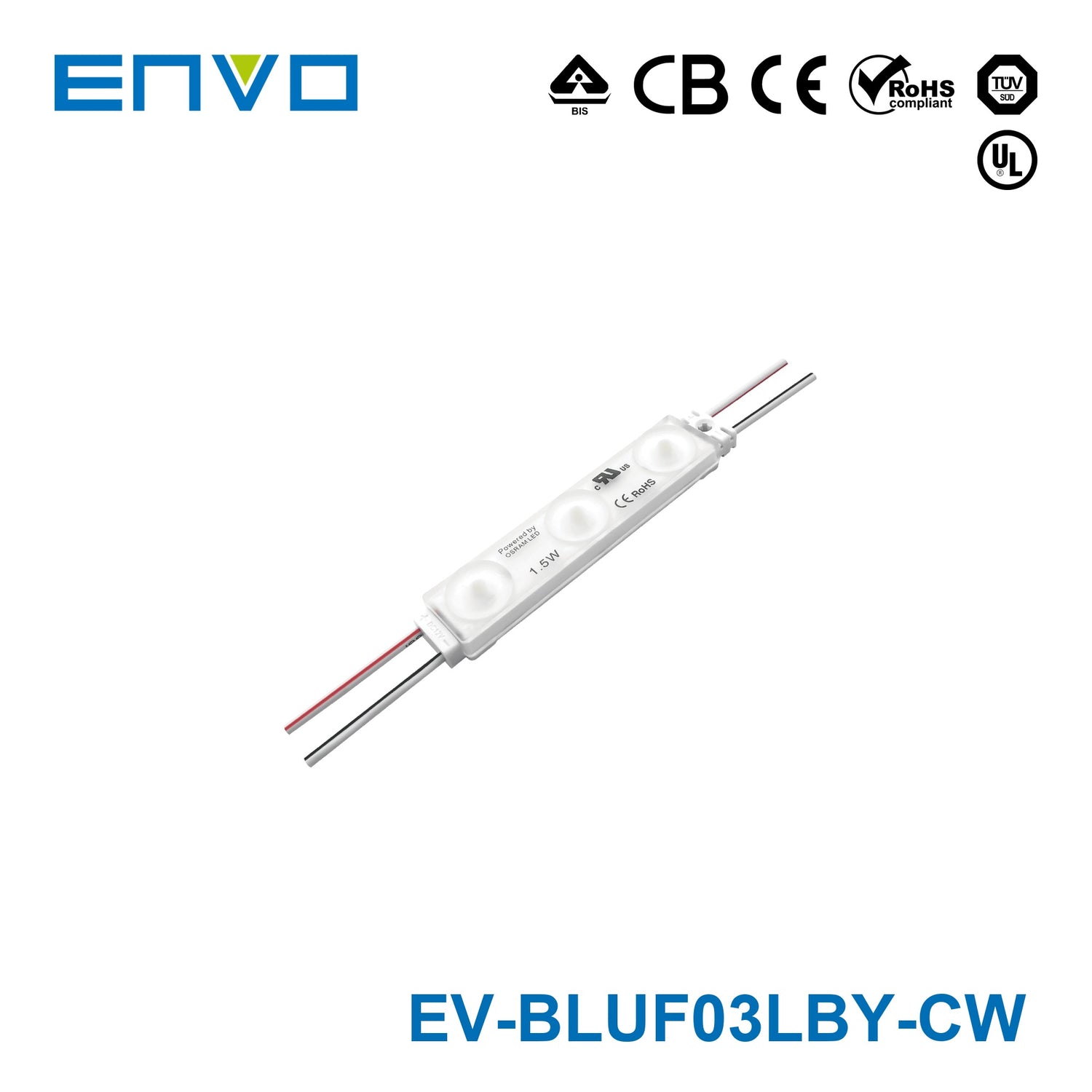

ENVO UltraFlare LED Module Backlit - Triple LED

12V 1.5W IP67 - Osram LED

SKU EV-BLUF03LBY-CW

Log in to see price Trade pricing & online ordering for account holders

Select model — 4 in this family

EV-BLUF03LBY-CW

EV-BLUF01LBY-CW Single LED In stock

EV-BLUF02LBY-CW Double LED In stock

EV-BLUF03LBY-CW Triple LED In stock

EV-BLUF04LBY-CW Quad LED In stock

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

Plan your sign — free Auto-place this module & size the driver. Open →

Notify me when it's back in stock

The ENVO UltraFlare Backlit Triple LED module is a high-brightness 12V backlighting module engineered for large channel letters and deep backlit sign cabinets where maximum lumen output per module is required. Its three Osram LEDs produce a wide 170° beam that delivers intense, uniform illumination across wide sign faces, enabling greater spacing between modules and fewer strings without sacrificing evenness or creating hotspots above each unit. Running on a standard 12V DC constant voltage supply and fully dimmable, it carries IP67 ingress protection for demanding indoor and outdoor sign installations, certified to CB, CE, RoHS, TÜV, and UL standards.

Key Features

✓ Input voltage: 12V DC
✓ Power: 1.5W per module
✓ Beam angle: 170°
✓ Module dimensions: 77.8 × 15.4 × 10.4 mm
✓ Module pitch: 209 mm
✓ Max modules per series: 50
✓ Rated current: 0.13A
✓ CRI: 80
✓ Dimmable
✓ Ingress protection: IP67
✓ Operating temperature: −25°C to +60°C
✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
✓ Safety certifications: CB, CE, RoHS, TÜV, UL
✓ 7 year warranty

Frequently Asked Questions

What types of signage is the ENVO UltraFlare LED Module Backlit - Triple LED designed for?

This LED module family is intended for illuminated letters and light boxes in commercial and public-facing environments. The product description specifically positions it for high-traffic sites such as airports, metros, banks, buildings, and shopping malls. It is suited to sign depths from 6-15 cm.

How do the variants in this family differ?

The main difference across the family is color temperature: 3000K warm white, 4000K neutral white, and 6500K cool white. All listed variants keep the same 1.5W power rating, 165 lm output, 170° beam angle, CRI 80, dimmable performance, 50,000-hour lifetime, and 7-year warranty. That means the selection is primarily about the lighting tone you want in the finished sign.

Is this LED module a good fit for shallow backlit letters or light boxes?

Yes. This family is specified for illuminated letters and light boxes with depths between 6 cm and 15 cm, which makes it suitable for many shallow to mid-depth sign builds. The integrated 170° optic lens is designed to help spread light broadly for more even face illumination.

What performance specifications are consistent across the UltraFlare Triple LED family?

Each variant in this family is rated at 1.5W and delivers 165 lumens with a 170° beam angle and CRI 80. The modules are dimmable, use 12V power input, and are built around high-output OSRAM 2835 LEDs. Physical size is 77.8 mm long, 15.4 mm wide, and 10.4 mm high, with a weight of 16 g per module.

Is this product family suitable for demanding commercial environments?

Yes. ENVO positions this family for demanding commercial signage applications, and the modules are described as fully tested during production for reliability. The product also carries CE, RoHS, UL, TUV, BIS, CB, and LM-80 certifications, which supports its use where quality and compliance matter. A 50,000-hour lifetime and 7-year warranty further reinforce its long-service commercial focus.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Brightness	CCT	Dimming
ENVO UltraFlare LED Module Backlit - Double LED	1W	—	—	Dimmable	View
ENVO UltraFlare LED Module Backlit - Quad LED	2W	—	—	Dimmable	View
ENVO UltraFlare LED Module Backlit - Single LED	0.5W	—	—	Dimmable	View
