ENVO ProGlo LED Module Backlit - Quad LED

12V 1.2W IP67 - Philips LED

SKU EV-BLPG04LBY-CW

Log in to see price Trade pricing & online ordering for account holders

Select model — 4 in this family

EV-BLPG04LBY-CW

EV-BLPG01LBY-CW Single LED Backorder

EV-BLPG02LBY-CW Double LED Backorder

EV-BLPG03LBY-CW Triple LED Backorder

EV-BLPG04LBY-CW Quad LED Backorder

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

Available to order

Plan your sign — free Auto-place this module & size the driver. Open →

Overview

Features

Powered by high output LED.
Constant Current.
Integrted transparent 170° optic lens.
30/20 pcs per string.
CE, RoHS, UL,TUV, BIS, CB and LM-80 certified.

Specifications

ENVO ProGlo LED Module Backlit - Quad LEDSpecifications from the official datasheet

Variants

SKU	LED Colour
EV-BLPG04LBY-CW	Cool White 6500K
EV-BLPG04LBY-WW	Warm White 3000K

Parameters

Beaming Angle (°): 170°
CRI (Ra): ≥75
Voltage (V): DC12
Power (W): 1.2
Driving Method: Constant Current
Dimension (mm): 42.1*42.1*9.6
Working Tem. (°C): −25 ~ +60
Storage Tem. (°C): −25 ~ +70
Protection Grade: IP67

Others

Warranty: 7 years

Certifications & ratings

Certification marks: cRUus, CE, RoHS, TÜV, BIS, CB, LM-80

Technical drawings

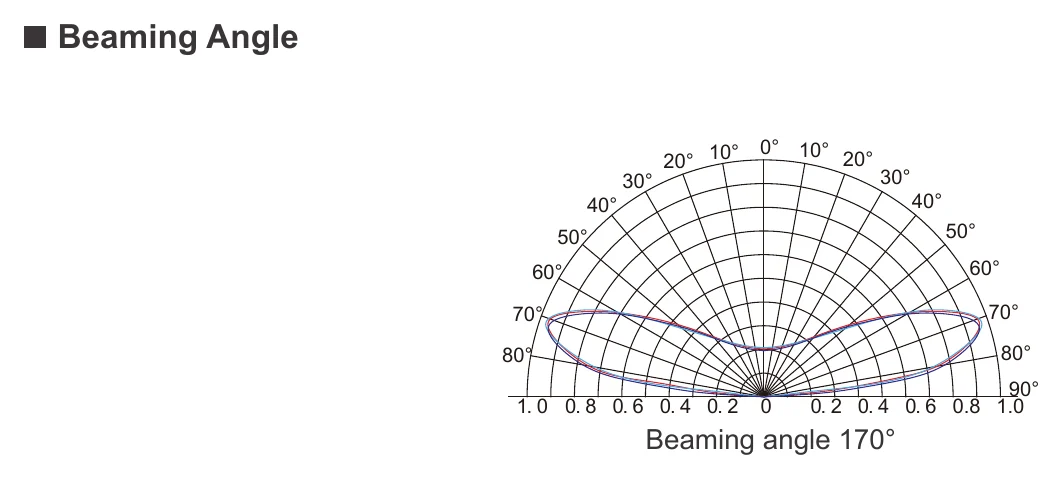

ENVO ProGlo LED Module Backlit - Quad LED Beaming Angle — Beaming Angle

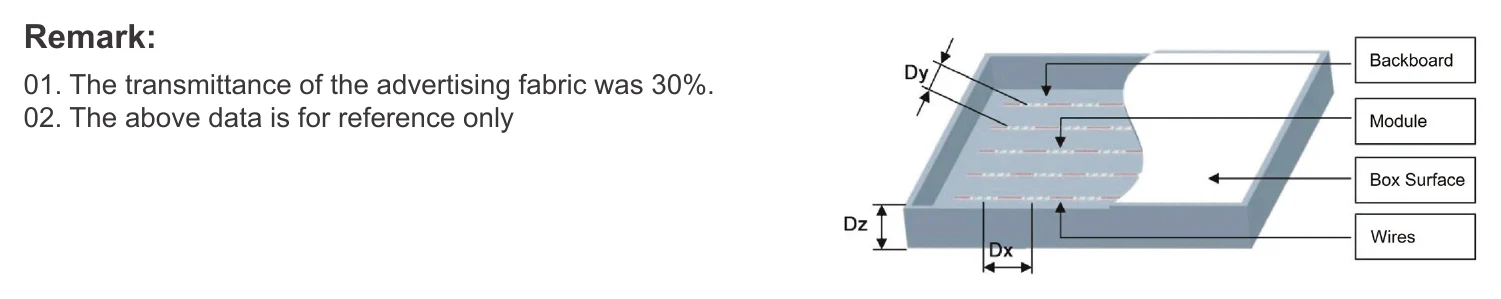

ENVO ProGlo LED Module Backlit - Quad LED Remark — Remark

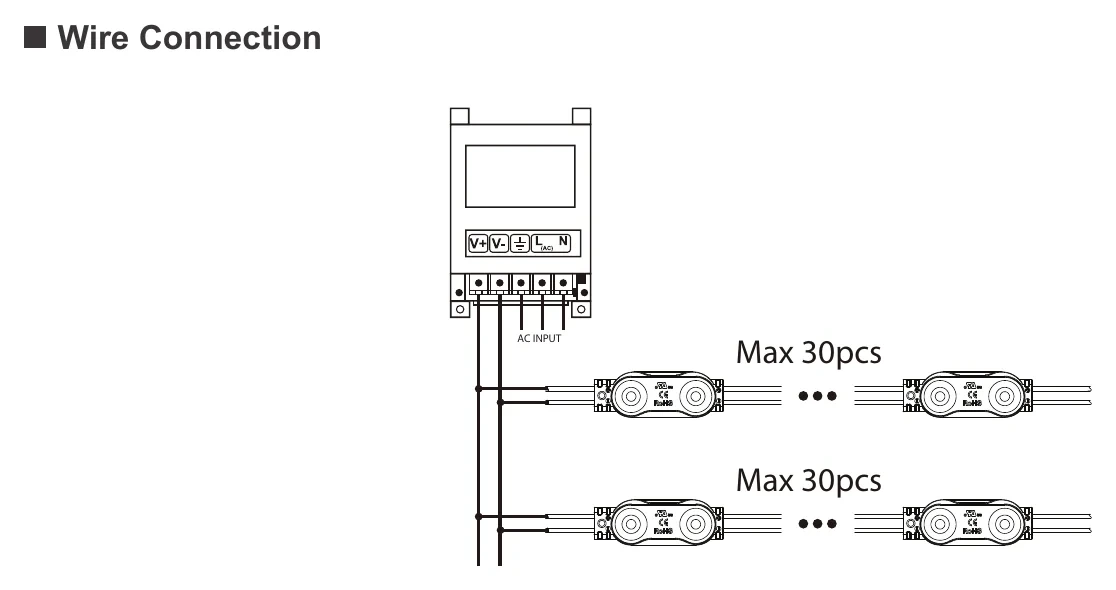

ENVO ProGlo LED Module Backlit - Quad LED Wire Connection — Wire Connection

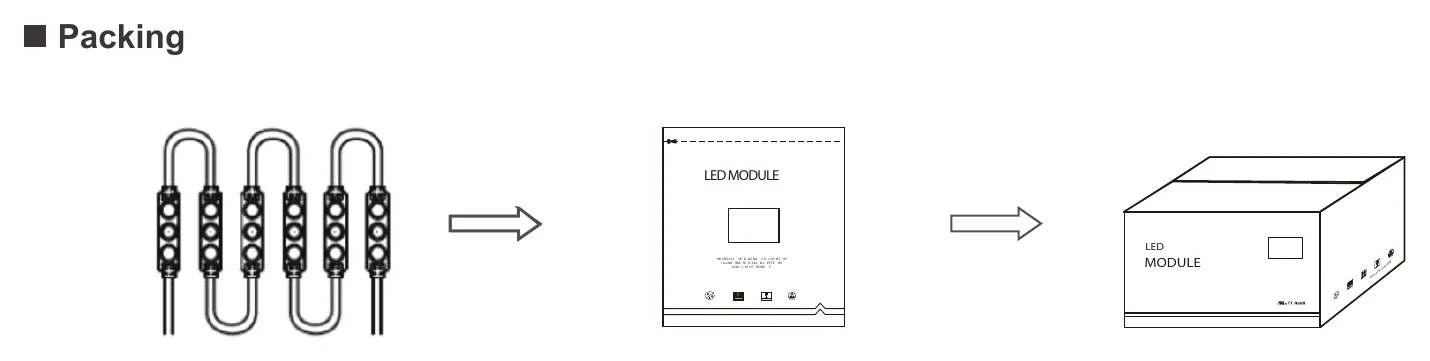

ENVO ProGlo LED Module Backlit - Quad LED Packing — Packing

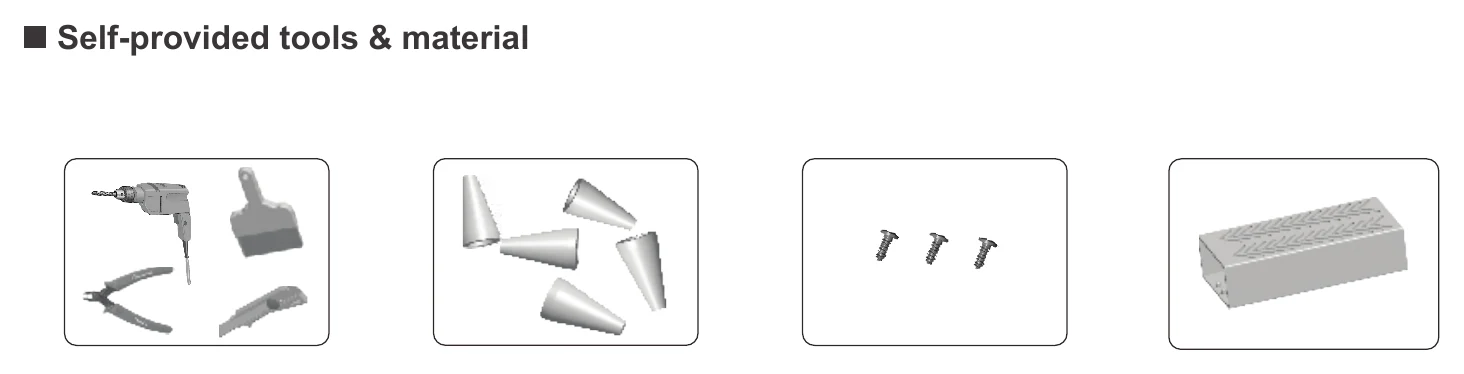

ENVO ProGlo LED Module Backlit - Quad LED Self-provided tools & material — Self-provided tools & material

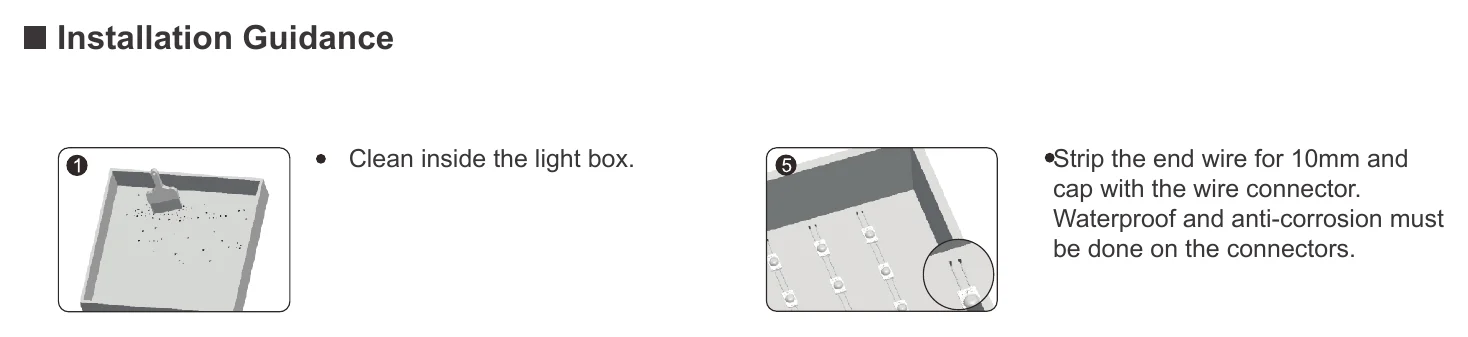

ENVO ProGlo LED Module Backlit - Quad LED Installation Guidance — Installation Guidance

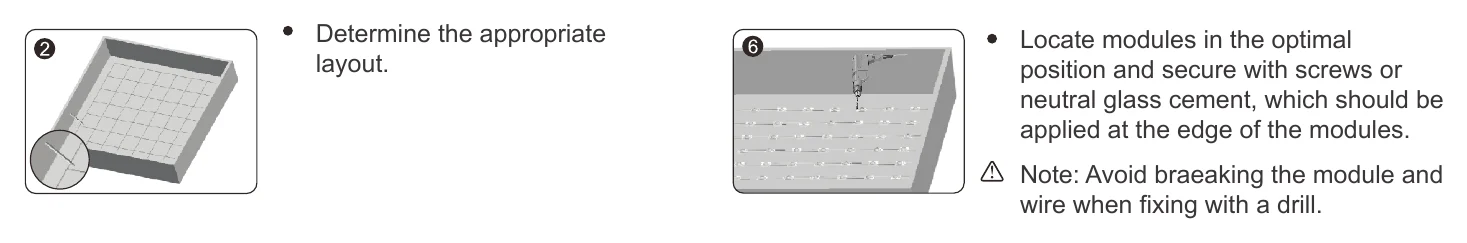

ENVO ProGlo LED Module Backlit - Quad LED Installation Guidance (2) — Installation Guidance (2)

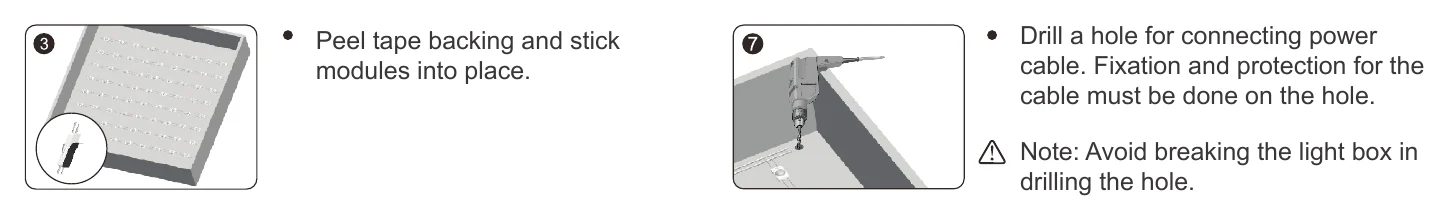

ENVO ProGlo LED Module Backlit - Quad LED Installation Guidance (3) — Installation Guidance (3)

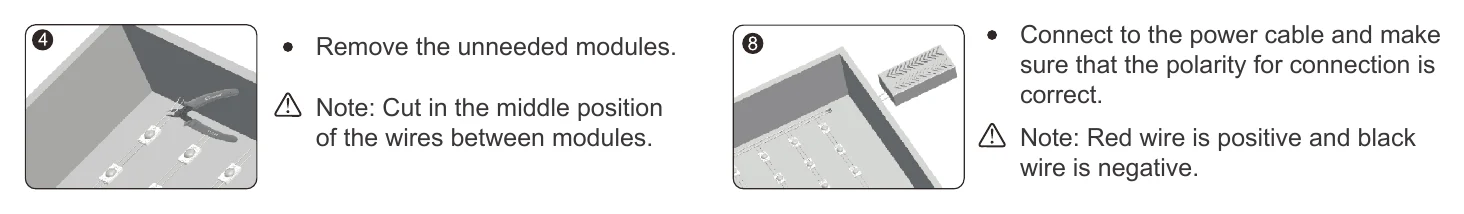

ENVO ProGlo LED Module Backlit - Quad LED Installation Guidance (4) — Installation Guidance (4)

Typical applications

Apply to 6-15 cm depth signs at airports, metros, banks, buildings and shopping malls, etc.

Downloads

::specification::

FAQ

What types of signage is the ENVO ProGlo LED Module Backlit - Quad LED designed for?

This LED module family is designed for backlit signage in commercial and public environments. It is suited to high-traffic applications such as airports, metros, banks, buildings, and shopping malls. The product description also specifies it is ideal for sign depths from 6 to 15 cm.

What are the main performance specs of this LED module family?

Across the family, each module is rated at 1.2 W with a 170 degree beam angle and CRI 80. The modules are dimmable and have a rated lifetime of 50,000 hours. The warranty period for the family is 5 years.

What is the difference between the available variants in this parent product?

The meaningful difference across the listed variants is color temperature. The family is available in 3000K warm white, 4000K neutral white, and 6500K cool white options. The listed variants otherwise share the same 1.2 W power rating, 180 lm brightness, 170 degree beam angle, CRI 80, 50,000 hour lifetime, and 5 year warranty.

Is the light spread suitable for even illumination in backlit signs?

Yes, this family uses an integrated transparent 170 degree optic lens to provide wide light distribution. That wide beam angle helps improve coverage across the sign face and can reduce visible shadowing. It is intended for uniform illumination in backlit signage applications.

Is the ENVO ProGlo Quad LED module dimmable?

Yes, the parent model is identified as dimmable, and the listed child variants also show dimmable control. This makes the family suitable for projects where light output needs to be adjusted. No additional dimming details are provided in the supplied data.

What kind of operating input does this LED module use?

The parent model lists a 12V power input. It is also described as having a constant current design with constant voltage input in the product content. This indicates the family is intended for low-voltage signage lighting applications.

What certifications and quality standards are listed for this product family?

The product description states that the ProGlo LED Modules are CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified. It also notes 100% production testing for reliability and precision. These details indicate a family positioned for professional signage projects with documented quality and safety standards.
