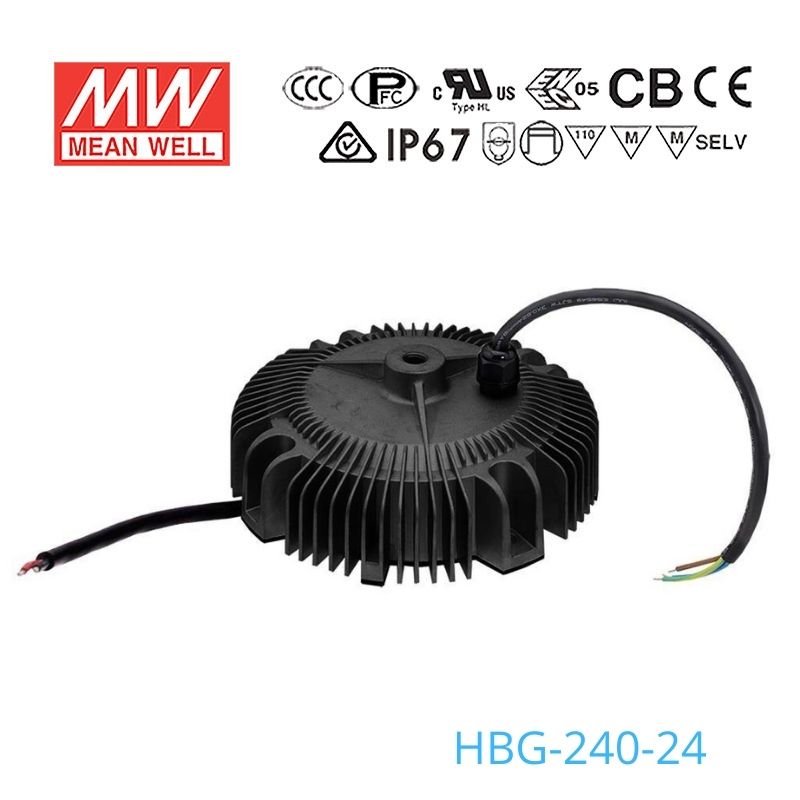

Mean Well HBG-240-24 Power Supply 240W 24V 10A
Log in to see priceThe HBG-240 is a 240W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating240 Watt
-
Output Voltage24 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~75°C
-
Warranty5 Year
-
Length19.15 cm
-
Width19.15 cm
-
Height6.9 cm
-
Weight2.1 kg
::specification::
Frequently Asked Questions
Can I use the Mean Well HBG-240-24 for 24V LED strip lighting?
Yes, this model is a 24V LED driver with 240W maximum output and 10A output current, so it fits 24V LED strip systems that stay within those limits. Its constant current operating mode and 14-24V CC voltage range mean the connected load should match the product's electrical requirements. Its IP67 waterproof rating also makes it suitable for strip lighting projects in wet or exposed locations.
Is the HBG-240-24 suitable for LED signage or channel letter lighting?
It can be used for 24V LED signage where the total load does not exceed 240W or 10A. The wide 90-305VAC input range helps it fit many commercial power environments, and the IP67 waterproof rating supports outdoor or damp-location signage. Check that the sign's LED modules are designed for 24V operation and remain within the 14-24V constant current range.
Can this driver be used for high bay or low bay LED lighting?
Yes, this series is specified for high and low bay light use, and this model provides 240W at 24V with a circular shape suited to that fixture style. The metal case used for 100W+ models and the operating temperature range of -40°C to +75°C support demanding lighting environments. Confirm the fixture's electrical requirements match 24V output and 10A maximum current.
How much 24V LED strip can the HBG-240-24 run?
The driver can supply up to 240W total. To estimate strip length, divide 240W by your strip's rated power per meter: for example, length = 240W / strip watts per meter. Always check your strip rated power per meter and keep the total at or below 240W and 10A.
Is the HBG-240-24 rated for outdoor or wet-location use?
Yes, it has an IP67 waterproof rating, so it is intended for wet or exposed environments. Its operating temperature range is -40°C to +75°C, which supports use in very cold and very hot conditions. Size and weight should also be considered in the enclosure or fixture because it measures 191.5 × 191.5 × 69.0 mm and weighs 2.1 kg.
How does the HBG-240-24 compare with other HBG-240 series models?
The HBG-240-24 is 240W, 24V, 10A with a 14-24V CC voltage range. In the same 24V family, HBG-240-24A, HBG-240-24AB, and HBG-240-24B are also 240W, 24V, 10A with a 14-24V CC range, while HBG-240-24DA is 240W, 10A with a 16-24V CC range. Other HBG-240 outputs are 36V at 6.7A with a 21-36V CC range, 48V at 5A with a 28-48V CC range, and 60V at 4A with a 36-60V CC range.
