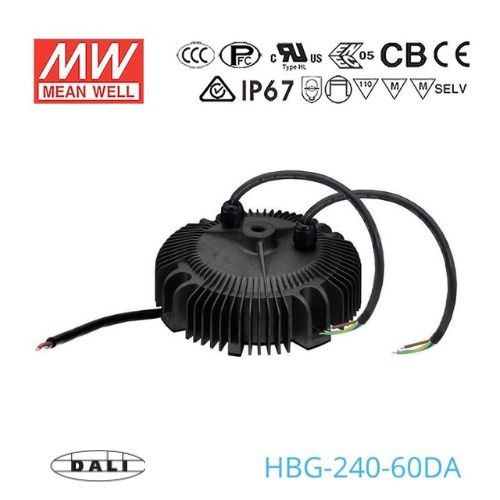

Mean Well HBG-240-60DA Power Supply 240W 60V - DALI 4A
Log in to see priceOverview
HBG-240-60DA is the 60V output model of this series: rated current 4.0A, rated power 240W, typical efficiency 93.5%. Type DA: DALI control technology (IP67).
HBG-240 series is a 240W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +75℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-240 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant Voltage + Constant Current mode output
- Circular metal housing with classⅠdesign
- Built-in active PFC function
- IP67 rating for indoor or outdoor installations
- Function options: DALI
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 60V
- CONSTANT CURRENT REGIONNote.2
- 36 ~ 60V
- CONSTANT CURRENT REGION (for DA Type only)
- 42 ~ 60V
- RATED CURRENT
- 4.0A
- RATED POWERNote.5
- 240W
- RIPPLE & NOISE (max.)Note.3
- 350mVp-p
- VOLTAGE TOLERANCENote.4
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIMENote.6
- 500ms,120ms /230VAC 2500ms,120ms /115VAC
- HOLD UP TIME (Typ.)
- 15ms /115VAC, 230VAC
INPUT
- VOLTAGE RANGENote.5
- 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load≧60%/115VC,230VAC; @load≧80%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
- EFFICIENCY (Typ.)Note.7
- 93.5%
- AC CURRENT (Typ.)
- 2.5A / 115VAC 1.3A / 230VAC 1.2A / 277VAC
- INRUSH CURRENT (Typ.)
- COLD START 75A(twidth=680μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 62 ~ 85V
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +75℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+75℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750,CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213, BIS IS15885(for 48A,60A only), EAC TP TC 004, IP67 approved
- DALI STANDARDS
- Compliance to IEC62386-101, 102, 207 for DA-Type only
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧75%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020
OTHERS
- MTBF
- 1792.9K hrs min. Telcordia SR-332 (Bellcore) ;172.4K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- ψ191.5mm *69mm (D * H)
- PACKING
- 2.1Kg; 8pcs/18.3Kg/2.09CUFT
MODEL ENCODING
- Blank
- Io fixed; IP67
- A
- Io adjustable through built-in potentiometer; IP65
- B
- 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
- AB
- Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
- DA (this model)
- DALI control technology; IP67
Test conditions and notes12
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
- 7. The DA type power supply is less efficient than the A type power supply by 1%.
- 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
- 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
Technical drawings
Typical applications
- LED bay lighting
- LED stage lighting
- LED spot lighting
Downloads
Datasheet1
Certificates8
Test reports1
FAQ
Can I use the HBG-240-60DA for a 60V high bay LED light with DALI control?
Yes, this model is a constant voltage + constant current LED driver with a DALI interface, and the series is shown for high bay light installation. It provides 240W at 60V with 4A output, and its DA-type constant current region is 42-60V, so the fixture needs to match that electrical range.
Is the HBG-240-60DA a good fit for commercial low bay fixtures that need dimming control?
It can be a fit where the fixture requires a constant-current driver in the 42-60V range and the project uses DALI control. The unit is rated for 240W output, which aligns with higher-power lighting fixtures.
Can this driver be used in outdoor architectural or area lighting?
Yes, the series' IP65 or IP67 approval supports outdoor or wet-location lighting applications when the complete fixture is also rated for that environment. Its working case temperature (Tcase) range of -40°C to +75°C also suits exposed installations with large temperature swings.
Can I use the HBG-240-60DA for a constant-current signage or linear lighting system?
Yes, if the lighting load is a constant-current product operating between 42V and 60V and drawing no more than 4A or 240W. In its constant current region the driver drives the LEDs directly.
How do I estimate the maximum LED lighting length this driver can support?
The driver can supply up to 240W total. For a lighting product rated in watts per meter, maximum length = 240W divided by the product's rated power per meter, and you should check your strip rated power per meter and confirm the load matches the 60V output or the 42-60V constant current region.
Is the HBG-240-60DA suitable for wet, dusty, or harsh environments?
It is designed for harsh environments, and the HBG-240 series is IP65 or IP67 approved. The specified working case temperature (Tcase) range is -40°C to +75°C, with load derating at higher temperatures, which supports both cold-weather and high-temperature use.
What are the main differences between the HBG-240-60DA and other 240W HBG models?
The 240W HBG family includes 24V models at 10A with a 14.4-24V or 16.8-24V region, 36V models at 6.7A with 21.6-36V or 25.2-36V, 48V models at 5A with 28.8-48V or 33.6-48V, and 60V models at 4A. In the 60V group, HBG-240-60, HBG-240-60A, HBG-240-60AB, and HBG-240-60B use a 36-60V constant current region, while the HBG-240-60DA uses a narrower 42-60V region.
