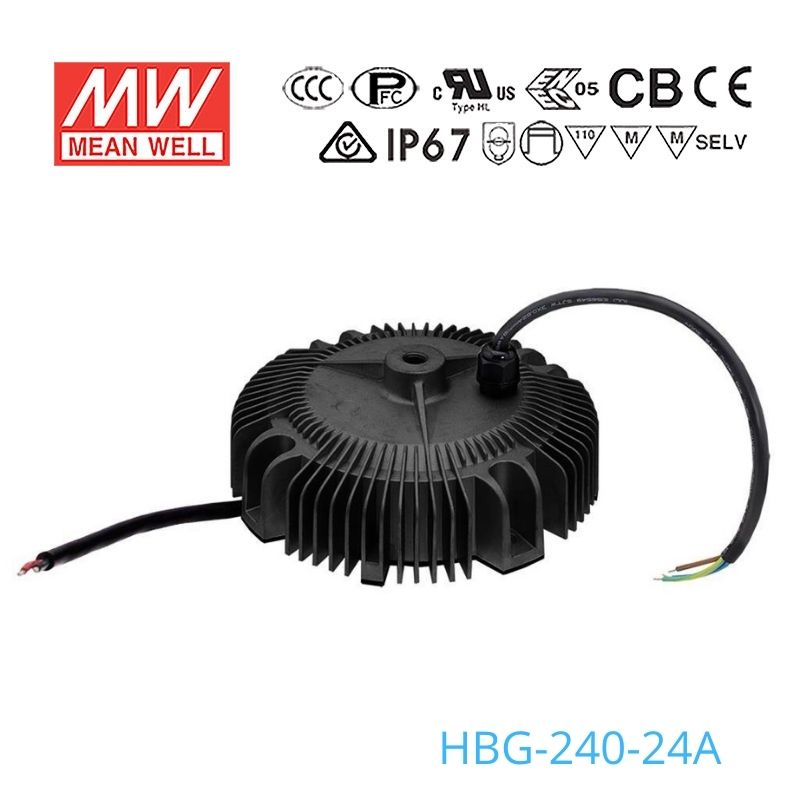

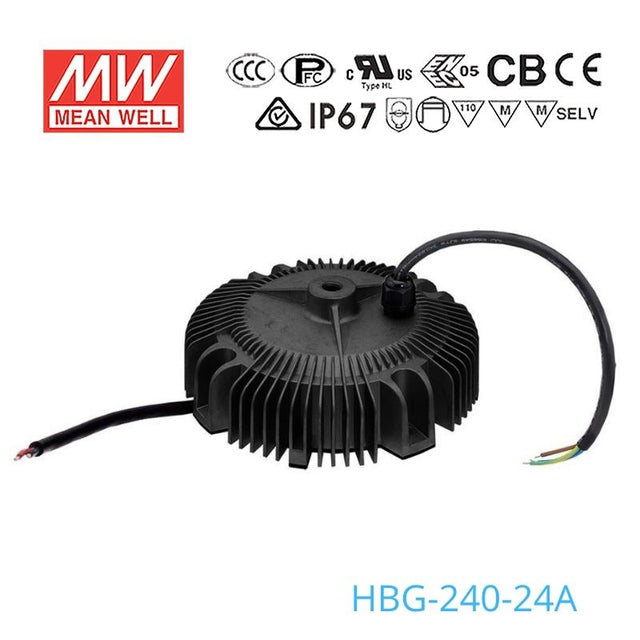

Mean Well HBG-240-24A | 240W 24V Power Supply - Adjustable | Auckland Distributor

Overview

HBG-240-24A is the 24V output model of this series: rated current 10A, rated power 240W, typical efficiency 92.5%. Type A: Io adjustable through built-in potentiometer (IP65).

HBG-240 series is a 240W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +75℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-240 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Circular metal housing with classⅠdesign
Built-in active PFC function
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer
Typical lifetime>50000 hours
5 years warranty

Specifications

HBG-240-24ASpecifications from the official datasheet (2026-06-15 edition)

OUTPUT

DC VOLTAGE: 24V
CONSTANT CURRENT REGION^Note.2: 14.4 ~ 24V
RATED CURRENT: 10A
RATED POWER^Note.5: 240W
RIPPLE & NOISE (max.)^Note.3: 150mVp-p
CURRENT ADJ. RANGE: 6 ~ 10A
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms,120ms /230VAC 2500ms,120ms /115VAC
HOLD UP TIME (Typ.): 15ms /115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧80%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
EFFICIENCY (Typ.)^Note.7: 92.5%
AC CURRENT (Typ.): 2.5A / 115VAC 1.3A / 230VAC 1.2A / 277VAC
INRUSH CURRENT (Typ.): COLD START 75A(twidth=680μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 27 ~ 34V
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +75℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+75℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750,CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213, BIS IS15885(for 48A,60A only), EAC TP TC 004, IP65 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧75%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020

OTHERS

MTBF: 1792.9K hrs min. Telcordia SR-332 (Bellcore) ;172.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: ψ191.5mm *69mm (D * H)
PACKING: 2.1Kg; 8pcs/18.3Kg/2.09CUFT

MODEL ENCODING

Blank: Io fixed; IP67
A (this model): Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
DA: DALI control technology; IP67

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. For A/AB type need to consider build-in using or filling the Io adjusting hole with the potting compound to comply with Type HL application.

Technical drawings

HBG-240-24A BLOCK DIAGRAM — BLOCK DIAGRAM

HBG-240-24A Illustration (page 5) — Illustration (page 5)

HBG-240-24A OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

HBG-240-24A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBG-240-24A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HBG-240-24A MECHANICAL SPECIFICATION ※ A-Type — MECHANICAL SPECIFICATION ※ A-Type

HBG-240-24A INSTALLATIONS — INSTALLATIONS

Typical applications

LED bay lighting
LED stage lighting
LED spot lighting

Downloads

Datasheet1

HBG-240-24A datasheetHBG-240-spec.pdf · 2026-06-15 edition PDF Download

Certificates8

Mean Well HBG-240 ENEC Certificate PDF Download

Mean Well HBG-240 CCC Certificate PDF Download

Mean Well HBG-240 CB Certificate PDF Download

Mean Well HBG-240 EMC Certificate PDF Download

Mean Well HBG-240 CE-DEC Certificate PDF Download

Mean Well HBG-240 UK-dec Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HBG-240-24 Test Report PDF Download

Catalogues2

Mean Well LED Driver Catalog PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

Can I use the HBG-240-24A for a 24V LED high bay light?

Yes, this series is shown for high bay light installation and this model provides 24V output up to 240W and 10A. It is a constant voltage + constant current LED driver with a 14.4-24V constant current region, so the fixture's electrical requirements need to stay within those limits.

Is the HBG-240-24A suitable for 24V outdoor LED signage or lighting?

It can be used for 24V outdoor signage or lighting where a driver from the IP65 or IP67 approved HBG-240 series is appropriate. The wide 90-305VAC input range and -40°C to +75°C working case temperature (Tcase) range also make it suitable for demanding indoor or outdoor environments within those ratings.

Can this power a 24V LED strip lighting project?

Yes, it can power 24V LED strip lighting as long as the total strip load does not exceed 240W or 10A. This is a good fit for higher-power 24V strip runs, but you should check your strip rated power per meter and total load before choosing it.

How much 24V LED strip can the HBG-240-24A support?

The maximum available output is 240W at 24V, with up to 10A output current. To estimate strip length, divide 240W by your strip's rated power per meter, and make sure the total current stays at or below 10A; check your strip rated power per meter before sizing.

Can the HBG-240-24A be used in wet or temperature-exposed locations?

The HBG-240 series is IP65 or IP67 approved, so it is intended for environments where protection from dust and water exposure is needed. Its working case temperature (Tcase) range is -40°C to +75°C, with load derating at higher temperatures, which supports use in both very cold and hot conditions within that range.

How does the HBG-240-24A compare with other 240W models in the HBG series?

Within the 24V 240W group, HBG-240-24, HBG-240-24A, HBG-240-24AB, and HBG-240-24B are all 10A models with a 14.4-24V constant current region, while HBG-240-24DA is also 10A but uses a 16.8-24V region. Other 240W HBG variants change the output setpoint and current: 36V models are 6.7A with a 21.6-36V region, 48V models are 5A with a 28.8-48V region, and 60V models are 4A with a 36-60V region.
