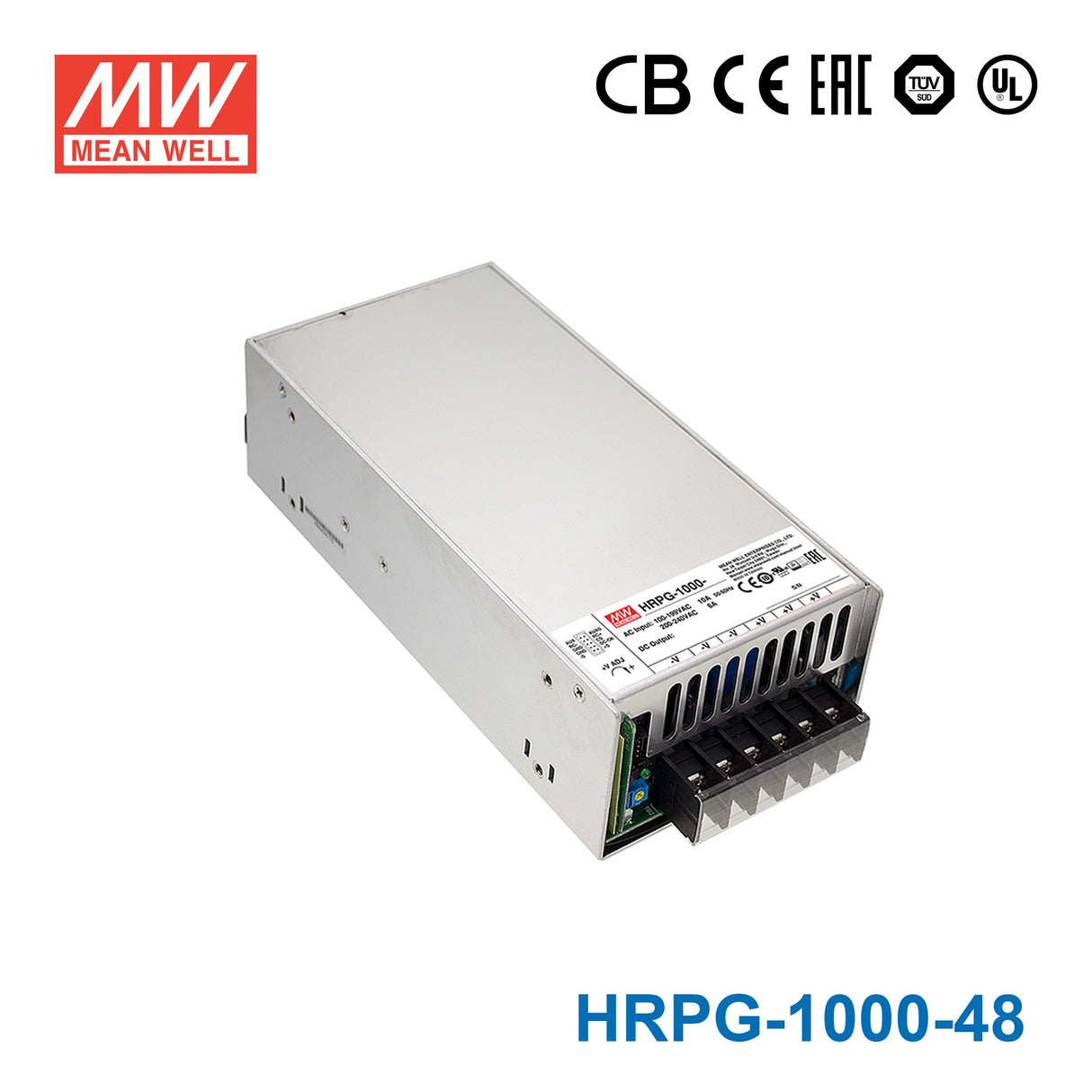

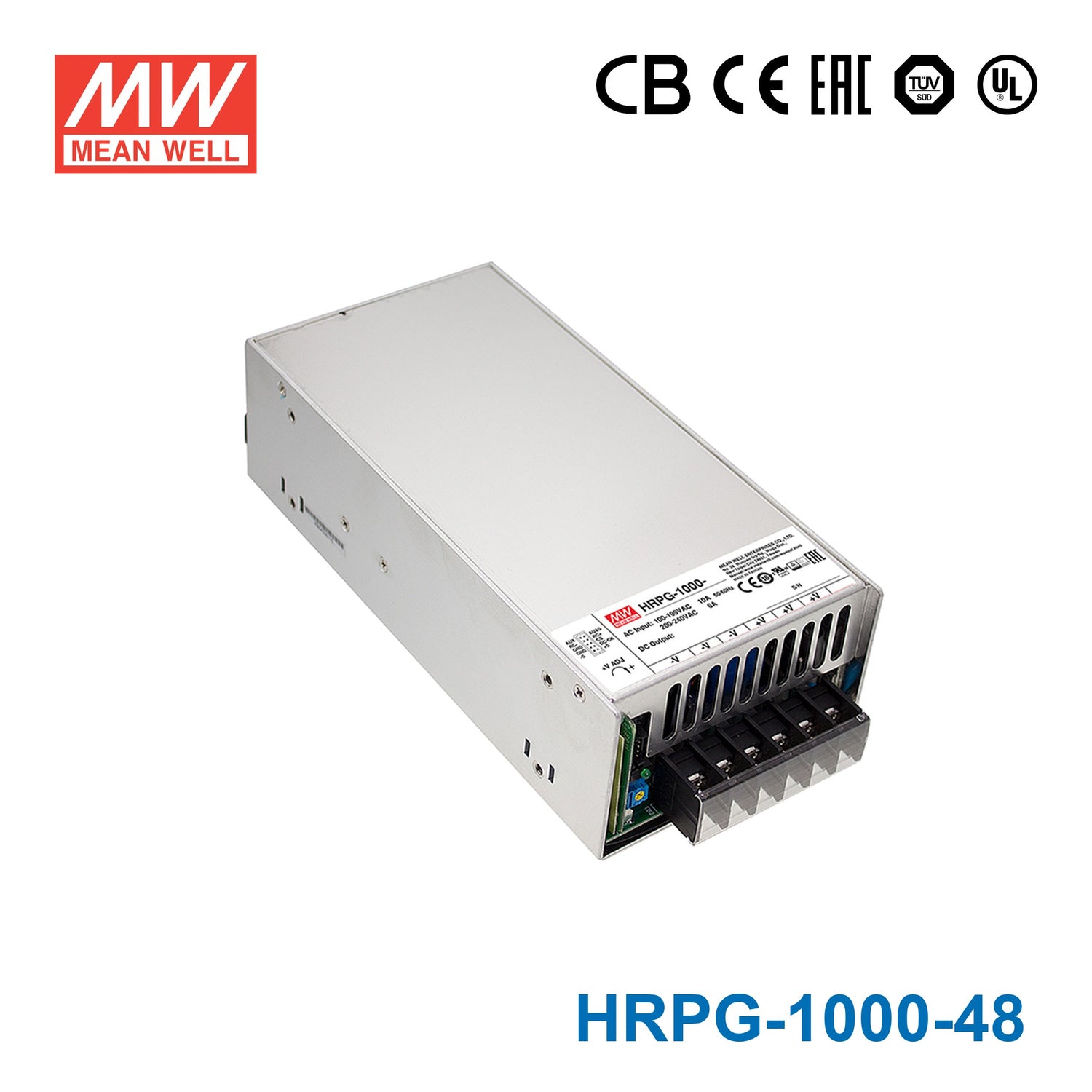

Mean Well HRPG-1000-48 Power Supply 1008W 48V 21A

Q: Can I use the HRPG-1000-48 for a 48V industrial or telecom-style DC load?

Yes, this model is a constant-voltage 48V supply rated for 1008W and up to 21A. That makes it suitable for larger 48V equipment loads where a lower-voltage model such as 12V, 15V, or 24V would not match the required system voltage.

Q: Is the HRPG-1000-48 suitable for a 48V automation or control platform with multiple powered devices?

It can be a fit when the overall 48V load stays within 21A and 1008W. The wide 90-264VAC input range and 1U low-profile housing support use in equipment that needs a high-power 48V source in a relatively compact 218.0 x 105.0 x 63.5 mm package.

Q: Can this supply support 48V embedded systems or industrial electronics that need constant-voltage output?

Yes, it is intended for constant-voltage 48V applications rather than constant-current use. With 21A available, it provides more 48V capacity than smaller HRPG-150-48, HRPG-200-48, HRPG-300-48, HRPG-450-48, or HRPG-600-48 models.

Q: How does the HRPG-1000-48 compare with related high-power HRPG options?

In the HRPG-1000 range, HRPG-1000-12 is 960W at 12V and 80A, HRPG-1000-15 is 960W at 15V and 64A, HRPG-1000-24 is 1008W at 24V and 42A, and this HRPG-1000-48 is 1008W at 48V and 21A. The HRPG-1000N3 family is listed at 1000W with 12V/80A, 24V/42A, 28V/28A, and 21V/21A for the -12, -24, -36, and -48 versions.

Q: Is the HRPG-1000-48 rated for outdoor service or temperature extremes?

The operating temperature range is -40C to +70C, so the unit is specified for a broad temperature range. However, no IP rating is shown in the provided specs, so the data does not confirm outdoor exposure or protection against water and dust.

built-in active PFCPF > 0.95high efficiency up to 90%no load power consumption

SKU HRPG-1000-48

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

HRPG-1000 is a single output enclosed type AC/DC power supply providing 1000 W output power for a wide range of industrial applications. This series operates for 90-264 VAC input voltage and offers models with different rated voltage ranging between 12 and 48 V that can satisfy the demands for all kinds of industrial equipments. Each model is cooled by the built-in fan with speed control, working for the temperature up to 70°C. Moreover, HRPG-1000 has various built-in functions such as auxiliary power, remote sense and remote on-off control, offering vast design flexibility for industrial application.

Key Features

✓Universal AC input / Full range
✓Built-in active PFC function
✓PF>0.95
✓High efficiency up to 94%
✓Withstand 300VAC surge input for 5 seconds
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Built-in cooling fan ON-OFF control • Current sharing up to 4000W (3+1)
✓Built-in DC OK signal
✓Built-in remote ON-OFF control
✓Standby 5V@0.3A
✓Built-in remote sense function
✓No load power consumption<0.75W (Note.6)
✓5 years warranty

Frequently Asked Questions

Can I use the HRPG-1000-48 for a 48V industrial or telecom-style DC load?

Yes, this model is a constant-voltage 48V supply rated for 1008W and up to 21A. That makes it suitable for larger 48V equipment loads where a lower-voltage model such as 12V, 15V, or 24V would not match the required system voltage.

Is the HRPG-1000-48 suitable for a 48V automation or control platform with multiple powered devices?

It can be a fit when the overall 48V load stays within 21A and 1008W. The wide 90-264VAC input range and 1U low-profile housing support use in equipment that needs a high-power 48V source in a relatively compact 218.0 x 105.0 x 63.5 mm package.

Can this supply support 48V embedded systems or industrial electronics that need constant-voltage output?

Yes, it is intended for constant-voltage 48V applications rather than constant-current use. With 21A available, it provides more 48V capacity than smaller HRPG-150-48, HRPG-200-48, HRPG-300-48, HRPG-450-48, or HRPG-600-48 models.

How does the HRPG-1000-48 compare with related high-power HRPG options?

In the HRPG-1000 range, HRPG-1000-12 is 960W at 12V and 80A, HRPG-1000-15 is 960W at 15V and 64A, HRPG-1000-24 is 1008W at 24V and 42A, and this HRPG-1000-48 is 1008W at 48V and 21A. The HRPG-1000N3 family is listed at 1000W with 12V/80A, 24V/42A, 28V/28A, and 21V/21A for the -12, -24, -36, and -48 versions.

Is the HRPG-1000-48 rated for outdoor service or temperature extremes?

The operating temperature range is -40C to +70C, so the unit is specified for a broad temperature range. However, no IP rating is shown in the provided specs, so the data does not confirm outdoor exposure or protection against water and dust.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well HRPG-1000-24 Power Supply 1008W 24V 42A	1008W	24V	42A	View
Mean Well HRPG-1000-15 Power Supply 960W 15V 64A	960W	15V	64A	View
Mean Well HRPG-1000-12 Power Supply 960W 12V 80A	960W	12V	80A	View
