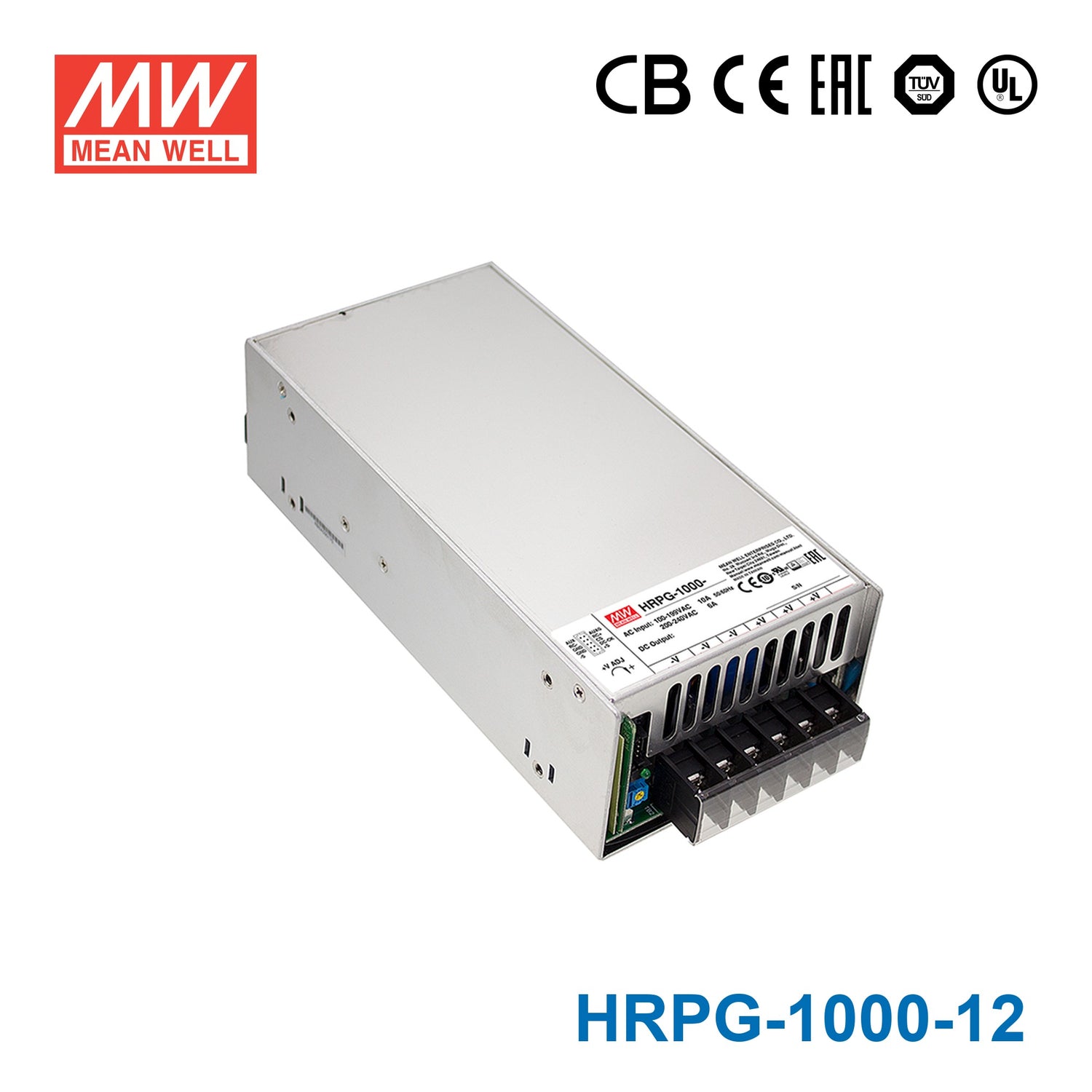

Mean Well HRPG-1000-12 Power Supply 960W 12V

built-in active PFC, PF > 0.95, high efficiency up to 90%, no load power consumption

|

Description

HRPG-1000 is a single output enclosed type AC/DC power supply providing 1000 W output power for a wide range of industrial applications. This series operates for 90-264 VAC input voltage and offers models with different rated voltage ranging between 12 and 48 V that can satisfy the demands for all kinds of industrial equipments. Each model is cooled by the built-in fan with speed control, working for the temperature up to 70°C. Moreover, HRPG-1000 has various built-in functions such as auxiliary power, remote sense and remote on-off control, offering vast design flexibility for industrial application.

Features

  • Universal AC input / Full range
  • Built-in active PFC function
  • PF>0.95
  • High efficiency up to 94%
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Built-in cooling fan ON-OFF control • Current sharing up to 4000W (3+1)
  • Built-in DC OK signal
  • Built-in remote ON-OFF control
  • Standby 5V@0.3A
  • Built-in remote sense function
  • No load power consumption<0.75W (Note.6)
  • 5 years warranty

Applications

  • Factory control or automation apparatus
  • Test and measurement instrument
  • Laser related machine
  • Aging equipment
  • RF application

Specifications

  • Brand
    Mean Well
  • Series
    HRPG Series
  • Power Rating
    960 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    80 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~70°C
  • Warranty
    5 Year
  • Length
    21.8 cm
  • Width
    10.5 cm
  • Height
    6.35 cm
  • Weight
    1.53 kg
