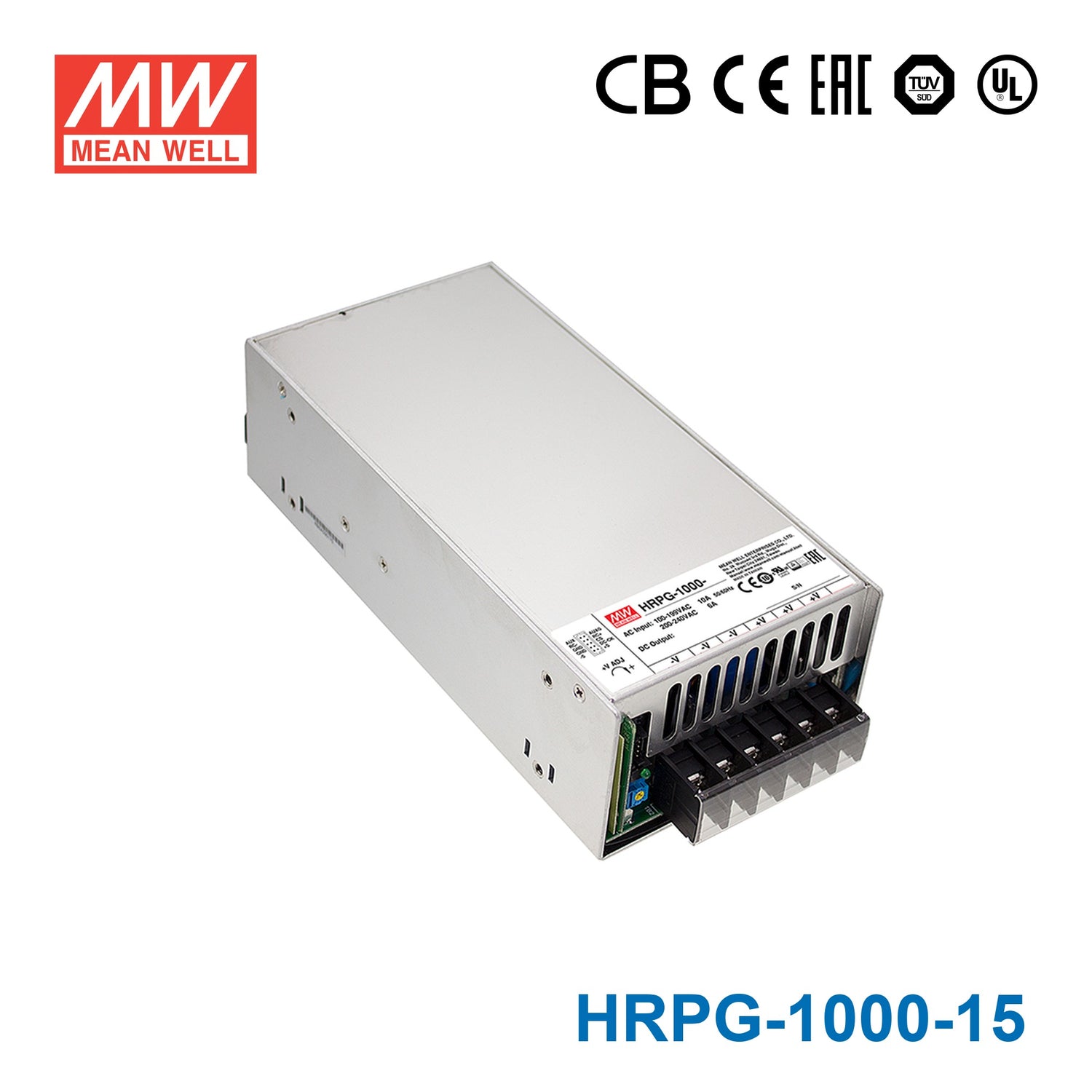

Mean Well HRPG-1000-15 Power Supply 960W 15V

Name: Mean Well HRPG-1000-15 Power Supply 960W 15V
Brand: Mean Well
SKU: HRPG-1000-15
Price: 671.72 NZD
Availability: InStock

built-in active PFC, PF > 0.95, high efficiency up to 90%, no load power consumption

Please for Pricing

Notify me when it's back in stock

Description

HRPG-1000 is a single output enclosed type AC/DC power supply providing 1000 W output power for a wide range of industrial applications. This series operates for 90-264 VAC input voltage and offers models with different rated voltage ranging between 12 and 48 V that can satisfy the demands for all kinds of industrial equipments. Each model is cooled by the built-in fan with speed control, working for the temperature up to 70°C. Moreover, HRPG-1000 has various built-in functions such as auxiliary power, remote sense and remote on-off control, offering vast design flexibility for industrial application.

Features

Universal AC input / Full range
Built-in active PFC function
PF>0.95
High efficiency up to 94%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in cooling fan ON-OFF control • Current sharing up to 4000W (3+1)
Built-in DC OK signal
Built-in remote ON-OFF control
Standby 5V@0.3A
Built-in remote sense function
No load power consumption<0.75W (Note.6)
5 years warranty

Applications

Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Aging equipment
RF application

Specifications

Brand

Mean Well
Series

HRPG Series
Power Rating

960 Watt
Output Voltage

15 Volt
Rated Current

64 Ampere
Input Voltage

90V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

5 Year
Length

21.8 cm
Width

10.5 cm
Height

6.35 cm
Weight

1.53 kg
