Mean Well

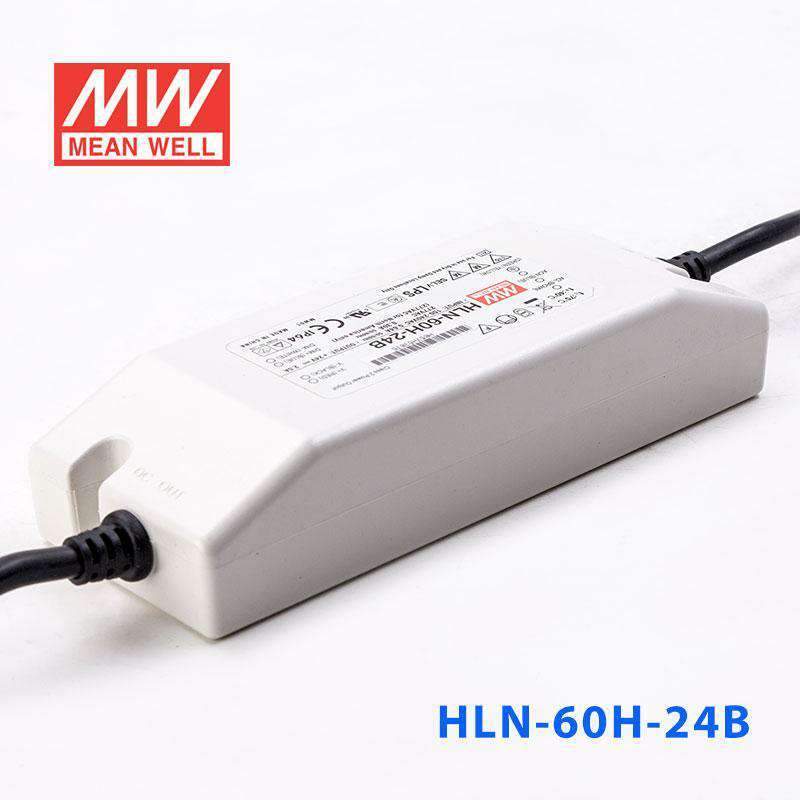

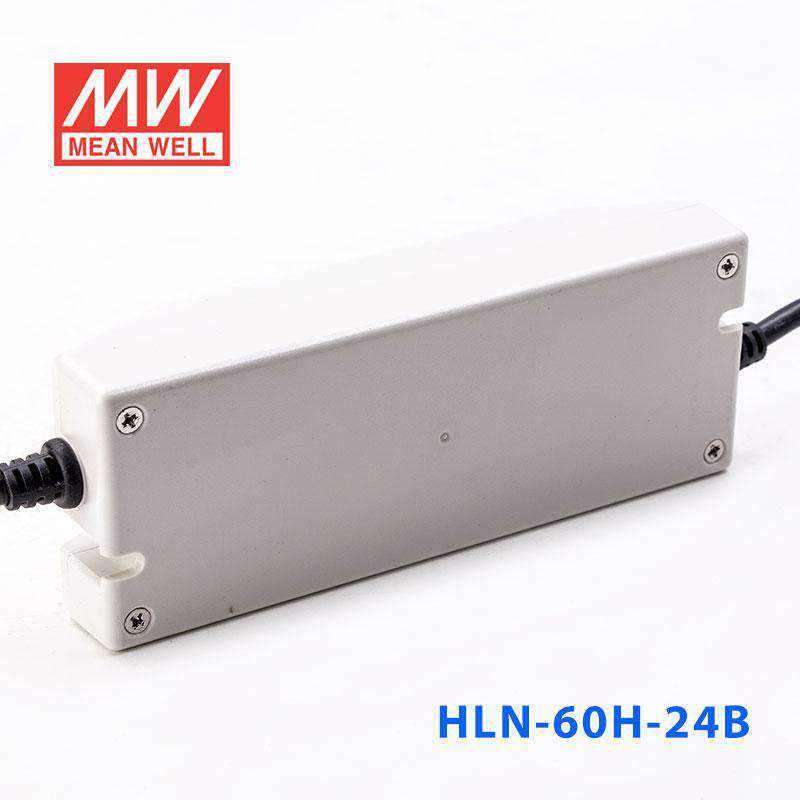

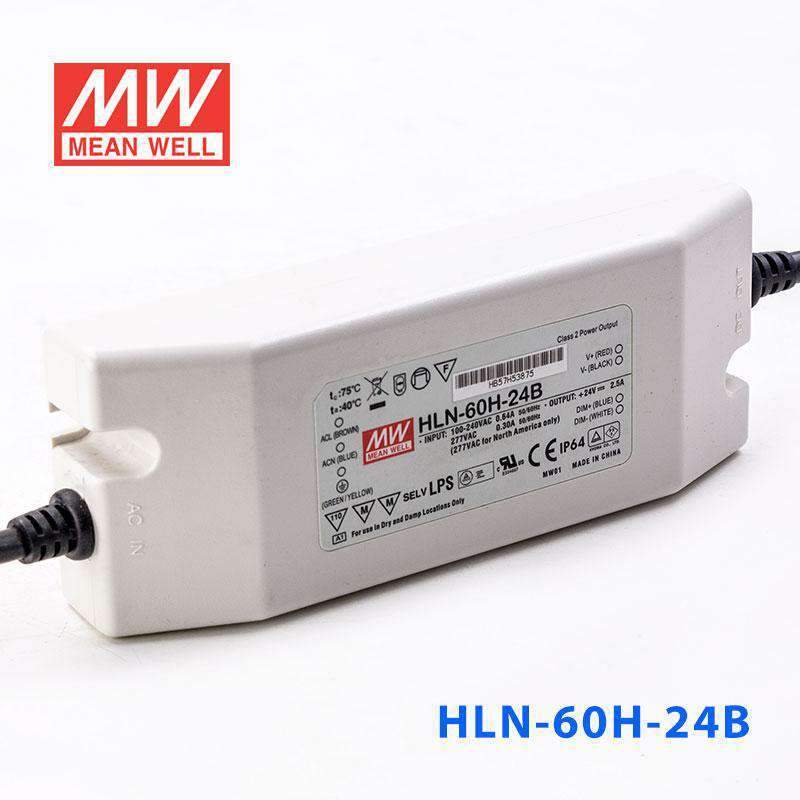

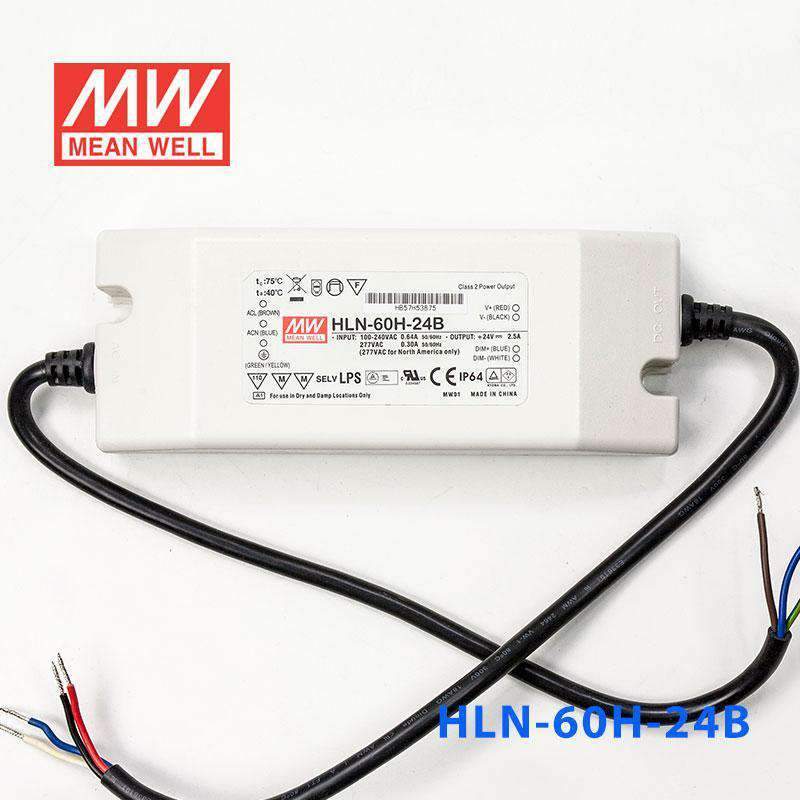

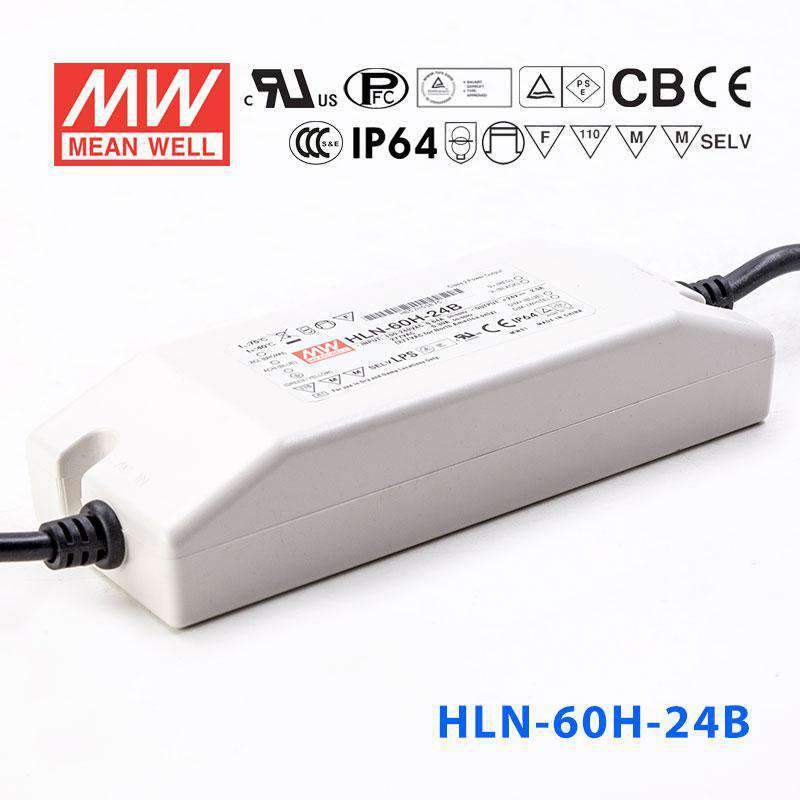

Mean Well HLN-60H-24B Power Supply 60W 24V - IP64, Dimmable 2.5A

fully isolated plastic caseIP64suitable for signage applicationsClass 2 power unit
SKU HLN-60H-24B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by LPF-60-24
Available to order
|

Overview

HLN-60H-24B is the 24V output model of this series: rated current 2.5A, rated power 60W, typical efficiency 89%.

Features

  • Universal AC input / Full range (up to 305VAC)
  • Built-in active PFC function
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • Cooling by free air convection
  • OCP point adjustable through output cable or internal potentiometer
  • Fully isolated plastic case with IP64 level
  • Class 2 power unit
  • Three in one dimming function (1~10Vdc or PWM signal or resistance)
  • Suitable for LED lighting, Industrial Lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • Suitable for dry / damp locations or outdoor application
  • 3 years warranty

Specifications

HLN-60H-24BSpecifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE
24V
CONSTANT CURRENT REGIONNote.4
14.4 ~ 24V
RATED CURRENT
2.5A
RATED POWER
60W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGENote.6
22 ~ 27V
CURRENT ADJ. RANGE
1.5 ~ 2.5A
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.7
500ms, 80ms at full load 230VAC / 115VAC
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60% at 115VAC/230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
89%
AC CURRENT (Typ.)
0.64A / 115VAC 0.32A / 230VAC 0.3A / 277VAC
INRUSH CURRENT(Typ.)
COLD START 55A(twidth=265μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENTNote.4
95 ~ 108% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
28 ~ 35V
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-40 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 40℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
Ul8750, CSA C22.2 No. 250.0-08, BS EN/EN 61347-1, BS EN/EN 61347-2-13 independent, IP64, EAC TP TC 004 approved ; design refer to UL60950-1, BS EN/EN60335-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧60% load) ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, BS EN/EN55024, light industry level (surge 4KV), EAC TP TC 020

OTHERS

MTBF
3400.0K hrs min. Telcordia SR-332(Bellcore) ; 347.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
161*61.5*35mm (L*W*H)
PACKING
0.46Kg;32pcs/15.7Kg/1.10CUFT

Certifications & ratings

Marked features
FC
Test conditions and notes12
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Please refer to "DRIVING METHODS OF LED MODULE".
  5. 5. Derating may be needed under low input voltages. Please check the static characteristics for more details.
  6. 6. A type only.
  7. 7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
  8. 8. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  9. 9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  10. 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  11. 11. This product is not suitable for LED lighting applications in China.(It is recommended to use the LPF/NPF/XLG/XLC/XLN series in China)
  12. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLN-60H-24B Mechanical Specification
Mechanical Specification
HLN-60H-24B Block Diagram
Block Diagram
HLN-60H-24B Derating Curve
Derating Curve
HLN-60H-24B Power Factor Characteristic
Power Factor Characteristic
HLN-60H-24B EFFICIENCY vs LOAD (48V Model)
EFFICIENCY vs LOAD (48V Model)
HLN-60H-24B H L N - 6 0 H series
H L N - 6 0 H series
HLN-60H-24B H L N - 6 0 H series (2)
H L N - 6 0 H series (2)
HLN-60H-24B DIMMING OPERATION(for B-type only)
DIMMING OPERATION(for B-type only)
HLN-60H-24B ※ Please DO NOT connect "DIM-" to "-V".
※ Please DO NOT connect "DIM-" to "-V".
HLN-60H-24B H L N - 6 0 H series
H L N - 6 0 H series
HLN-60H-24B H L N - 6 0 H series (2)
H L N - 6 0 H series (2)

Downloads

FAQ

Can I use the HLN-60H-24B for dimmable sign lighting?

Yes, this 24V dimmable model suits LED signage applications. The connected lighting load still needs to match the driver's 60W maximum, 2.5A output current, and 14.4-24V constant-current range.

Is the HLN-60H-24B suitable for dimmable display or retail lighting?

It can be used for dimmable display or retail lighting if the fixture is a constant-current LED load rated for 24V and up to 2.5A. The driver's maximum output is 60W, and the load should operate within the 14.4-24V CC range.

Can this driver be used with 24V LED strip lighting in a lighting feature?

It can be used with 24V LED strip lighting, either as a constant-voltage strip or as a constant-current load, since the driver has constant voltage + constant current output. The strip or lighting feature must fit the 24V output, 2.5A current, 60W power limit, and 14.4-24V constant-current range.

How do I size LED strip length for the HLN-60H-24B?

Use the 60W power rating for the estimate: maximum strip length = 60W divided by the strip's rated watts per meter. Check your strip rated power per meter, and make sure the strip is compatible with this 24V, 2.5A constant voltage + constant current driver.

Can the HLN-60H-24B handle outdoor or damp-area lighting use?

Its IP64 enclosure supports use where dust protection and splash resistance are needed, which fits many outdoor or damp-area lighting applications. The driver is also rated for -40°C to +50°C operation, but IP64 is not intended for submerged use.
