Can I use the HLN-60H-30A for 30V LED signage or illuminated graphics?

Yes, it can be used for LED signage loads that are designed for constant-current operation at 30V. The driver delivers up to 2A with 60W maximum power, and the load needs to stay within the 18-30V constant-current range.

Is the HLN-60H-30A suitable for linear lighting or accent lighting?

It can be suitable for linear or accent lighting when the LED load is a constant-current product matched to 30V output and up to 2A. The electrical limit is 60W maximum, with a stated CC range of 18-30V.

Can this model power a 30V LED strip application?

It can power a strip application only if the strip is made for constant-current operation and is compatible with 30V output. Check that the strip stays within 2A, 60W, and the 18-30V operating range before using this driver.

What is the maximum LED strip length for the HLN-60H-30A?

The power-based estimate is maximum length = 60W divided by your strip's rated watts per meter. Check your strip rated power per meter, and confirm the strip is intended for constant-current use within the 18-30V range at up to 2A.

Is the HLN-60H-30A okay for outdoor lighting conditions?

The IP64 housing is appropriate for dust protection and splashing-water exposure, so it fits many outdoor lighting conditions. The unit is also rated for -40°C to +50°C operation, but IP64 does not mean it can be submerged.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

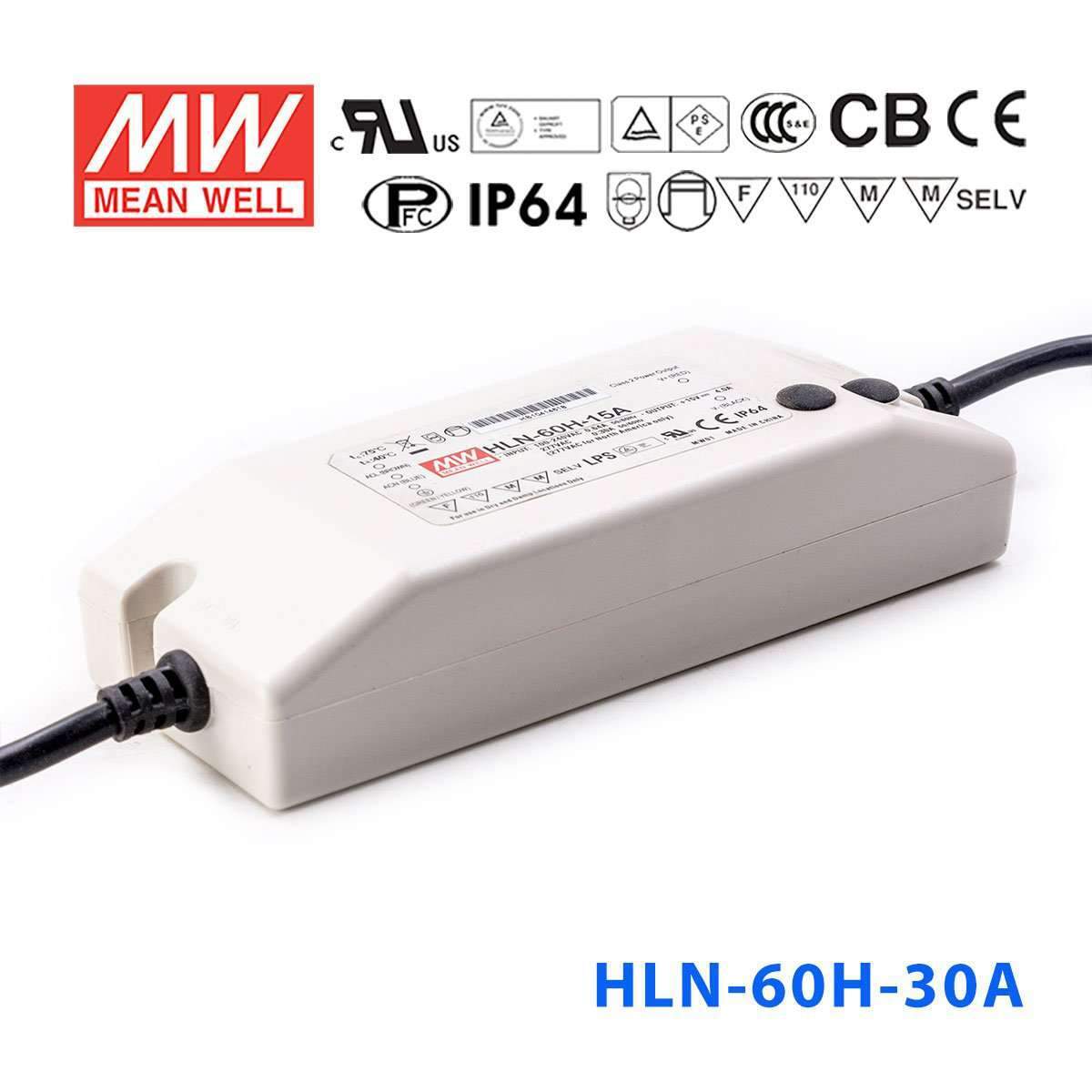

Mean Well HLN-60H-30A Power Supply 60W 30V - IP64, Adjustable 2A

fully isolated plastic caseIP64suitable for signage applicationsClass 2 power unit

SKU HLN-60H-30A

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by LPF-60-30

Notify me when it's back in stock

The HLN-60H is a 60W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).

Key Features

✓ Input voltage range: 90~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -40~+50℃
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), EN61347-1, EN61347-2-13 independent, IP64, J61347-1, J61347-2-13
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well HLN-60H-54B Power Supply 60W 54V - IP64, Dimmable 1.15A	62.1W	54V	1.15A	IP64	View
Mean Well HLN-60H-54A Power Supply 60W 54V - IP64, Adjustable 1.15A	62.1W	54V	1.15A	IP64	View
Mean Well HLN-60H-48B Power Supply 60W 48V - IP64, Dimmable 1.3A	62.4W	48V	1.3A	IP64	View
Mean Well HLN-60H-48A Power Supply 60W 48V - IP64, Adjustable 1.3A	62.4W	48V	1.3A	IP64	View
Mean Well HLN-60H-42B Power Supply 60W 42V - IP64, Dimmable 1.45A	60.9W	42V	1.45A	IP64	View
Mean Well HLN-60H-42A Power Supply 60W 42V - IP64, Adjustable 1.45A	60.9W	42V	1.45A	IP64	View
Mean Well HLN-60H-36B Power Supply 60W 36V - IP64, Dimmable 1.7A	61.2W	36V	1.7A	IP64	View
Mean Well HLN-60H-36A Power Supply 60W 36V - IP64, Adjustable 1.7A	61.2W	36V	1.7A	IP64	View
Mean Well HLN-60H-30B Power Supply 60W 30V - IP64, Dimmable 2A	60W	30V	2A	IP64	View
Mean Well HLN-60H-24B Power Supply 60W 24V - IP64, Dimmable 2.5A	60W	24V	2.5A	IP64	View
Mean Well HLN-60H-24A Power Supply 60W 24V - IP64, Adjustable 2.5A	60W	24V	2.5A	IP64	View
Mean Well HLN-60H-20B Power Supply 60W 20V - IP64, Dimmable 3A	60W	20V	3A	IP64	View
Mean Well HLN-60H-20A Power Supply 60W 20V - IP64, Adjustable 3A	60W	20V	3A	IP64	View
Mean Well HLN-60H-15B Power Supply 60W 15V - IP64, Dimmable 4A	60W	15V	4A	IP64	View
Mean Well HLN-60H-15A Power Supply 60W 15V - IP64, Adjustable 4A	60W	15V	4A	IP64	View
