Can I use the HLN-60H-48B for 48V LED signage lighting?

It can fit 48V signage lighting that needs a constant current driver and stays within the driver's 62.4W, 1.3A, and 28-48V constant-current range. The IP64 housing also matches signage use where dust and splashing water are concerns.

Is the HLN-60H-48B suitable for 48V linear lighting fixtures in damp areas?

Yes, if the fixture is designed for constant current operation and its electrical requirement falls within 28-48V at up to 1.3A. With an IP64 case and an operating range of -40°C to +50°C, it is suited to lighting applications exposed to dust or water spray rather than fully submerged conditions.

Can this driver power a 48V architectural lighting run?

It can work for a 48V architectural lighting run when the load stays at or below 62.4W and matches the 28-48V constant-current range. This model is a Class 2 power unit, which is often preferred where a lower-power remote driver is needed.

How much 48V LED strip can the HLN-60H-48B support?

Use the driver's 62.4W maximum to estimate length: max strip length = 62.4W divided by your strip's rated watts per meter. Check your strip rated power per meter first, and confirm the strip is actually compatible with a 48V constant-current driver rather than a constant-voltage supply.

Is the HLN-60H-48B okay for outdoor or wet locations?

Its IP64 rating means it is built to resist dust and splashing water, so it is suitable for outdoor or wet-area use where direct spray or weather exposure is expected. IP64 does not indicate submersion protection, so it is for splash-prone environments rather than underwater use.

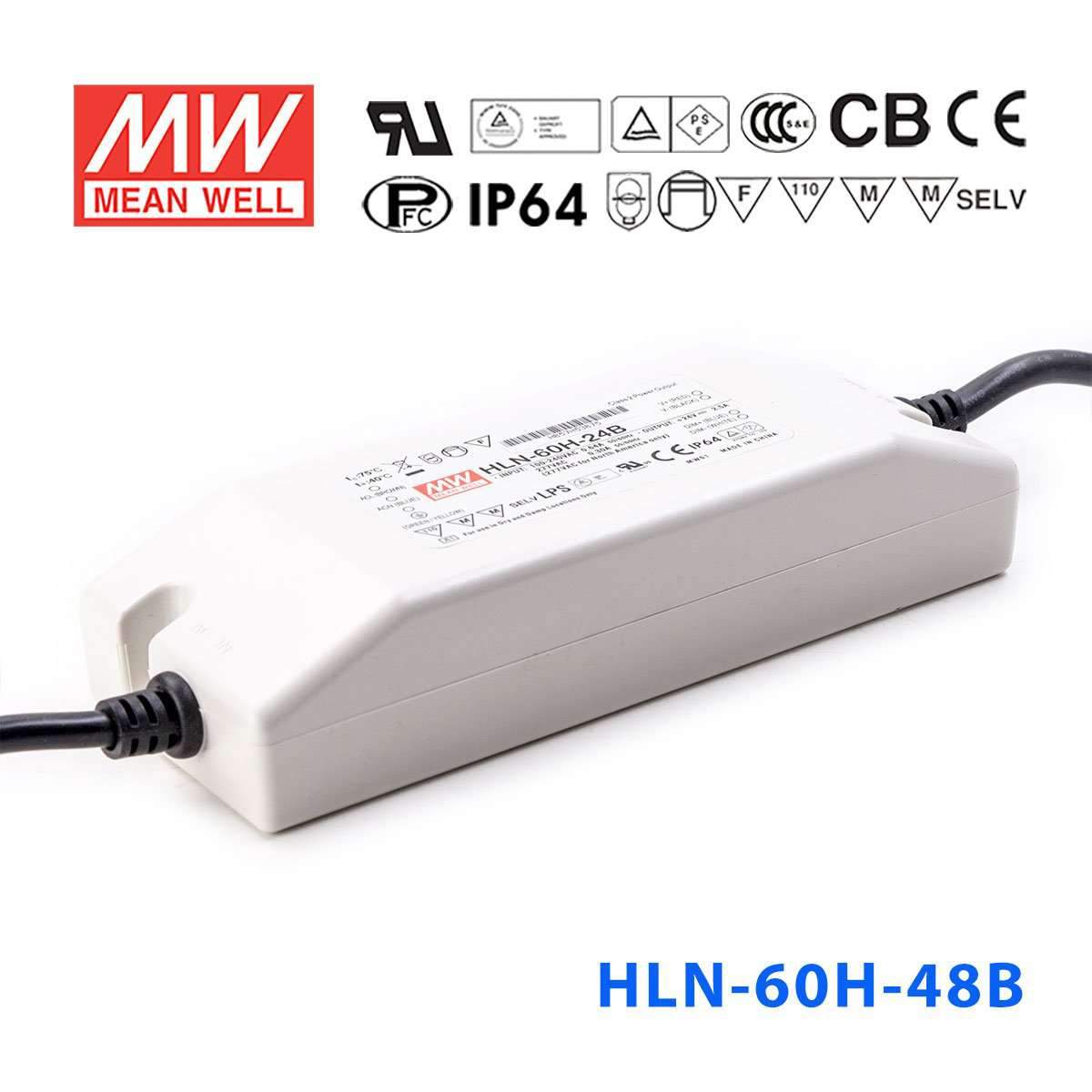

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

Mean Well HLN-60H-48B Power Supply 60W 48V - IP64, Dimmable 1.3A

fully isolated plastic caseIP64suitable for signage applicationsClass 2 power unit

SKU HLN-60H-48B

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by LPF-60-48

Notify me when it's back in stock

The HLN-60H is a 60W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).

Key Features

✓ Input voltage range: 90~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -40~+50℃
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), EN61347-1, EN61347-2-13 independent, IP64, J61347-1, J61347-2-13
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well HLN-60H-54B Power Supply 60W 54V - IP64, Dimmable 1.15A	62.1W	54V	1.15A	IP64	View
Mean Well HLN-60H-54A Power Supply 60W 54V - IP64, Adjustable 1.15A	62.1W	54V	1.15A	IP64	View
Mean Well HLN-60H-48A Power Supply 60W 48V - IP64, Adjustable 1.3A	62.4W	48V	1.3A	IP64	View
Mean Well HLN-60H-42B Power Supply 60W 42V - IP64, Dimmable 1.45A	60.9W	42V	1.45A	IP64	View
Mean Well HLN-60H-42A Power Supply 60W 42V - IP64, Adjustable 1.45A	60.9W	42V	1.45A	IP64	View
Mean Well HLN-60H-36B Power Supply 60W 36V - IP64, Dimmable 1.7A	61.2W	36V	1.7A	IP64	View
Mean Well HLN-60H-36A Power Supply 60W 36V - IP64, Adjustable 1.7A	61.2W	36V	1.7A	IP64	View
Mean Well HLN-60H-30B Power Supply 60W 30V - IP64, Dimmable 2A	60W	30V	2A	IP64	View
Mean Well HLN-60H-30A Power Supply 60W 30V - IP64, Adjustable 2A	60W	30V	2A	IP64	View
Mean Well HLN-60H-24B Power Supply 60W 24V - IP64, Dimmable 2.5A	60W	24V	2.5A	IP64	View
Mean Well HLN-60H-24A Power Supply 60W 24V - IP64, Adjustable 2.5A	60W	24V	2.5A	IP64	View
Mean Well HLN-60H-20B Power Supply 60W 20V - IP64, Dimmable 3A	60W	20V	3A	IP64	View
Mean Well HLN-60H-20A Power Supply 60W 20V - IP64, Adjustable 3A	60W	20V	3A	IP64	View
Mean Well HLN-60H-15B Power Supply 60W 15V - IP64, Dimmable 4A	60W	15V	4A	IP64	View
Mean Well HLN-60H-15A Power Supply 60W 15V - IP64, Adjustable 4A	60W	15V	4A	IP64	View
