Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

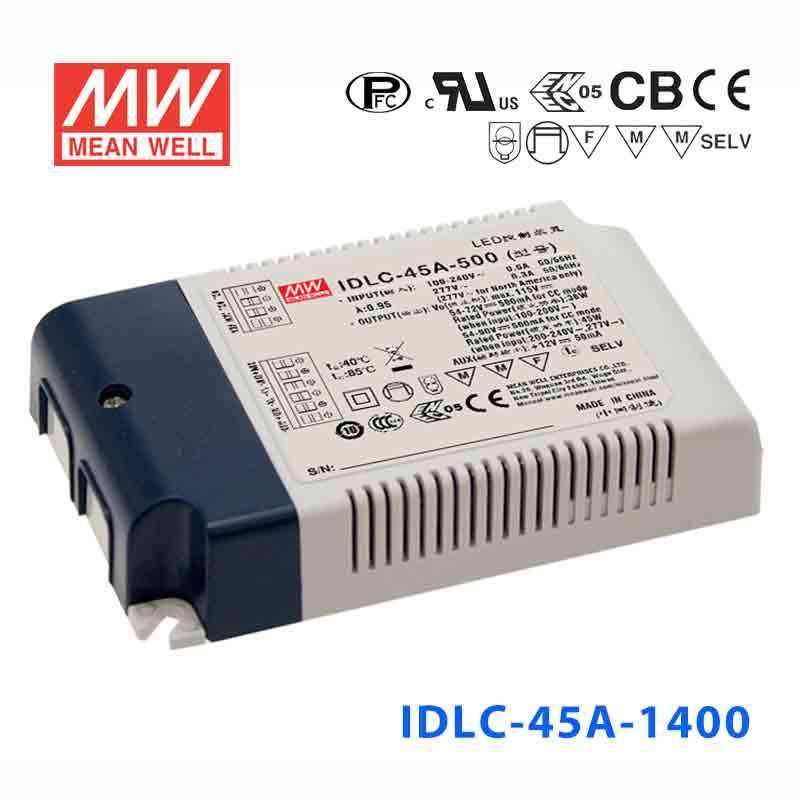

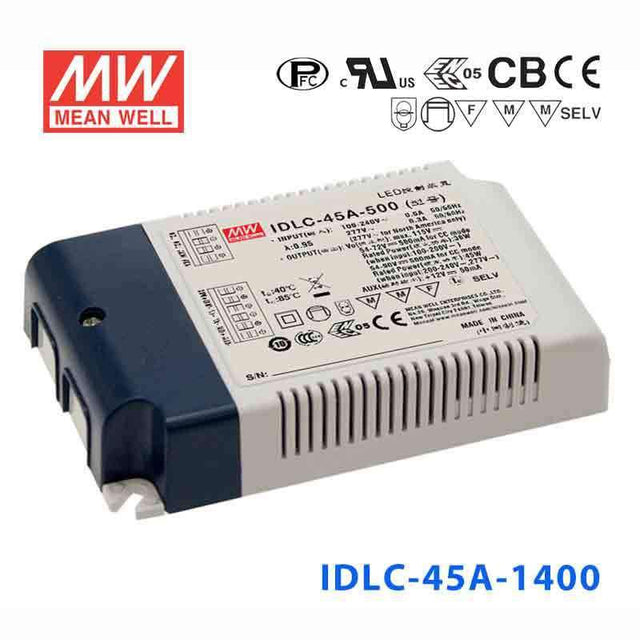

Mean Well IDLC-45A-1400 Power Supply 45W 1400mA (Auxiliary DC output)

Q: Can I use the IDLC-45A-1400 for a COB LED downlight?

Yes, if the downlight is designed for a constant current driver at 1400mA and its LED load operates within the 19-32V constant current range. This driver delivers up to 44.8W, so it fits higher-current downlight assemblies that match those electrical limits.

Q: Is this driver suitable for powering a small LED array in a fixture?

It can be, provided the LED array is a constant current load rated for 1400mA and falls inside the 19-32V CC output window. The actual number of LEDs depends on the forward voltage of each LED, not on a fixed LED count.

Q: Can I use this for signage modules?

Only if the signage modules are built for constant current operation at 1400mA and the total LED load stays within 19-32V. It is not a constant voltage driver, so it is not the right match for LED modules that expect a fixed DC voltage supply.

Q: Would this work for a compact commercial LED light engine?

This model is suited to compact LED light engines that need 1400mA constant current and operate between 19V and 32V. With a 44.8W output rating, it is intended for moderate-power constant current LED assemblies rather than fixed-voltage LED products.

Q: How do I know if my LED module is electrically compatible with this driver?

Check that the module requires constant current at 1400mA and that its operating voltage under load is within 19-32V. The number of LEDs that can be driven depends on the forward voltage of each LED, so compatibility should be based on total forward voltage rather than a stated LED quantity.

Q: How does the IDLC-45A-1400 compare with other 45W IDLC models?

Within the 45W family, the IDLC-45A-1400 is 1400mA with a 19-32V CC range and 44.8W output. Other 45W variants include 1050mA at 26-43V and 45.15W, 700mA at 38-64V and 44.8W, 500mA at 54-90V and 45W, and 350mA at 57-95V and about 33.2-33.25W.

SKU:

IDLC-45A-1400

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

T case=-20 ~ +85°C (Please refer to OUTPUT LOAD vs TEMPERATURE section)

Key Features

✓Constant Current mode output
✓Flicker free design
✓Plastic housing with class II design
✓Built-in active PFC function
✓No load power consumption<0.5W(Blank-Type)
✓Function options: 2 in 1 dimming (dim-to-off);Auxiliary DC output
✓3 years warranty

Frequently Asked Questions

Can I use the IDLC-45A-1400 for a COB LED downlight?

Yes, if the downlight is designed for a constant current driver at 1400mA and its LED load operates within the 19-32V constant current range. This driver delivers up to 44.8W, so it fits higher-current downlight assemblies that match those electrical limits.

Is this driver suitable for powering a small LED array in a fixture?

It can be, provided the LED array is a constant current load rated for 1400mA and falls inside the 19-32V CC output window. The actual number of LEDs depends on the forward voltage of each LED, not on a fixed LED count.

Can I use this for signage modules?

Only if the signage modules are built for constant current operation at 1400mA and the total LED load stays within 19-32V. It is not a constant voltage driver, so it is not the right match for LED modules that expect a fixed DC voltage supply.

Would this work for a compact commercial LED light engine?

This model is suited to compact LED light engines that need 1400mA constant current and operate between 19V and 32V. With a 44.8W output rating, it is intended for moderate-power constant current LED assemblies rather than fixed-voltage LED products.

How do I know if my LED module is electrically compatible with this driver?

Check that the module requires constant current at 1400mA and that its operating voltage under load is within 19-32V. The number of LEDs that can be driven depends on the forward voltage of each LED, so compatibility should be based on total forward voltage rather than a stated LED quantity.

How does the IDLC-45A-1400 compare with other 45W IDLC models?

Within the 45W family, the IDLC-45A-1400 is 1400mA with a 19-32V CC range and 44.8W output. Other 45W variants include 1050mA at 26-43V and 45.15W, 700mA at 38-64V and 44.8W, 500mA at 54-90V and 45W, and 350mA at 57-95V and about 33.2-33.25W.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well IDLC-45A-700 Power Supply 45W 700mA (Auxiliary DC output)	44.8W	64V	0.7A	Indoor	View
Mean Well IDLC-45A-500 Power Supply 45W 500mA (Auxiliary DC output)	45W	90V	0.5A	—	View
Mean Well IDLC-45A-350 Power Supply 45W 350mA (Auxiliary DC output)	33.2W	95V	0.35A	—	View
Mean Well IDLC-45A-1050 Power Supply 45W 1050mA (Auxiliary DC output)	45.15W	43V	1.05A	—	View
