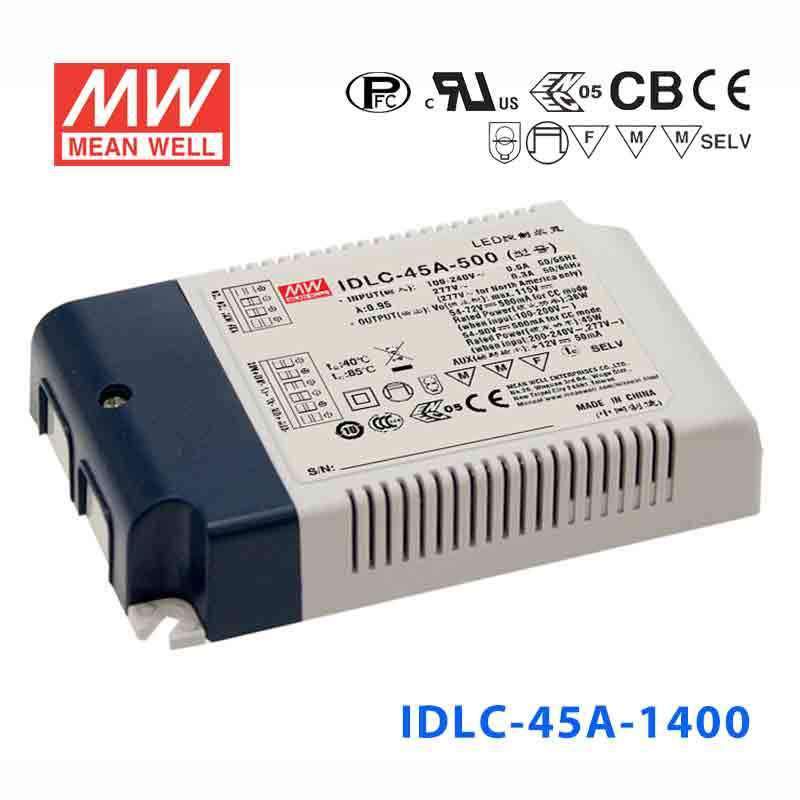

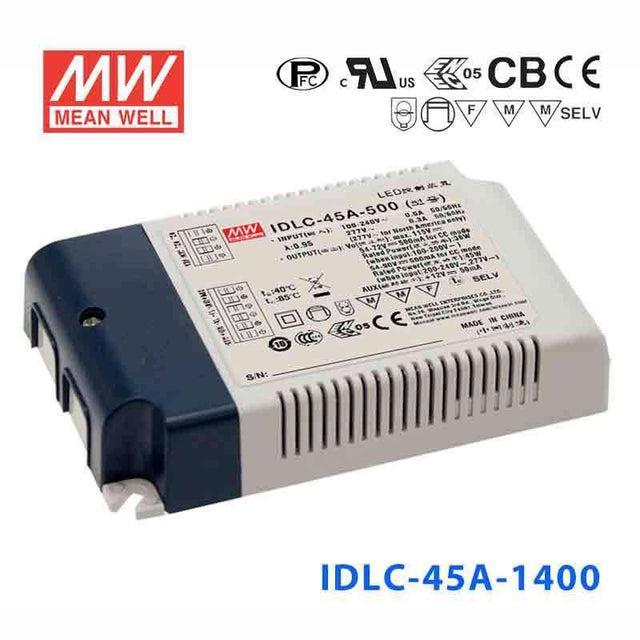

Mean Well IDLC-45A-1400 Power Supply 45W 1400mA (Auxiliary DC output)
Please Login for Pricing
Description
Description

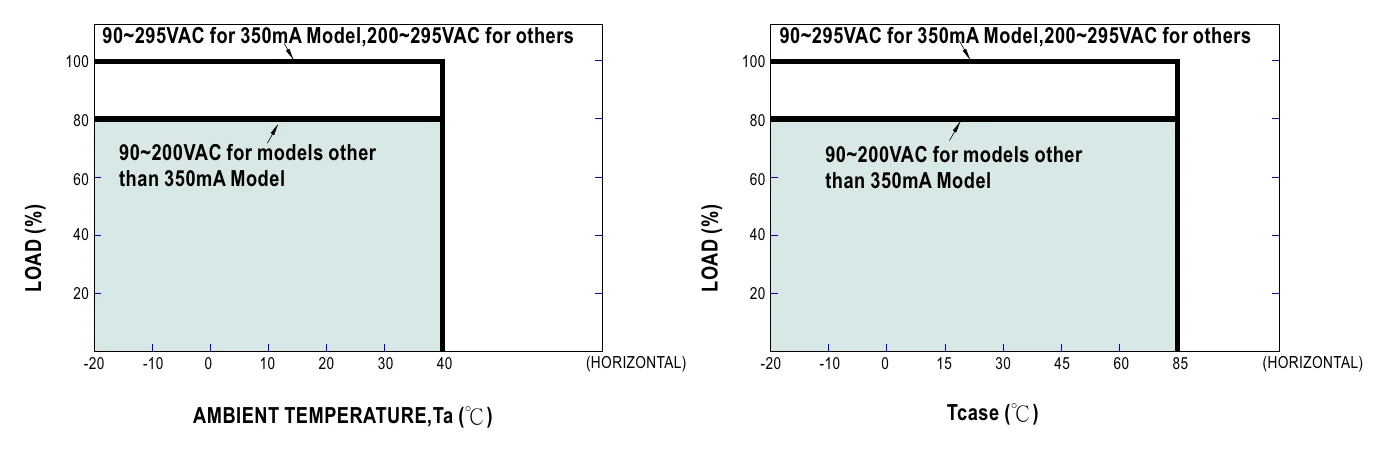

T case=-20 ~ +85°C (Please refer to OUTPUT LOAD vs TEMPERATURE section)
Key Features
- ✓Constant Current mode output
- ✓Flicker free design
- ✓Plastic housing with class II design
- ✓Built-in active PFC function
- ✓No load power consumption<0.5W(Blank-Type)

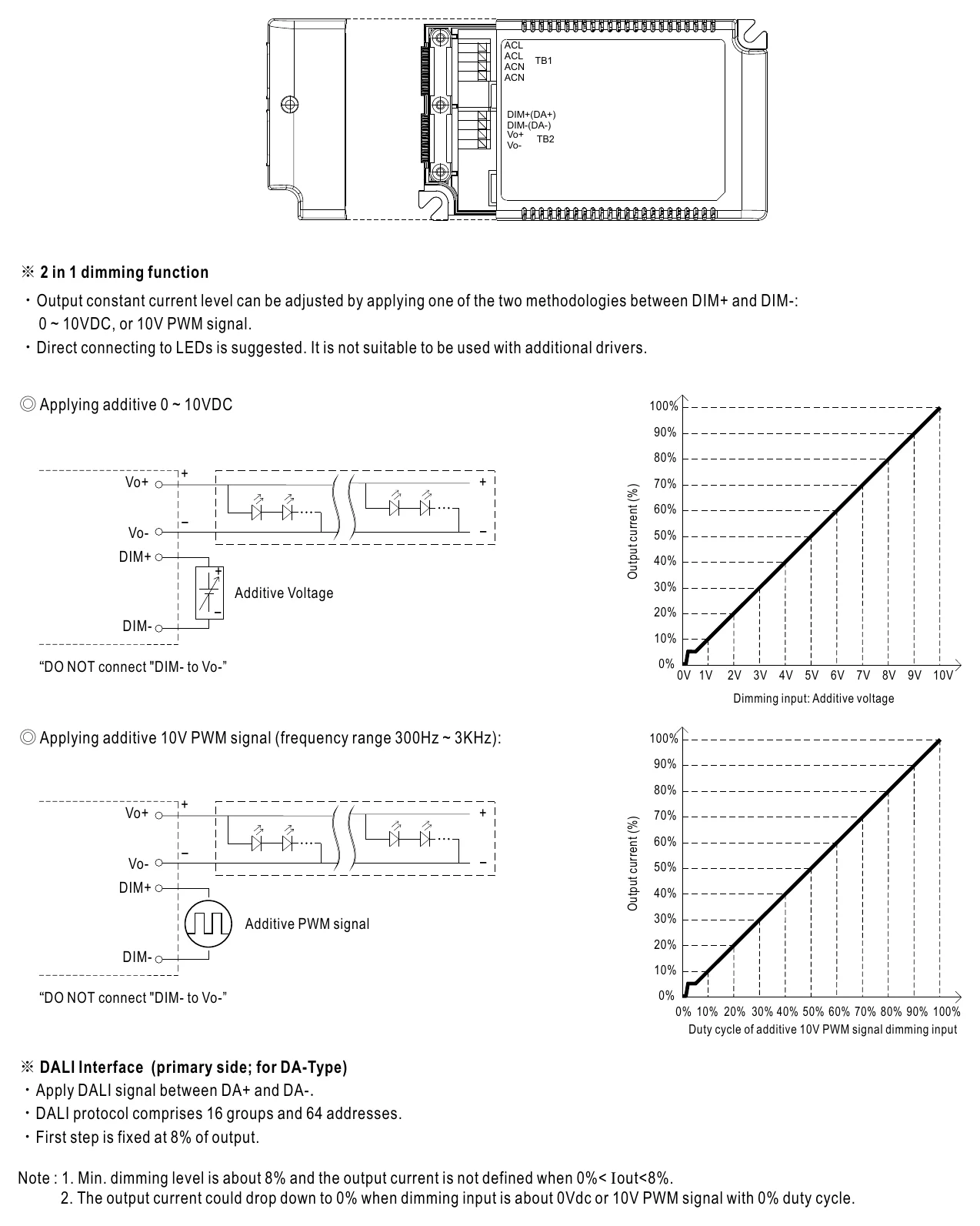

- ✓Function options: 2 in 1 dimming (dim-to-off);Auxiliary DC output
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesIDLC Series
-
Power Rating44.8 Watt
-
Output Voltage32 Volt
-
Rated Current1.4 Ampere
-
Input Voltage90V~295V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-

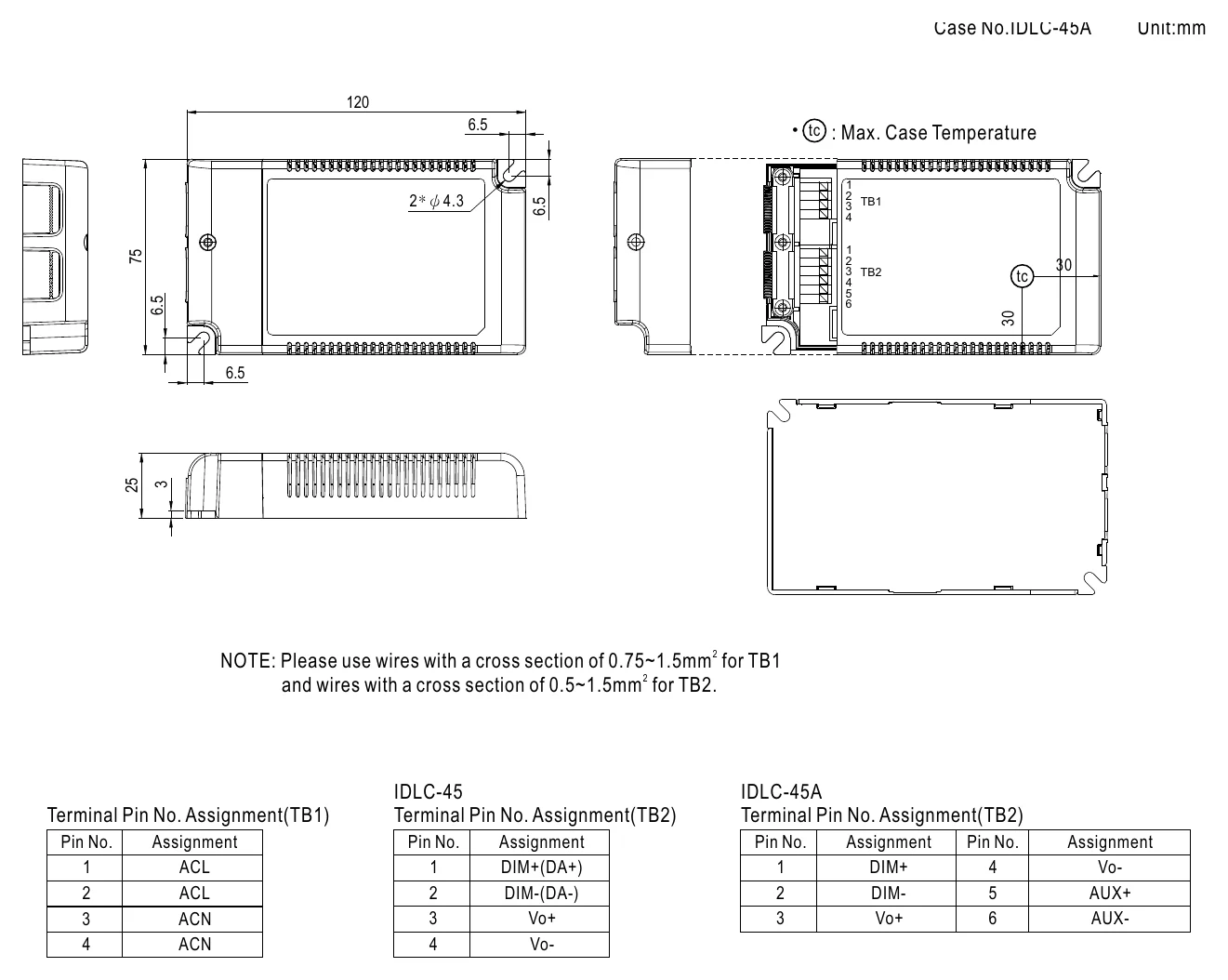

Length12 cm
-
Width7.5 cm
-
Height2.5 cm
-
Weight0.22 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the IDLC-45A-1400 for a COB LED downlight?
Yes, if the downlight is designed for a constant current driver at 1400mA and its LED load operates within the 19-32V constant current range. This driver delivers up to 44.8W, so it fits higher-current downlight assemblies that match those electrical limits.
Is this driver suitable for powering a small LED array in a fixture?
It can be, provided the LED array is a constant current load rated for 1400mA and falls inside the 19-32V CC output window. The actual number of LEDs depends on the forward voltage of each LED, not on a fixed LED count.
Can I use this for signage modules?
Only if the signage modules are built for constant current operation at 1400mA and the total LED load stays within 19-32V. It is not a constant voltage driver, so it is not the right match for LED modules that expect a fixed DC voltage supply.
Would this work for a compact commercial LED light engine?
This model is suited to compact LED light engines that need 1400mA constant current and operate between 19V and 32V. With a 44.8W output rating, it is intended for moderate-power constant current LED assemblies rather than fixed-voltage LED products.
How do I know if my LED module is electrically compatible with this driver?
Check that the module requires constant current at 1400mA and that its operating voltage under load is within 19-32V. The number of LEDs that can be driven depends on the forward voltage of each LED, so compatibility should be based on total forward voltage rather than a stated LED quantity.
How does the IDLC-45A-1400 compare with other 45W IDLC models?
Within the 45W family, the IDLC-45A-1400 is 1400mA with a 19-32V CC range and 44.8W output. Other 45W variants include 1050mA at 26-43V and 45.15W, 700mA at 38-64V and 44.8W, 500mA at 54-90V and 45W, and 350mA at 57-95V and about 33.2-33.25W.
Other IDLC-45A Models
4 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well IDLC-45A-700 Power Supply 45W 700mA (Auxiliary DC output) | 44.8W | 64V | 0.7A | Indoor | View |
| Mean Well IDLC-45A-500 Power Supply 45W 500mA (Auxiliary DC output) | 45W | 90V | 0.5A | — | View |
| Mean Well IDLC-45A-350 Power Supply 45W 350mA (Auxiliary DC output) | 33.2W | 95V | 0.35A | — | View |
| Mean Well IDLC-45A-1050 Power Supply 45W 1050mA (Auxiliary DC output) | 45.15W | 43V | 1.05A | — | View |
