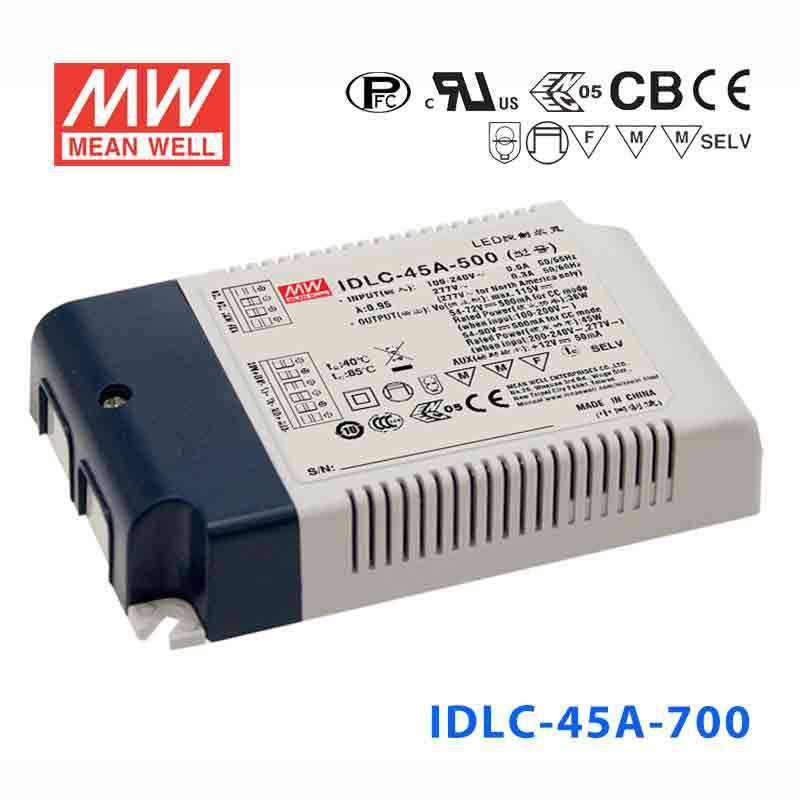

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well IDLC-45A-700 Power Supply 45W 700mA (Auxiliary DC output)

SKU IDLC-45A-700

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

IDLC-45A-700 is the model of this series: rated current 700mA, rated power 44.8W, typical efficiency 85%.

IDLC-45 series is a 45W LED AC/DC driver featuring the constant current mode output with flicker free design.IDLC-45 operates from 90~295VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the efficiency up to 86%, with the fanless design, the entire series is able to operate for -20℃~+85℃ case temperature under free air convection. IDLC-45 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for lighting system.

Features

Constant Current mode output
Flicker free design
Plastic housing with class II design
Built-in active PFC function
No load power consumption<0.5W (except for DA-Type), Standby power consumption<0.5W(DA-Type)
Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output; DALI
3 years warranty

Specifications

IDLC-45A-700Specifications from the official datasheet (2022-04-12 edition)

OUTPUT

RATED CURRENT: 700mA
RATED POWER: 44.8W
CONSTANT CURRENT REGION^Note.2: 38 ~ 64V
OPEN CIRCUIT VOLTAGE(max.): 84V
CURRENT RIPPLE: 5% max. @rated current
CURRENT TOLERANCE: ±7.0%
SETUP TIME^Note.4: 500ms / 230VAC 1200ms/115VAC
AUXILIARY DC OUTPUT^Note.5: Nominal 12V(deviation 11.4~12.6)@50mA for IDLC-45A only

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 295VAC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/115VAC, PF>0.92/230VAC, PF>0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VAC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 85%
AC CURRENT: 0.6A/115VAC 0.4A/230VAC 0.3A/277VAC
INRUSH CURRENT (Typ.): COLD START 30A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD/STANDBY POWER CONSUMPTION: No load power consumption<0.5W (except for DA-Type) Standby power consumption<0.5W for DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode,auto-recovery after fault condition is removed for DA type； Hiccup mode,re-power on to recovery for other type

ENVIRONMENT

WORKING TEMP.: Tcase=-20 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750,CSA C22.2 NO.250.13-12;BS EN/EN61347-1 & BS EN/EN61347-2-13 independent, BS EN/EN62384, GB19510.1,GB19510.14(for DA-Type only,others type optional),BIS IS15885(for IDLC-45-500, 500DA,700,700DA,1050,1050DA only), EAC TP TC 004 approved
DALI STANDARDS: Compliance to IEC62386-101, 102 for DA-Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB17743,GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity: Line-Line:1KV),EAC TP TC 020

OTHERS

MTBF: 3522.6K hrs min. Telcordia SR-332 (Bellcore) ; 345.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 120*75*25mm(L*W*H)
PACKING: 0.22Kg; 54pcs/ 13Kg/ 0.93CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
5. Aux. 12V will be damaged with short circuit; It will not be available when output voltage is not in constant current region or output no load condition.
6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
7. The DALI version driver does not support the bit 1: Lamp failure in the Command 144 Query status of the DALI standard.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

IDLC-45A-700 Block Diagram — Block Diagram

IDLC-45A-700 DIMMING OPERATION — DIMMING OPERATION

IDLC-45A-700 OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

IDLC-45A-700 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

IDLC-45A-700 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

IDLC-45A-700 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED panel lighting
LED flood lighting
Indoor LED lighting
Industrial lighting

Downloads

Certificates5

UL Certificate (IDLC-45)(EN) PDF Download

CB Certificate (IDLC-45)(EN) PDF Download

EMC Certificate (IDLC-45)(EN) PDF Download

CCC Certificate(IDLC-45)(CN) PDF Download

ENEC Certificate (IDLC-45)(EN) PDF Download

Test reports1

Test Report (IDLC-45-700)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the IDLC-45A-700 power LED downlights that use a higher forward-voltage light engine?

Yes, if the downlight is built for constant current operation at 700mA and its LED load runs within the 38-64V CC range. The higher voltage range makes it better suited to light engines that need more series LED forward voltage than a lower-voltage 700mA driver.

Is this a good fit for small architectural LED arrays?

It can be a fit when the array requires 700mA constant current and the total forward voltage lands between 38V and 64V. The driver provides up to 44.8W, so the array needs to stay within that output capability.

Can I use this driver with signage modules?

Only with signage modules that are designed for constant current at 700mA and whose combined LED forward voltage is within 38-64V. It is not intended for constant voltage LED modules that expect a fixed DC output.

Would this work for a linear or panel-style LED engine with multiple series LEDs?

Yes, if that LED engine is specified for 700mA constant current and operates in the 38-64V range. The actual number of LEDs depends on the forward voltage of each LED, so the electrical match has to be checked by total forward voltage.

How should I check compatibility with an LED module before choosing this driver?

Confirm that the module calls for constant current at 700mA and that its operating voltage fits inside the 38-64V CC range. The LED quantity cannot be estimated from the driver alone because it depends on each LED's forward voltage.

What is the difference between the IDLC-45A-700 and the other 45W current options in this series?

The IDLC-45A-700 outputs 700mA across 38-64V with 44.8W available. Other 45W versions are 1400mA at 19-32V and 44.8W, 1050mA at 26-43V and 45.15W, 500mA at 54-90V and 45W, and 350mA at 57-95V and 33.25W.
