Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

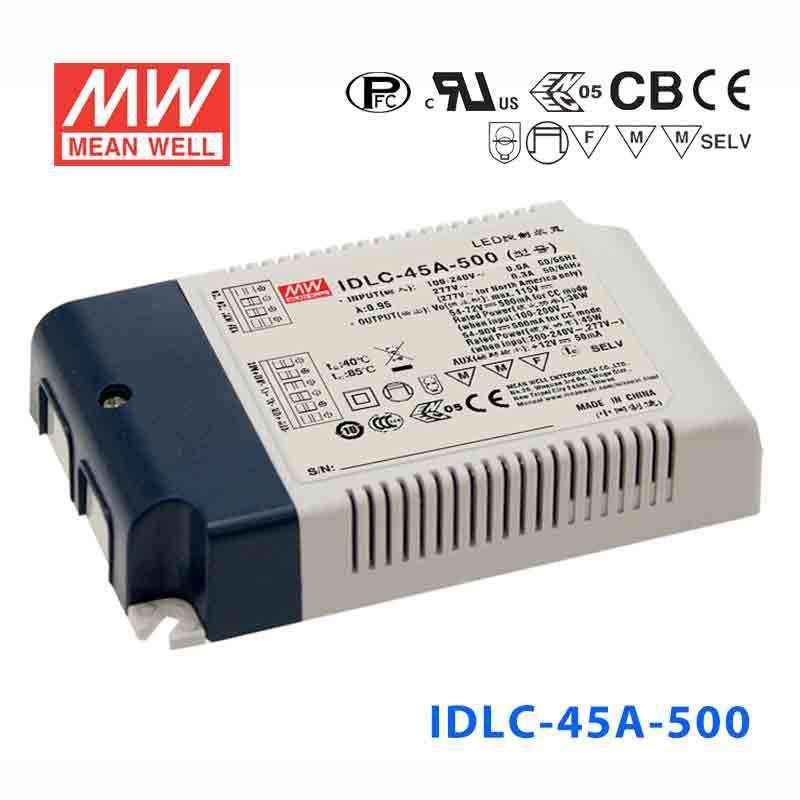

Mean Well IDLC-45A-500 Power Supply 45W 500mA (Auxiliary DC output)

SKU:

IDLC-45A-500

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by LCM-40

Notify me when it's back in stock

Features

Constant Current mode output

Flicker free design

Plastic housing with class II design

Built-in active PFC function

No load power consumption<0.5W(Blank-Type)

Function options: 2 in 1 dimming (dim-to-off);Auxiliary DC output

3 years warranty

General Specification

Short circuit	Hiccup mode, recovers automatically after fault condition is removed
Withstand voltage	I/P-O/P:3.75KVAC
Working temperature	T case=-20 ~ +85°C (Please refer to OUTPUT LOAD vs TEMPERATURE section)
Safety standards	UL8750, CSA C22.2 NO.250.13-12;ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1, GB19510.14 approved
EMC standards	Compliance to EN55015, EN61000-3-2 Class C (load) ; EN61000-3-3, GB17743, GB17625.1
Dimension (LxWxH)(mm)	120 x 75 x 25 mm

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well IDLC-45A-700 Power Supply 45W 700mA (Auxiliary DC output)	44.8W	64V	0.7A	Indoor	View
Mean Well IDLC-45A-350 Power Supply 45W 350mA (Auxiliary DC output)	33.2W	95V	0.35A	—	View
Mean Well IDLC-45A-1400 Power Supply 45W 1400mA (Auxiliary DC output)	44.8W	32V	1.4A	Indoor	View
Mean Well IDLC-45A-1050 Power Supply 45W 1050mA (Auxiliary DC output)	45.15W	43V	1.05A	—	View

Please log in to write a review.

{ "id":8420884644139, "variants" :[{ "context":"default", "variant_id": 45621956903211, "sku":"IDLC-45A-500", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

General Specification

Short circuit

Hiccup mode, recovers automatically after fault condition is removed

Withstand voltage

I/P-O/P:3.75KVAC

Working temperature

T case=-20 ~ +85°C (Please refer to OUTPUT LOAD vs TEMPERATURE section)

Safety standards

UL8750, CSA C22.2 NO.250.13-12;ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1, GB19510.14 approved

EMC standards

Compliance to EN55015, EN61000-3-2 Class C (load) ; EN61000-3-3, GB17743, GB17625.1

Dimension (LxWxH)(mm)

120 x 75 x 25 mm
