Mean Well RSP-200-24 Power Supply 200W 24V - Best Prices NZ

Overview

RSP-200-24 is the 24V output model of this series: rated current 8.4A, rated power 201.6W, typical efficiency 89.5%.

RSP-200 is a 200W single output enclosed type AC/DC power supply. This series operates for 88~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by free air convection, working for the temperature up to 70℃.

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 90%
Cooling by free air convection
Protections: Short circuit / Overload / Over voltage / Over temperature
Optional conformal coating
LED indicator for power on
3 years warranty

Specifications

RSP-200-24Specifications from the official datasheet (2026-09-04 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 8.4A
CURRENT RANGE: 0 ~ 8.4A
RATED POWER: 201.6W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 20 ~ 26.4V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.2%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1500ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 8ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGE^Note.4: 88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 89.5%
AC CURRENT (Typ.): 2.5A/115VAC 1.3A/230VAC
INRUSH CURRENT (Typ.): 20A/115VAC 40A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 27.6 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 45℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 5)

SAFETY STANDARDS: UL62368-1,TUV BS EN/ EN62368-1, EAC TP TC 004, CCC GB4943.1,BSMI CNS15598-1 , AS/NZS 60950.1, Dekra EN 61558-1/2-16,IEC 61558-1/2-16(for 12V or higher models), BIS IS13252(Part1): 2010/IEC 60950-1:2005(except for 2.5V,4V,48V) approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/ EN55032 (CISPR32) Class B, BS EN/ EN61000-3-2,-3, EAC TP TC 020, CNS15936 , GB9254 Class B , GB17625.1
EMC IMMUNITY: Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF: 2078.1K hrs min. Telcordia SR-332 (Bellcore) ; 224.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 215*115*30mm (L*W*H)
PACKING: 0.72Kg; 15pcs/11.8Kg/0.67CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
6. For charging related applications, please consult Mean Well for details.
7. Strongly recommended that external output capacitance should not exceed 5000uF. (Only for: RSP-200-2.5/-3.3/-4/-5/-7.5/-12/-13.5/-15)
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. Some model may not have the BIS logo, please contact your MEAN WELL sales for more information.

Technical drawings

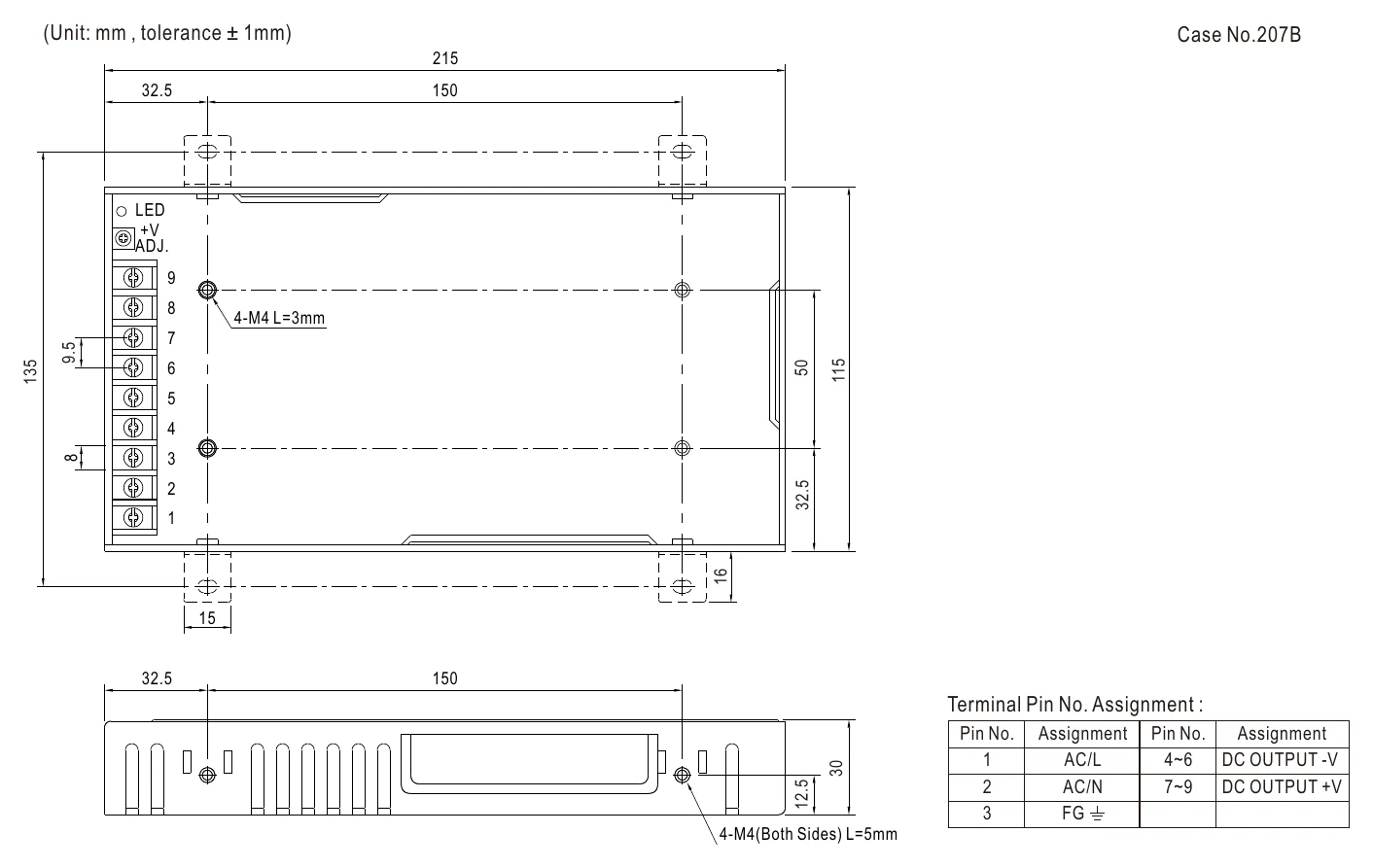

RSP-200-24 Mechanical Specification — Mechanical Specification

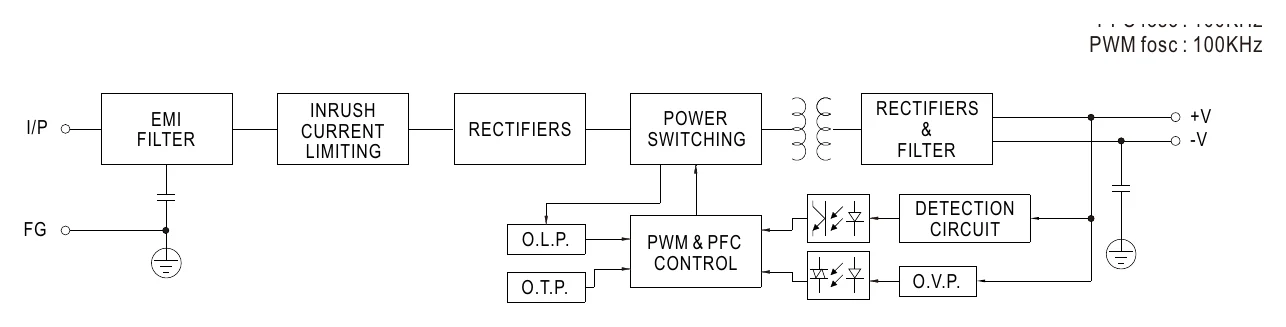

RSP-200-24 Block Diagram — Block Diagram

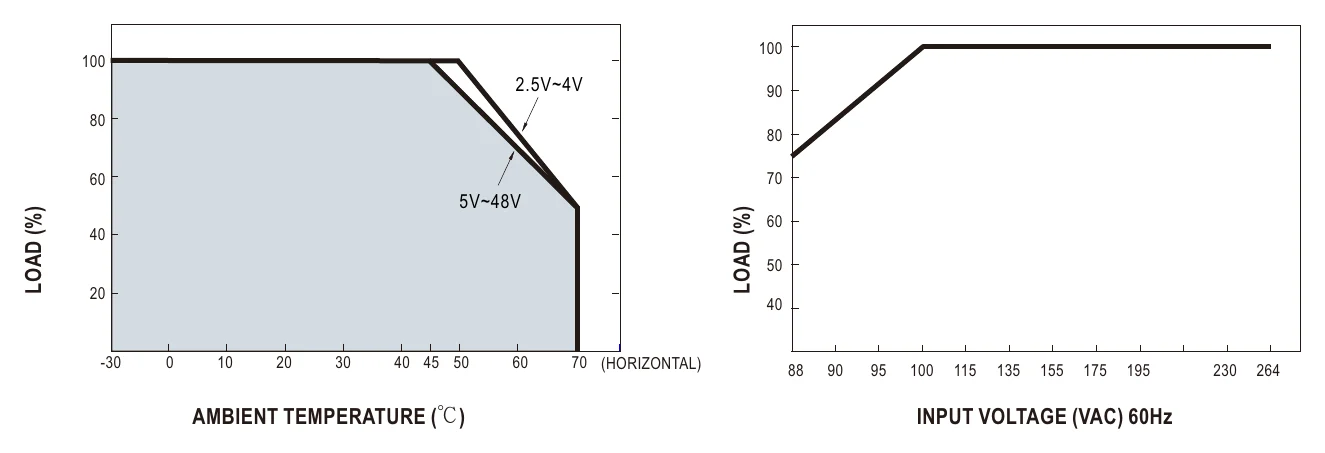

RSP-200-24 Derating Curve — Derating Curve

Typical applications

Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Burn-in facility
RF application

Downloads

Certificates4

UL Certificate (RSP-200)(EN) PDF Download

CB Certificate (RSP-200)(EN) PDF Download

TUV Certificate (RSP-200)(EN) PDF Download

EMC Certificate (RSP-200)(EN) PDF Download

Test reports1

Test Report (RSP-200-24)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

What 24V systems can the RSP-200-24 serve at 200W?

The RSP-200-24 delivers 24V at 8.4A (201.6W) and is suited for 24V DC control panels, industrial Ethernet devices, PLC racks, and field instrumentation requiring a regulated 24V supply up to 201.6W. The 88–264VAC input handles both 110V and 230V mains.

Is the RSP-200-24 suitable for deployment in a cold-storage facility control cabinet?

Yes. The RSP-200-24 is rated from -30°C to +70°C (with derating per the derating curve), covering typical cold-storage temperatures. It must be installed in an enclosed cabinet, as it is rated for 20–90% RH non-condensing humidity. Once enclosed, its temperature range covers cold-storage environments.

What certifications does the RSP-200-24 hold?

The RSP-200-24 is approved to UL62368-1, TÜV BS EN/EN62368-1, EAC TP TC 004, CCC GB4943.1, BSMI CNS15598-1, AS/NZS 60950.1, Dekra EN 61558-1/2-16 and IEC 61558-1/2-16, and BIS IS13252, covering North America, Europe, Eurasia, China, Taiwan, Australia/NZ and India.

What is the footprint of the RSP-200-24 and how does it compare to RSP-200 siblings?

All RSP-200 series models share the 215 × 115 × 30 mm chassis at 0.72 kg. The RSP-200-24 is dimensionally identical to all other RSP-200 variants: RSP-200-2.5 (100W/2.5V/40A), RSP-200-3.3 (132W/3.3V/40A), RSP-200-4 (160W/4V/40A), RSP-200-5 (200W/5V/40A), RSP-200-7.5 (200.25W/7.5V/26.7A), RSP-200-12 (200.4W/12V/16.7A), RSP-200-13.5 (201.15W/13.5V/14.9A), RSP-200-15 (201W/15V/13.4A), RSP-200-24 (201.6W/24V/8.4A), RSP-200-27 (202.5W/27V/7.5A), RSP-200-36 (200.16W/36V/5.56A), RSP-200-48 (201.6W/48V/4.2A).
