Description
Description
Features
Ultra low profile: 30mm |
Universal AC input / Full range |
Protections: Short circuit / Overload / Over voltage / Over temperature |
Built-in active PFC function |
Cooling by free air convection |
LED indicator for power on |
3 years warranty |
General Specification
AC input voltage range | 88~264VAC; 124~370VDC |
AC inrush current (max.) | 40A at 230VAC |
DC adjustment range | ±10% rated output voltage |
Overload protection Range | 105%~150% |
Overload protection Type | Hiccup mode, auto-recovery |
Over voltage protection Range | 115%~145% |
Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
Working temperature | -30~+70°C (refer to output derating curve) |
Safety standards | UL60950-1, TUV EN60950-1, CCC GB4943 approved |
EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254 |

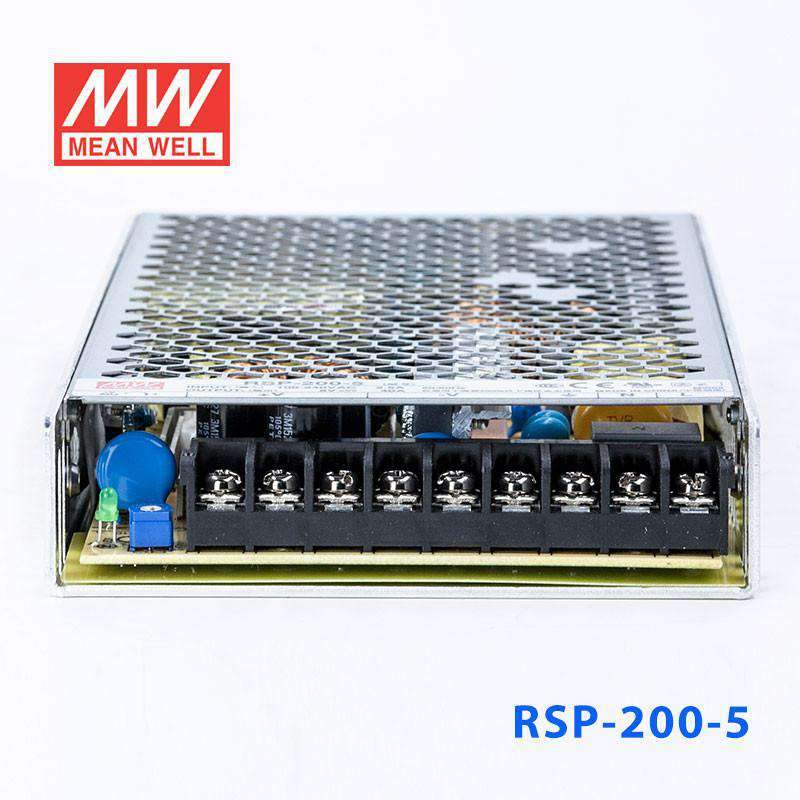

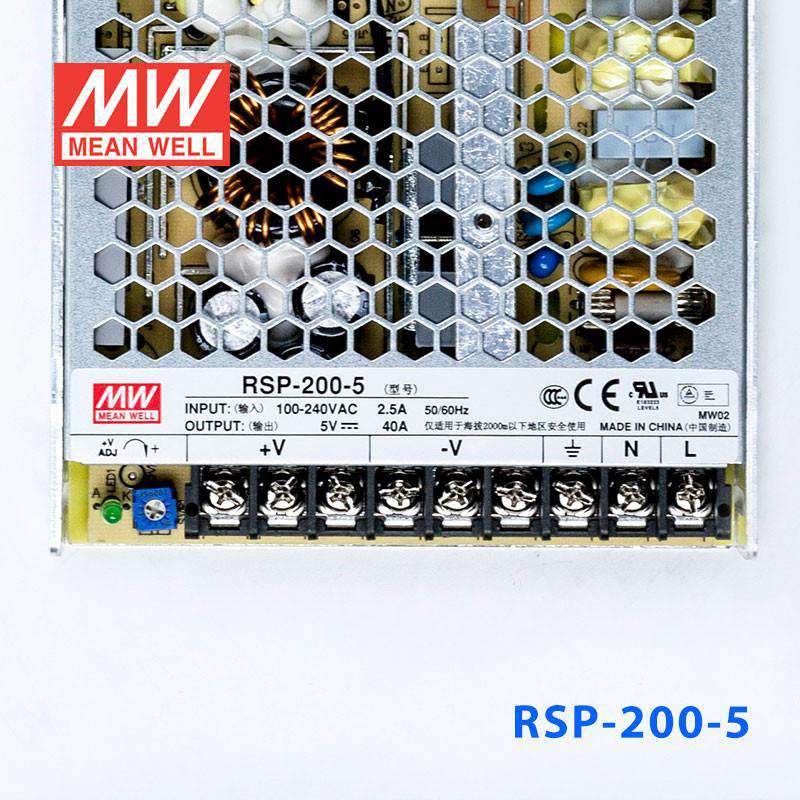

Connection | 9P / 9.5mm pitch terminal block |
Dimension (LxWxH) | 215x115x30 |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating200 Watt
-
Output Voltage5 Volt
-
Rated Current40 Ampere
-
Input Voltage88V~264V
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length21.5 cm
-
Width11.5 cm
-
Height3 cm
-
Weight0.72 kg
