Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Archilight

LED Strip Pro Ultra-Narrow High-Density 4MM

238LEDs/m7.2W/m24VIP20CRI>90cuttable length 29.4mm
SKU 4MMHD2216-2382400GLE-CW
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 3 variants

4MMHD2216-2382400GLE-CW
LED Colour
3 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
In stock
|

Overview

Features

  • Plus Series using top quality material such as Epistar/San'an chip, Intermatix phosphor powder, ShinEtsu & Dow Corning glue, Heraeus 99.99% pure golden wire, pure copper & fresh plastic stand etc. as standard configuration.
  • Tiny package of 2216 LED, more appropriate for furniture lighting with demand of ultra-narrow and high-density performance.
  • Decorating backlight and indirect lighting for showcase, shelf, cabinet, billboard, signage, hotel, garden, bridge, corridor, ceiling, stair, floor, cove, theatre, lift etc.

Specifications

LED Strip Pro Ultra-Narrow High-Density 4MMSpecifications from the official datasheetDownload datasheet PDF

Variants

SKULED ColourBrightness
4MMHD2216-2382400GLE-CWCool White 6000K700 lm
4MMHD2216-2382400GLE-NWNatural White 4000K700 lm
4MMHD2216-2382400GLE-WWWarm White 3000K665 lm

Specification

Dimension (L*W*H)
5000*4*1mm [197*0.16*0.04in.]
IP Rating
IP20 [dry]
Light Eff. @CRI90&4000K
97lm/W

General Specification

Standard Length
5M [16.4ft] (power fed on one side)
Min. Unit & LED QTY
29.4mm [1.16in.] & 7 LEDs
LED Type
SMD2216 white
LED QTY
238LED/M [73LED/ft.]
PCB Type
2oz white FPC, OSP
Operating Ambient
Ta: -20~45℃
Warranty
5 years
Lifespan
50kh (L70B50@Tc<65℃, Tc is temperature of LED pin)

Photoelectric Specification

Power±10%
7.2W/M [2.2W/ft.]
Input Voltage & Current
24VDC
LED Current
7~11mA/LED
SDCM
ErP & ANSI Norm 3 step
CRI
Ra≥90
Beam Angle
120°
Dimming Method
PWM (dimmable driver like RF, Bluetooth, 0/1-10V, Triac, DALI, DMX, WIFI etc.)

Certifications & ratings

Certification marks
CE, CB, RoHS, TÜV
Test conditions and notes7
  1. 1: Luminous flux for CCT 3000K is 5% lower, for CCT 6000K is the same, compared with 4000K.
  2. 2: Transmittance for IP54/IP67/IP68, 3000K is 95%, 4000K is 90%, 6000K is 80%; for IP65/IP54 Plus/IP67 Plus is 95%.
  3. 3: Applying with extra heat sink is not necessary with self-cooling capacity.
  4. 4: 3M 300LSE yellow adhesive tape attached on backside, is standard configuration of Plus Series.
  5. 5: One end of 200mm red/white silicon cable or waterproof connector kit according to specific IP rating, is standard configuration of Plus Series.
  6. 6: Transparent reel and silvery ESD bag, are standard configuration of Plus Series.
  7. 7: Installation accessories such as clip, screw, plug etc. are all optional based on specific demand.

Technical drawings

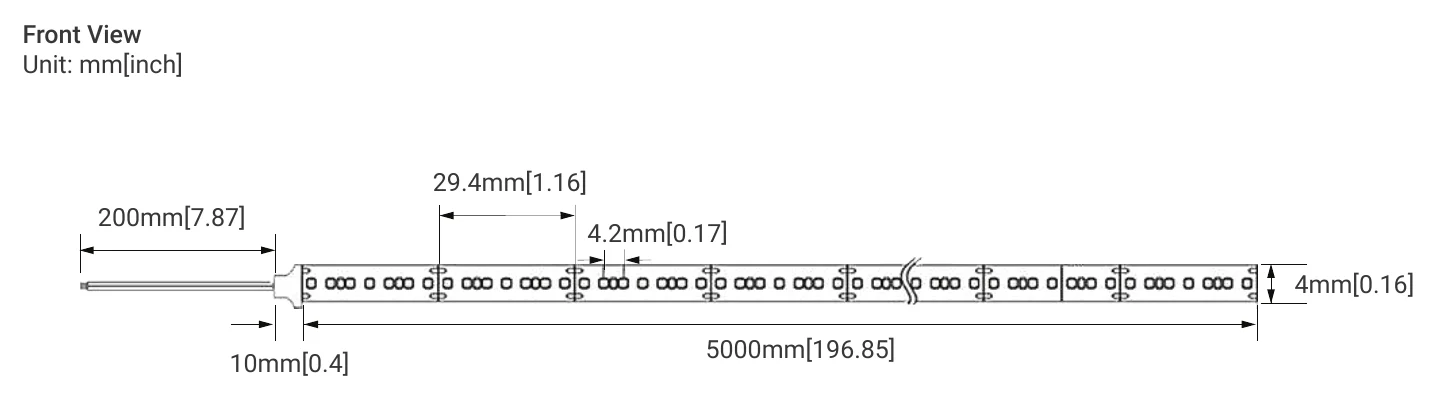

LED Strip Pro Ultra-Narrow High-Density 4MM Front View
Front View

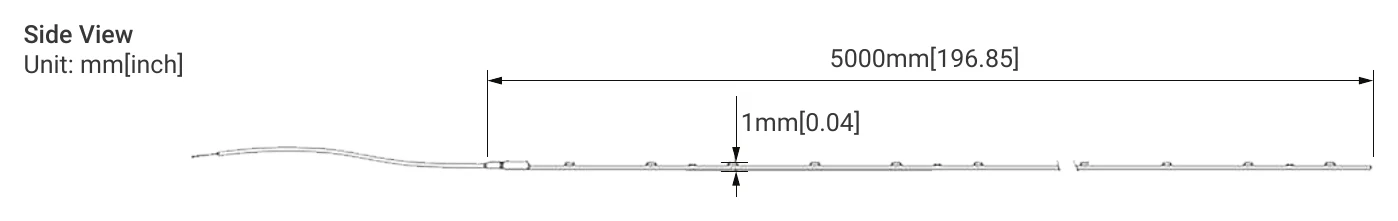

LED Strip Pro Ultra-Narrow High-Density 4MM Side View
Side View

Downloads

FAQ

What makes the LED Strip Pro Ultra-Narrow High-Density 4MM suitable for tight spaces?

This strip is only 4 mm wide and 1 mm high, so it fits where standard LED strips may be too bulky. That makes it a practical choice for discreet linear lighting in shelves, furniture details, showcases, and other narrow architectural features.

How bright is this LED strip, and does brightness vary by color temperature?

The family is rated at 7.2 W per meter and delivers high-density output with 238 LEDs per meter. The 4000K and 6000K variants are listed at 700 lumens per meter, while the 3000K variant is listed at 665 lumens per meter.

What color temperature options are available in this product family?

This parent product family is available in 3000K, 4000K, and 6000K versions. That gives buyers a choice between warmer and cooler white light while keeping the same 4 mm ultra-narrow format and 24VDC power input.

Is a driver included with the LED Strip Pro Ultra-Narrow High-Density 4MM?

No, the driver is not included with this product family. The strip operates on 24VDC input, so buyers should plan for a suitable external driver based on their project requirements.

Can this LED strip be dimmed?

Yes, this product family is dimmable when used with compatible optional dimming control. The product description states support for PWM-based dimming and compatibility with control methods such as RF, Bluetooth, Triac, DALI, DMX, and WiFi through suitable drivers and controls.

Where is this LED strip intended to be used?

This strip is rated IP20, so it is intended for dry indoor environments rather than exposed wet locations. It is positioned for interior backlighting and indirect lighting applications in spaces such as retail displays, corridors, ceilings, staircases, hotels, and similar architectural settings.
