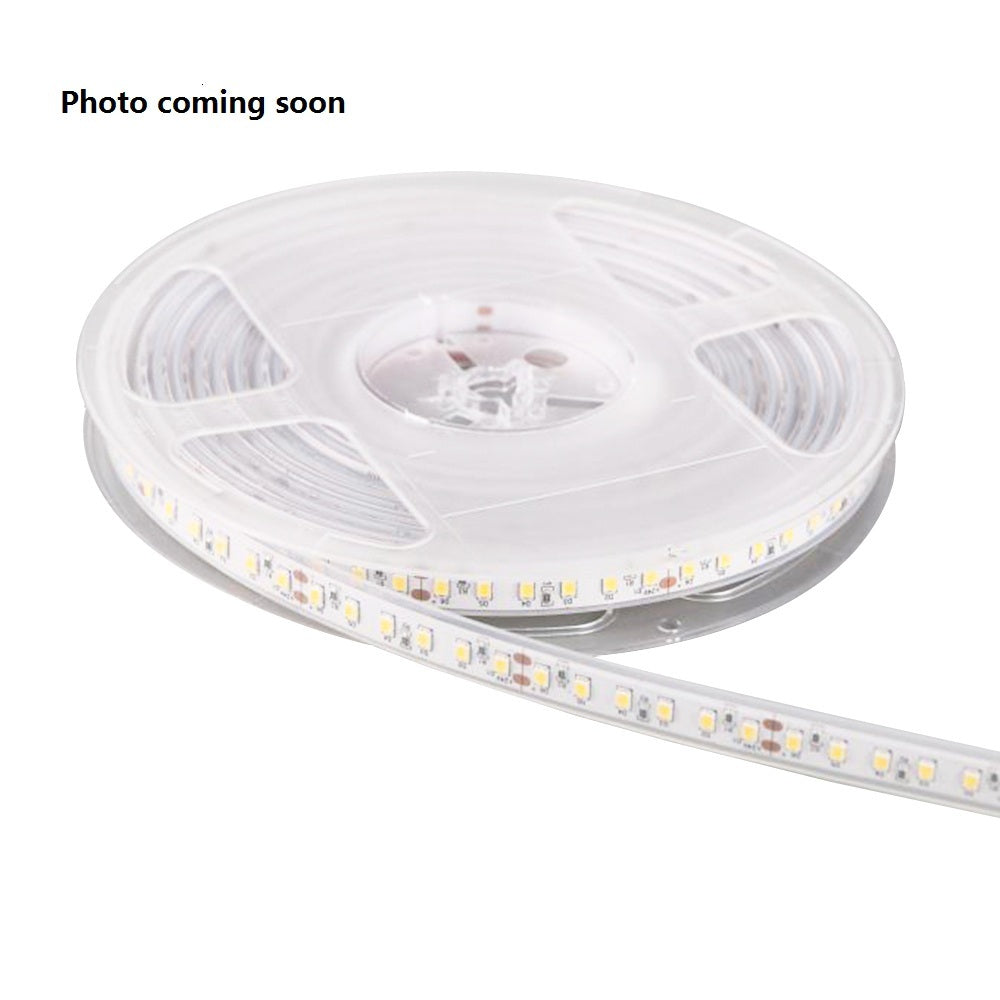

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

LED Strip Pro High-Density 4MM 238LEDs/m 7.2W/m 24V IP65 CRI>90

SKU Z-4MMHD2216-2382465GLE-CW-5

Log in to see price Trade pricing & online ordering for account holders

Configure — 3 variants

Z-4MMHD2216-2382465GLE-CW-5

LED Colour

3 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Available to order

Overview

Ultra-Slim High-Density Series ｜ 2216 LED ｜ GL-24-FE25

Features

Plus Series using top quality material such as Epistar/San'an chip, Intermatix phosphor powder, ShinEtsu & Dow Corning glue, Heraeus 99.99% pure golden wire, pure copper & fresh plastic stand etc. as standard configuration.
Tiny package of 2216 LED, more appropriate for furniture lighting with demand of ultra-narrow and high-density performance.

Specifications

LED Strip Pro High-Density 4MM 238LEDs/m 7.2W/m 24V IP65 CRI>90Specifications from the official datasheetDownload datasheet PDF

Variants

SKU	LED Colour
Z-4MMHD2216-2382465GLE-CW-5	Cool White 6000K
Z-4MMHD2216-2382465GLE-NW-5	Natural White 4000K
Z-4MMHD2216-2382465GLE-WW-5	Warm White 3000K

Specifications

Dimension (L*W*H): 5000*4*1mm [197*0.16*0.04in.]
IP Rating: IP20 [dry]
Light Eff. @CRI90&4000K: 97lm/W
Lumen Flux±10% @CRI90&4000K: 700lm/M [214lm/ft.]

GENERAL PARAMETERS

Standard Length: 5M [16.4ft] (power fed on one side)
Min. Unit & LED QTY: 29.4mm [1.16in.] & 7 LEDs
LED Type: SMD2216 white
LED QTY: 238LED/M [73LED/ft.]
PCB Type: 2oz white FPC, OSP
Operating Ambient: Ta: -20~45℃
Warranty: 5 years
Lifespan: 50kh (L70B50@Tc<65℃, Tc is temperature of LED pin)
Certification: CE, UL, RoHS

PHOTOELECTRIC PARAMETERS

Power±10%: 7.2W/M [2.2W/ft.]
Input Voltage: 24VDC
LED Current: 7~11mA/LED
SDCM: ErP & ANSI Norm, 3 step
CRI: Ra≥90
Beam Angle: 120°
Dimming Method: PWM (dimmable driver like RF, Bluetooth, 0/1-10V, Triac, DALI, DMX, WIFI etc.)

Test conditions and notes7

1. Luminous flux for CCT 2700K is 10% lower, for CCT 3000K/3500K is 5% lower, for CCT 5000K/6500K is the same, compared with 4000K.
2. Transmittance for IP54/IP67/IP68, 2700K/3000K is 95%, 3500K/4000K is 90%, 5000K/6500K is 80%; for IP65/IP54 Plus/IP67 Plus is 95%.
3. Applying with extra heat sink is not necessary with self-cooling capacity.
4. 3M 300LSE yellow adhesive tape attached on backside, is standard configuration of Plus Series.
5. One end of 200mm red/white silicon cable or waterproof connector kit according to specific IP rating, is standard configuration of Plus Series.
6. Transparent reel and silvery ESD bag, are standard configuration of Plus Series.
7. Installation accessories such as clip, screw, plug etc. are all optional base on specific demand.

Technical drawings

LED Strip Pro High-Density 4MM 238LEDs/m 7.2W/m 24V IP65 CRI>90 Part. No. Dimension (L*W*H) — Part. No. Dimension (L*W*H)

Typical applications

Decorating backlight and indirect lighting for showcase, shelf, cabinet, billboard, signage, hotel, garden, bridge, corridor, ceiling, stair, floor, cove, theatre, lift etc.

Downloads

Datasheet1

LED Strip Pro High-Density 4MM 238LEDs/m 7.2W/m 24V IP65 CRI>90 datasheet_LED_Strip_Light___Plus_Series___Ultra_Slim_High_Density_Series___2216_LED___GL_24_FE25_.pdf PDF Download

Catalogues2

LED Strip Selection Guide PDF Download

Related Files- LED Comprison Form PDF Download

FAQ

What applications is this 4mm high-density LED strip designed for?

This archilight LED strip is intended for narrow linear lighting where a compact strip and dense LED spacing are useful. Typical uses include furniture lighting, showcase lighting, shelf and cabinet lighting, signage, cove lighting, corridors, stairs, ceilings, lifts, and other indirect or decorative lighting applications.

What color temperature options are available for this parent model?

The listed child variants support 3000K warm white, 4000K neutral white, and 6000K cool white. The parent model otherwise shares the same core specification across those variants, including 24V input, 7.2W/m power rating, IP65 rating, and 4mm strip width.

Is this LED strip suitable for outdoor or damp environments?

This model is IP65 rated, so it is positioned for environments needing added protection compared with non-rated indoor strip. It appears in outdoor and outdoor linear lighting categories, but the product data does not state suitability for submersion or underwater use.

Does this LED strip include a driver?

No. The product data states that the driver is not included. Buyers should account for a separate 24V LED power supply or driver that matches the strip's power requirements and any desired dimming setup.

Can this 24V LED strip be dimmed?

The parent model is marked as dimmable optional. That means dimming is supported when the rest of the system is selected for dimming, but the product data does not specify a bundled dimmer or control type.

What are the key physical and performance specifications?

This is a 4mm wide, 2mm high, 24V LED strip with 238 LEDs per meter and a 7.2W/m power rating. The product name specifies CRI greater than 90, and the listed variants show 3500 lm brightness. The parent model has a 5-year warranty and a listed weight of 0.2 kg.
