Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

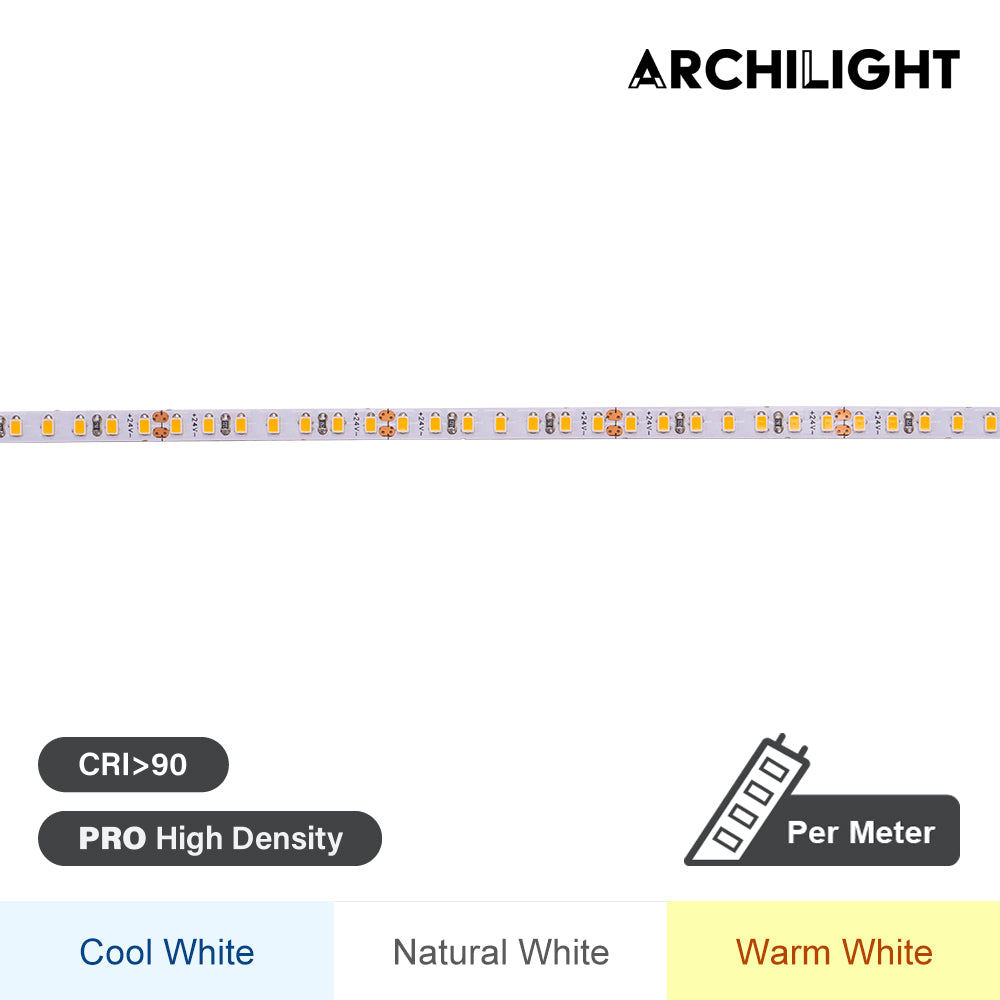

LED Strip Pro Ultra-Narrow High-Density 4MM

238LEDs/m, 7.2W/m, 24V, IP20, CRI>90, cuttable length 29.4mm

SKU:

4MMHD2216-2382400GLE-CW

Length

100 Centimeter

LED Colour

Cool White 6000K Natural White 4000K Warm White 3000K

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Introducing the Ultra-Narrow Pro Strip Light from Archilight, a premium lighting solution designed to elevate any environment with its exceptional quality and performance. Ideal for both residential and commercial applications, this LED strip light offers versatility and reliability.

Key Features:

Ultra-Slim Design: The compact size of the strip, measuring just 4mm in width, makes it perfect for installations where space is limited. It seamlessly integrates into furniture, showcases, shelves, and various architectural features without being obtrusive.
High-Density Illumination: Featuring 238 LEDs per meter, this strip delivers a bright and uniform light output, achieving a luminous flux of 700 lumens per meter at a color rendering index (CRI) of 90. This ensures vibrant and true-to-life colors in any setting.
Premium Materials and Construction: Built with top-tier materials like Epistar/San’an chips, Intermatix phosphor powder, and Heraeus pure golden wire, the strip guarantees superior performance and longevity. It also includes a durable PCB construction for added stability.
Versatile Applications: Perfect for decorating backlight and indirect lighting in settings such as hotels, gardens, bridges, corridors, ceilings, staircases, and theaters. Its flexible nature allows it to adapt to a wide range of lighting needs and design aesthetics.
Energy Efficient and Dimmable: Operating at 24VDC with a power consumption of 7.2W per meter, the strip is energy-efficient while providing excellent light output. It supports various dimming methods, including PWM and compatible drivers like RF, Bluetooth, Triac, DALI, DMX, and WIFI, offering precise control over lighting levels.
Easy Installation and Maintenance: Equipped with 3M adhesive tape on the backside for straightforward mounting.
Technical Specifications:
- Available in color temperatures from 3000K to 6000K.
- IP20 rating for dry indoor environments.
- Beam angle of 120° for wide-area illumination.

The Ultra-Narrow Pro LED Strip Light is the perfect choice for anyone seeking a high-quality, efficient lighting solution that combines sleek design with high performance. Whether enhancing a retail display or creating a cozy home atmosphere, this product delivers exceptional results.

Specifications

Brand

Archilight
Series

Pro High Density Series
Power Rating

7.2 Watt
Operation Mode

Constant Voltage
Operating Temperature

-20°C~45°C
Warranty

5 Year
Width

0.4 cm
Height

0.1 cm
Weight

0.2 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What makes the LED Strip Pro Ultra-Narrow High-Density 4MM suitable for tight spaces?

This strip is only 4 mm wide and 1 mm high, so it fits where standard LED strips may be too bulky. That makes it a practical choice for discreet linear lighting in shelves, furniture details, showcases, and other narrow architectural features.

How bright is this LED strip, and does brightness vary by color temperature?

The family is rated at 7.2 W per meter and delivers high-density output with 238 LEDs per meter. The 4000K and 6000K variants are listed at 700 lumens per meter, while the 3000K variant is listed at 665 lumens per meter.

What color temperature options are available in this product family?

This parent product family is available in 3000K, 4000K, and 6000K versions. That gives buyers a choice between warmer and cooler white light while keeping the same 4 mm ultra-narrow format and 24VDC power input.

Is a driver included with the LED Strip Pro Ultra-Narrow High-Density 4MM?

No, the driver is not included with this product family. The strip operates on 24VDC input, so buyers should plan for a suitable external driver based on their project requirements.

Can this LED strip be dimmed?

Yes, this product family is dimmable when used with compatible optional dimming control. The product description states support for PWM-based dimming and compatibility with control methods such as RF, Bluetooth, Triac, DALI, DMX, and WiFi through suitable drivers and controls.

Where is this LED strip intended to be used?

This strip is rated IP20, so it is intended for dry indoor environments rather than exposed wet locations. It is positioned for interior backlighting and indirect lighting applications in spaces such as retail displays, corridors, ceilings, staircases, hotels, and similar architectural settings.

Model	Power	LED Density	Cuttable	IP Rating
LED Strip Pro High-Density 4MM 238LEDs/m 7.2W/m 24V IP65 CRI>90	7.2W	238LEDs/m	29.41mm	IP65	View
