Illumax

ILLUMAX LED Strip ECO Series

120LEDs/m9.6W/m12Vcuttable length 25mm
SKU 3528-1201200SCX-CW
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 3 variants

3528-1201200SCX-CW
LED Colour
3 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
In stock
|

Specifications

ILLUMAX LED Strip ECO SeriesSpecifications from the official datasheetDownload datasheet PDF

Variants

SKULED ColourBrightnessLED DensityBeam angle
3528-1201200SCX-CWCool White 6000K780 lm120LEDs/m120°
3528-1201200SCX-NWNatural White 4000K660 lm120 LEDs/m120 °
3528-1201200SCX-WWWarm White 3000K640 lm120LEDs/m120°

Specifications

Power Rating
9.6W/m
Input Voltage
12V DC
Cutting Length
25mm
Warranty
2 Years

Technical drawings

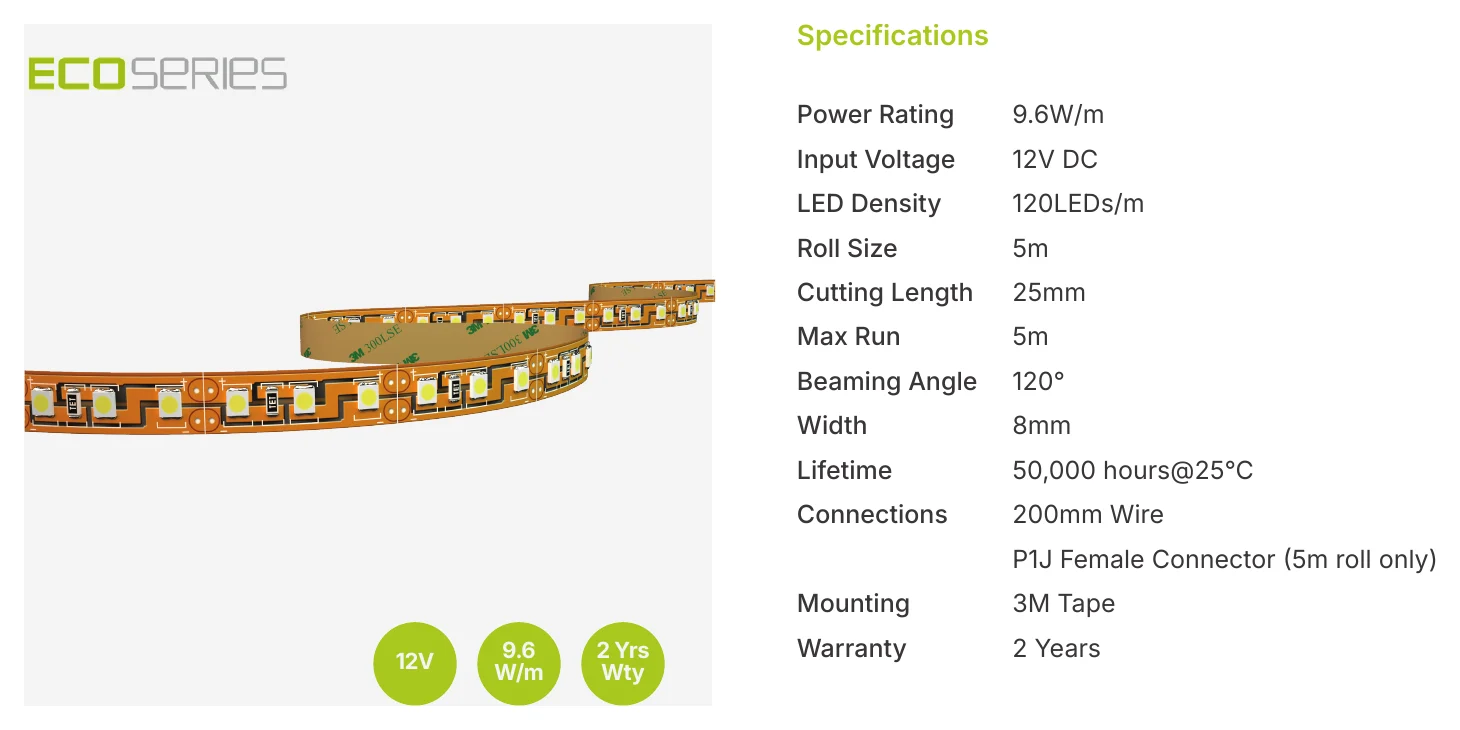

ILLUMAX LED Strip ECO Series Specifications
Specifications

Downloads

FAQ

What is the ILLUMAX LED Strip ECO Series designed for?

The ILLUMAX LED Strip ECO Series is a low-voltage LED strip suited to linear lighting applications where a compact 8mm-wide strip is useful. It is part of the ECO range, so it is positioned as a practical option for general LED strip lighting across commercial and trade-focused projects.

What are the main specifications of the ILLUMAX LED Strip ECO Series?

This LED strip is rated at 9.6W per metre and operates on 12V DC input. It has 120 LEDs per metre, a 120 degree beam angle, a 25mm cutting length, and an 8mm width. The product is also rated for a 50,000 hour lifetime and includes standard 3M tape mounting.

Does the ILLUMAX LED Strip ECO Series include a driver, and can it be dimmed?

A driver is not included with this product family. The product operates on 12V DC input. Dimming capability depends on the control setup and any compatible supporting components selected for the project.

What warranty is provided for the ILLUMAX LED Strip ECO Series?

This product family carries a 2-year warranty period. That warranty applies at the parent model level across the listed variants in this range.
