Illumax

ILLUMAX LED Strip ECO+ Series

120LEDs/m9.6W/m24Vcuttable length 50mm
SKU 3528-1202400SCX-WW
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 3 variants

3528-1202400SCX-WW
LED Colour
3 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
In stock
|

Specifications

ILLUMAX LED Strip ECO+ SeriesSpecifications from the official datasheetDownload datasheet PDF

Variants

SKULED ColourBrightnessLight colour
3528-1202400SCX-CWCool White 6000K850 lmWarm White
3528-1202400SCX-NWNatural White 4000K810 lmNatural White
3528-1202400SCX-WWWarm White 3000K790 lmCool White

Specifications

Power Rating
9.6W/m
Input Voltage
24V DC
LED Density
120LEDs/m
Roll Size
5m / 50m
Cutting Length
50mm
Max Run
10m
Beam angle
120°
Width
10mm
Lifetime
50,000 hours@25°C
Connections
200mm Wire P1J Female Connector (5m roll only)
Mounting
3M Tape
Warranty
2 Years
IP Rating
IP20

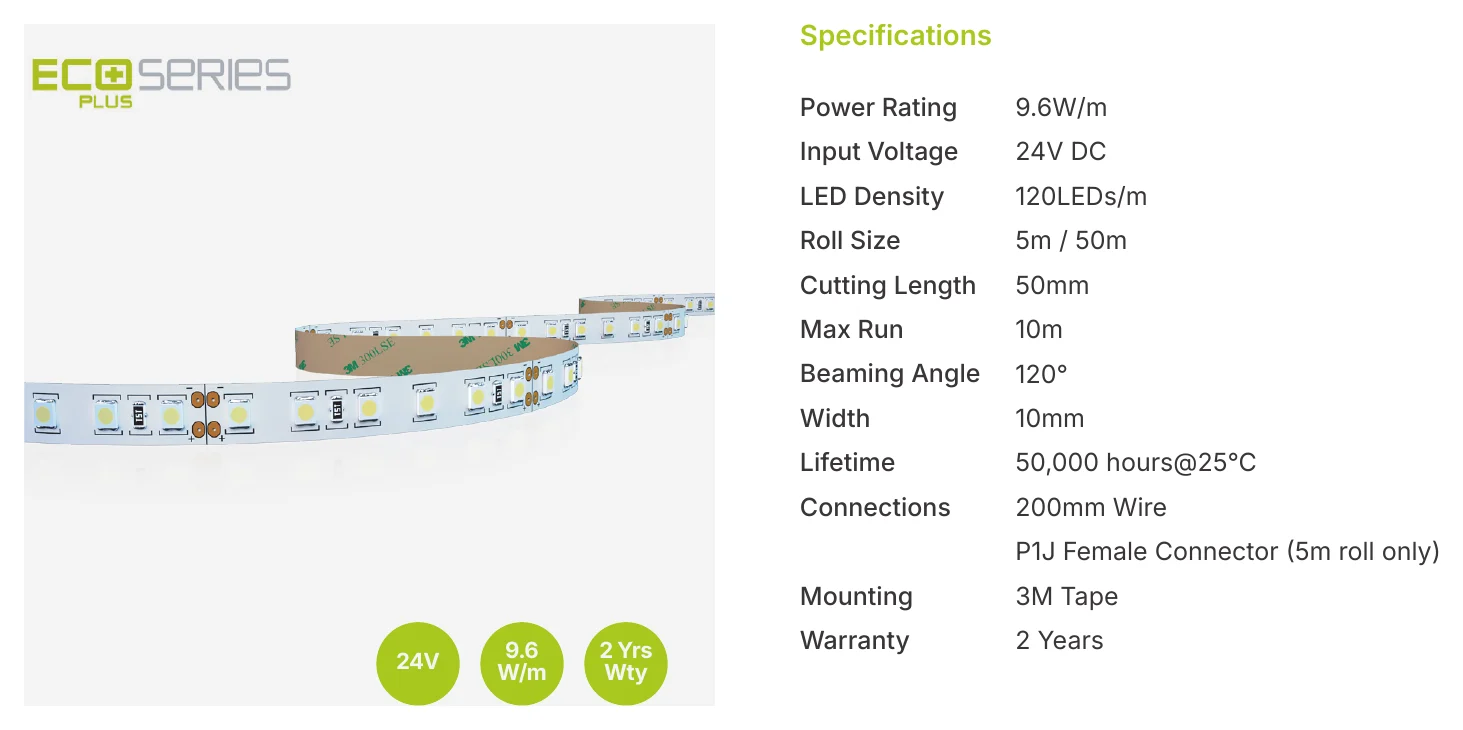

Technical drawings

ILLUMAX LED Strip ECO+ Series Specifications
Specifications

Downloads

FAQ

What are the main specifications of the iLLUMAX LED Strip ECO+ Series?

This LED strip family runs on 24V DC and uses 9.6W per metre. It has a density of 120 LEDs per metre, a 120-degree beam angle, and can be cut every 50mm. The strip is supplied in a 5m roll and is rated for a 50,000-hour lifetime.

What colour temperature options are available in this LED strip family?

This parent family includes Warm White 3000K, Neutral White 4000K, and Cool White 6000K options. These variants let buyers choose a warmer, more neutral, or cooler white appearance while staying within the same ECO+ Series platform. The underlying power rating and general format remain the same across the family.

How does light output vary between the available colour temperatures?

The listed variants differ slightly in lumen output. The 3000K version is rated at 790 lm, the 4000K version at 810 lm, and the 6000K version at 850 lm. This makes the cool white option the brightest of the variants shown.

Is a driver included with this LED strip?

No, this product family is listed with the driver not included. Buyers should account for a separate compatible 24V DC driver when planning a project. This applies across the variants shown for this parent model.

Is the iLLUMAX LED Strip ECO+ Series dimmable?

Yes, this family is described as dimmable with optional dimming control. That means dimming capability is available, but any required control gear is not implied to be included with the strip itself. The dimming status is the same across the variants provided.

What types of projects is this LED strip family suited for?

With 120 LEDs per metre, a 120-degree beam angle, and a 24V DC input, this strip family is suited to general linear lighting applications where consistent illumination is needed. It is positioned within LED strip and interior linear lighting categories, making it relevant for commercial and professional indoor lighting use. Buyers can then choose the preferred white colour temperature for the space.

What warranty is provided for this LED strip family?

The parent product family carries a 2-year warranty. This warranty period is also consistent across the child variants listed. It provides a clear baseline for commercial procurement and replacement planning.
