Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

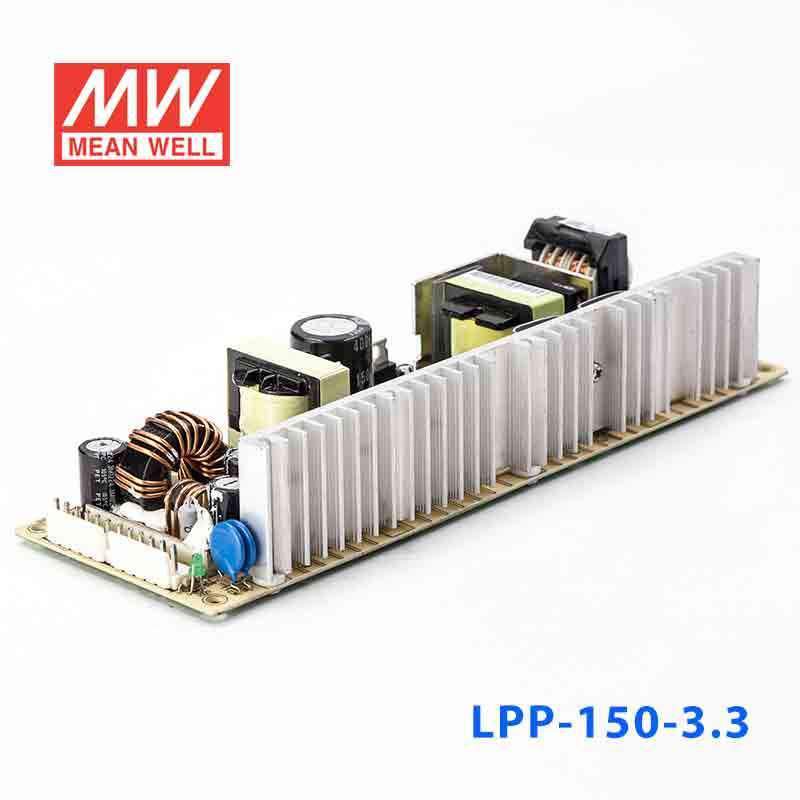

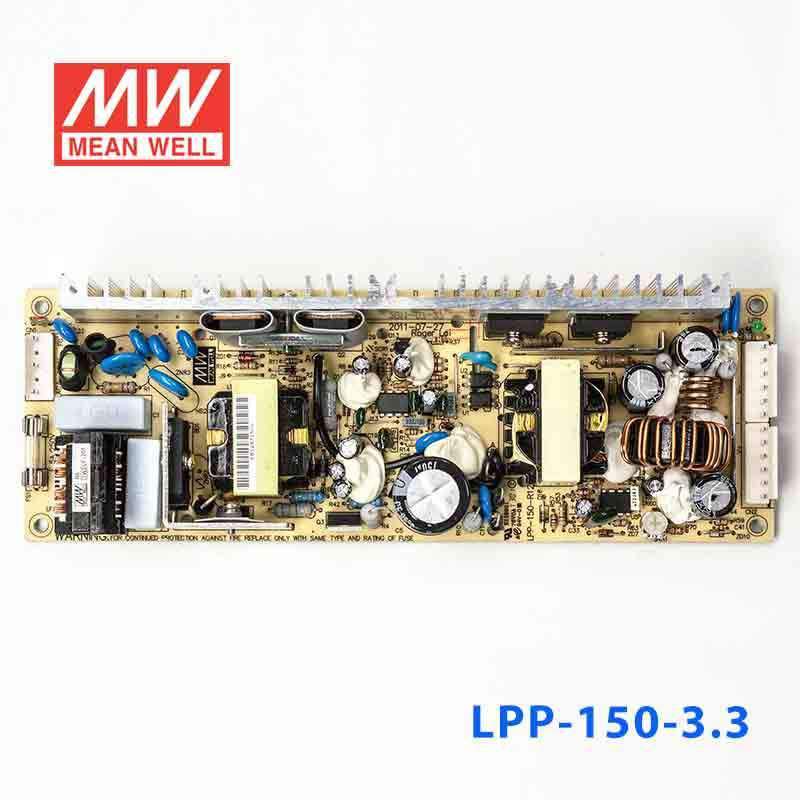

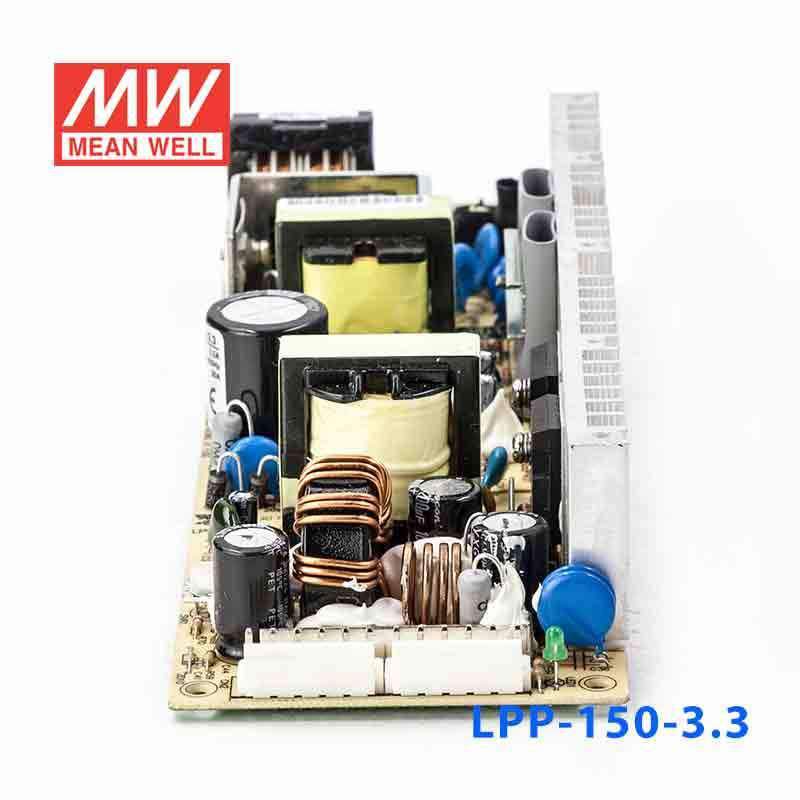

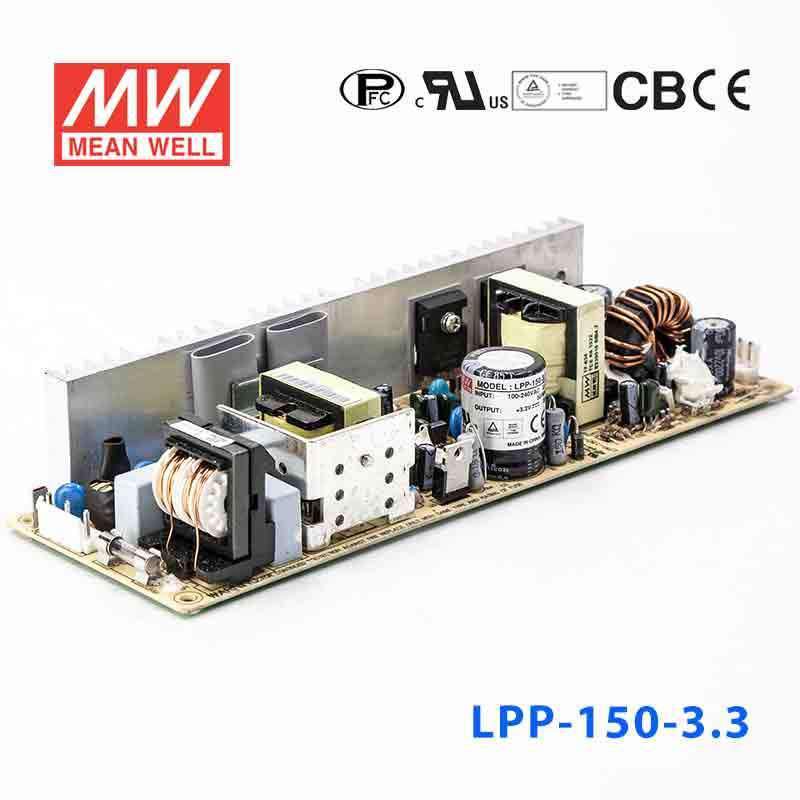

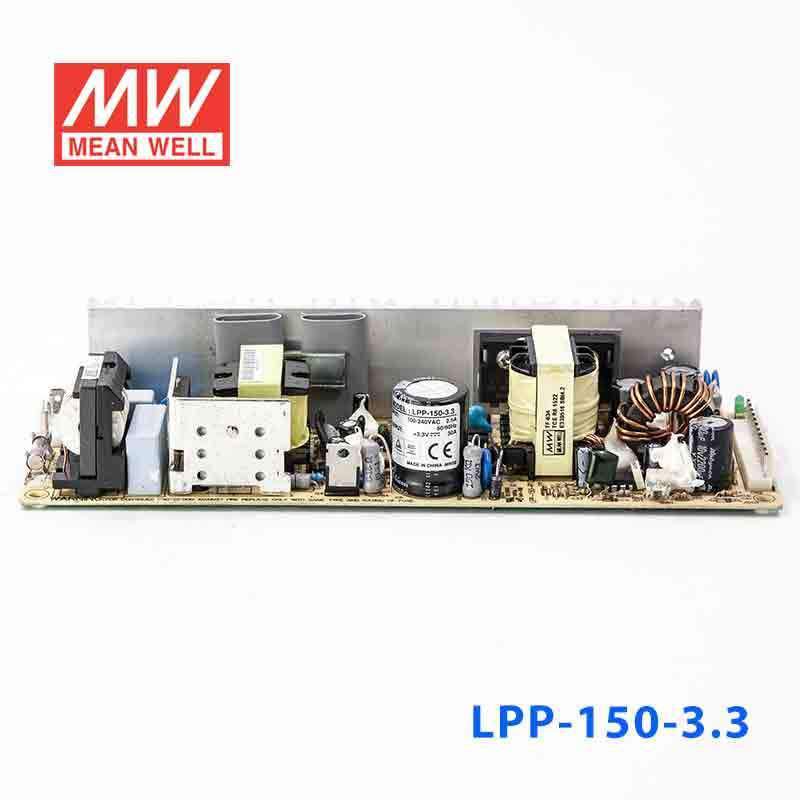

Mean Well LPP-150-3.3 Power Supply 99W 3.3V 30A

small and compactbuilt-in active PFC function

SKU:

LPP-150-3.3

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The LPP-150 is a 150W Mean Well power converter (input range: 85~264VAC).

Key Features

✓ Input voltage range: 85~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL60950-1, TUV EN60950-1
✓ 3 years warranty

Frequently Asked Questions

Can I use the LPP-150-3.3 to power 3.3V embedded controllers or digital electronics?

Yes, this model provides a constant 3.3V output and up to 30A. It is suited to 3.3V embedded, logic, or controller loads that need a high-current DC source within its 99W rating.

Is the LPP-150-3.3 a good fit for a 3.3V industrial test bench or burn-in setup?

It can fit 3.3V industrial electronics testing because it delivers up to 30A at 3.3V from an 85-264VAC input. The key limit is the 99W output rating, so the combined 3.3V load must stay within that published capacity.

Can this power supply support high-current 3.3V control boards in an automation system?

Yes, the main strength of this model is high current at low voltage: 30A at 3.3V. That makes it relevant for automation or embedded assemblies built around 3.3V rails rather than higher-voltage DC buses.

How does the LPP-150-3.3 compare with other LPP series versions?

The provided sibling list includes LPP-100-12 at 102W, 12V, 8.5A; LPP-100-13.5 at 101.25W, 13.5V, 7.5A; LPP-100-15 at 100.5W, 15V, 6.7A; LPP-100-24 at 100.8W, 24V, 4.2A; LPP-100-27 at 102.6W, 27V, 3.8A; LPP-100-3.3 at 66W, 3.3V, 20A; LPP-100-48 at 100.8W, 48V, 2.1A; LPP-100-5 at 100W, 5V, 20A; and LPP-100-7.5 at 101.25W, 7.5V, 13.5A. The 150 series siblings listed are LPP-150-12 at 150W, 12V, 12.5A; LPP-150-13.5 at 151.2W, 13.5V, 11.2A; LPP-150-15 at 150W, 15V, 10A; LPP-150-24 at 151.2W, 24V, 6.3A; LPP-150-27 at 151.2W, 27V, 5.6A; LPP-150-5 at 150W, 5V, 30A; LPP-150-7.5 at 150W, 7.5V, 20A; and lpp-150-48 at 153.6W, 48V, 3.2A. The LPP-150-3.3 is the 99W, 3.3V, 30A version in that range.

Can the LPP-150-3.3 be used where ambient temperatures vary?

The published operating temperature range is -10°C to +60°C. The provided specs do not include an IP rating, so temperature capability is specified, but outdoor or washdown suitability is not established here.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well LPP-150-7.5 Power Supply 150W 7.5V 20A	150W	7.5V	20A	View
Mean Well LPP-150-5 Power Supply 150W 5V 30A	150W	5V	30A	View
Mean Well LPP-150-48 Power Supply 153W 48V 3.2A	153.6W	48V	3.2A	View
Mean Well LPP-150-27 Power Supply 151W 27V 5.6A	151.2W	27V	5.6A	View
Mean Well LPP-150-24 Power Supply 151W 24V 6.3A	151.2W	24V	6.3A	View
Mean Well LPP-150-15 Power Supply 150W 15V 10A	150W	15V	10A	View
Mean Well LPP-150-13.5 Power Supply 151W 13.5V 11.2A	151.2W	13.5V	11.2A	View
Mean Well LPP-150-12 Power Supply 150W 12V 12.5A	150W	12V	12.5A	View
