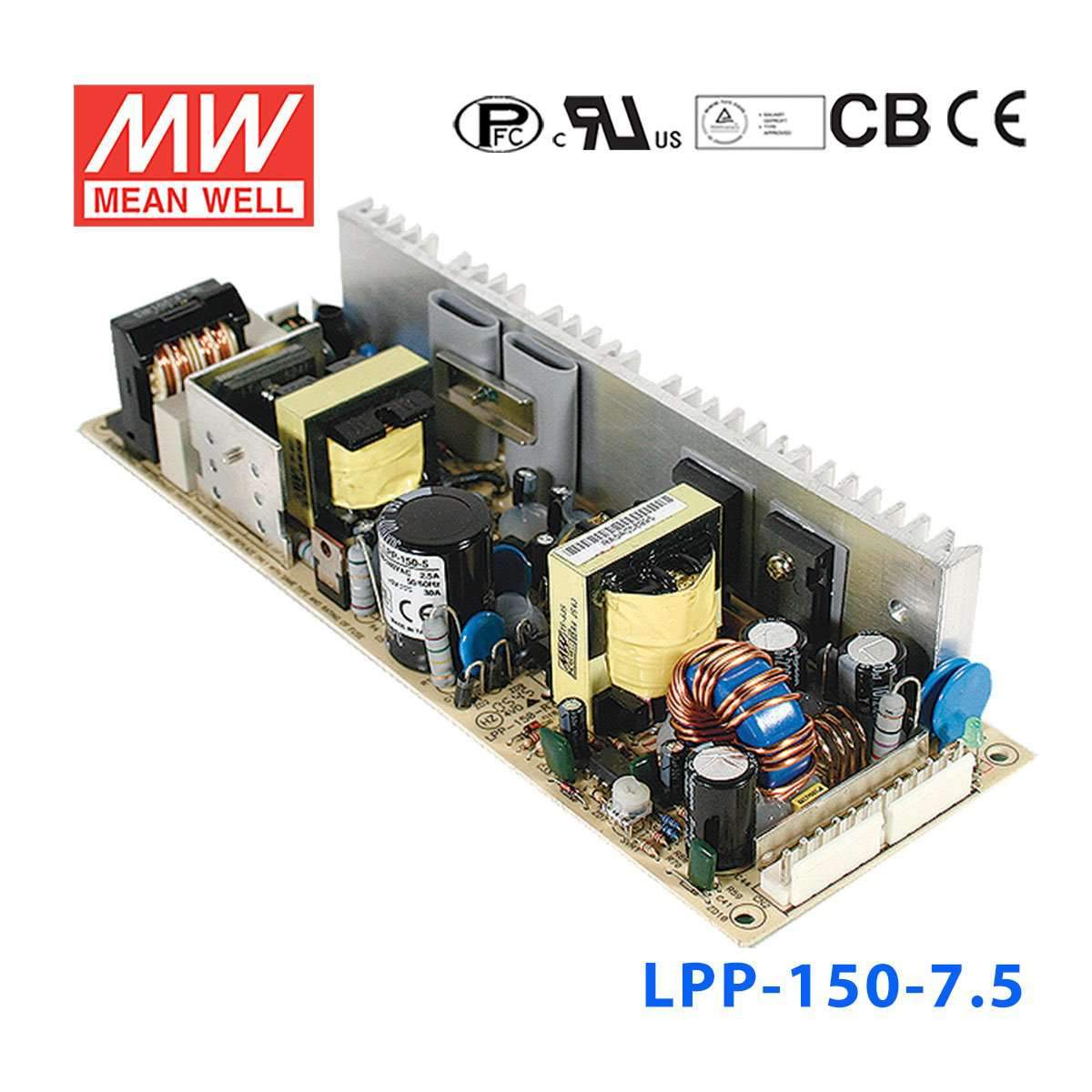

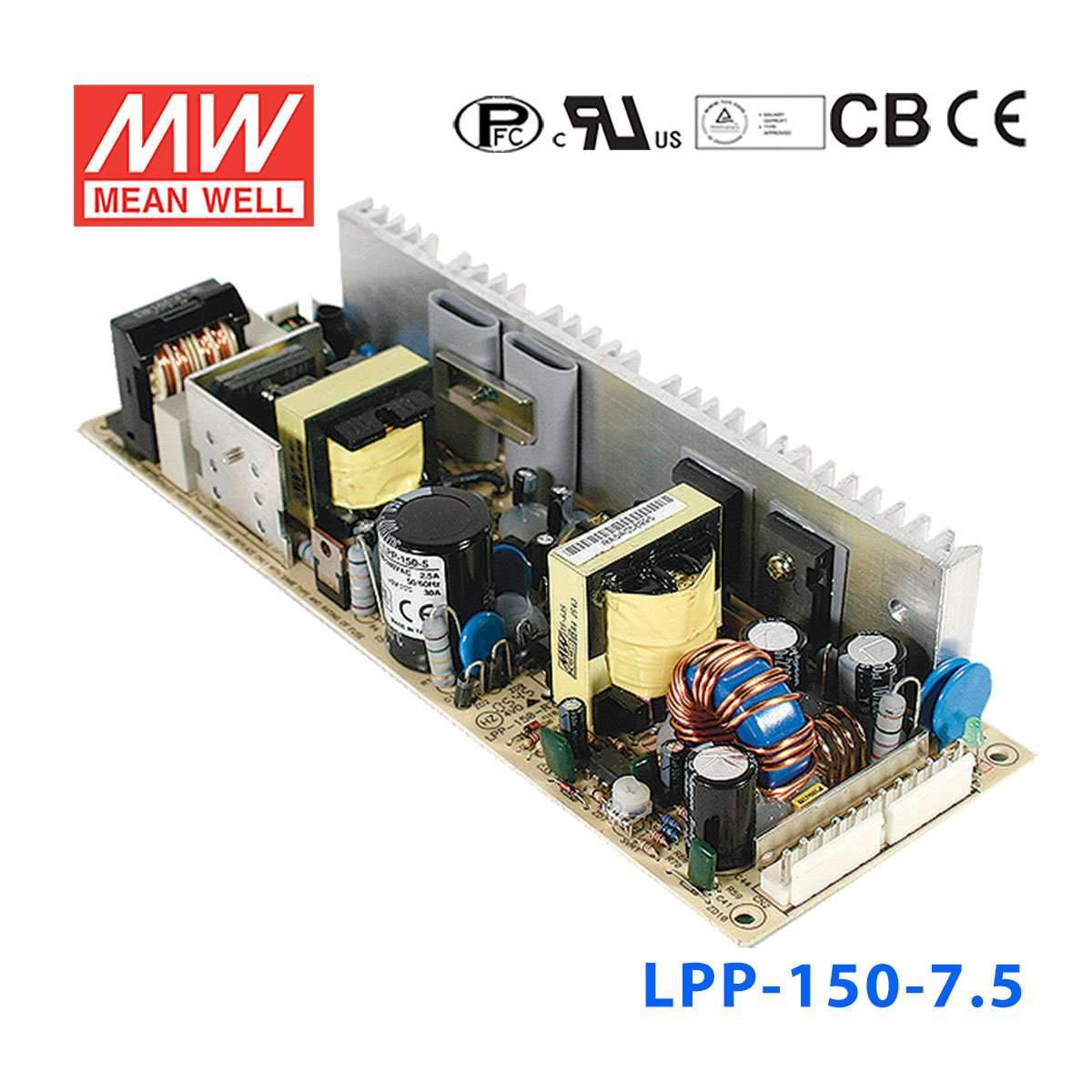

Mean Well LPP-150-7.5 Power Supply 150W 7.5V 20A

small and compactbuilt-in active PFC function

SKU LPP-150-7.5

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The LPP-150 is a 150W Mean Well power converter (input range: 85~264VAC).

Key Features

✓ Input voltage range: 85~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL60950-1, TUV EN60950-1
✓ 3 years warranty

Frequently Asked Questions

Can I use the LPP-150-7.5 for 7.5V industrial or embedded equipment?

Yes, this model is designed for constant-voltage 7.5V loads and can deliver up to 20A. It is appropriate for industrial, embedded, or automation equipment that specifically requires a 7.5V DC rail within the 150W output rating.

Is the LPP-150-7.5 suitable for a 7.5V test fixture or production bench supply role?

It can fit that role when the DUT requires a fixed 7.5V source rather than a higher-voltage output. The published capability is 150W with 20A maximum output current, and the input range is 85-264VAC.

Can this model support higher-current 7.5V control loads?

Yes, the output current is rated at 20A, which is substantial for a 7.5V constant-voltage unit. That makes it more suitable for heavier 7.5V loads than lower-current models in the same voltage class.

How does the LPP-150-7.5 compare with other models in the LPP series?

The listed siblings include LPP-100-12 at 102W, 12V, 8.5A; LPP-100-13.5 at 101.25W, 13.5V, 7.5A; LPP-100-15 at 100.5W, 15V, 6.7A; LPP-100-24 at 100.8W, 24V, 4.2A; LPP-100-27 at 102.6W, 27V, 3.8A; LPP-100-3.3 at 66W, 3.3V, 20A; LPP-100-48 at 100.8W, 48V, 2.1A; LPP-100-5 at 100W, 5V, 20A; and LPP-100-7.5 at 101.25W, 7.5V, 13.5A. The 150 series entries are LPP-150-12 at 150W, 12V, 12.5A; LPP-150-13.5 at 151.2W, 13.5V, 11.2A; LPP-150-15 at 150W, 15V, 10A; LPP-150-24 at 151.2W, 24V, 6.3A; LPP-150-27 at 151.2W, 27V, 5.6A; LPP-150-3.3 at 99W, 3.3V, 30A; LPP-150-5 at 150W, 5V, 30A; and lpp-150-48 at 153.6W, 48V, 3.2A. The LPP-150-7.5 itself is the 150W, 7.5V, 20A option.

Can the LPP-150-7.5 be used in unconditioned environments?

The operating temperature range is -10°C to +60°C, so it is specified for a fairly broad ambient range. The provided specs do not include an IP rating, so the data does not establish suitability for exposed outdoor or wet locations.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well LPP-150-5 Power Supply 150W 5V 30A	150W	5V	30A	View
Mean Well LPP-150-48 Power Supply 153W 48V 3.2A	153.6W	48V	3.2A	View
Mean Well LPP-150-3.3 Power Supply 99W 3.3V 30A	99W	3.3V	30A	View
Mean Well LPP-150-27 Power Supply 151W 27V 5.6A	151.2W	27V	5.6A	View
Mean Well LPP-150-24 Power Supply 151W 24V 6.3A	151.2W	24V	6.3A	View
Mean Well LPP-150-15 Power Supply 150W 15V 10A	150W	15V	10A	View
Mean Well LPP-150-13.5 Power Supply 151W 13.5V 11.2A	151.2W	13.5V	11.2A	View
Mean Well LPP-150-12 Power Supply 150W 12V 12.5A	150W	12V	12.5A	View
