Over 15 years experience of providing support of MEAN WELL Power Supplies

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

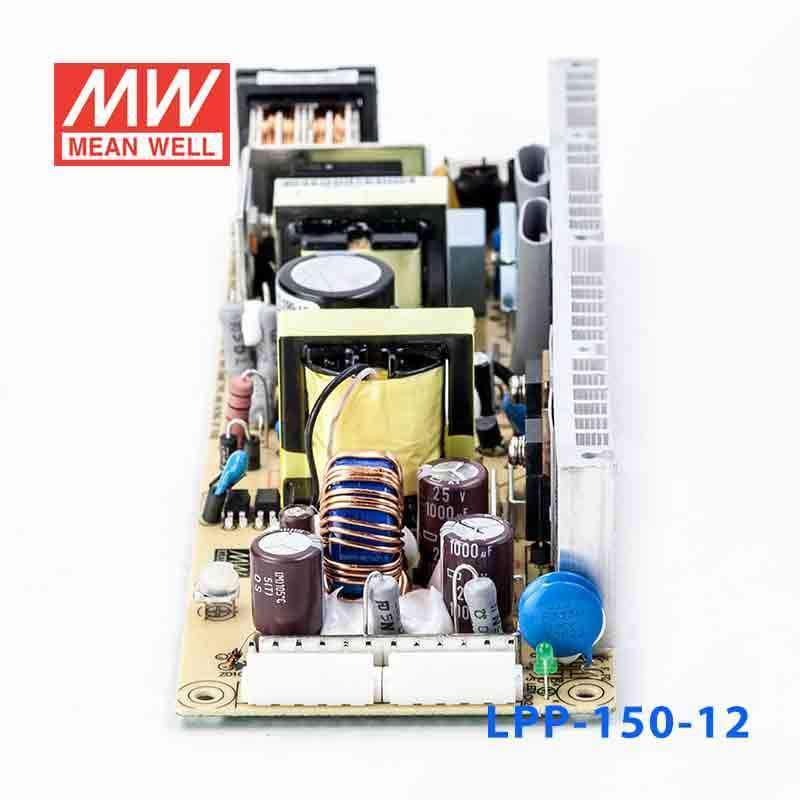

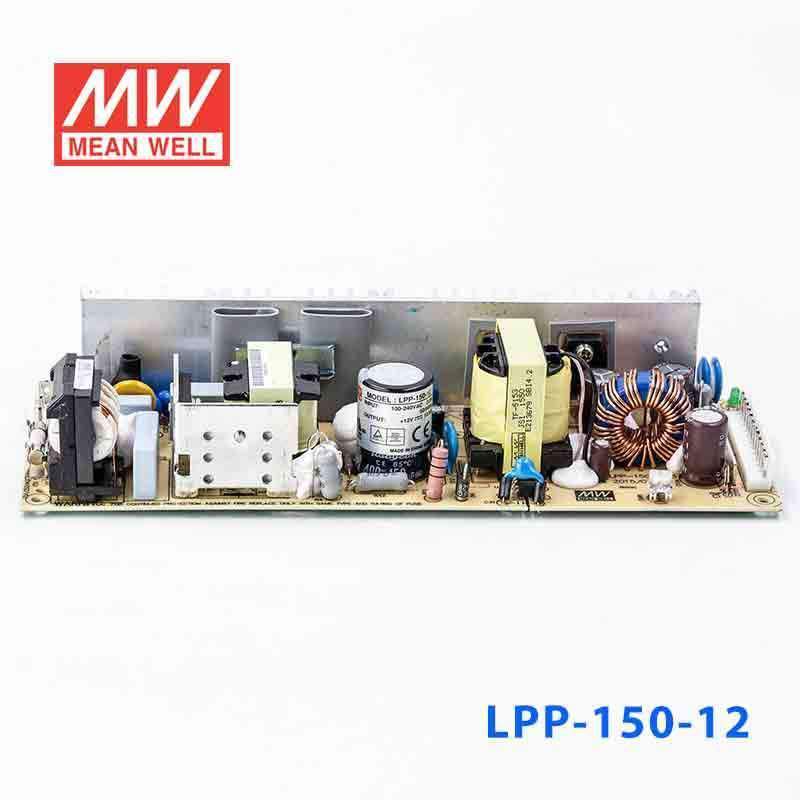

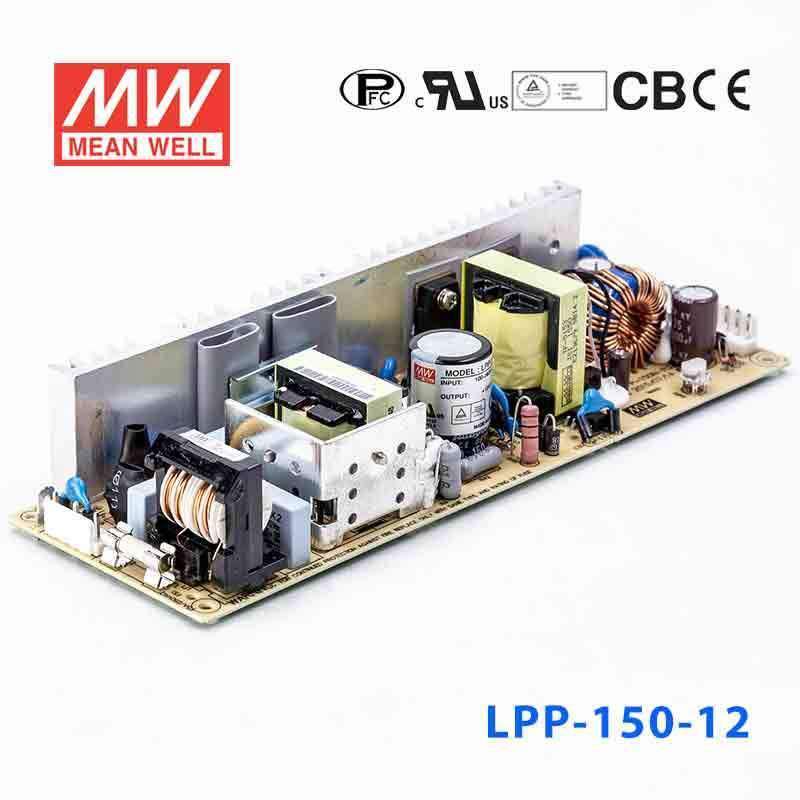

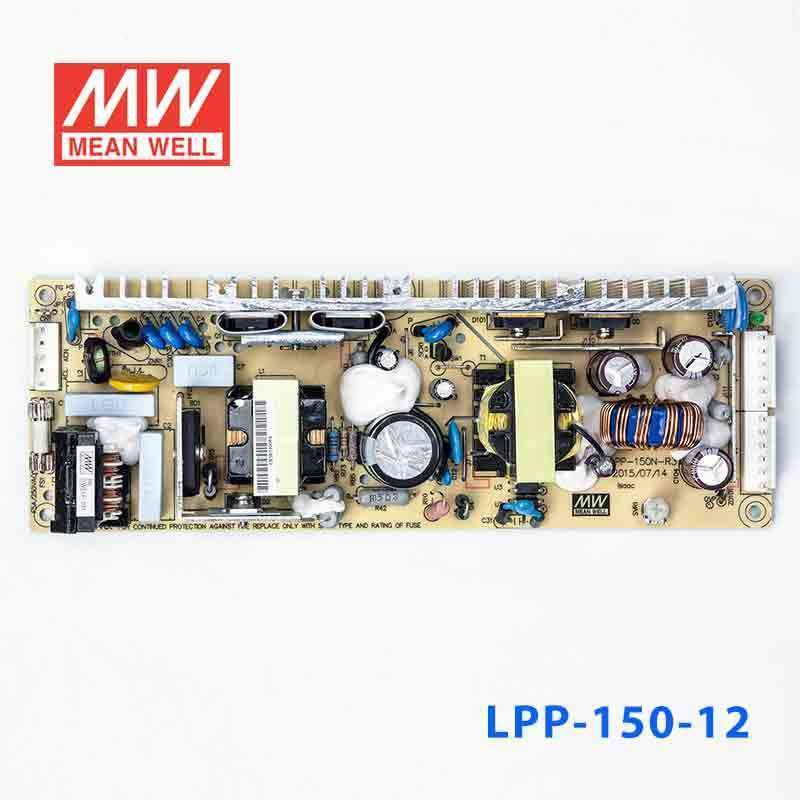

Mean Well LPP-150-12 Power Supply 150W 12V

slim plastic case, economical, IP67

|

Description

Features

Universal AC input / Full range
Cooling by free air convection
Protections: Short circuit / Overload / Over voltage
100% full load burn-in test
Built-in active PFC function
Optional over temperature protection
3 years warranty for LPP series

General Specification

AC input voltage range 85~264VAC
AC inrush current(230VAC) 55A
DC adjustment range -5%~+10% rated output voltage
Overload protection Range 105%~150% rated output power
Overload protection Type Constant current limiting, auto recovery
Over voltage protection Range 110%~135% of rated output voltage
Over voltage protection Type Shut off, AC recycle to re-start
Withstand voltage I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature -10~+60°C (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection JST B5P / B6Px2-VH
Dimension (LxWxH) 222x75x41
Packing 24pcs / 16.6kg

Specifications

  • Brand
    Mean Well
  • Series
    LPP Series
  • Power Rating
    150 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    12.5 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -10°C~60°C
  • Warranty
    3 Year
  • Length
    22.2 cm
  • Width
    7.5 cm
  • Height
    4.1 cm
  • Weight
    0.62 kg

File Downloads

::specification::
