Mean Well LRS-50-48 Power Supply 50W 48V 1.1A
4.7 (17 reviews)Notify me when it's back in stock

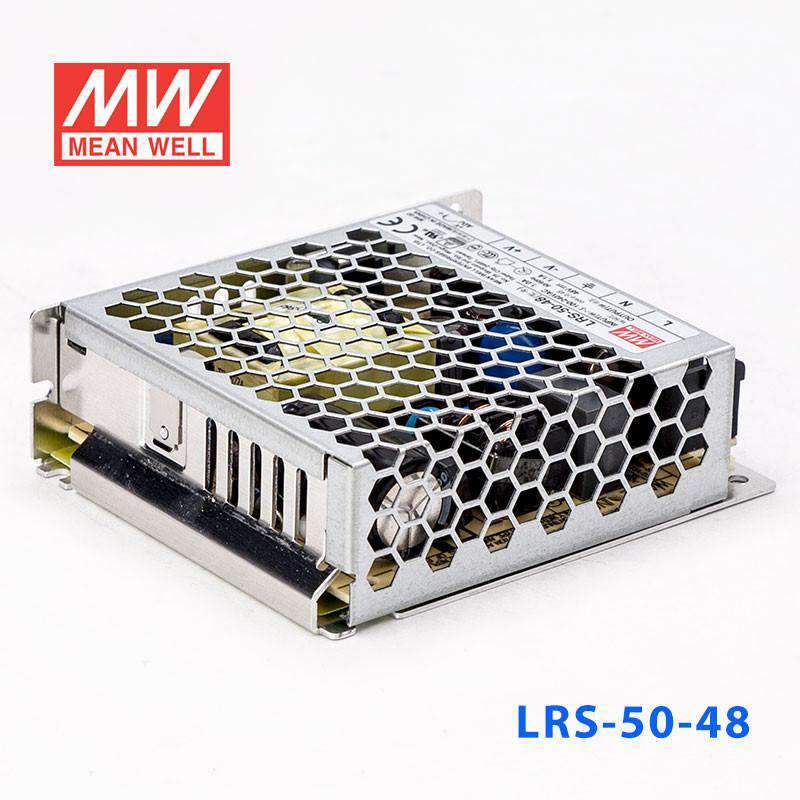

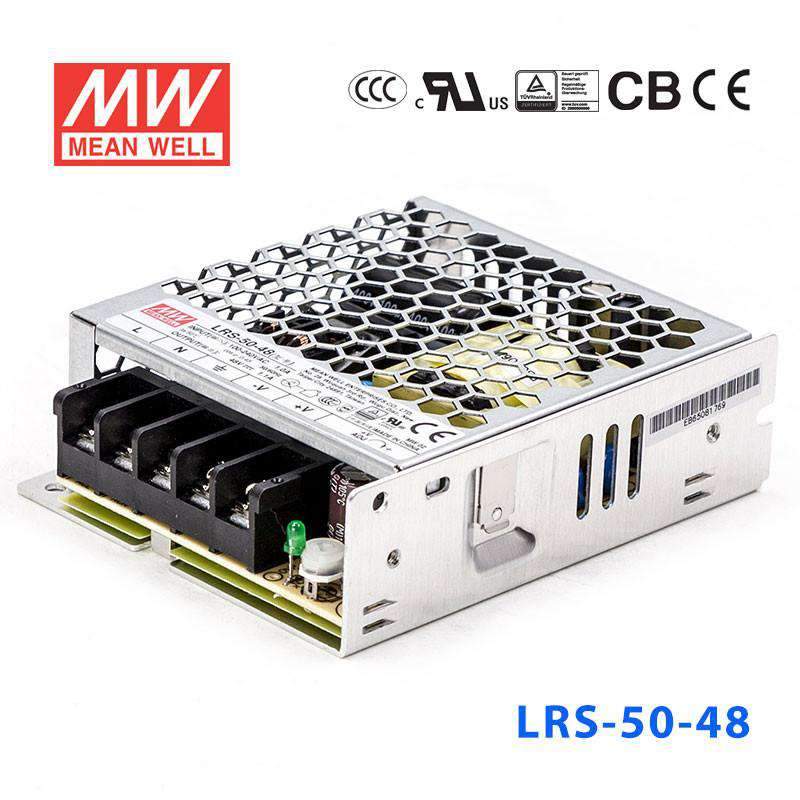

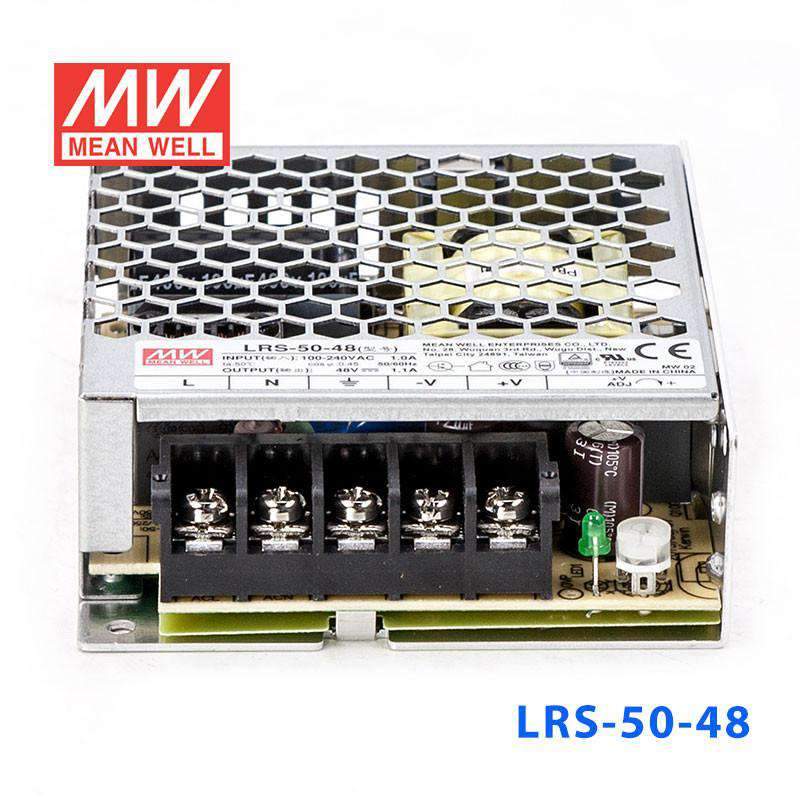

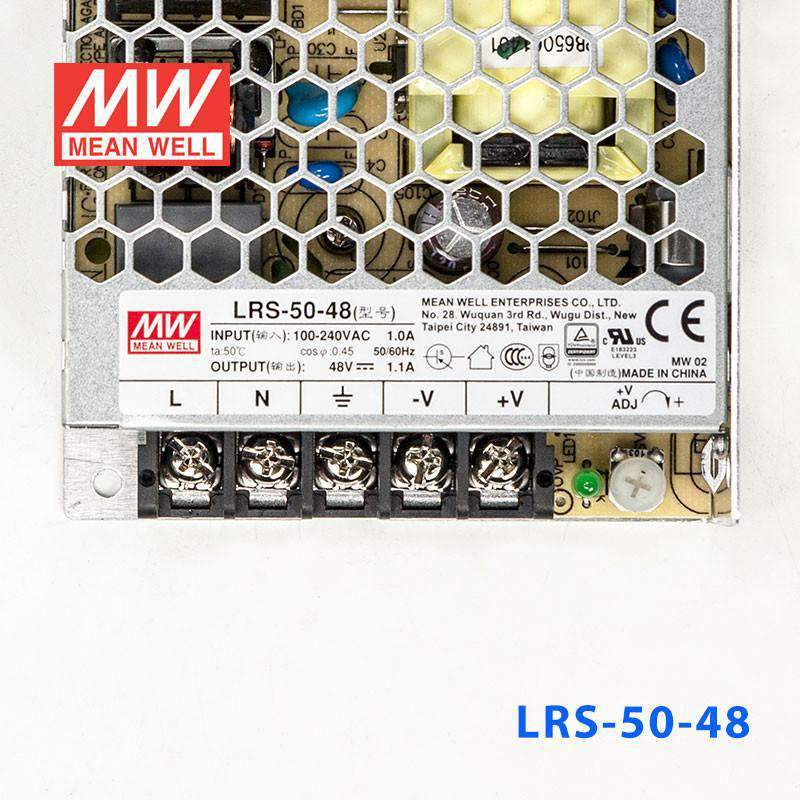

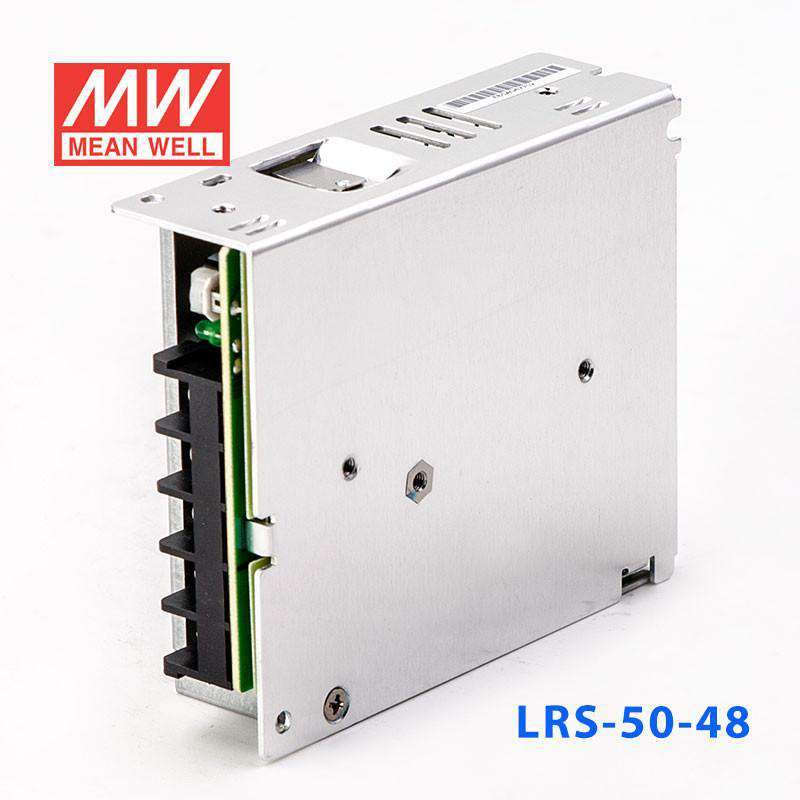

Mean Well LRS-50-48 Power Supply 50W 48V 1.1A
Log in to see priceThe LRS-50 is a 52.8W Mean Well power supply (input: 85~264VAC, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 85~264VAC
- ✓ Output voltage (max): 48V
- ✓ Rated output current: 1.1A
- ✓ Operating temperature: -30~+70°C
- ✓ Safety certifications: BSMI, CB, CCC, CE, EAC, RCM, TÜV, UL
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating52.8 Watt
-
Output Voltage48 Volt
-
Rated Current1.1 Ampere
-
Input Voltage85V~264V
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.9 cm
-
Width8.2 cm
-
Height3 cm
-
Weight0.21 kg
::specification::
Frequently Asked Questions
What 48V low-power loads can the LRS-50-48 drive?
The LRS-50-48 delivers 48V at 1.1A (52.8W), appropriate for powering single 48V PoE injectors, 48V relay control circuits, compact 48V DC–DC converter inputs, and low-power 48V bus distribution in small telecom or industrial panels.
How does the LRS-50-48 compare to the LRS-75-48 and LRS-100-48?
All three share similar case widths and accept 85–264VAC. The LRS-50-48 (99 × 82 × 30 mm, 0.21 kg) delivers 52.8W at 1.1A. The LRS-75-48 (99 × 97 × 30 mm, 0.23 kg) delivers 76.8W at 1.6A. The LRS-100-48 delivers 110.4W at 2.3A. Select based on the total 48V load current required.
What is the minimum operating temperature of the LRS-50-48?
The LRS-50-48 operates as low as -30°C, making it suitable for cold-environment applications within a protective enclosure. The upper limit is +70°C, and the unit also withstands 5G vibration for applications in mechanically active environments.
Does the 1.1A output current of the LRS-50-48 limit its use cases compared to lower-voltage LRS-50 models?
At 48V, Ohm's law limits current to 1.1A for the same ~52.8W output as other LRS-50 models. This makes the LRS-50-48 less suited for high-current 48V applications such as large motor drives, but appropriate for low-current 48V bus feeds, single PoE ports, or 48V control signal supplies.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LRS-50 Models
4 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well LRS-50-12 Power Supply 50W 12V 4.2A | 50.4W | 12V | 4.2A | View |
| Mean Well LRS-50-5 Power Supply 50W 5V 10A | 50W | 5V | 10A | View |
| Mean Well LRS-50-24 Power Supply 50W 24V 2.2A | 52.8W | 24V | 2.2A | View |
| Mean Well LRS-50-15 Power Supply 50W 15V 3.4A | 51W | 15V | 3.4A | View |
