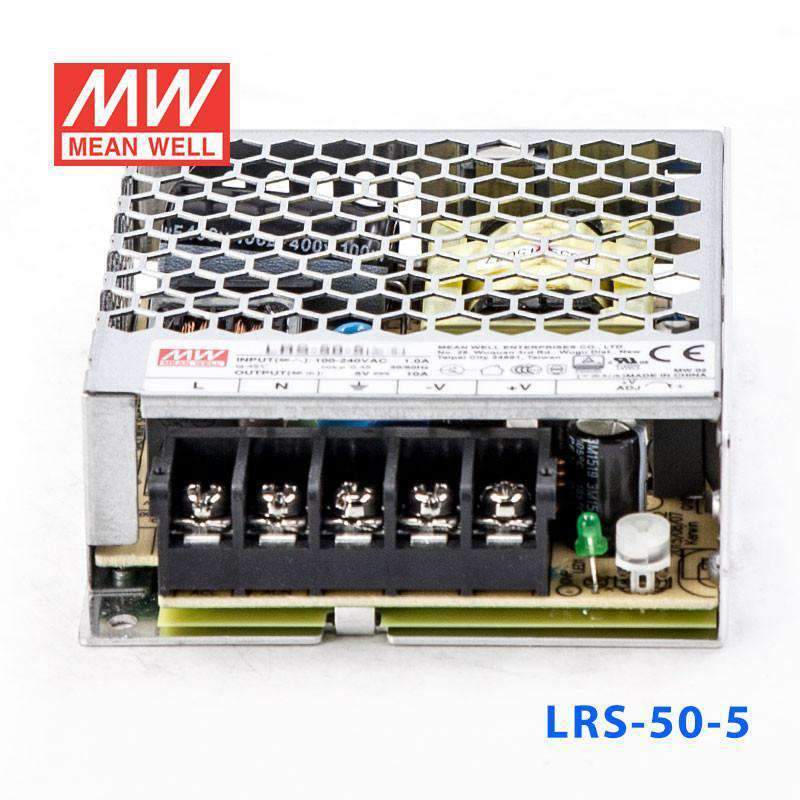

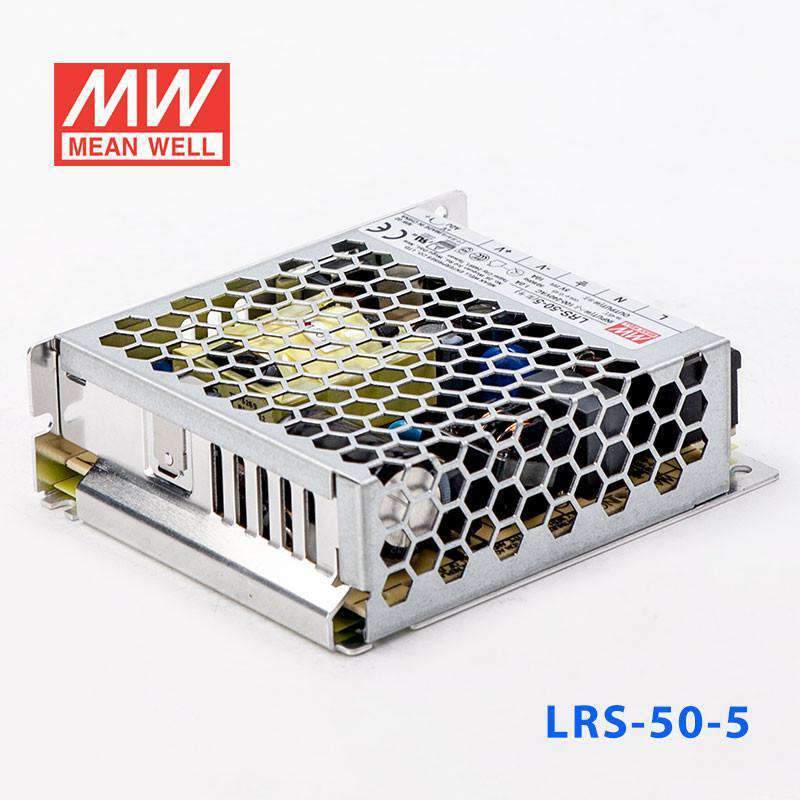

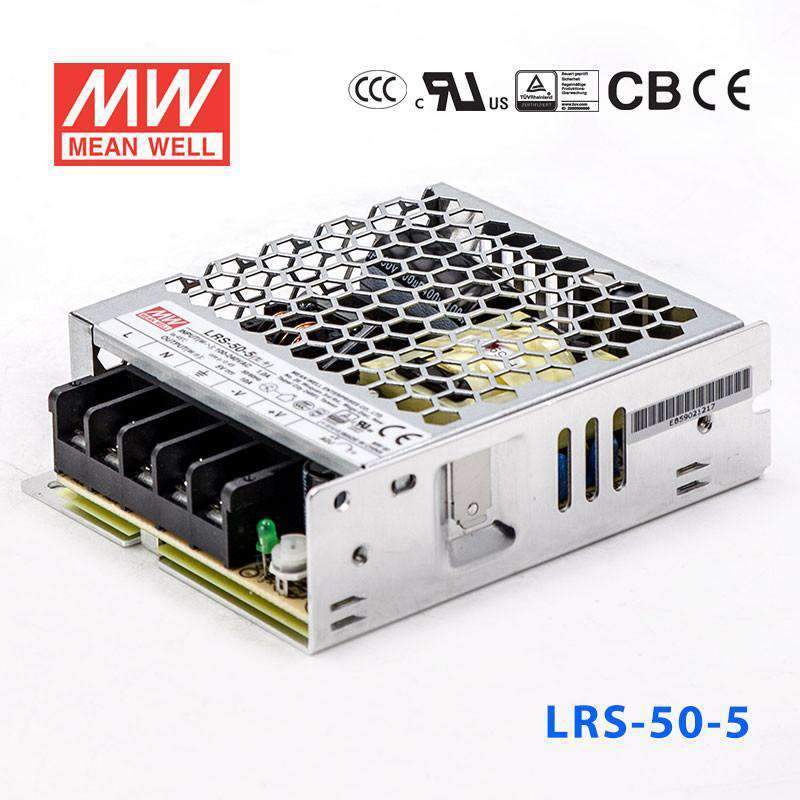

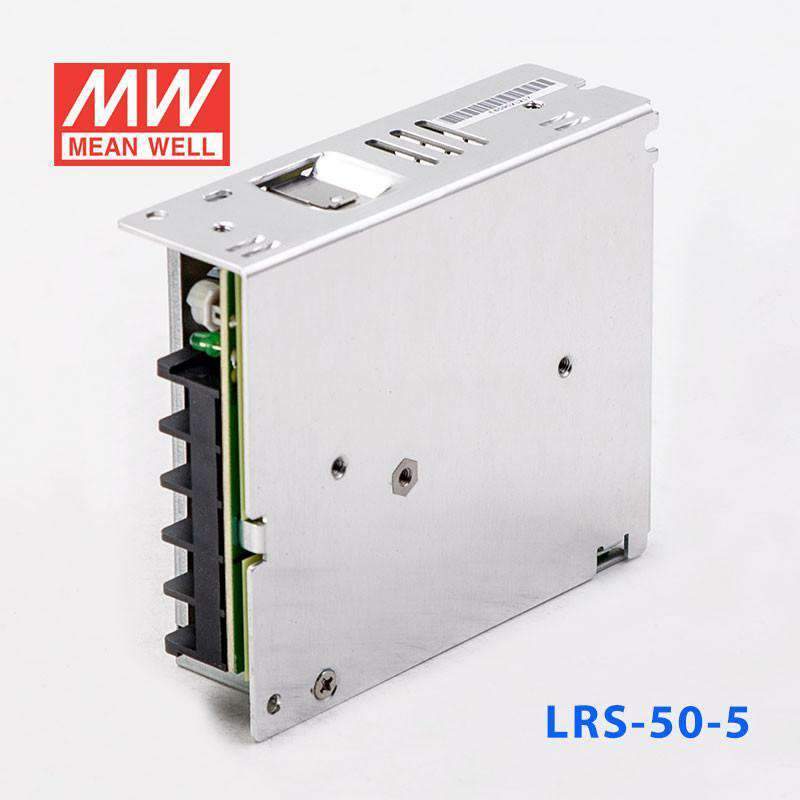

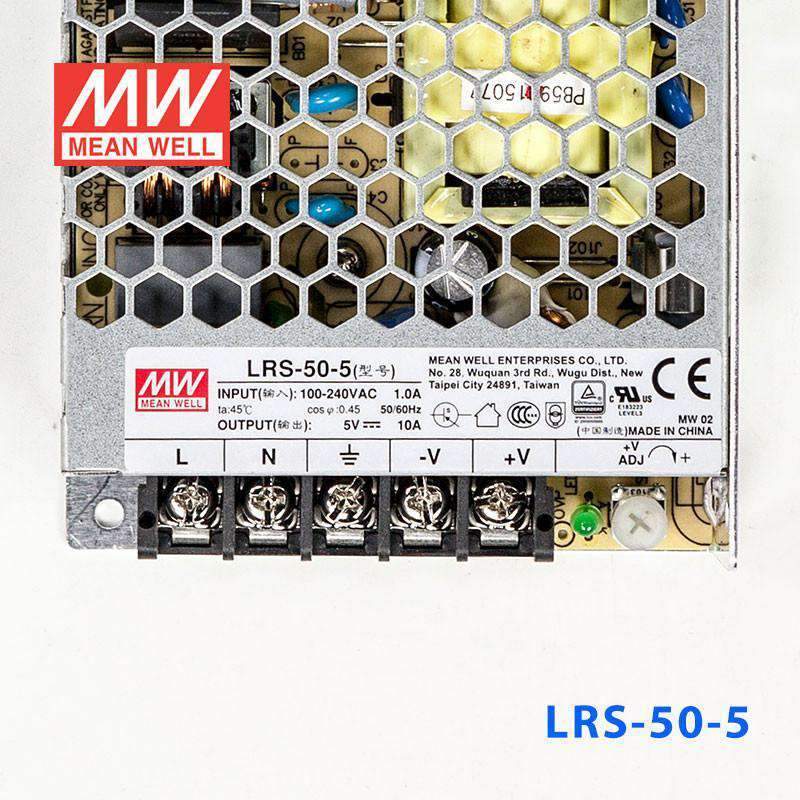

Mean Well LRS-50-5 Power Supply 50W 5V

Q: What types of 5V loads can the LRS-50-5 support at 10A?

At 5V and 10A (50W), the LRS-50-5 can power logic control boards, single-board computers, USB charging distribution bars, RS-485 communication modules, and indicator LED panels. The 10A current capacity supports several parallel 5V consumers simultaneously.

Q: How does the LRS-50-5 compare to the LRS-75-5 and LRS-100-5 at 5V?

All accept 85–264VAC. The LRS-50-5 (99 × 82 × 30 mm, 0.21 kg) delivers 50W at 10A. The LRS-75-5 (99 × 97 × 30 mm, 0.23 kg) delivers 70W at 14A. The LRS-100-5 delivers 80W at 18A. Select based on total 5V load current; the LRS-50-5 suits lower-demand systems where 10A is sufficient.

Q: What is the operating temperature range of the LRS-50-5?

The LRS-50-5 operates from -30°C to +70°C. The -30°C lower limit allows cold-start in unheated enclosures and cold-storage environments. Continuous operation up to +70°C suits warm industrial cabinet installations.

Q: Does the LRS-50-5 carry certifications for both North American and European markets?

Yes. The LRS-50-5 holds UL (North America), CE (Europe), TÜV (safety testing), CB (international), CCC (China), BSMI (Taiwan), RCM (Australia/New Zealand), and EAC (Eurasia) certifications, covering a broad range of regional compliance requirements.

most economical model, ultra compact and 1U low profile, withstand 5G vibration and 70°C operation

SKU:

LRS-50-5

Model

35W 5V

SKU: LRS-35-5

100W 5V

SKU: LRS-100-5

150W 5V

SKU: LRS-150-5

200W 5V

SKU: LRS-200-5

350W 5V

SKU: LRS-350-5

450W 5V

SKU: LRS-450-5

50W 5V

SKU: LRS-50-5

600W 5V

SKU: LRS-600-5

75W 5V

SKU: LRS-75-5

Product variants

Please for Pricing

Notify me when it's back in stock

Description

No load power consumption <0.2W for 35W/50W; <0.3W for 75W/100WUniversal AC input / Full rangeWithstand 300VAC surge input for 5 secondsUltra compact and 1U low profileWithstand 5G vibration testHigh operating temperature up to 70oCProtections: Short circuit / Overload / Over voltageCooling by free air convectionCompliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliancesOperating altitude up to 5000 metersHigh efficiency, long life and high reliabilityLED indicator for power onLow cost3 years warranty

Key Features

✓85~264VAC; 120~370VDC
✓Cold start, 45A at 230VAC
✓±10% by potentiometer
✓110%~150%
✓Type Hiccup mode, auto-recovery
✓115%~135% rated output voltage
✓Shut down o/p voltage, re-power on to recover
✓3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
✓-30~+70°C (refer to output derating curve)
✓UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
✓EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254
✓5P/9.5mm pitch terminal block
✓99x 82x 30

Specifications

Brand

Mean Well
Series

LRS Series
Power Rating

50 Watt
Output Voltage

5 Volt
Rated Current

10 Ampere
Input Voltage

85V~264V
Standards Met

BSMI,CB,CCC,CE,EAC,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

9.9 cm
Width

8.2 cm
Height

3 cm
Weight

0.21 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What types of 5V loads can the LRS-50-5 support at 10A?

At 5V and 10A (50W), the LRS-50-5 can power logic control boards, single-board computers, USB charging distribution bars, RS-485 communication modules, and indicator LED panels. The 10A current capacity supports several parallel 5V consumers simultaneously.

How does the LRS-50-5 compare to the LRS-75-5 and LRS-100-5 at 5V?

All accept 85–264VAC. The LRS-50-5 (99 × 82 × 30 mm, 0.21 kg) delivers 50W at 10A. The LRS-75-5 (99 × 97 × 30 mm, 0.23 kg) delivers 70W at 14A. The LRS-100-5 delivers 80W at 18A. Select based on total 5V load current; the LRS-50-5 suits lower-demand systems where 10A is sufficient.

What is the operating temperature range of the LRS-50-5?

The LRS-50-5 operates from -30°C to +70°C. The -30°C lower limit allows cold-start in unheated enclosures and cold-storage environments. Continuous operation up to +70°C suits warm industrial cabinet installations.

Does the LRS-50-5 carry certifications for both North American and European markets?

Yes. The LRS-50-5 holds UL (North America), CE (Europe), TÜV (safety testing), CB (international), CCC (China), BSMI (Taiwan), RCM (Australia/New Zealand), and EAC (Eurasia) certifications, covering a broad range of regional compliance requirements.

Model	Power	Voltage	Current
Mean Well LRS-50-12 Power Supply 50W 12V	50.4W	12V	4.2A	View
Mean Well LRS-50-48 Power Supply 50W 48V	52.8W	48V	1.1A	View
