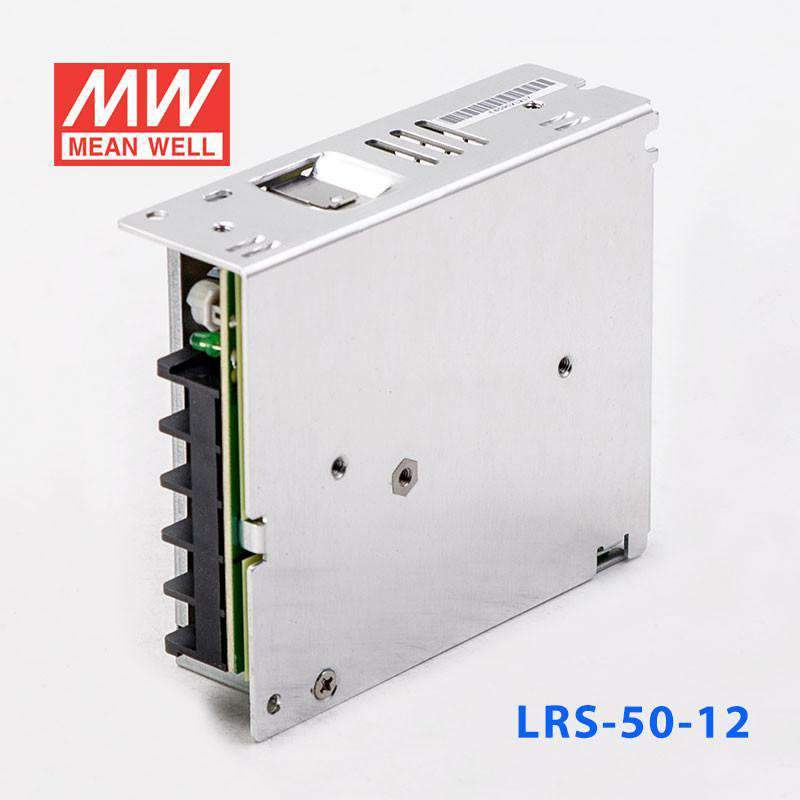

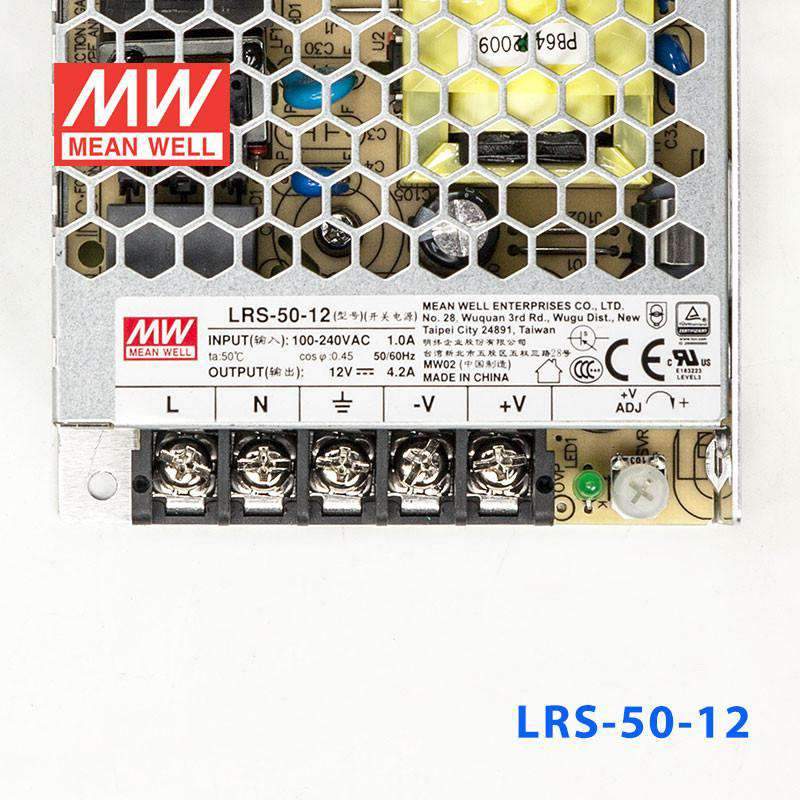

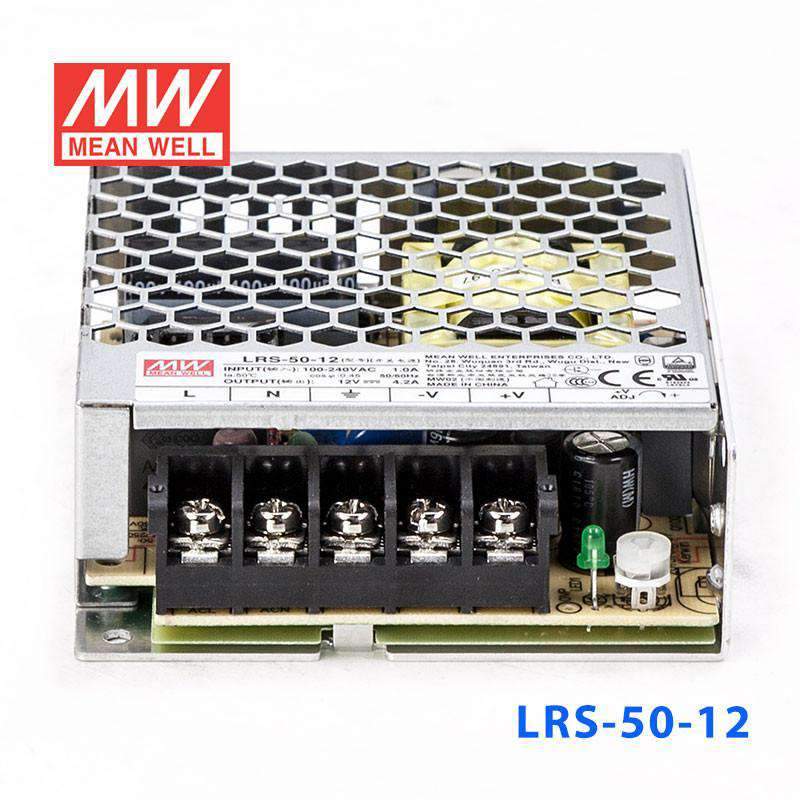

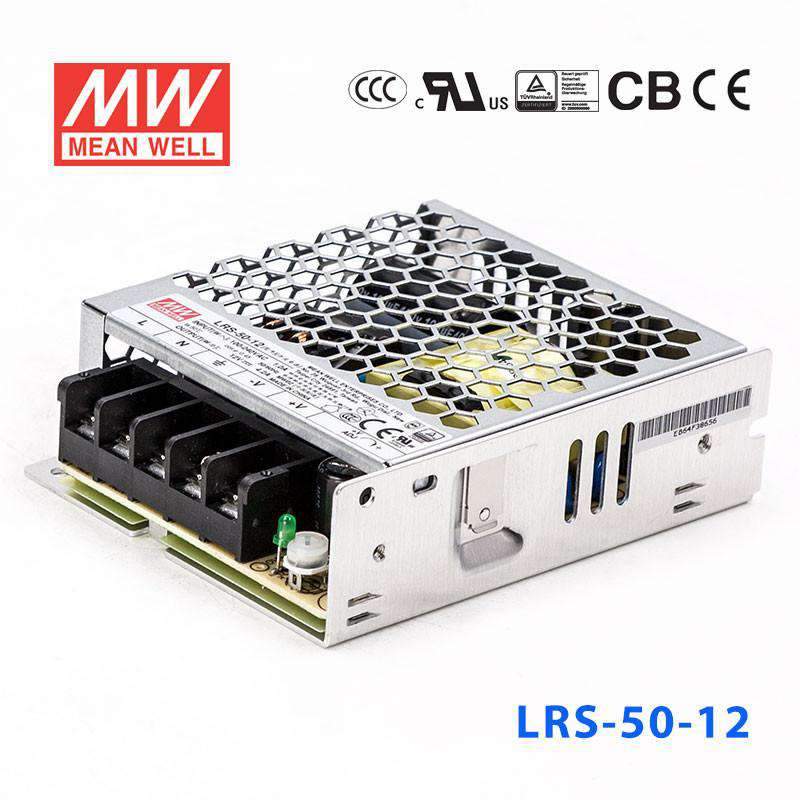

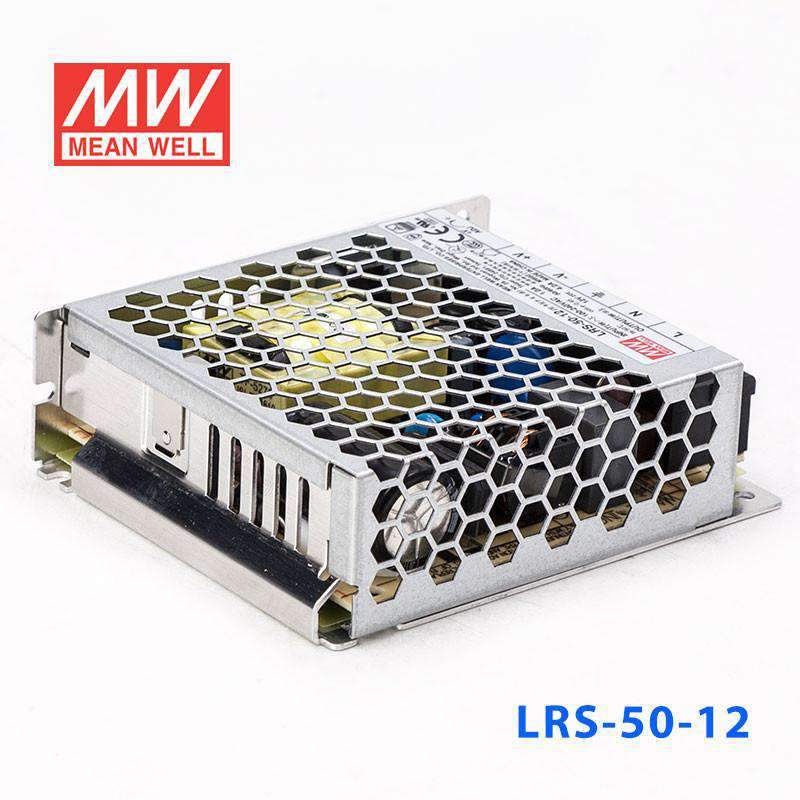

Mean Well LRS-50-12 Power Supply 50W 12V
Please Login for Pricing
Description
Description
No load power consumption <0.2W for 35W/50W; <0.3W for 75W/100WUniversal AC input / Full rangeWithstand 300VAC surge input for 5 secondsUltra compact and 1U low profileWithstand 5G vibration testHigh operating temperature up to 70oCProtections: Short circuit / Overload / Over voltageCooling by free air convectionCompliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliancesOperating altitude up to 5000 metersHigh efficiency, long life and high reliabilityLED indicator for power onLow cost3 years warranty
Key Features
- ✓85~264VAC; 120~370VDC
- ✓Cold start, 45A at 230VAC
- ✓±10% by potentiometer
- ✓110%~150%
- ✓Type Hiccup mode, auto-recovery
- ✓115%~135% rated output voltage
- ✓Shut down o/p voltage, re-power on to recover
- ✓3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
- ✓-30~+70°C (refer to output derating curve)
- ✓UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
- ✓EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254
- ✓5P/9.5mm pitch terminal block
- ✓99x 82x 30
Specifications
Specifications
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating50.4 Watt
-
Output Voltage12 Volt
-
Rated Current4.2 Ampere
-
Input Voltage85V~264V
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.9 cm
-
Width8.2 cm
-
Height3 cm
-
Weight0.21 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What kinds of low-power devices can the LRS-50-12 supply at 12V?
The LRS-50-12 outputs 12V at 4.2A (50.4W), suitable for powering single-board computers, IP cameras, small 12V fans, access control readers, and compact embedded controllers. Its 99 × 82 × 30 mm footprint makes it practical in space-constrained enclosures.
How does the LRS-50-12 compare to other LRS-50 voltage variants?
All LRS-50 models share the same 99 × 82 × 30 mm case and 0.21 kg weight. Output by voltage: LRS-50-3.3 (33W, 10A), LRS-50-5 (50W, 10A), LRS-50-12 (50.4W, 4.2A), LRS-50-15 (51W, 3.4A), LRS-50-24 (52.8W, 2.2A), LRS-50-36 (52.2W, 1.45A), LRS-50-48 (52.8W, 1.1A). Wattage is roughly similar across models; current scales inversely with voltage.
What is the operating temperature range of the LRS-50-12, and is it suitable for cold-start environments?
The LRS-50-12 operates from -30°C to +70°C, one of the wider ranges in the LRS family. This low-end rating allows cold-start operation in unheated outdoor enclosures or cold-storage facility control panels where temperatures can drop well below freezing.
Does the LRS-50-12 have a universal AC input?
Yes, the LRS-50-12 accepts 85–264VAC, covering 100V (Japan), 120V (North America), and 230V (Europe/international) mains. This universal input simplifies global product variants and procurement across different regional electrical standards.
Which certifications does the LRS-50-12 carry, and are they sufficient for commercial building installations?
The LRS-50-12 holds BSMI, CB, CCC, CE, EAC, RCM, TÜV, and UL certifications. UL listing and CE marking cover the primary requirements for North American and European commercial building and equipment installations.
