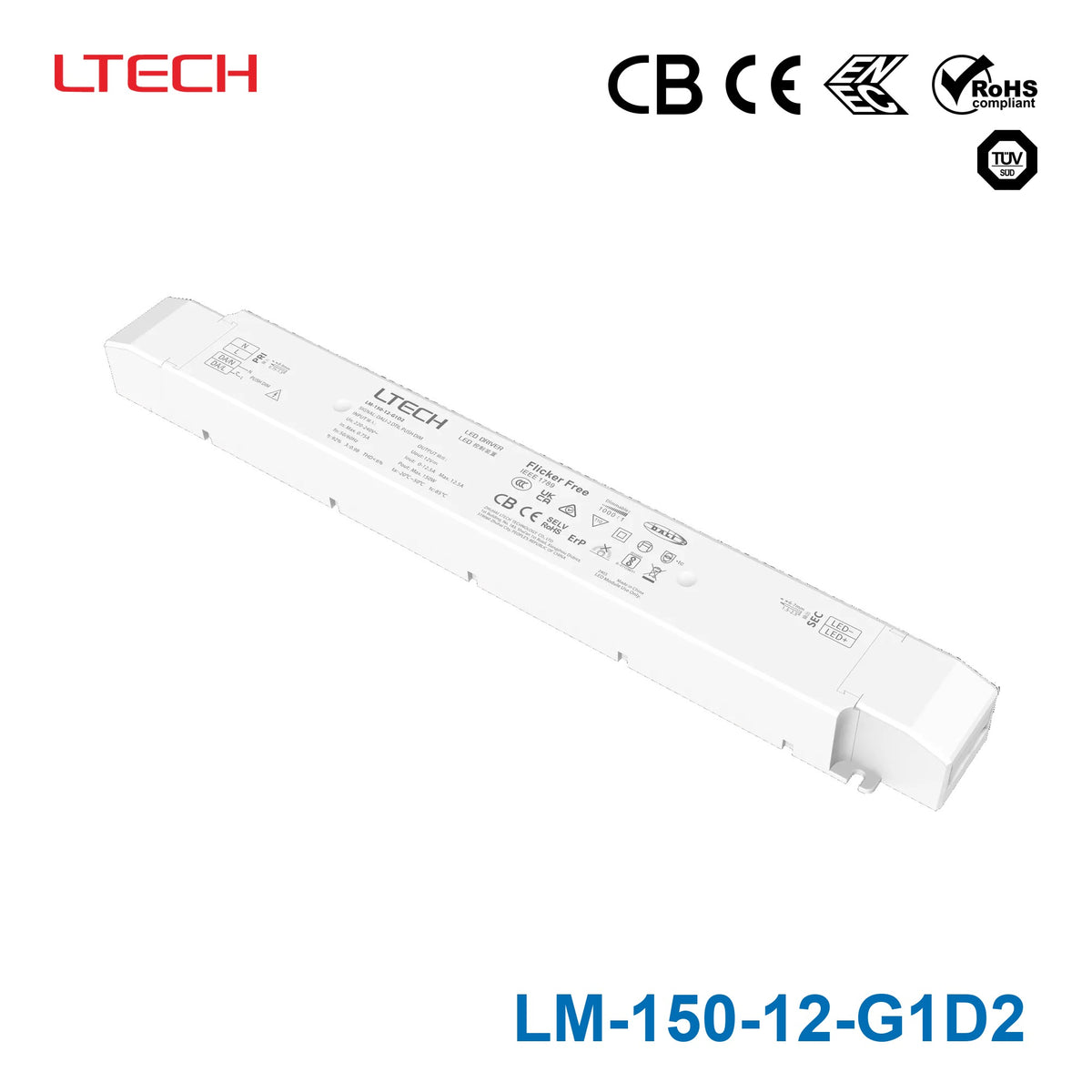

Ltech LM-150-12-G1D2 CV DALI2 Dimmable Driver 12.5A

SKU LM-150-12-G1D2

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by LM-150-12-G1D2F

Notify me when it's back in stock

The LM-150-12-G1D2 is a constant voltage 12V LED intelligent driver intended for internal lighting applications. It is suited to projects that need DALI-based dimming control with a 12V output and up to 150W of power.

Input 220~240VAC. Operating temperature -20~+50°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 220~240VAC
✓Dimming: DALI, Push DIM
✓Output voltage: 12V
✓Rated output current: 12.5A
✓Rated power: 150W
✓Ingress protection: IP20
✓Operating temperature: -20~+50°C
✓Certifications: CB, CE, EN, ENEC, ROHS, TUV
✓Dimensions: 352 x 43 x 30mm
✓5 year warranty

Frequently Asked Questions

What type of LED application is the Ltech LM-150-12-G1D2 designed for?

This model is a constant voltage 12V LED intelligent driver intended for internal lighting applications. It is suited to projects that need DALI-based dimming control with a 12V output and up to 150W of power.

Is this driver compatible with DALI lighting control systems?

Yes. The LM-150-12-G1D2 is a DALI dimmable driver and lists compliance with DALI bus standards IEC62386-101, 102, and 207. That makes it a fit for lighting systems that require DALI control compatibility.

What are the key electrical specifications of this driver?

This model is rated at 150W with a 12V output and 12.5A rated current. The product description also states up to 93% efficiency, power factor above 0.98, and THD below 6%.

How low can this DALI driver dim?

The stated dimming range is 0 to 100%, with LED start at 0.1% possible. It also includes soft-on and fade-in dimming functions to improve visual comfort during dimming transitions.

Is the LM-150-12-G1D2 suitable for demanding commercial environments?

It is built with V0 flame-resistant PC housing, automatic recovery protection features, and intelligent thermal management. These characteristics make it well suited to professional indoor lighting projects where durability and stable performance matter.

What protections are built into this LED driver?

The driver includes over-heat, over-voltage, overload, and short-circuit protection. According to the product description, these protection modes recover automatically.

What operating temperature range does this driver support?

The listed temperature range for this model is from 20°C to 50°C. Buyers should match that range against the expected indoor ambient conditions for the project.

How does this model compare with non-dimmable or lower-grade 12V drivers?

This unit stands out by combining 12V constant voltage output with DALI dimming, low-start dimming capability, and published efficiency and power quality figures. It also adds a 5-year warranty and a stated lifetime of up to 50,000 hours, which are important differentiators for commercial buyers.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
LTECH LM-150-24-G1D2F CV DALI2 Dimmable Driver 6.25A	150W	24V	6.25A	Indoor	View
Ltech LM-150-24-G1D2 CV DALI2 Dimmable Driver 6.25A	150W	24V	6.25A	IP20	View
Ltech LM-150-24-G4K3 150W 24VDC DALI2 DT8 LED Driver - RGBW 6.25A	150W	24V	6.25A	IP20	View
