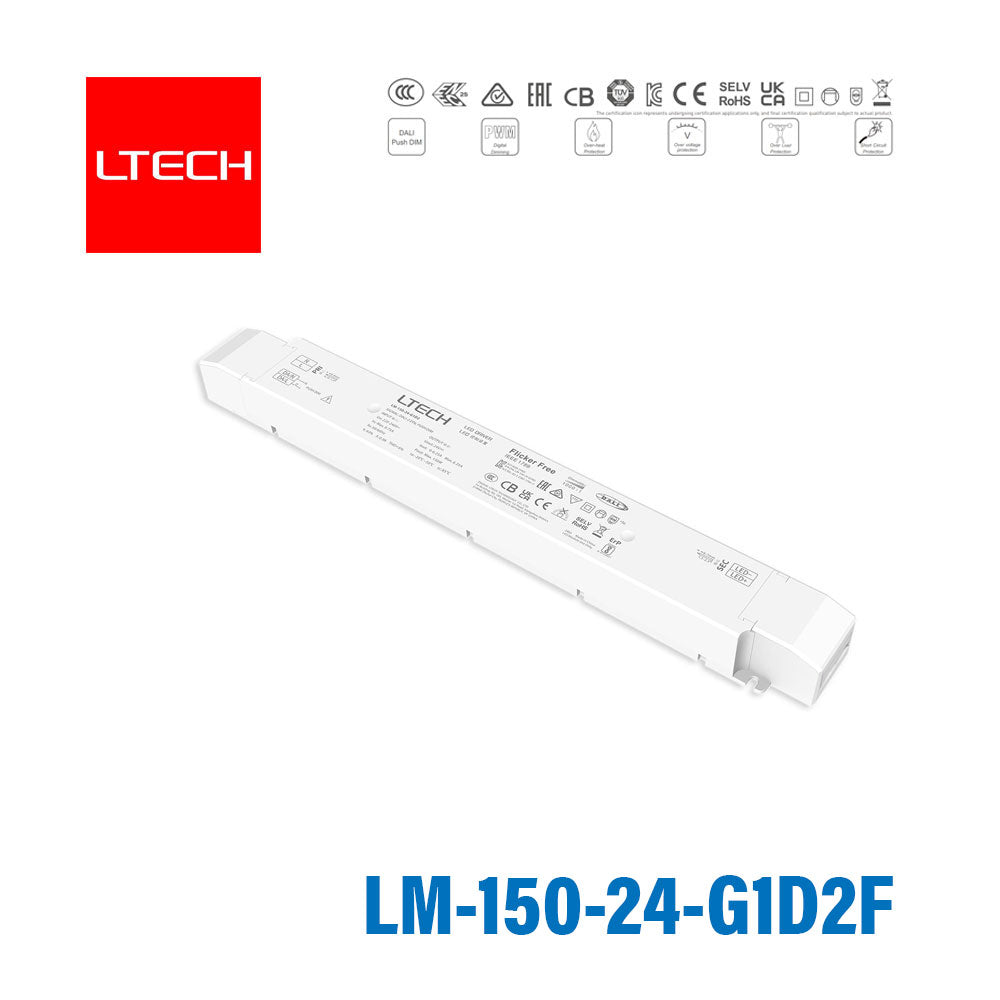

LTECH LM-150-24-G1D2F CV DALI2 Dimmable Driver 6.25A

Q: What kind of lighting projects is the LTECH LM-150-24-G1D2F best suited for?

This model is designed for professional constant-voltage LED lighting applications that need advanced dimming control. Its 24V output, 150W capacity, and support for DALI-2 DT6, Push DIM, and corridor dimming make it a strong fit for commercial, architectural, and intelligent lighting projects. The ultra-deep dimming capability also suits spaces where smooth low-level lighting is important.

Q: Does the LM-150-24-G1D2F support DALI-2 control?

Yes. The LM-150-24-G1D2F supports DALI-2 DT6 dimming and also supports Push DIM and corridor dimming modes. That gives buyers flexibility when specifying it for projects that require modern lighting control options.

Q: What are the main electrical specifications of this LED driver?

This is a 24V constant-voltage LED driver rated at 150W maximum output power. It provides up to 6.25A max current and is specified at 24VDC ±0.5V. The unit also offers high efficiency up to 92%, power factor above 0.98, and THD below 6%.

Q: What makes the LM-150-24-G1D2F different from a basic non-dimmable 24V driver?

The main difference is control flexibility and dimming performance. This model adds DALI-2 DT6, Push DIM, corridor dimming, NFC configuration, and dimming down to 0.01%, which goes well beyond a standard fixed-output driver. It is intended for projects that need precise lighting control rather than simple power delivery only.

Q: Can this driver be adjusted or configured for project-specific dimming requirements?

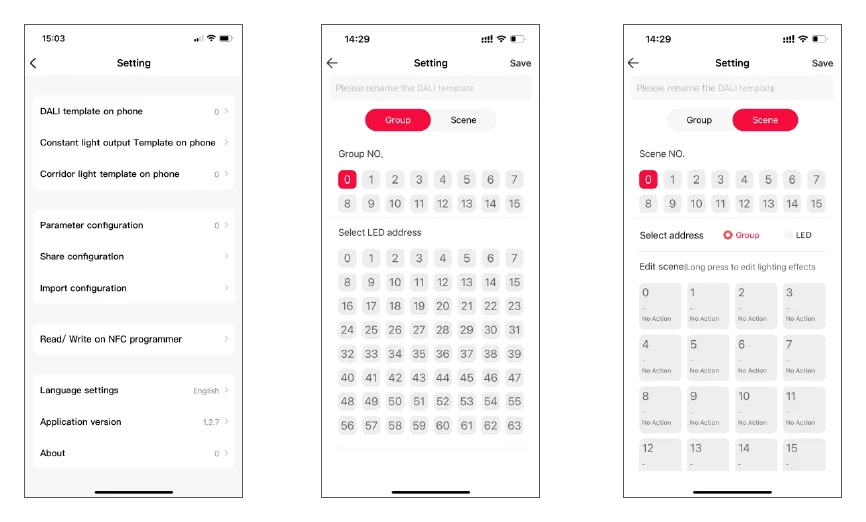

Yes. The LM-150-24-G1D2F supports NFC programming and app-based configuration for output parameters and advanced DALI templates. That allows customization of dimming curves, brightness ranges, and related control behavior for a more tailored lighting setup.

Q: Is the LTECH LM-150-24-G1D2F suitable for demanding commercial environments?

It is built for professional use and operates within an ambient temperature range of -20°C to 50°C. The driver also includes overvoltage, overload, short-circuit, and overheat protection with auto recovery. For long-term use, it is rated for over 100,000 hours of service life and backed by a 5-year warranty.

SKU:

LM-150-24-G1D2F

Please for Pricing

Notify me when it's back in stock

Description

The LTECH LM-150-24-G1D2F is a 150W constant voltage intelligent LED driver engineered for precise and flexible dimming control. Offering two independent SELV channels, it supports DALI-2 DT6, Push DIM, and corridor dimming modes for versatile applications. Configurable via NFC and mobile app, it allows customization of dimming curves, brightness ranges, and advanced DALI templates. With ultra-deep 0.01% dimming, high efficiency, and low THD, the LM-150-24-G1D2F delivers stable, flicker-free performance suitable for professional and architectural lighting projects.

Key Features

Constant voltage LED driver with dual SELV outputs
Output voltage: 24VDC ±0.5V, Max current: 6.25A
Maximum output power: 150W

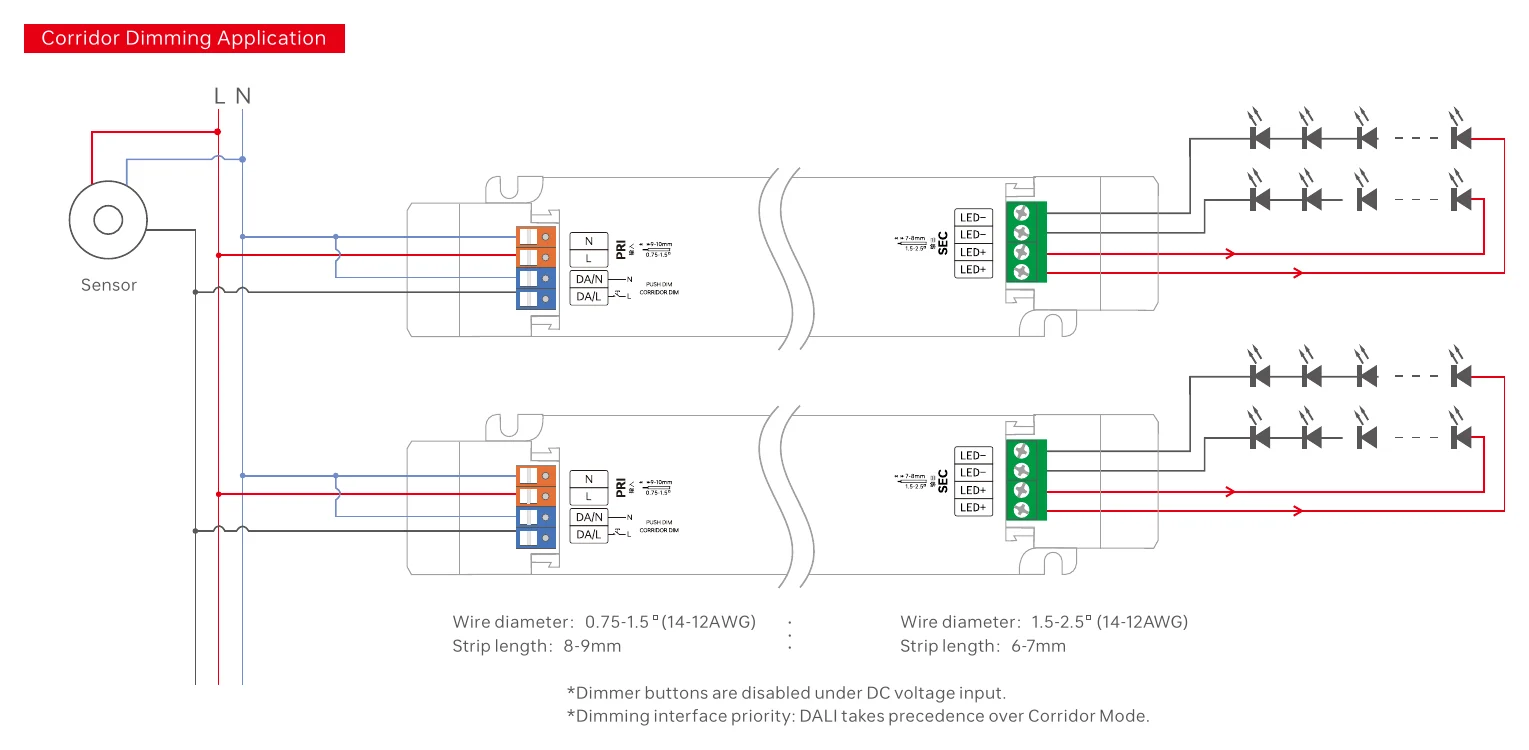

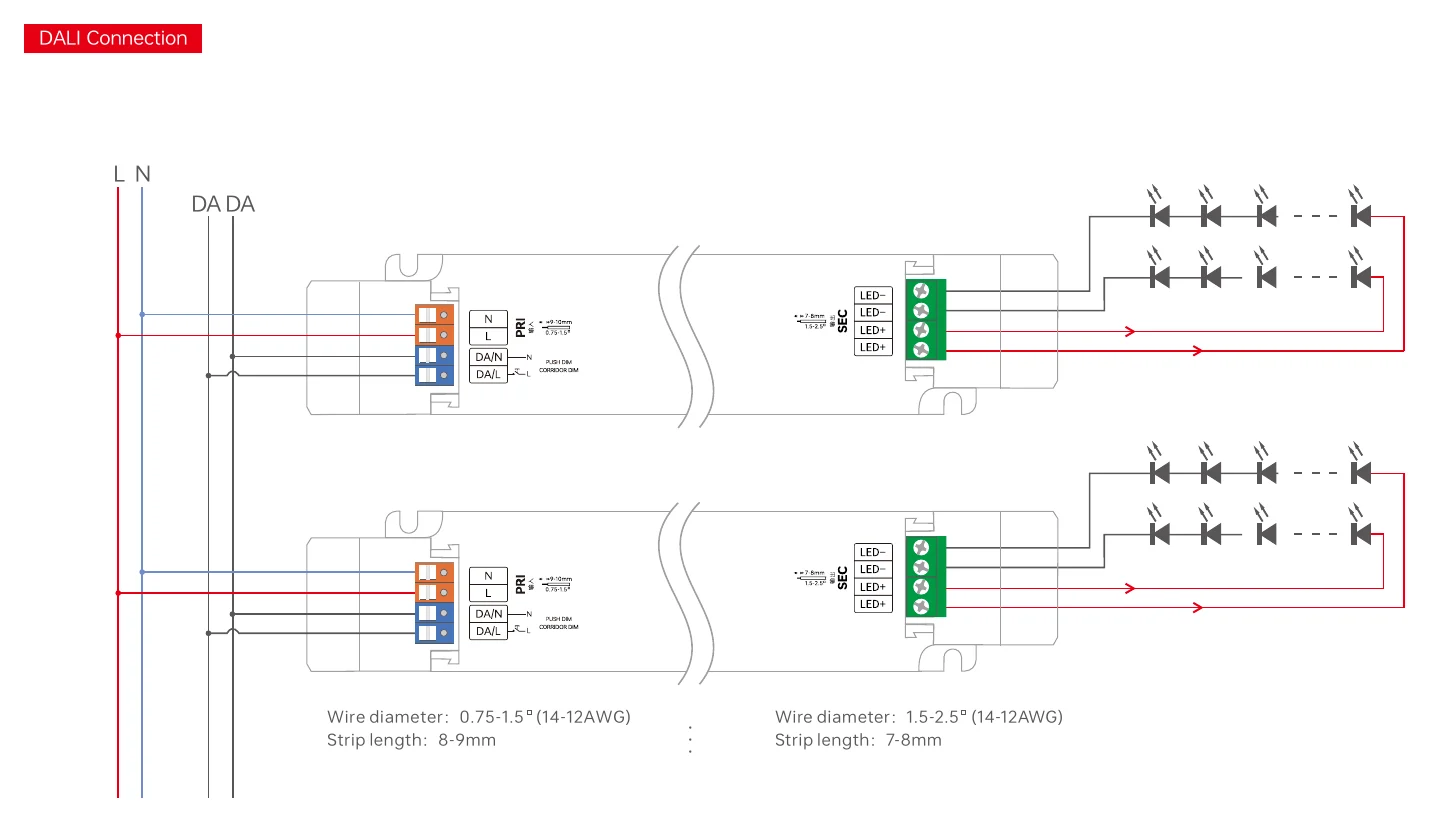

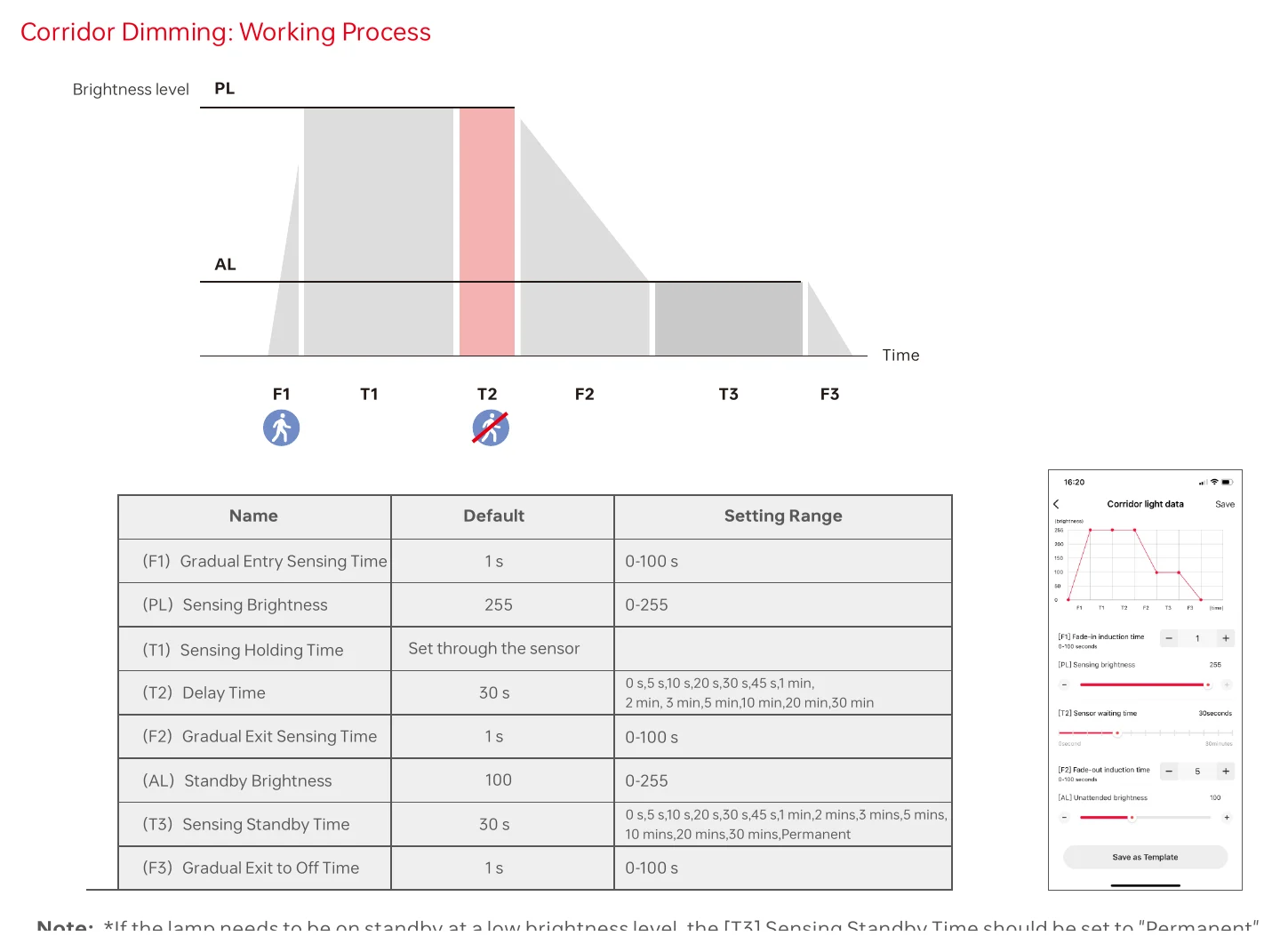

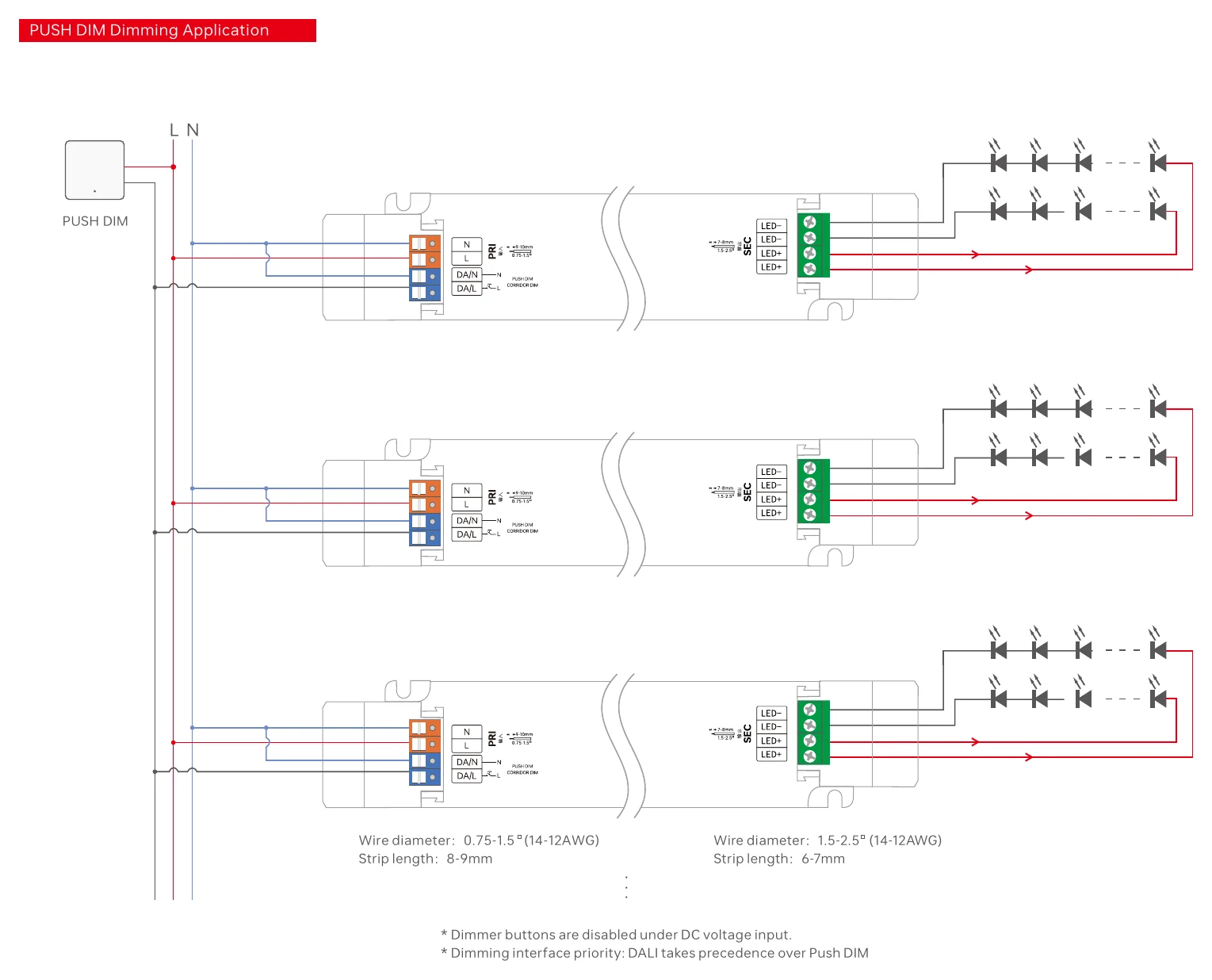

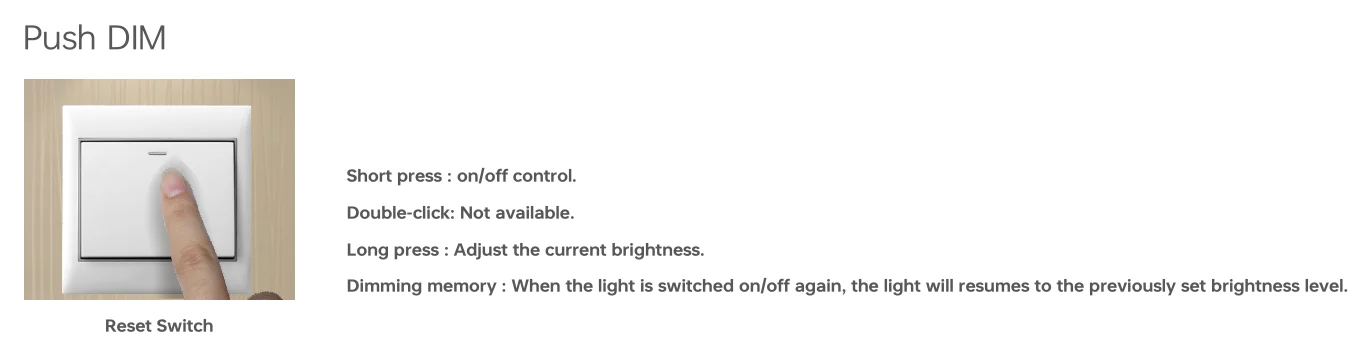

Supports DALI-2 DT6, Push DIM, and corridor dimming

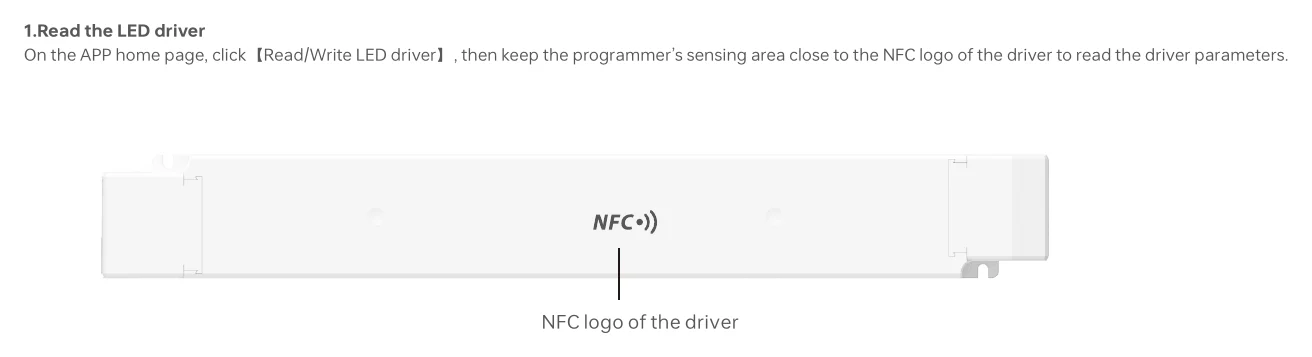

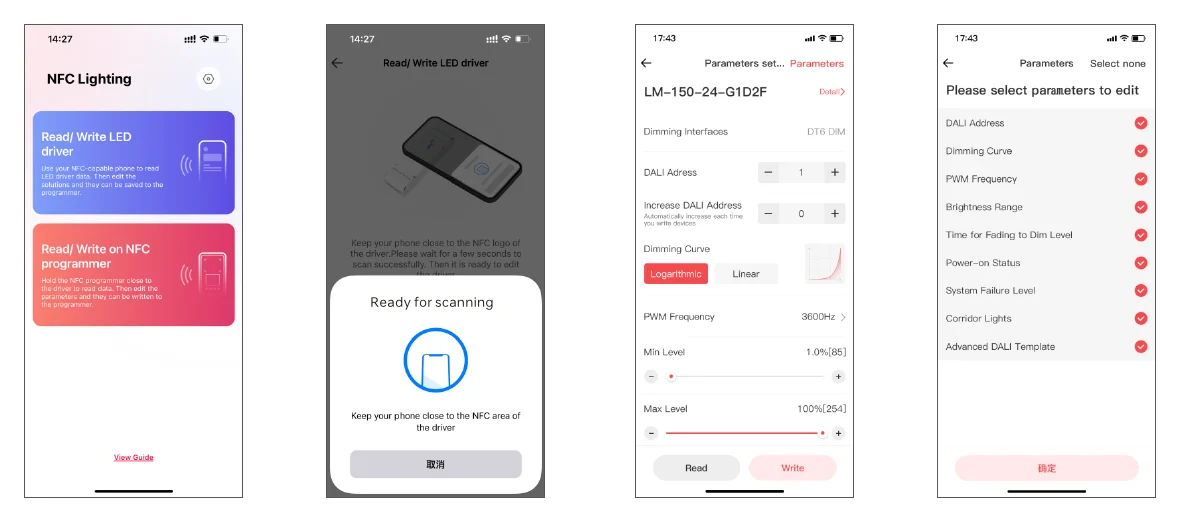

NFC programming for output parameters and advanced templates
0–100% dimming range, down to 0.01%
Constant power output ensures consistent brightness

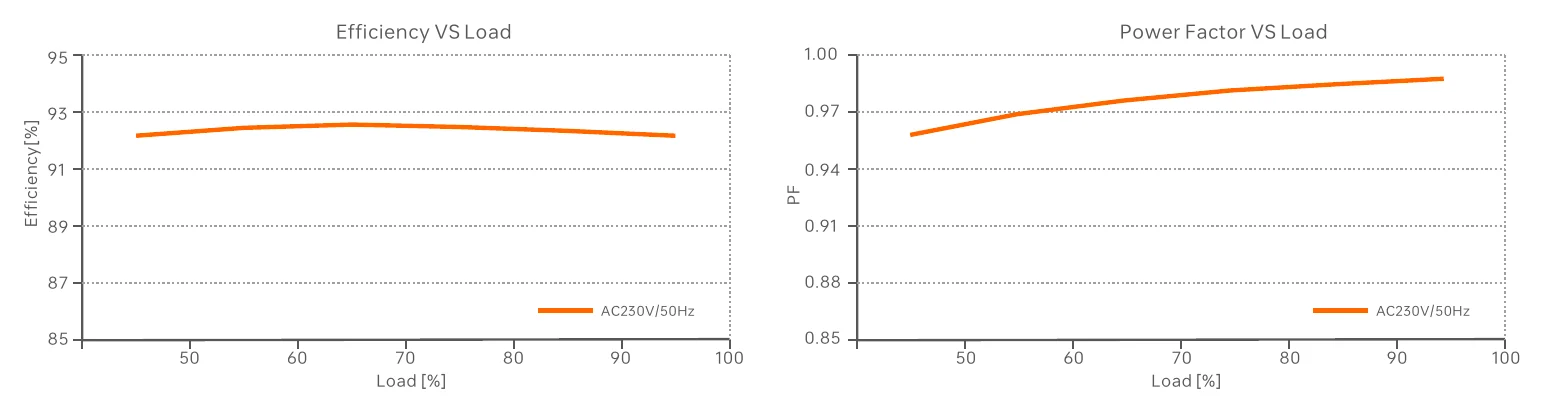

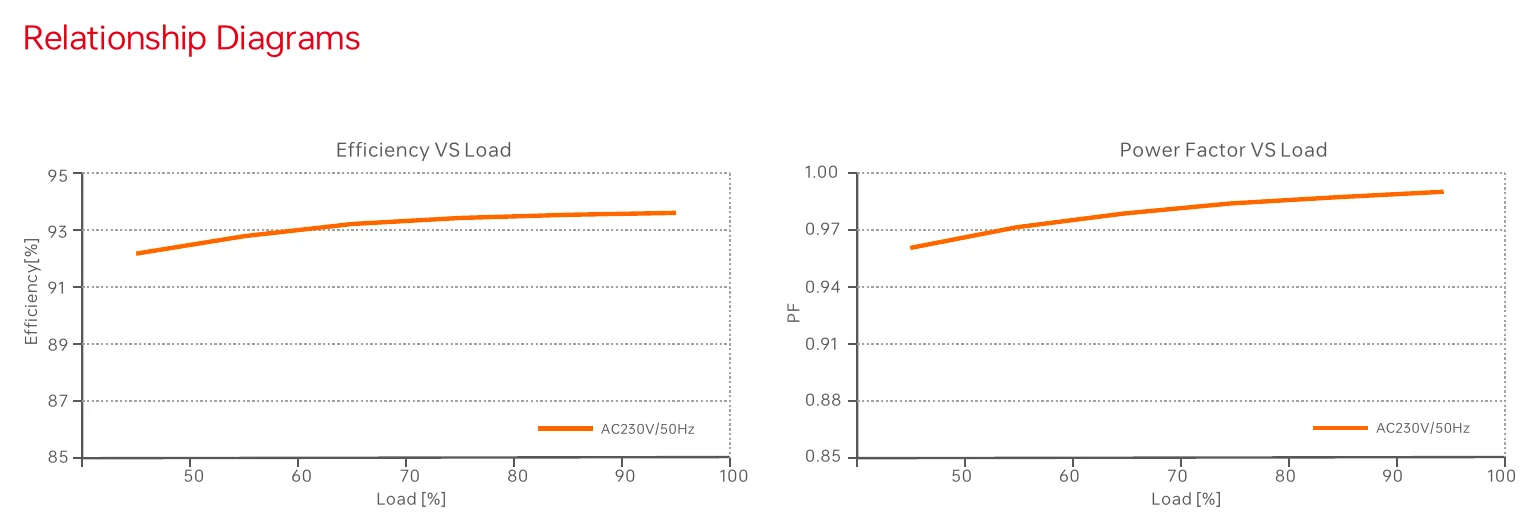

High efficiency up to 92%, PF>0.98, THD<6%
Multiple protections: overvoltage, overload, short circuit, overheat (auto recovery)

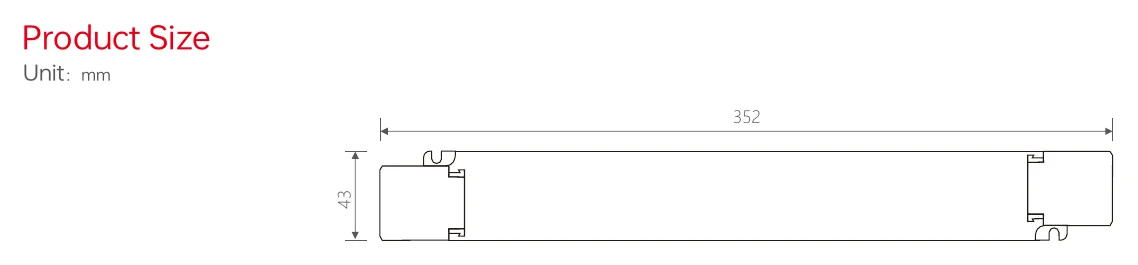

Dimensions: 352×43×30 mm, weight 430 g

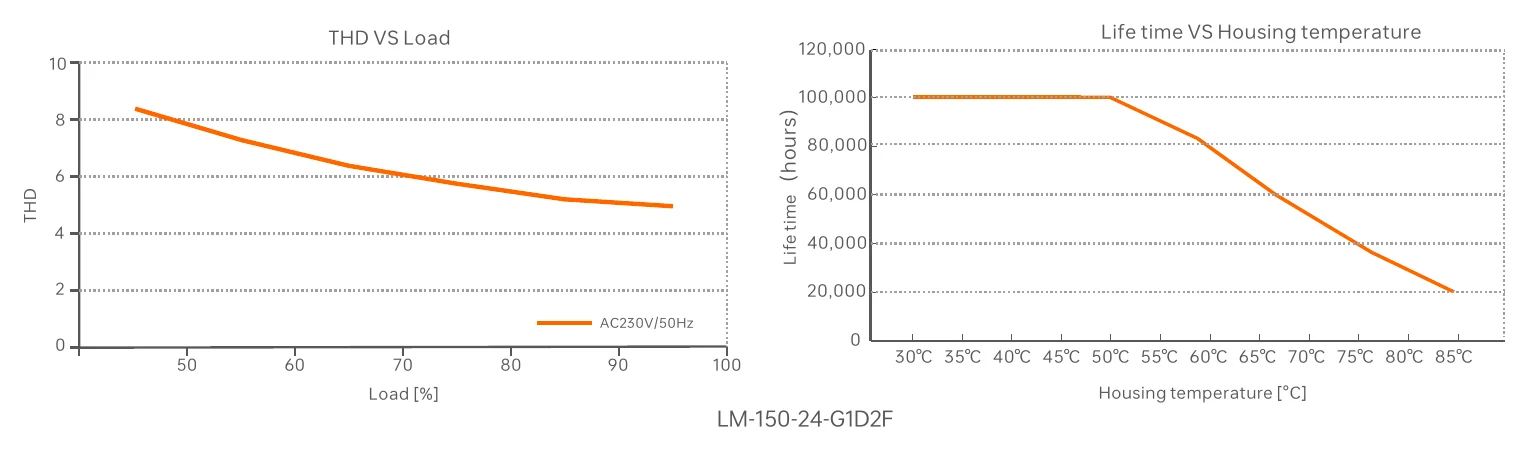

Service life: over 100,000 hours
Backed by a 5-year warranty (Rubycon capacitor)

Specifications

Brand

Ltech
Series

Ltech DALI Series
Power Rating

150 Watt
Output Voltage

24 Volt
Rated Current

6.25 Ampere
Input Voltage

220V~240V
Standards Met

EN
Operation Mode

Constant Voltage
Operating Temperature

-20°C~50°C
Warranty

5 Year
Length

35.2 cm
Width

4.3 cm
Height

3 cm
Weight

0.43 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What kind of lighting projects is the LTECH LM-150-24-G1D2F best suited for?

This model is designed for professional constant-voltage LED lighting applications that need advanced dimming control. Its 24V output, 150W capacity, and support for DALI-2 DT6, Push DIM, and corridor dimming make it a strong fit for commercial, architectural, and intelligent lighting projects. The ultra-deep dimming capability also suits spaces where smooth low-level lighting is important.

Does the LM-150-24-G1D2F support DALI-2 control?

Yes. The LM-150-24-G1D2F supports DALI-2 DT6 dimming and also supports Push DIM and corridor dimming modes. That gives buyers flexibility when specifying it for projects that require modern lighting control options.

What are the main electrical specifications of this LED driver?

This is a 24V constant-voltage LED driver rated at 150W maximum output power. It provides up to 6.25A max current and is specified at 24VDC ±0.5V. The unit also offers high efficiency up to 92%, power factor above 0.98, and THD below 6%.

What makes the LM-150-24-G1D2F different from a basic non-dimmable 24V driver?

The main difference is control flexibility and dimming performance. This model adds DALI-2 DT6, Push DIM, corridor dimming, NFC configuration, and dimming down to 0.01%, which goes well beyond a standard fixed-output driver. It is intended for projects that need precise lighting control rather than simple power delivery only.

Can this driver be adjusted or configured for project-specific dimming requirements?

Yes. The LM-150-24-G1D2F supports NFC programming and app-based configuration for output parameters and advanced DALI templates. That allows customization of dimming curves, brightness ranges, and related control behavior for a more tailored lighting setup.

Is the LTECH LM-150-24-G1D2F suitable for demanding commercial environments?

It is built for professional use and operates within an ambient temperature range of -20°C to 50°C. The driver also includes overvoltage, overload, short-circuit, and overheat protection with auto recovery. For long-term use, it is rated for over 100,000 hours of service life and backed by a 5-year warranty.

Model	Power	Voltage	Current	IP Rating
Ltech LM-150-24-G1D2 CV DALI2 Dimmable Driver 6.25A	150W	24V	6.25A	Indoor	View
Ltech LM-150-12-G1D2 CV DALI2 Dimmable Driver 12.5A	150W	12V	12.5A	Indoor	View
Ltech LM-150-24-G4K3 150W 24VDC DALI2 DT8 LED Driver - RGBW 6.25A	150W	24V	6.25A	IP20	View
LTECH LM-150-12-G1D2F CV DALI2 Dimmable Driver 12.5A	150W	12V	12.5A	Indoor	View
Ltech LM-150-24-G2D2 150W 24VDC DALI2 DT8 LED Driver - Tunable White 6A	150W	24V	6A	IP20	View
Ltech LM-150-12-G2D2 150W 12VDC DALI2 DT8 LED Driver - Tunable White 6A	150W	12V	6A	IP20	View
