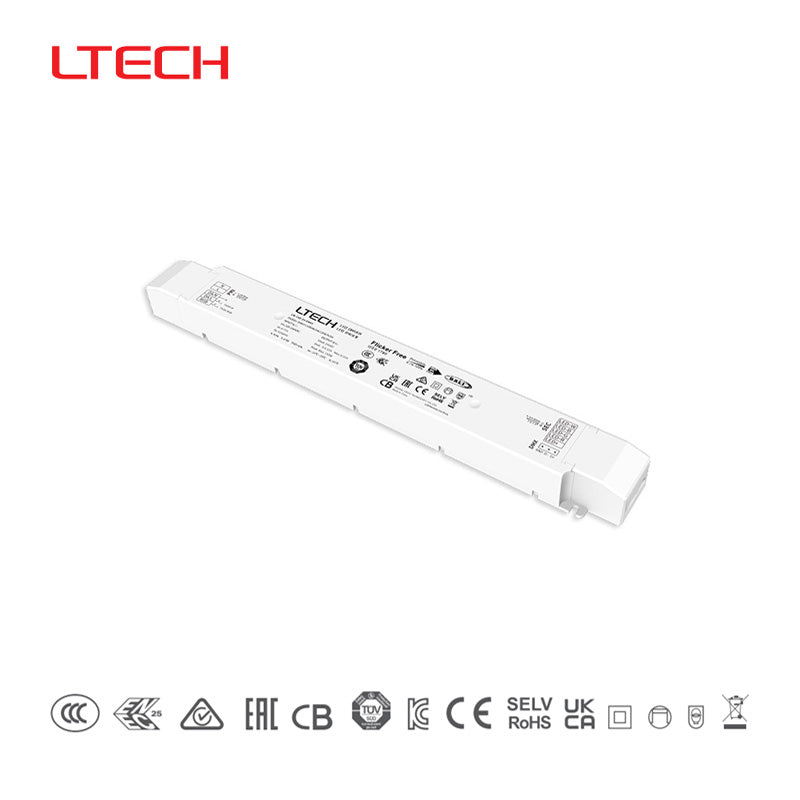

Ltech LM-150-24-G4K3 150W 24VDC DALI2 DT8 LED Driver - RGBW

Q: What type of lighting applications is the Ltech LM-150-24-G4K3 designed for?

This model is intended for constant-voltage 24VDC LED lighting projects that need advanced dimming and colour control. It is particularly suited to commercial and architectural RGBW lighting where DALI-2 DT8 capability is required. Its 150W output makes it a fit for larger LED loads than smaller control gear.

Q: Does this LED driver support RGBW control over DALI?

Yes. The LM-150-24-G4K3 supports DALI-2 including DT8, which is commonly used for colour-control applications such as RGBW lighting. That makes this model relevant where a single driver needs to support more advanced lighting control than basic single-channel dimming.

Q: What are the main electrical ratings of this LED driver?

This model is rated at 150W with a 24VDC output and a rated current of 6.25A. It is a constant-voltage driver rather than a constant-current unit. Buyers should match it with 24V LED products that fall within that power capacity.

Q: How dimmable is the Ltech LM-150-24-G4K3?

According to the product data, it supports dimming from 0 to 100%, with dimming down to 0.1%. That makes it suitable for projects that need very low light levels and finer control, not just basic on/off or coarse dimming. It also supports multiple dimming interfaces including DALI-2 DT6/DT8, DMX512/RDM, and Push.

Q: Is this model suitable for demanding commercial environments?

It is designed with protections for overheat, overvoltage, overload, and short circuit, with automatic recovery listed in the product details. The housing is described as V0 flame-retardant PC, and the driver includes signal isolation and thermal management features. Those characteristics make it better aligned with professional lighting projects than basic commodity drivers.

Q: What operating temperature range does this driver support?

The stated operating temperature range is from -20°C to 50°C. This gives it flexibility for many indoor and some protected commercial environments where ambient conditions vary. Buyers should still confirm the surrounding enclosure or project conditions stay within that range.

Q: What distinguishes this driver from a basic 24V non-DALI power supply?

The main difference is control capability. This Ltech unit combines 24VDC constant-voltage output with DALI-2 DT8 support, deep dimming to 0.1%, and additional control interface support including DMX512/RDM and Push. A basic 24V power supply may provide voltage only, without the same level of dimming and lighting-control functionality.

Q: What warranty and service life are specified for the LM-150-24-G4K3?

The product information lists a 5-year warranty and a lifetime of up to 50,000 hours. That combination is relevant for buyers comparing long-term maintenance expectations across project-grade LED drivers. It suggests this model is positioned for professional use where reliability matters.

150W, 24V, 6.25A, IP20

SKU:

LM-150-24-G4K3

Please for Pricing

Notify me when it's back in stock

Description

LED Intelligent Driver

• Small size and light weight. The housing is made from V0 flameretardant PC materials that SAMSUNG/COVESTRO uses.

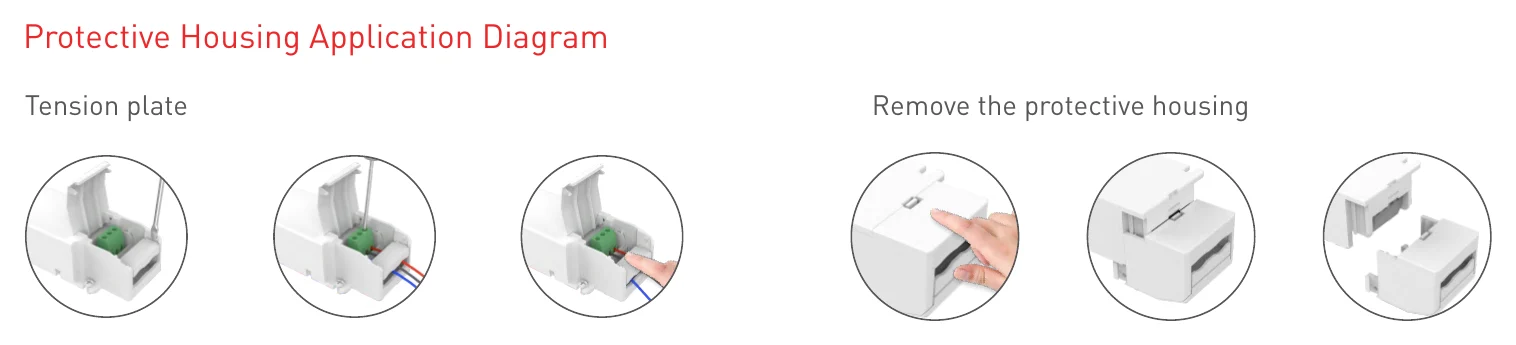

• The clamshell design and screwless type for strain-relief. Thedesign of dismountable end cap allows you to adjust the lengthof housing depending on your needs.

• Dimming from 0~100%, down to 0.1%.

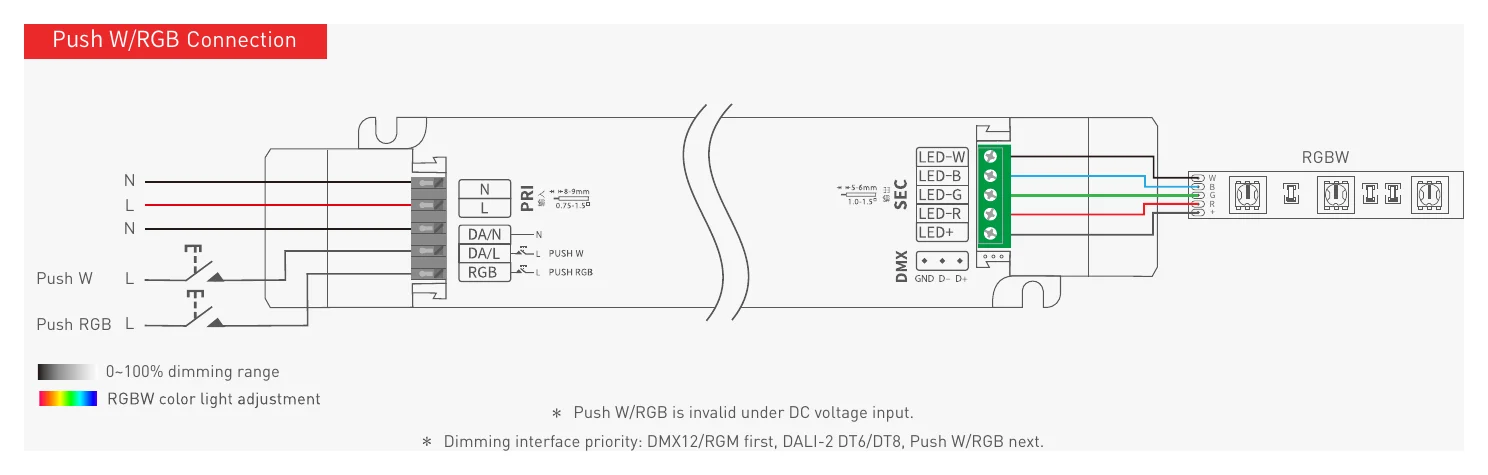

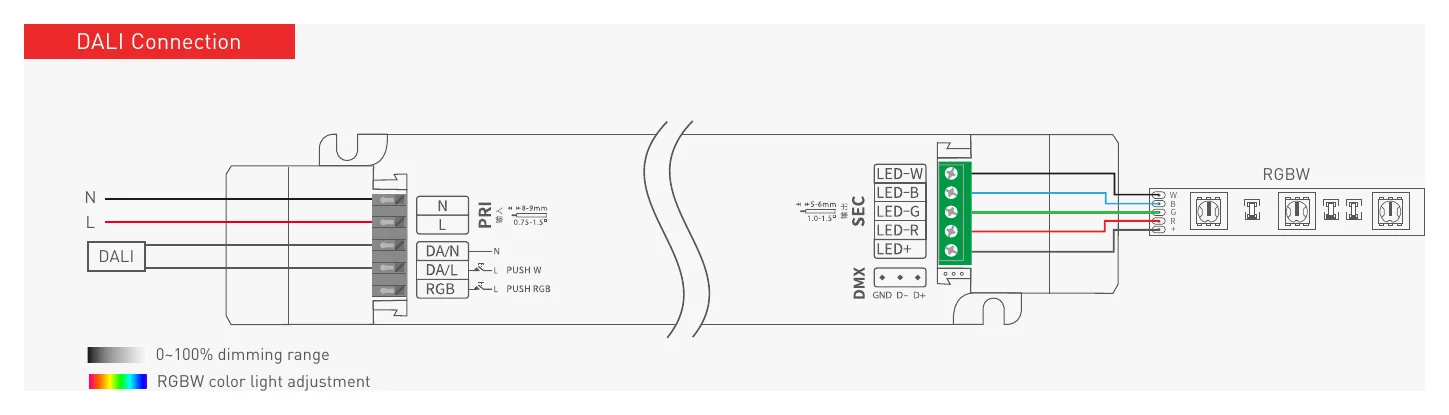

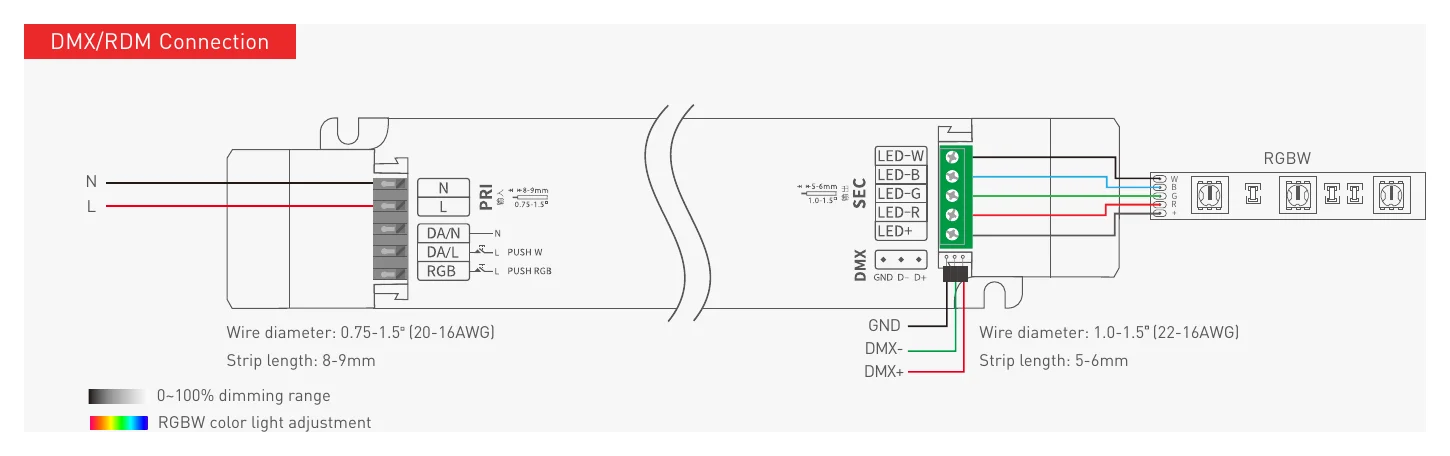

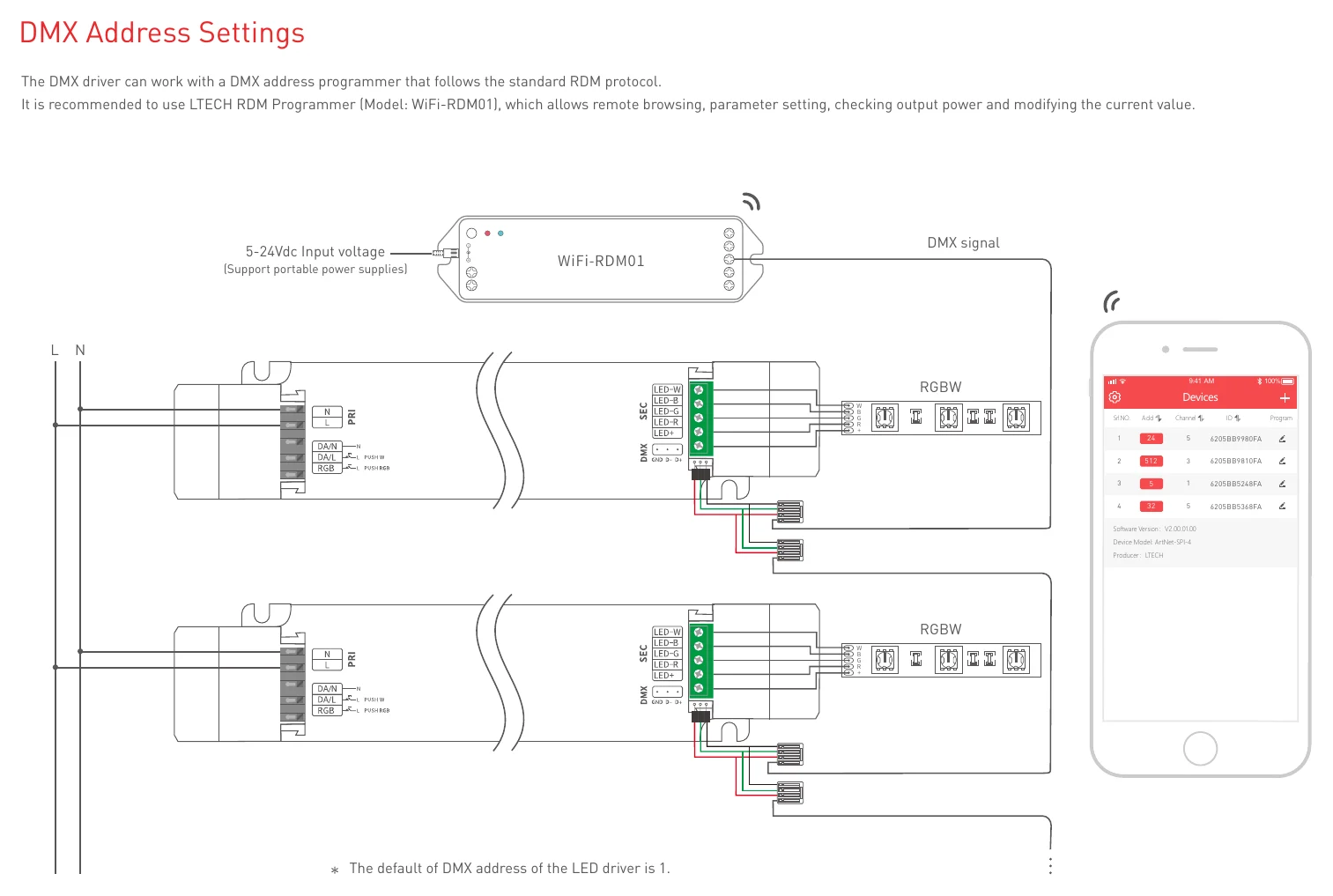

• Dimming interface: DMX512/RDM, DALI-2 DT6/DT8, Push.

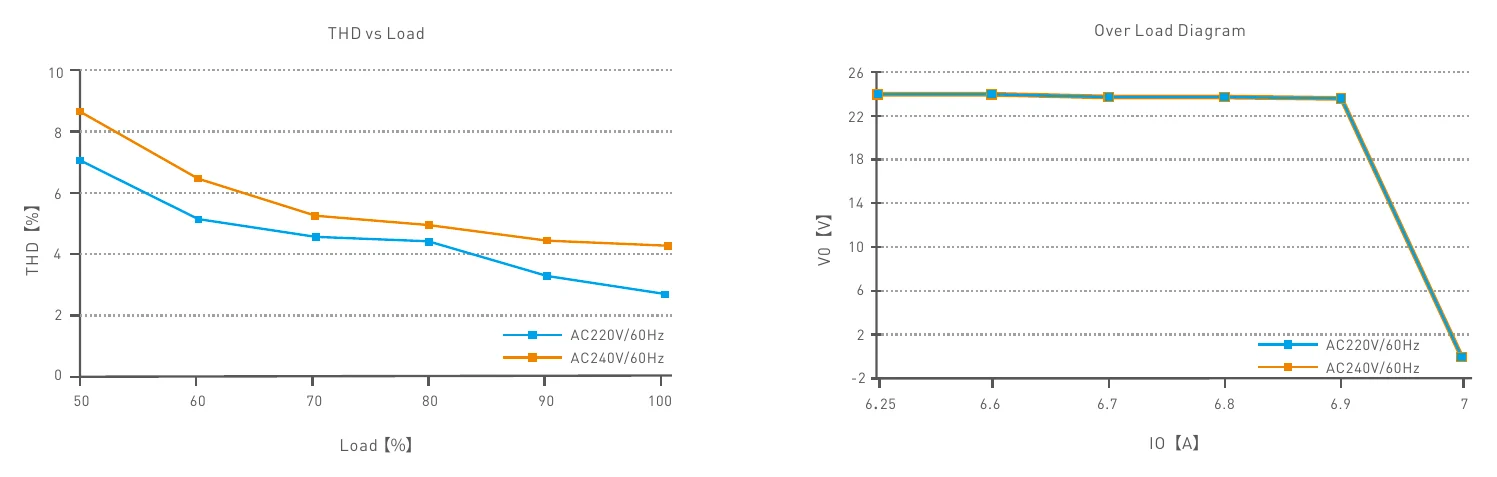

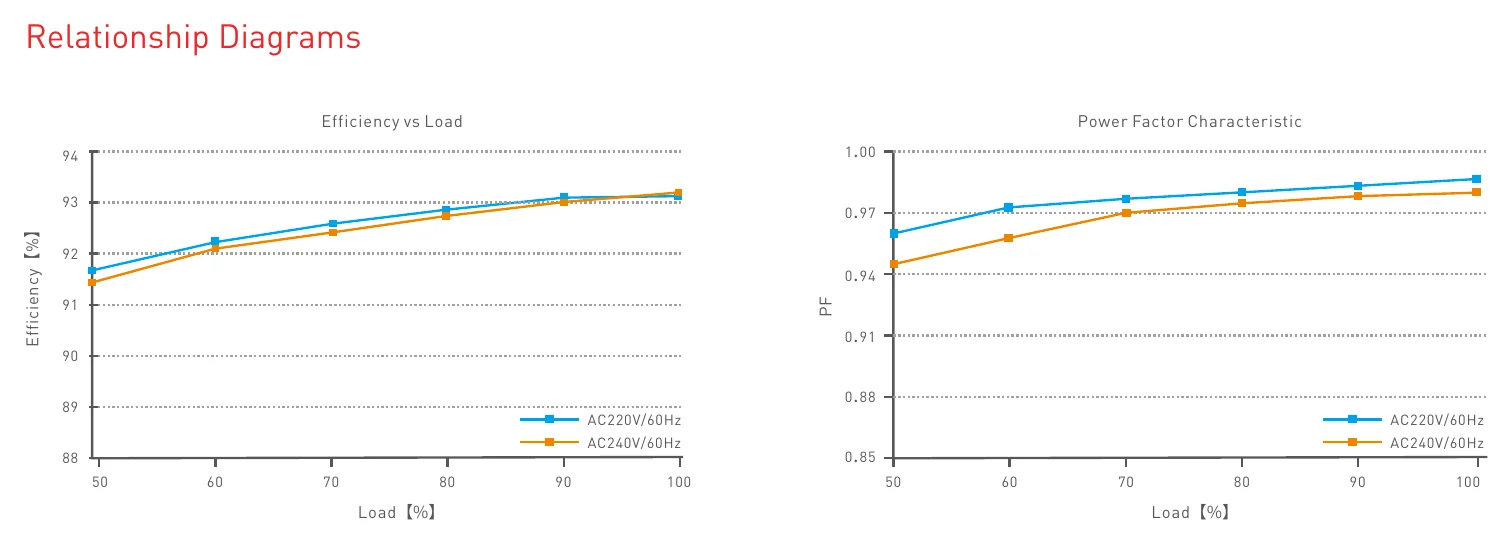

• Energy-efficient driver: Effeciency 93%, PF>0.98, THD<6%.

• Comply with the EU’s ErP Directive, stand-by power consumption<0.5W.

• The secure and reliable design for signal isolation.

• Innovative thermal management technology intelligently protectsthe life of the LED driver.

• Overheat, overvoltage, overload, short circuit protection and automatic recovery.

• Up to 50,000-hour life time.

• 5-year warranty (Rubycon capacitor).

Specifications

Brand

Ltech
Series

Ltech DALI Series
Power Rating

150 Watt
Output Voltage

24 Volt
Rated Current

6.25 Ampere
Input Voltage

220V~240V
Operation Mode

Constant Voltage
Operating Temperature

-20°C~50°C
Warranty

5 Year

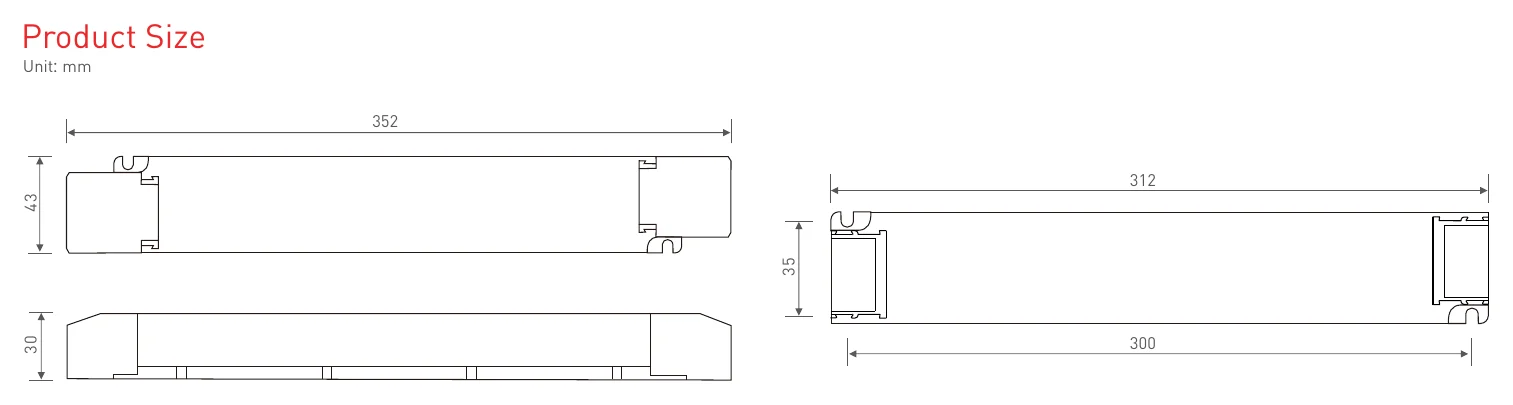

Length

35.2 cm
Width

4.3 cm
Height

3 cm
Weight

0.43 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What type of lighting applications is the Ltech LM-150-24-G4K3 designed for?

This model is intended for constant-voltage 24VDC LED lighting projects that need advanced dimming and colour control. It is particularly suited to commercial and architectural RGBW lighting where DALI-2 DT8 capability is required. Its 150W output makes it a fit for larger LED loads than smaller control gear.

Does this LED driver support RGBW control over DALI?

Yes. The LM-150-24-G4K3 supports DALI-2 including DT8, which is commonly used for colour-control applications such as RGBW lighting. That makes this model relevant where a single driver needs to support more advanced lighting control than basic single-channel dimming.

What are the main electrical ratings of this LED driver?

This model is rated at 150W with a 24VDC output and a rated current of 6.25A. It is a constant-voltage driver rather than a constant-current unit. Buyers should match it with 24V LED products that fall within that power capacity.

How dimmable is the Ltech LM-150-24-G4K3?

According to the product data, it supports dimming from 0 to 100%, with dimming down to 0.1%. That makes it suitable for projects that need very low light levels and finer control, not just basic on/off or coarse dimming. It also supports multiple dimming interfaces including DALI-2 DT6/DT8, DMX512/RDM, and Push.

Is this model suitable for demanding commercial environments?

It is designed with protections for overheat, overvoltage, overload, and short circuit, with automatic recovery listed in the product details. The housing is described as V0 flame-retardant PC, and the driver includes signal isolation and thermal management features. Those characteristics make it better aligned with professional lighting projects than basic commodity drivers.

What operating temperature range does this driver support?

The stated operating temperature range is from -20°C to 50°C. This gives it flexibility for many indoor and some protected commercial environments where ambient conditions vary. Buyers should still confirm the surrounding enclosure or project conditions stay within that range.

What distinguishes this driver from a basic 24V non-DALI power supply?

The main difference is control capability. This Ltech unit combines 24VDC constant-voltage output with DALI-2 DT8 support, deep dimming to 0.1%, and additional control interface support including DMX512/RDM and Push. A basic 24V power supply may provide voltage only, without the same level of dimming and lighting-control functionality.

What warranty and service life are specified for the LM-150-24-G4K3?

The product information lists a 5-year warranty and a lifetime of up to 50,000 hours. That combination is relevant for buyers comparing long-term maintenance expectations across project-grade LED drivers. It suggests this model is positioned for professional use where reliability matters.

Model	Power	Voltage	Current	IP Rating
LTECH LM-150-24-G1D2F CV DALI2 Dimmable Driver	150W	24V	6.25A	Indoor	View
Ltech LM-150-24-G1D2 CV DALI2 Dimmable Driver	150W	24V	6.25A	Indoor	View
Ltech LM-150-12-G1D2 CV DALI2 Dimmable Driver	150W	12V	12.5A	Indoor	View
LTECH LM-150-12-G1D2F CV DALI2 Dimmable Driver	150W	12V	12.5A	Indoor	View
Ltech LM-150-24-G2D2 150W 24VDC DALI2 DT8 LED Driver - Tunable White	150W	24V	6A	IP20	View
Ltech LM-150-12-G2D2 150W 12VDC DALI2 DT8 LED Driver - Tunable White	150W	12V	6A	IP20	View
