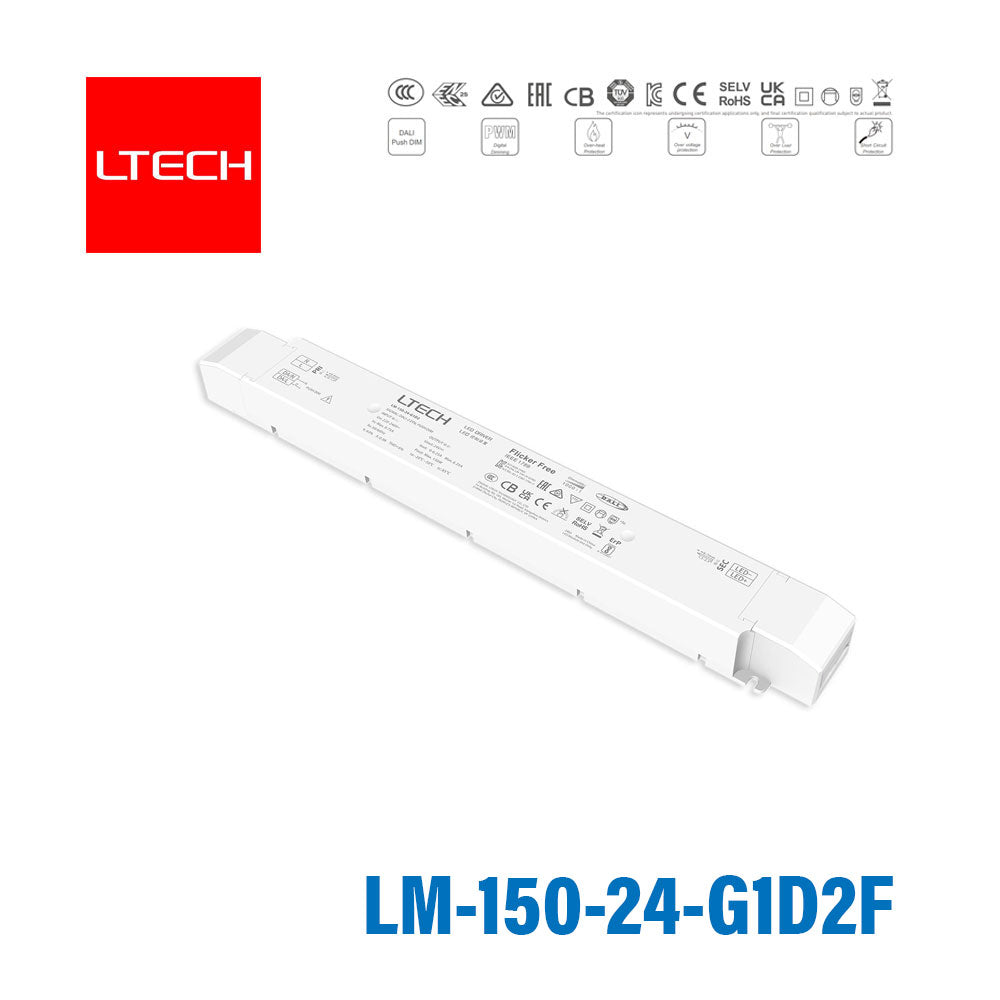

LTECH LM-150-24-G1D2F CV DALI2 Dimmable Driver 6.25A

SKU LM-150-24-G1D2F

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The LM-150-24-G1D2F is designed for professional constant-voltage LED lighting applications that need advanced dimming control. Its 24V output, 150W capacity, and support for DALI-2 DT6, Push DIM, and corridor dimming make it a strong fit for commercial, architectural, and intelligent lighting projects. The ultra-deep dimming capability also suits spaces where smooth low-level lighting is important.

Input 220~240VAC. Operating temperature -20~+50°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 220~240VAC
✓Dimming: DALI, DALI-2
✓Output voltage: 24V
✓Rated output current: 6.25A
✓Rated power: 150W
✓Operating temperature: -20~+50°C
✓Certifications: EN
✓Dimensions: 352 x 43 x 30mm
✓5 year warranty

Frequently Asked Questions

What kind of lighting projects is the LTECH LM-150-24-G1D2F best suited for?

This model is designed for professional constant-voltage LED lighting applications that need advanced dimming control. Its 24V output, 150W capacity, and support for DALI-2 DT6, Push DIM, and corridor dimming make it a strong fit for commercial, architectural, and intelligent lighting projects. The ultra-deep dimming capability also suits spaces where smooth low-level lighting is important.

Does the LM-150-24-G1D2F support DALI-2 control?

Yes. The LM-150-24-G1D2F supports DALI-2 DT6 dimming and also supports Push DIM and corridor dimming modes. That gives buyers flexibility when specifying it for projects that require modern lighting control options.

What are the main electrical specifications of this LED driver?

This is a 24V constant-voltage LED driver rated at 150W maximum output power. It provides up to 6.25A max current and is specified at 24VDC ±0.5V. The unit also offers high efficiency up to 92%, power factor above 0.98, and THD below 6%.

What makes the LM-150-24-G1D2F different from a basic non-dimmable 24V driver?

The main difference is control flexibility and dimming performance. This model adds DALI-2 DT6, Push DIM, corridor dimming, NFC configuration, and dimming down to 0.01%, which goes well beyond a standard fixed-output driver. It is intended for projects that need precise lighting control rather than simple power delivery only.

Can this driver be adjusted or configured for project-specific dimming requirements?

Yes. The LM-150-24-G1D2F supports NFC programming and app-based configuration for output parameters and advanced DALI templates. That allows customization of dimming curves, brightness ranges, and related control behavior for a more tailored lighting setup.

Is the LTECH LM-150-24-G1D2F suitable for demanding commercial environments?

It is built for professional use and operates within an ambient temperature range of -20°C to 50°C. The driver also includes overvoltage, overload, short-circuit, and overheat protection with auto recovery. For long-term use, it is rated for over 100,000 hours of service life and backed by a 5-year warranty.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Ltech LM-150-24-G1D2 CV DALI2 Dimmable Driver 6.25A	150W	24V	6.25A	IP20	View
Ltech LM-150-12-G1D2 CV DALI2 Dimmable Driver 12.5A	150W	12V	12.5A	IP20	View
Ltech LM-150-24-G4K3 150W 24VDC DALI2 DT8 LED Driver - RGBW 6.25A	150W	24V	6.25A	IP20	View
