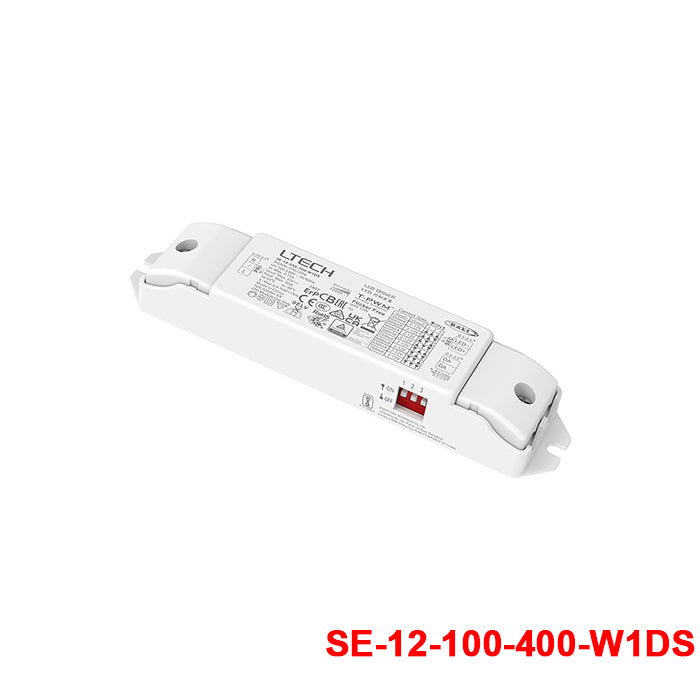

Ltech SE-12-100-400-W1DS 12W 100mA ~ 400mA CC DALI2 LED Driver - Selectable Output

9-42V for 100-250mAother current please check spec sheet

SKU SE-12-100-400-W1DS

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Ltech SE-12-100-400-W1DS is a 12W constant-current LED driver for lighting applications that need a selectable output current between 100mA and 400mA. It is intended for low-voltage LED loads that operate within the driver's output limits and benefit from DALI2 dimming control.

Input 100~240VAC. Operating temperature -20~+50°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 100~240VAC (120~300VDC)
✓Dimming: DALI
✓Output voltage: 50V
✓Output current: 100~400mA, selectable by DIP switch
✓Rated power: 12W
✓Ingress protection: IP20
✓Operating temperature: -20~+50°C
✓Certifications: CB, CCC, CE, EAC, ENEC, KC, SELV, TUV
✓Dimensions: 135 x 20 x 30mm
✓5 year warranty

Frequently Asked Questions

What type of LED application is the Ltech SE-12-100-400-W1DS designed for?

Does this model support DALI dimming?

Yes. This model uses DALI2 control and references IEC62386-101, 102, and 207 in the product data. It is intended for lighting systems where precise digital dimming and smooth light adjustment are important.

What output current range does this LED driver offer?

This driver has a selectable constant-current output from 100mA to 400mA. That range gives more flexibility than a fixed-current model when you need to match one driver platform to different low-power LED load requirements.

How do I know if this driver is compatible with my LED load?

This model is suitable for constant-current LED loads that require 100mA to 400mA and stay within the driver's 12W power rating and 50V output limit. If your LED module requires a different drive type or exceeds those limits, this model is not the right match.

What environments is the SE-12-100-400-W1DS rated for?

The listed operating temperature range is -20°C to 50°C. It is also described as a Class 2, SELV LED driver, which makes it appropriate for controlled lighting environments where low-voltage driver safety is a priority.

What are the main specifications of this Ltech LED driver?

This model is rated at 12W with a selectable constant-current output of 100mA to 400mA and an output voltage up to 50V. It also includes DALI2 dimming support, a 5-year warranty, and a compact lightweight design.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
LTECH SE-12-350-700-W1D 12W 350mA ~ 700mA CC DALI2 LED Driver - Selectable Output	12W	35V	0.35A	Indoor	View
Ltech SE-12-350-700-W1DS 12W 350~700mA CC DALI2 LED Driver - Selectable Output	12W	35V	0.35A	IP20	View
