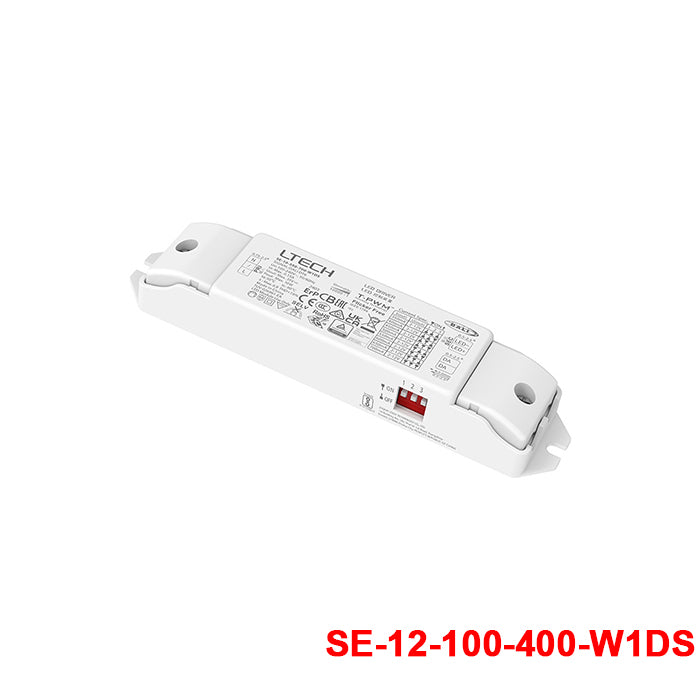

Ltech SE-12-100-400-W1DS 12W 100mA ~ 400mA CC DALI2 LED Driver - Selectable Output

9-42V for 100-250mAother current please check spec sheet

SKU SE-12-100-400-W1DS

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SE-12-100-400-W1DS is the 9-42Vdc output model of this series: typical efficiency 82% (at full load),.

Features

Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.
Small size and light weight.
DALI bus standard IEC62386-101, 102, 207.
Class 2 LED driver, Safety Extra Low Voltage (SELV).
Soft-on and fade-in dimming function enhances your visual comfort.
T-PWM dimming technology allows quality and high-end lighting.
The whole dimming process is flicker-free with high frequency exemption level.
Multiple current levels, wide voltage range, suitable for LEDs with different power
Comply with the EU's ErP Directive, networked standby<0.5W.
When there is no load, the output will be 0V to prevent damage to LEDs due to poor contact.
Overheat, over voltage, overload, short circuit protection and automatic recovery.
Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
Normal service life can reach 100,000 hours.
5-year warranty (Rubycon capacitor).

Specifications

SE-12-100-400-W1DSSpecifications from the official datasheet

Features

Output Type: Constant current
Dimming Interface: DALI-2 DT6
Output Feature: Isolation
Protection Grade: IP20
Insulation Grade: Class II (Suitable for class I/ II /III light fixtures)

OUTPUT

Output Voltage: 9-42Vdc
Output voltage range(No-load): ≤50Vdc
Output Current Range: 100-400mA
Load power range: 0.9W-12W
Dimming Range: 0~100%，down to 0.01%
LF Current Ripple: <3%(Maximum current for non dimming state)
Current Accuracy: ±5%
PWM Frequency: ≤3600Hz

INPUT

DC Voltage Range: 120-300Vdc
AC Voltage Range: 100-240Vac
Input Voltage: 115Vac/230Vac
Frequency: 50/60Hz
Input Current: ≤0.18A/115Vac (at full load), ≤0.08A/230Vac (at full load)
Power Factor: PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load),
THD: THD≤10%/230Vac (at full load),
Efficiency (Typ.): 82% (at full load),
Inrush Current: Cold start 15A(Test twidth=102us tested under 50% Ipeak)/230Vac
Anti Surge: L-N:2KV
Leakage Current: Max.0.24mA

ENVIRONMENT

Working Temperature: ta:-20~50°C tc:80°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temperature/Humidity: -40~80°C/10~95%RH
Temperature Coefficient: ±0.03%/°C(-20°C-40°C)
Vibration: 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

PROTECTION

Overload Protection: Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
Overheat Protection: Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
Overvoltage Protection: Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
Short Circuit Protection: Enter hiccup mode if short circuit occurs, and recover automatically

SAFETY & EMC

Withstand Voltage: I/P-O/P: 3750Vac
Insulation Resistance: I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety Standards: Parameter Standard Test Level

CCC China GB19510.1，GB19510.14
CB CB Member States IEC61347-1，IEC61347-2-13
CE European Union EN61347-1，EN61347-2-13，EN62384
EAC Russia IEC61347-1，IEC61347-2-13
RCM Australia AS 61347-1，AS 61347-2-13
UKCA Britain BS EN 61347-1，BS EN 61347-2-13，BS EN 62493
BIS India IS 15885 (PART 2/SEC 13)
EMC Emission: Parameter Standard Test Level

CCC China GB/T17743，GB17625.1
CE European Union EN55015，EN61000-3-2，EN61000-3-3，EN61547
EAC Russia IEC62493，IEC61547，EH55015
RCM Australia EN55015，EN61000-3-2，EN61000-3-3，EN61547
UKCA Britain BS EN IEC 55015，BS EN IEC 61000-3-2，BS EN IEC 61000-3-3，BS EN 61547
EMC Immunity: EN61000-4-2,3,4,5,6,8,11,EN61547

Parameter	Standard	Test Level
CCC	China	GB19510.1，GB19510.14
CB	CB Member States	IEC61347-1，IEC61347-2-13
CE	European Union	EN61347-1，EN61347-2-13，EN62384
EAC	Russia	IEC61347-1，IEC61347-2-13
RCM	Australia	AS 61347-1，AS 61347-2-13
UKCA	Britain	BS EN 61347-1，BS EN 61347-2-13，BS EN 62493
BIS	India	IS 15885 (PART 2/SEC 13)

Parameter	Standard	Test Level
CCC	China	GB/T17743，GB17625.1
CE	European Union	EN55015，EN61000-3-2，EN61000-3-3，EN61547
EAC	Russia	IEC62493，IEC61547，EH55015
RCM	Australia	EN55015，EN61000-3-2，EN61000-3-3，EN61547
UKCA	Britain	BS EN IEC 55015，BS EN IEC 61000-3-2，BS EN IEC 61000-3-3，BS EN 61547

ErP

Power Consumption Standby power consumption: No standby mode
Power Consumption Networked standby: ＜0.5W (After shutdown by command)
Flicker/Stroboscopic Effect No-load power consumption: ＜0.5W (When the lamp is not connected)
Flicker/Stroboscopic Effect CIESVM: PstLM≤1.0，SVM≤0.4
DF Phase factor: DF≥0.9

OTHERS

Weight(N.W.): 80g±10g
Dimensions: 135×30×20mm(L×W×H)

Certifications & ratings

T-PWM: Dimming Technology
Flicker Free: IEEE 1789
Marked features: Multiple Current

Technical drawings

SE-12-100-400-W1DS LED Current Selection — LED Current Selection

SE-12-100-400-W1DS LED Current Selection (2) — LED Current Selection (2)

SE-12-100-400-W1DS LED Current Selection (3) — LED Current Selection (3)

SE-12-100-400-W1DS Product Size — Product Size

SE-12-100-400-W1DS Wiring Diagram — Wiring Diagram

SE-12-100-400-W1DS Relationship Diagrams — Relationship Diagrams

SE-12-100-400-W1DS Life time VS Housing temperature — Life time VS Housing temperature

SE-12-100-400-W1DS Life time VS Housing temperature (2) — Life time VS Housing temperature (2)

SE-12-100-400-W1DS Power Factor VS Load — Power Factor VS Load

SE-12-100-400-W1DS Flicker Test Sheet — Flicker Test Sheet

SE-12-100-400-W1DS Packaging Image — Packaging Image

SE-12-100-400-W1DS Packaging Image (2) — Packaging Image (2)

Downloads

Datasheet1

SE-12-100-400-W1DS datasheetSE_10_350_700_W1DS_spec_sheet.pdf PDF Download

FAQ

What type of LED application is the Ltech SE-12-100-400-W1DS designed for?

The Ltech SE-12-100-400-W1DS is a 12W constant-current LED driver for lighting applications that need a selectable output current between 100mA and 400mA. It is intended for low-voltage LED loads that operate within the driver's output limits and benefit from DALI2 dimming control.

Does this model support DALI dimming?

Yes. This model uses DALI DT6 control. It is intended for lighting systems where precise digital dimming and smooth light adjustment are important.

What output current range does this LED driver offer?

This driver has a selectable constant-current output from 100mA to 400mA. That range gives more flexibility than a fixed-current model when you need to match one driver platform to different low-power LED load requirements.

How do I know if this driver is compatible with my LED load?

This model is suitable for constant-current LED loads that require 100mA to 400mA and stay within the driver's 12W power rating and 50V output limit. If your LED module requires a different drive type or exceeds those limits, this model is not the right match.

What environments is the SE-12-100-400-W1DS rated for?

The listed operating temperature range is -20°C to 50°C. It is an IP20 rated device, making it appropriate for controlled indoor lighting environments.

What are the main specifications of this Ltech LED driver?

This model is rated at 12W with a selectable constant-current output of 100mA to 400mA and an output voltage up to 50V. It also includes DALI2 dimming support, a 5-year warranty, and a compact lightweight design.
