Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

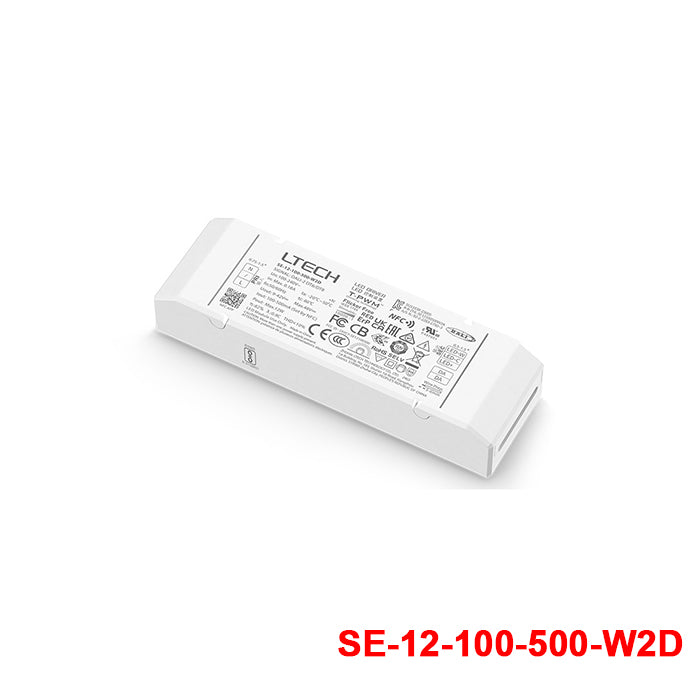

Ltech SE-12-100-500-W2D 12W 100-500mA LED Driver - NFC, DALI2, Tunable White

0.01% dimming depthoutput current adjustable with 1mA stepsuitable for class I/II/III indoor light fixtures

SKU SE-12-100-500-W2D

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Ltech SE-12-100-500-W2D is a 12W constant-current LED driver for lighting applications that need dimming control and tunable white support. It is positioned for LED use cases where compact size, precise current adjustment, and DALI2 control are important.

Input 100~240VAC. Operating temperature -20~+50°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 100~240VAC (120~300VDC)
✓Dimming: DALI
✓Output voltage: 48V
✓Output current: 100~500mA, NFC-programmable via app in 1mA steps
✓Rated power: 12W
✓Ingress protection: IP20
✓Operating temperature: -20~+50°C
✓Certifications: CB, CCC, CE, EAC, ENEC, KC, SELV, TUV
✓Dimensions: 110 x 20 x 35mm
✓5 year warranty

Frequently Asked Questions

What is the Ltech SE-12-100-500-W2D designed for?

Does this LED driver support DALI dimming?

Yes. This model supports DALI2 dimming control and is identified as a DALI driver in its product data. It also includes T-PWM super deep dimming technology with a stated dimming depth of 0.01% and a soft-on, fade-in dimming function.

What makes this model different from a basic non-dimmable LED driver?

This model adds features aimed at higher-end lighting control, including DALI2 support, NFC functionality, tunable white capability, and adjustable output current in 1mA steps. It also emphasizes visual comfort with flicker-free dimming performance and soft-on fade-in behavior.

What are the key electrical specs of the SE-12-100-500-W2D?

This LED driver is rated at 12W with an output voltage listed at 48V. The product data shows a rated current of 100mA, and the description states the output current is adjustable from 100mA to 500mA in 1mA increments.

Is this a compact LED driver for space-limited fixtures?

Yes. The product description highlights an ultra-small, thin, and lightweight design with a screwless end cap. Its listed weight is 0.0100 kg, which makes it suitable for applications where low weight and compact form factor matter.

What operating temperatures is this driver rated for?

The specified operating temperature range is -20°C to 50°C. That gives it a defined working range for indoor or enclosed lighting environments that stay within those limits.

What warranty is provided for this model?

The listed warranty period for the Ltech SE-12-100-500-W2D is 5 years. For commercial buyers, that can be useful when evaluating lifecycle cost and long-term maintenance expectations.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
LTECH SE-12-350-700-W1D 12W 350mA ~ 700mA CC DALI2 LED Driver - Selectable Output	12W	35V	0.35A	Indoor	View
Ltech SE-12-350-700-W1DS 12W 350~700mA CC DALI2 LED Driver - Selectable Output	12W	35V	0.35A	IP20	View
