Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

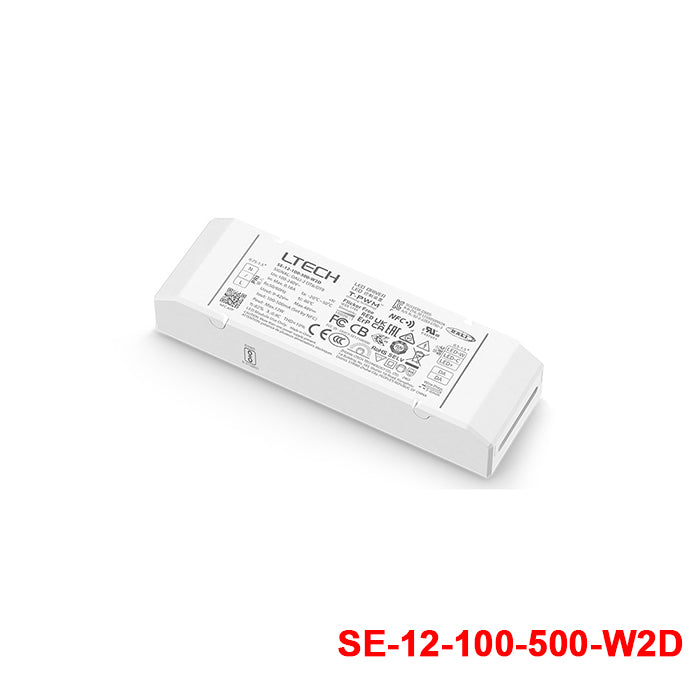

Ltech SE-12-100-500-W2D 12W 100-500mA LED Driver - NFC, DALI2, Tunable White

Q: What is the Ltech SE-12-100-500-W2D designed for?

The Ltech SE-12-100-500-W2D is a 12W constant-current LED driver for lighting applications that need dimming control and tunable white support. It is positioned for LED use cases where compact size, precise current adjustment, and DALI2 control are important.

Q: Does this LED driver support DALI dimming?

Yes. This model supports DALI2 dimming control and is identified as a DALI driver in its product data. It also includes T-PWM super deep dimming technology with a stated dimming depth of 0.01% and a soft-on, fade-in dimming function.

Q: What makes this model different from a basic non-dimmable LED driver?

This model adds features aimed at higher-end lighting control, including DALI2 support, NFC functionality, tunable white capability, and adjustable output current in 1mA steps. It also emphasizes visual comfort with flicker-free dimming performance and soft-on fade-in behavior.

Q: What are the key electrical specs of the SE-12-100-500-W2D?

This LED driver is rated at 12W with an output voltage listed at 48V. The product data shows a rated current of 100mA, and the description states the output current is adjustable from 100mA to 500mA in 1mA increments.

Q: Is this a compact LED driver for space-limited fixtures?

Yes. The product description highlights an ultra-small, thin, and lightweight design with a screwless end cap. Its listed weight is 0.0100 kg, which makes it suitable for applications where low weight and compact form factor matter.

Q: What operating temperatures is this driver rated for?

The specified operating temperature range is -20°C to 50°C. That gives it a defined working range for indoor or enclosed lighting environments that stay within those limits.

Q: What warranty is provided for this model?

The listed warranty period for the Ltech SE-12-100-500-W2D is 5 years. For commercial buyers, that can be useful when evaluating lifecycle cost and long-term maintenance expectations.

0.01% dimming depth, output current adjustable with 1mA step,suitable for class I/II/III indoor light fixtures

SKU:

SE-12-100-500-W2D

Please for Pricing

Notify me when it's back in stock

Description

Features:

Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.
Ultra small, thin and lightweight, screwless end cap.
Adjustable output current with 1mA step.
Soft-on and fade-in dimming function enhances your visual comfort.
T-PWM™ super deep dimming technology, 0.01% dimming depth.
The whole dimming process is flicker-free with high frequency exemption level.
Comply with the EU’s ErP Directive, networked standby<0.5W.
When there is no load, the output will be 0V to prevent damage to LEDs due to poor contact.
Overheat, over voltage, overload, short circuit protection and automatic recovery.
Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
Normal service life can reach 100,000 hours.
5-year warranty (Rubycon capacitor).

General Specification

AC input voltage range

100-240Vac

AC inrush current (max.)

Cold start 15A(Test twidth=130us tested under 50% Ipeak)/230Vac

Overload Protection

Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced

Over-heat Protection

Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output

Overvoltage Protection

Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically

Short Circuit Protection

Enter hiccup mode if short circuit occurs, and recover automatically

Withstand voltage

I/P-O/P: 3750Vac

Working temperature

ta:-20~50°C tc:90°C

Safety standards

CCC - China - GB19510.1，GB19510.14

TUV - Germany - EN61347-1，EN61347-2-13，EN62493

CE - European Union - EN61347-1，EN61347-2-13，EN62384

KC - Korea - KC61347-1，KC61347-2-13

RCM - Australia - AS61347-1，AS61347-2-13

ENEC - Europe - EN61347-1，EN61347-2-13，EN62384

CB - CB member states - IEC61347-1，IEC61347-2-13

EAC - Russia - IEC61347-1，IEC61347-2-13

UKCA - Britain - BS EN 61347-2-13:2014+A1:2017，BS EN 61347-1:2015+A1:2021

Dimension (LxWxH)

110×35×20mm

Specifications

Brand

Ltech
Series

Ltech DALI Series
Power Rating

12 Watt
Output Voltage

48 Volt
Rated Current

0.1 Ampere
Input Voltage

120V~300V
Standards Met

CB,CCC,CE,EAC,ENEC,KC,SELV,TUV
Operation Mode

Constant Voltage
Operating Temperature

-20°C~50°C
Warranty

5 Year
Length

11 cm
Width

2 cm
Height

3.5 cm
Weight

0.01 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Ltech SE-12-100-500-W2D designed for?

The Ltech SE-12-100-500-W2D is a 12W constant-current LED driver for lighting applications that need dimming control and tunable white support. It is positioned for LED use cases where compact size, precise current adjustment, and DALI2 control are important.

Does this LED driver support DALI dimming?

Yes. This model supports DALI2 dimming control and is identified as a DALI driver in its product data. It also includes T-PWM super deep dimming technology with a stated dimming depth of 0.01% and a soft-on, fade-in dimming function.

What makes this model different from a basic non-dimmable LED driver?

This model adds features aimed at higher-end lighting control, including DALI2 support, NFC functionality, tunable white capability, and adjustable output current in 1mA steps. It also emphasizes visual comfort with flicker-free dimming performance and soft-on fade-in behavior.

What are the key electrical specs of the SE-12-100-500-W2D?

This LED driver is rated at 12W with an output voltage listed at 48V. The product data shows a rated current of 100mA, and the description states the output current is adjustable from 100mA to 500mA in 1mA increments.

Is this a compact LED driver for space-limited fixtures?

Yes. The product description highlights an ultra-small, thin, and lightweight design with a screwless end cap. Its listed weight is 0.0100 kg, which makes it suitable for applications where low weight and compact form factor matter.

What operating temperatures is this driver rated for?

The specified operating temperature range is -20°C to 50°C. That gives it a defined working range for indoor or enclosed lighting environments that stay within those limits.

What warranty is provided for this model?

The listed warranty period for the Ltech SE-12-100-500-W2D is 5 years. For commercial buyers, that can be useful when evaluating lifecycle cost and long-term maintenance expectations.

Model	Power	Voltage	Current	IP Rating
LTECH SE-12-350-700-W1D 12W 350mA ~ 700mA CC DALI2 LED Driver - Selectable Output	12W	35V	0.35A	Indoor	View
Ltech SE-12-350-700-W1DS 12W 350~700mA CC DALI2 LED Driver - Selectable Output	12W	35V	0.35A	IP20	View
Ltech SE-12-100-500-W1D 12W 100-500mA LED Driver - NFC, DALI2 Dimmable	12W	48V	0.1A	IP20	View
Ltech SE-12-100-400-W1DS 12W 100mA ~ 400mA CC DALI2 LED Driver - Selectable Output	12W	50V	0.1A	IP20	View
LTECH SE-12-100-450-W2D 12W 100mA ~ 450mA CC DALI-2 Tunable White LED Driver	12W	48V	0.1A	Indoor	View
