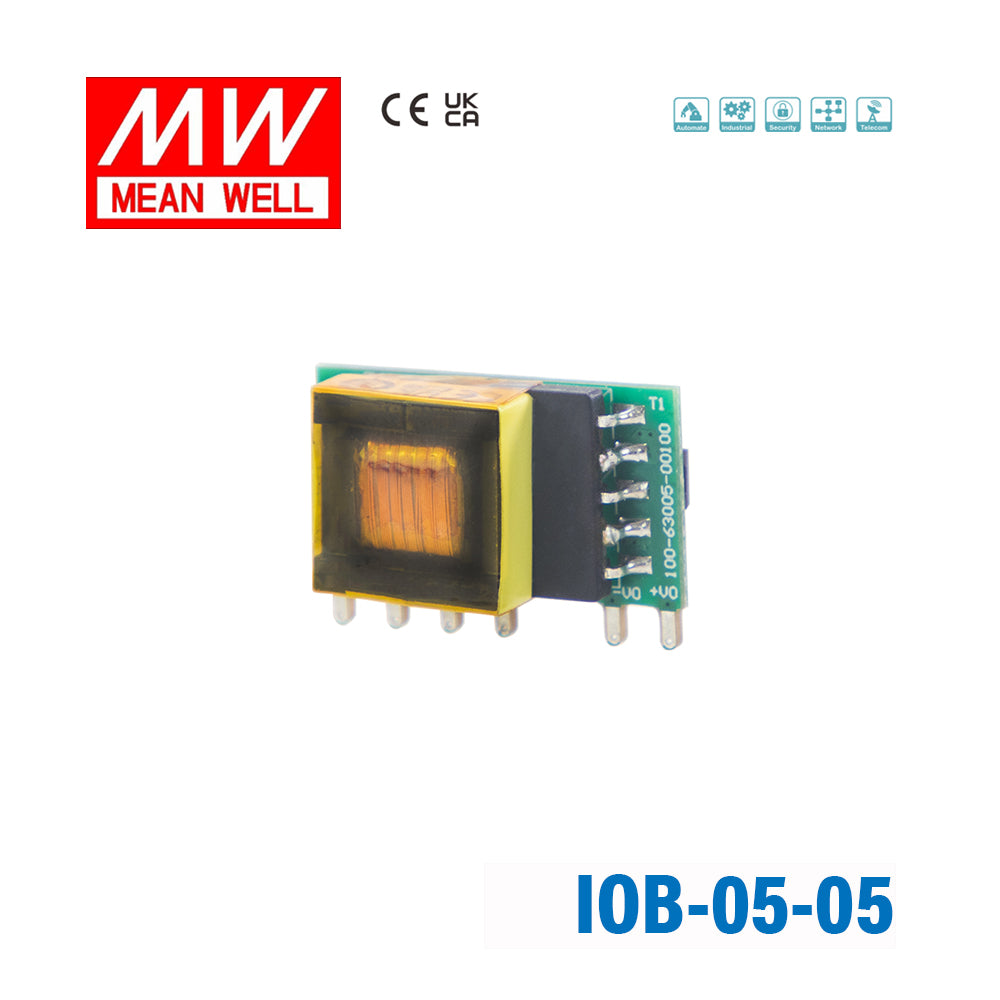

Mean Well IOB-05-05 AC-DC On Board Type Power Module 5W 5V 1A

1"x0.6" compact size85~305Vac inputno load power consumption<0.15W

SKU IOB-05-05

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

IOB-05-05 is the 5V output model of this series: rated current 1A, rated power 5W, typical efficiency 76%.

The IOB-05 series is a compact and reliable AC-DC open frame power module featuring high efficiency and low power consumption. It is particularly well-suited for space-constrained applications with stringent energy efficiency requirements. The product features a compact design and supports universal input voltage range of 85~305Vac.With ultra-low standby power consumption <0.15W, it is energy efficiency and eco-friendly. It also offers an ultra-wide operating temperature range of -40℃~+85℃ as well as complete protection functions to ensure safe and reliable operation. These features make the product suitable for applications with strict space constraints, such as industrial automation, power metering, and smart devices.

Features

Assemble on the main PCB of the system
1.03x0.58x0.43inch compact size
85~305Vac input (277Vac available)
No load power consumption <0.15W
-40~85℃ wide operating temperature
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Safety Class Ⅱ
3 years warranty

Specifications

IOB-05-05Specifications from the official datasheet (2025-09-12 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 5V
RATED CURRENT: 1A
CURRENT RANGE: 0.1 ~ 1A
RATED POWER: 5W
RIPPLE & NOISE (max.)^Note.2: 150mV
INITIAL SET POINT ACCURACY: ±5% @10% ~ 100% load
LINE REGULATION: ±1.5%
LOAD REGULATION: ±3%
CAPACITOR LOAD (Max.): 1500μF

INPUT

VOLTAGE RANGE: 85 ~ 305Vac 100 ~ 430Vdc
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 76%
AC CURRENT (Typ.): 0.2A/115Vac 0.1A/230Vac
INRUSH CURRENT (Typ.): 20A/115Vac 40A/230Vac
NO LOAD POWER CONSUMPTION: <0.15W

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery, Hiccup mode
OVERLOAD: >110% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE (Max.): 9Vdc Protection type : Output voltage clamp

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.^Note.4: -40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +105℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.15% / ℃ max. (0 ~ 85℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note.5)

SAFETY STANDARDS: LVD IEC62368-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVac leakage current <5mA
ISOLATION RESISTANCE: I/P-O/P:1000M Ohms / 500Vdc / 25℃ / 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) Class A without external components
Radiated BS EN/EN55032(CISPR32) Class B with external components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, ±6KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10m/V
EFT/Bursts BS EN/EN61000-4-4 Level 2, ±2KV
Surge BS EN/EN61000-4-5 Level 2, ±1KV Line-Line
Conducted BS EN/EN61000-4-6 Level 3, 10V(e.m.f.)
Voltage Dips and Interruptions BS EN/EN61000-4-11 0%, 70% perf. Criteria B

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	Class A without external components
Radiated	BS EN/EN55032(CISPR32)	Class B with external components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, ±6KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10m/V
EFT/Bursts	BS EN/EN61000-4-4	Level 2, ±2KV
Surge	BS EN/EN61000-4-5	Level 2, ±1KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 3, 10V(e.m.f.)
Voltage Dips and Interruptions	BS EN/EN61000-4-11	0%, 70% perf. Criteria B

OTHERS

MTBF (Typ.): >10000Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 26.4*14.73*11mm (1.039*0.579*0.433 inch)

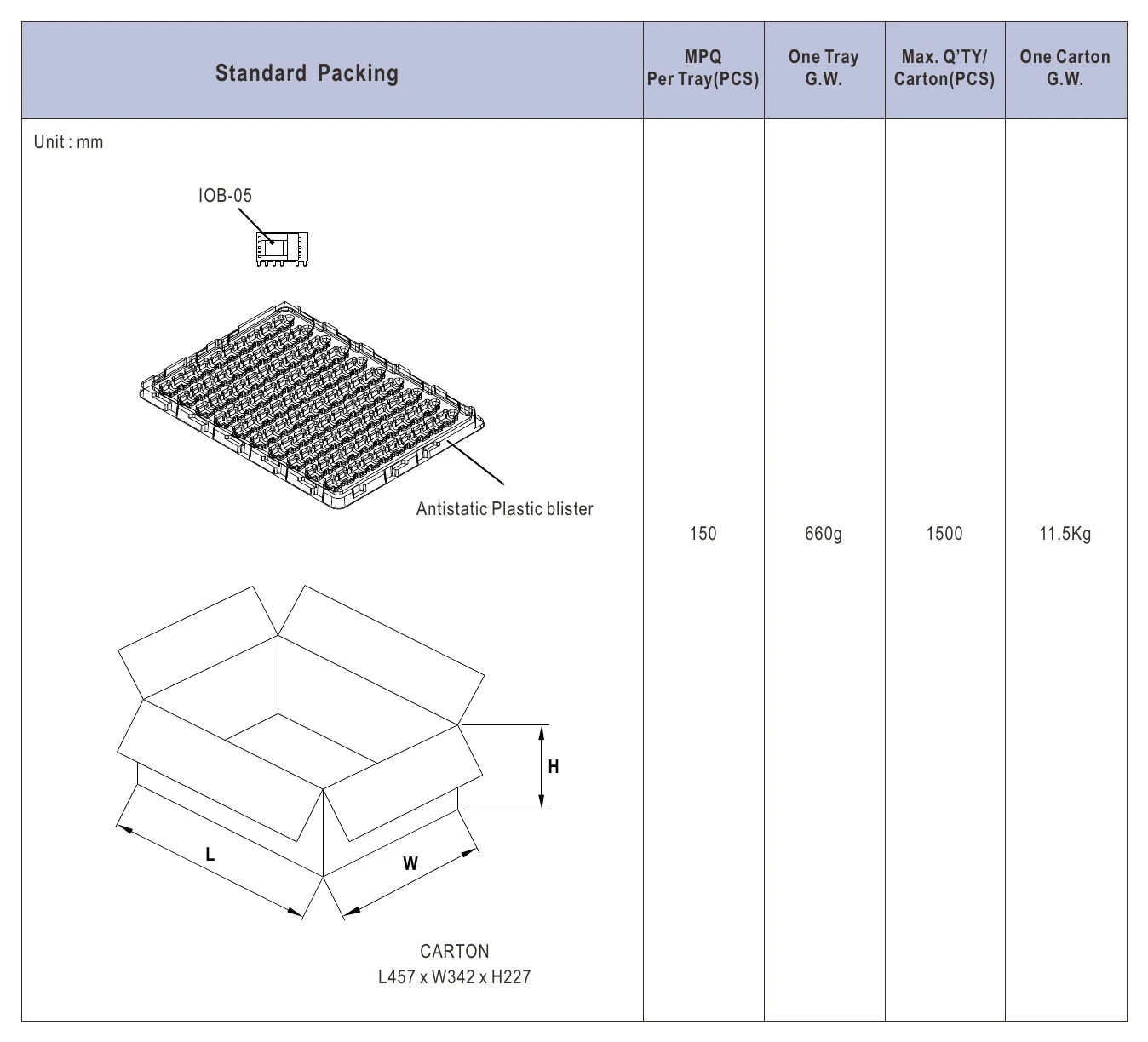

PACKING: 5.45g ; 150pcs/per Tray, 1500pcs/10 Tray/per carton

Test conditions and notes5

1.All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3.Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
4.When starting at a low temperature of -40℃, the output capacitor needs to be equipped with a solid capacitor to meet the load reduction curve requirements.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

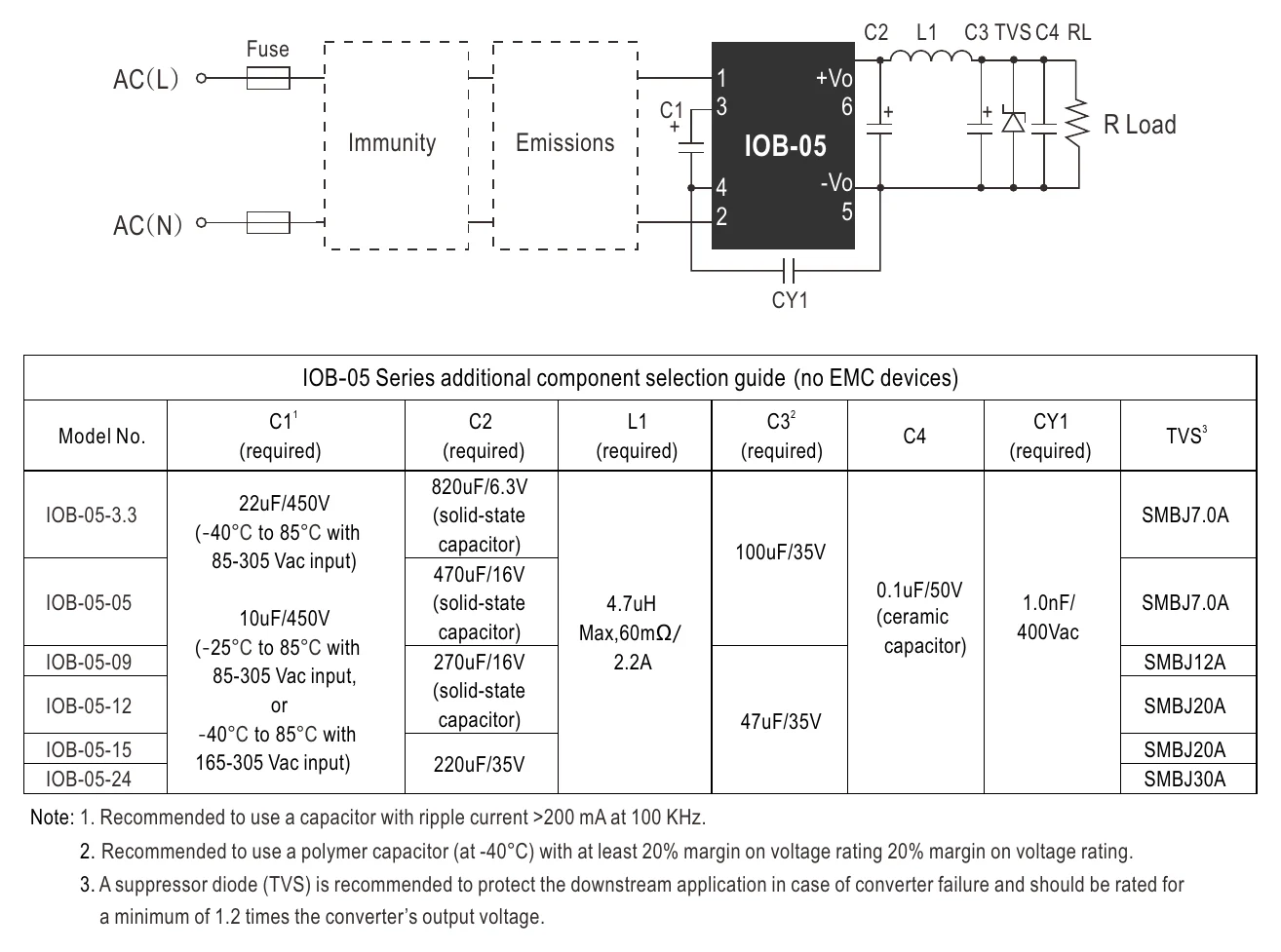

IOB-05-05 Additional Circuit Design Reference — Additional Circuit Design Reference

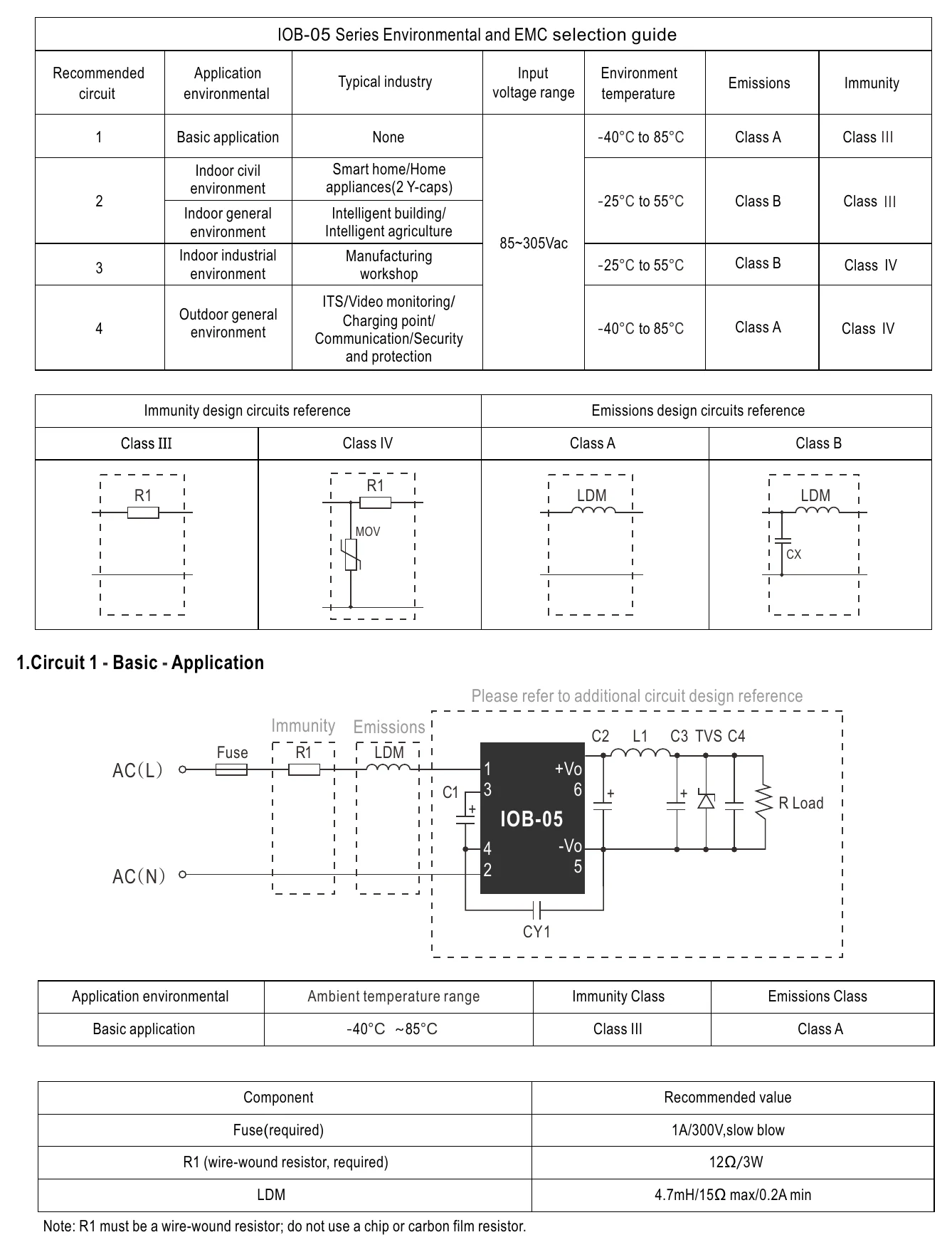

IOB-05-05 Additional EMC Suggestion Circuit — Additional EMC Suggestion Circuit

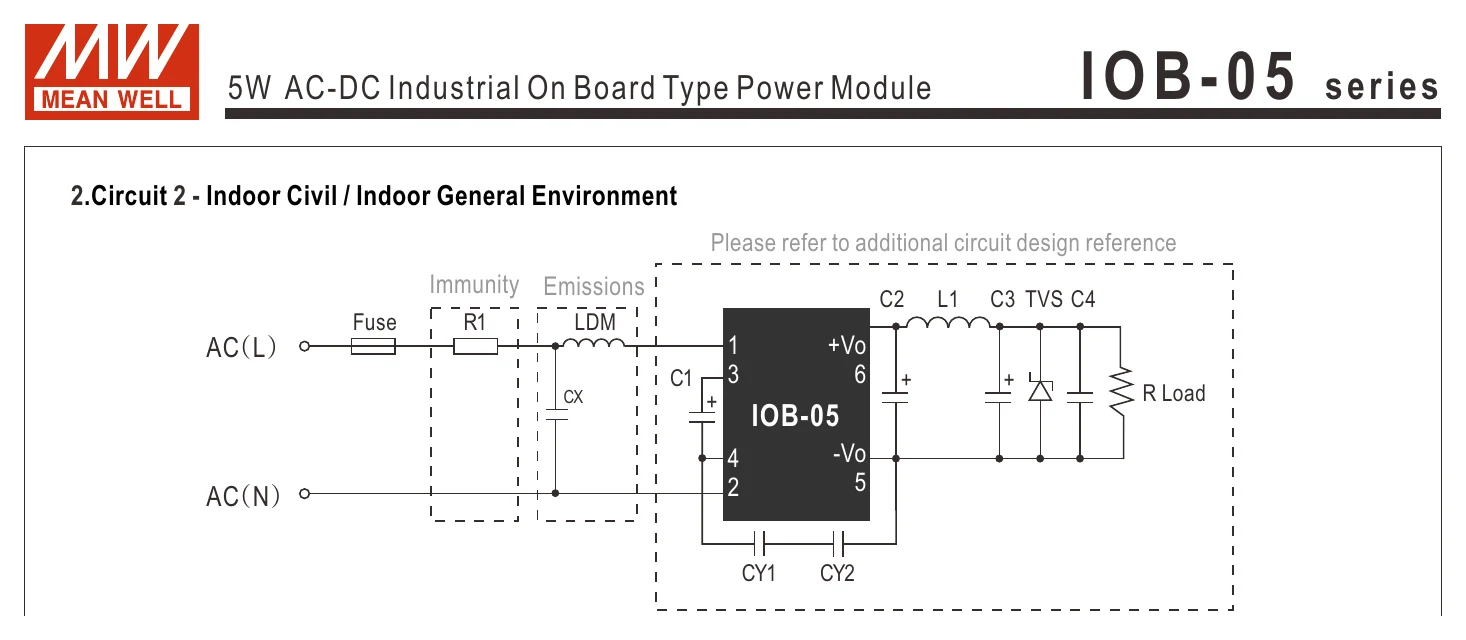

IOB-05-05 I O B - 0 5 series — I O B - 0 5 series

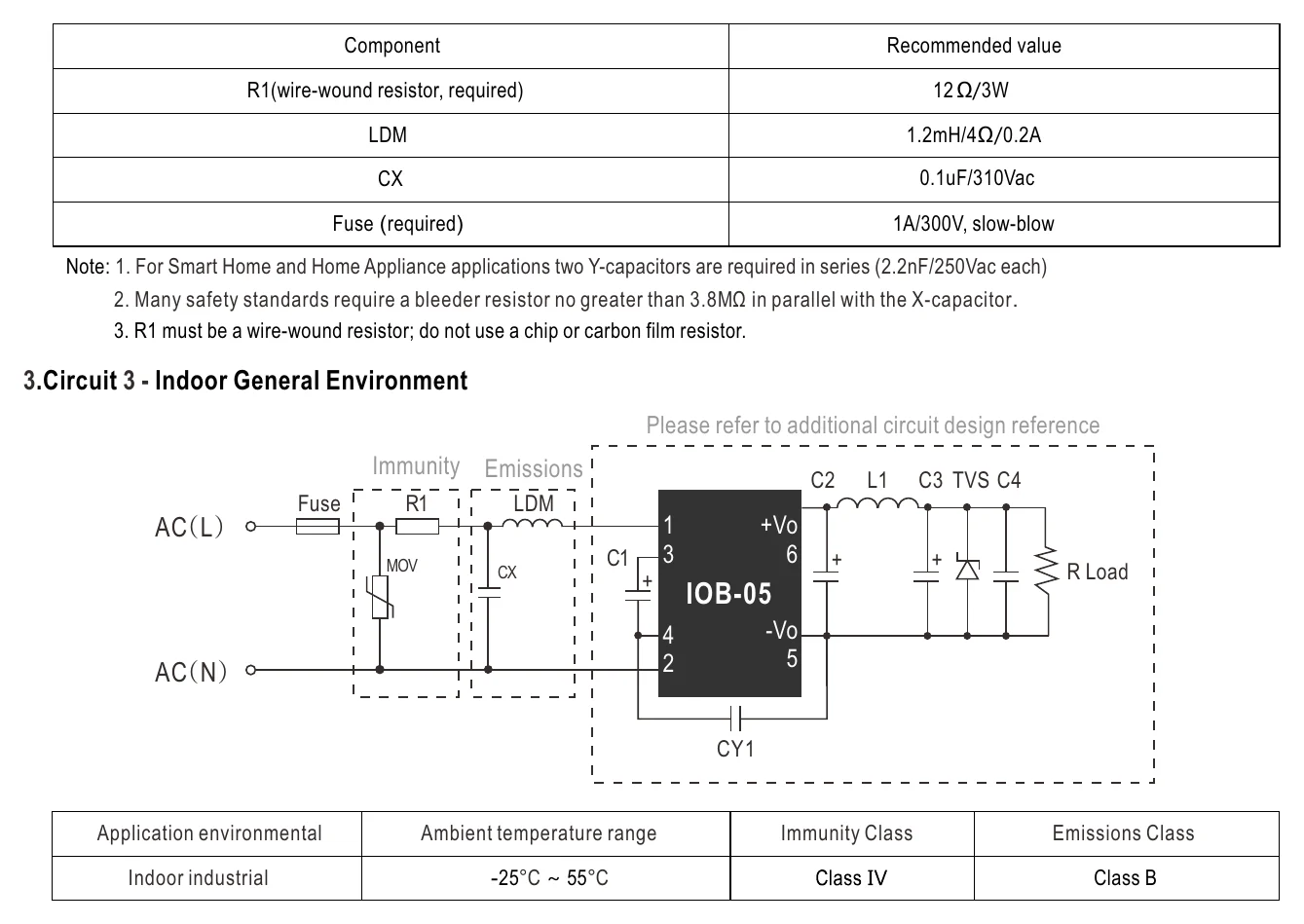

IOB-05-05 3.Circuit 3 - Indoor General Environment — 3.Circuit 3 - Indoor General Environment

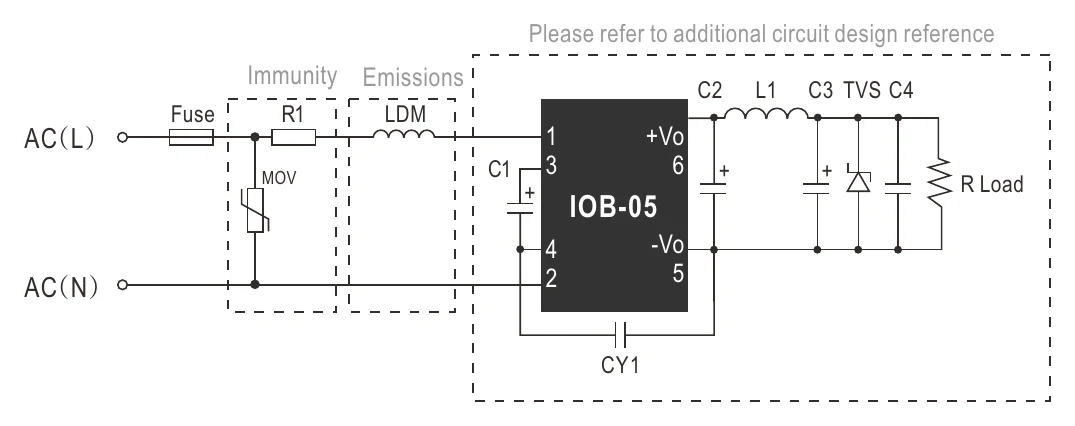

IOB-05-05 Immunity Emissions — Immunity Emissions

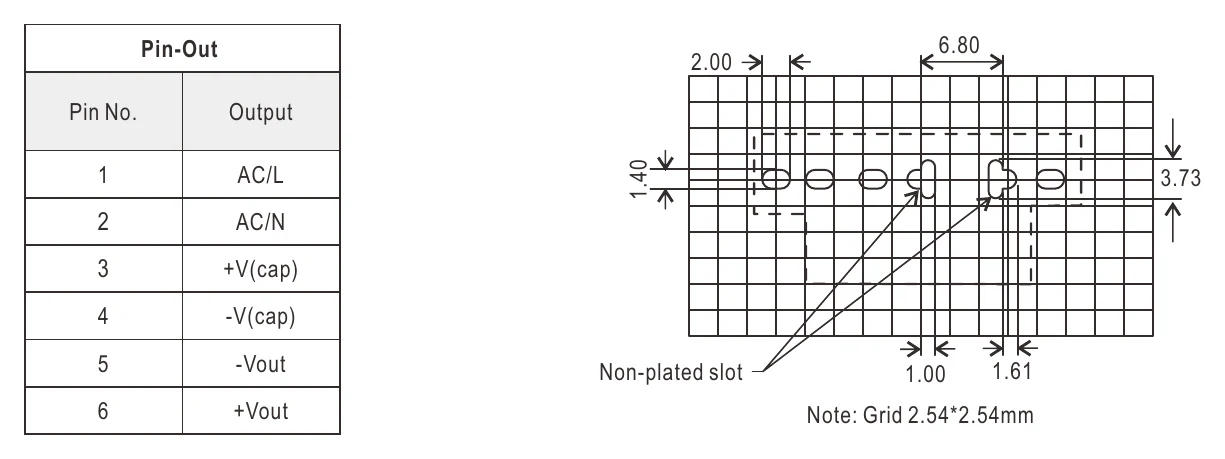

IOB-05-05 Pin Assignment — Pin Assignment

Typical applications

Downloads

Datasheet1

IOB-05-05 datasheetIOB_05_Spec_Sheet.pdf · 2025-09-12 edition PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

What is the Mean Well IOB-05-05 designed for?

The Mean Well IOB-05-05 is a 5W AC-DC on-board power module designed to be assembled directly on a system's main PCB. It provides a regulated 5V output at up to 1A in a compact module format for embedded and space-constrained equipment.

What are the main electrical ratings of the IOB-05-05?

This model is rated for 5W total output power and delivers 5V DC at 1A. It accepts a wide 85 to 305Vac input range, and also supports 100 to 430Vdc input according to the provided specification.

Is the IOB-05-05 suitable for harsh temperature environments?

Yes, the IOB-05-05 is specified for operation from -40C to +85C. That wide operating range makes it relevant for industrial and enclosed equipment designs where ambient conditions can vary significantly.

What protection features are included in the Mean Well IOB-05-05?

The module includes short circuit, overload, and over voltage protection. Short circuit and overload protection use automatic recovery behavior, while over voltage protection is implemented with an output voltage clamp.

How compact is the IOB-05-05 compared with larger enclosed power supplies?

The IOB-05-05 is much smaller than typical enclosed or chassis-style power supplies, with dimensions of 26.4 x 14.73 x 11mm. Its 1 x 0.6 inch class footprint is intended for applications where board space is limited and a low-profile embedded power solution is preferred.

What compliance and operating characteristics matter for OEM buyers evaluating this model?

The IOB-05-05 is listed as Safety Class II and approved to IEC62368-1 under LVD. It also has no-load power consumption below 0.15W and uses free air convection cooling, which can be relevant when selecting modules for efficient compact equipment.
