Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

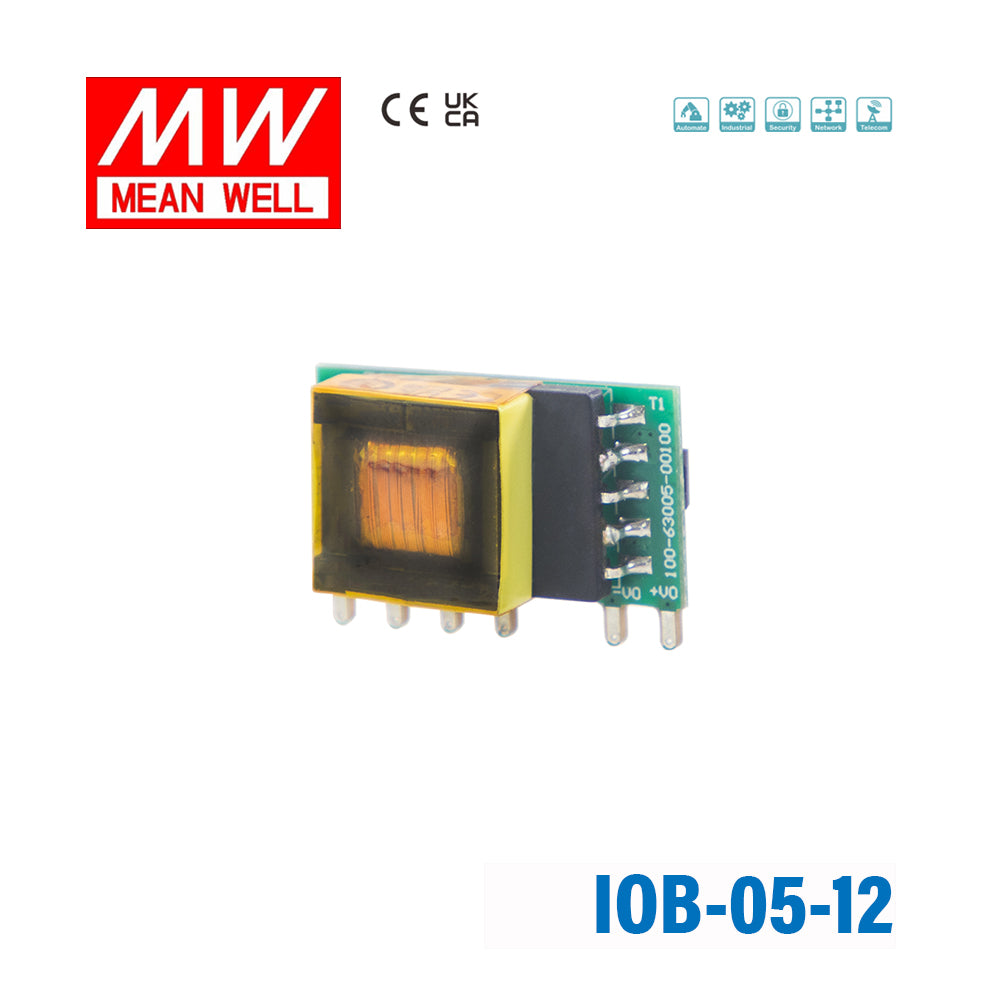

Mean Well IOB-05-12 AC-DC On Board Type Power Module 5.04W 12V 420mA

Q: What is the Mean Well IOB-05-12 used for?

The Mean Well IOB-05-12 is an on-board AC-DC power module designed for compact embedded equipment that needs a regulated 12V output. Its small 1 x 0.6 inch footprint makes it suitable for space-constrained industrial and OEM designs.

Q: What are the main electrical ratings of the IOB-05-12?

This model provides up to 5.04W of output power with a 12V DC output and a rated current of 0.42A. It accepts a wide 85 to 305Vac input range and also supports 100 to 430Vdc input.

Q: Is the IOB-05-12 suitable for wide-temperature environments?

Yes, the IOB-05-12 is rated for operation from -40°C to +85°C. That wide operating range makes it a practical option for equipment exposed to demanding indoor industrial conditions.

Q: What protection features are included in the IOB-05-12?

The module includes short circuit, overload, and over voltage protection. Short circuit and overload protection recover automatically after the fault is removed, using hiccup-mode behavior.

Q: How compact is the Mean Well IOB-05-12?

The IOB-05-12 measures 26.4 x 14.73 x 11 mm, which is approximately 1.039 x 0.579 x 0.433 inches. Its compact size is one of the key reasons buyers choose it for dense PCB-based power designs.

Q: Does the IOB-05-12 support low standby power designs?

Yes, this model has no-load power consumption below 0.15W. That helps support energy-conscious product designs where minimizing standby consumption matters.

Q: What standards and warranty apply to the IOB-05-12?

The IOB-05-12 is approved to LVD IEC62368-1 and is specified as Safety Class II. Mean Well also rates this model with a 3-year warranty.

1"x0.6" compact size, 85~305Vac input, no load power consumption

SKU:

IOB-05-12

Please for Pricing

Notify me when it's back in stock

Description

Key Features

✓Assemble on the main PCB of the system
✓1"x0.6" compact size
✓85~305Vac input (277Vac available)
✓No load power consumption <0.15W
✓-40~85℃ wide operating temperature
✓Protections: Short circuit / Overload / Over voltage
✓Cooling by free air convection
✓Safety Class Ⅱ
✓3 years warrantyGeneral Specification:

Specifications

Brand

Mean Well
Series

Mean Well IOB Series
Power Rating

5.04 Watt
Output Voltage

12 Volt
Rated Current

0.42 Ampere
Input Voltage

85V~305V
Standards Met

CE,EAC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

3 Year
Length

2.64 cm
Width

1.47 cm
Height

1.1 cm
Weight

0.01 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Mean Well IOB-05-12 used for?

The Mean Well IOB-05-12 is an on-board AC-DC power module designed for compact embedded equipment that needs a regulated 12V output. Its small 1 x 0.6 inch footprint makes it suitable for space-constrained industrial and OEM designs.

What are the main electrical ratings of the IOB-05-12?

This model provides up to 5.04W of output power with a 12V DC output and a rated current of 0.42A. It accepts a wide 85 to 305Vac input range and also supports 100 to 430Vdc input.

Is the IOB-05-12 suitable for wide-temperature environments?

Yes, the IOB-05-12 is rated for operation from -40°C to +85°C. That wide operating range makes it a practical option for equipment exposed to demanding indoor industrial conditions.

What protection features are included in the IOB-05-12?

The module includes short circuit, overload, and over voltage protection. Short circuit and overload protection recover automatically after the fault is removed, using hiccup-mode behavior.

How compact is the Mean Well IOB-05-12?

The IOB-05-12 measures 26.4 x 14.73 x 11 mm, which is approximately 1.039 x 0.579 x 0.433 inches. Its compact size is one of the key reasons buyers choose it for dense PCB-based power designs.

Does the IOB-05-12 support low standby power designs?

Yes, this model has no-load power consumption below 0.15W. That helps support energy-conscious product designs where minimizing standby consumption matters.

What standards and warranty apply to the IOB-05-12?

The IOB-05-12 is approved to LVD IEC62368-1 and is specified as Safety Class II. Mean Well also rates this model with a 3-year warranty.

Model	Power	Voltage	Current	IP Rating
Mean Well IOB-05-24 AC-DC On Board Type Power Module 5.04W 24V 210mA	5.04W	24V	0.21A	Indoor	View
Mean Well IOB-05-15 AC-DC On Board Type Power Module 5.1W 15V 340mA	5.1W	15V	0.34A	Indoor	View
Mean Well IOB-05-09 AC-DC On Board Type Power Module 5.04W 9V 560mA	5.04W	9V	0.56A	Indoor	View
Mean Well IOB-05-05 AC-DC On Board Type Power Module 5W 5V 1A	5W	5V	1A	Indoor	View
Mean Well IOB-05-03 AC-DC On Board Type Power Module 3.3W 3.3V 1A	3W	3.3V	1A	Indoor	View
